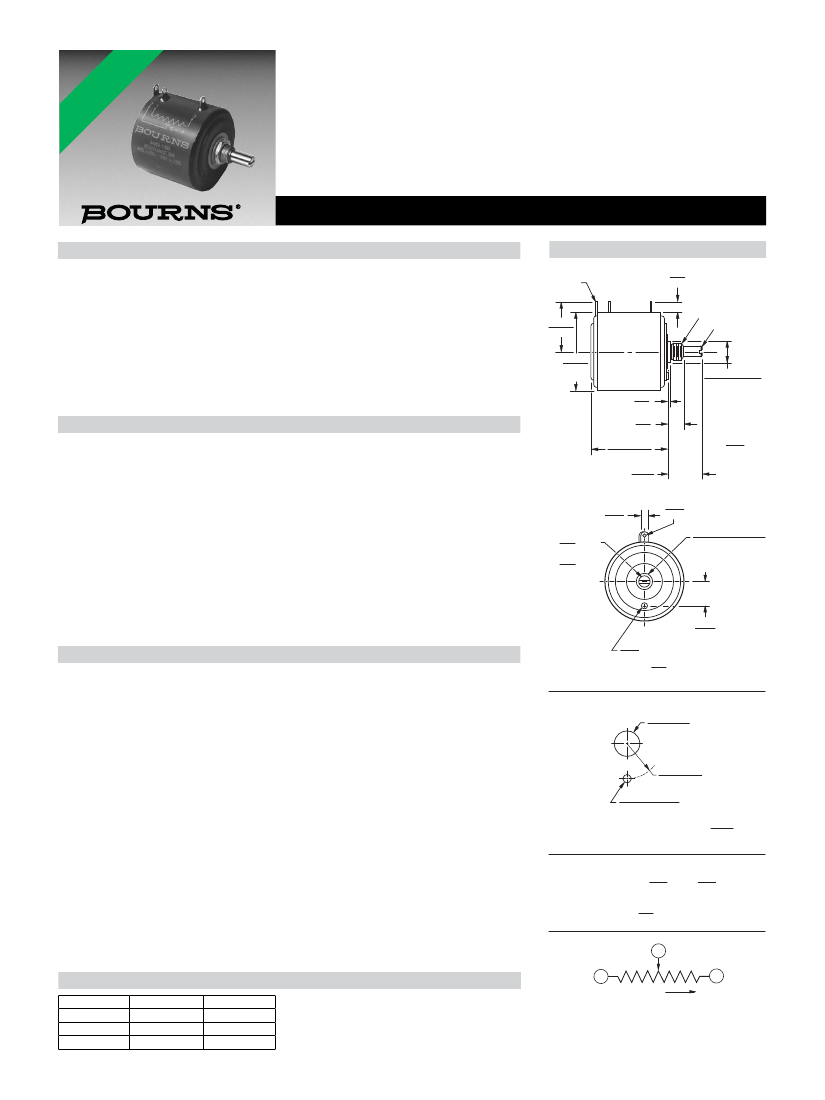

3400 - Precision Potentiometer
Electrical Characteristics
1
Standard Resistance Range......................................................................... 100 to 500 K ohms
Total Resistance Tolerance................................................................................................. ±3 %
Independent Linearity .................................................................................................... ±0.15 %
Effective Electrical Angle ...................................................................................3600 ° +4 °, -0 °
Absolute Minimum Resistance .....................1 ohm or 0.15 % maximum (whichever is greater)
Noise ................................................................................................ 100 ohms ENR maximum
Dielectric Withstanding Voltage ........................................................MIL-STD-202, Method 301
Sea Level ................................................................................................1,000 VAC minimum
80,000 Feet ................................................................................................300 VAC minimum
Power Rating (Voltage Limited By Power Dissipation, or ....................................(40 °C) 5 watts
1,000 VAC, Whichever Is Less) ...................................................................... (125 °C) 0 watt
Insulation Resistance (500 VDC) ...................................................... 1,000 megohms minimum
Resolution.................................................................................See recommended part number
Product Dimensions
WIPER
CCW
29.37
(1-5/32)
1-13/16
(46.04)
DIA.
1.52
(.06)
7.94
5/16
44.45
±
.79
(1-3/4
±
1/32)
6.35
(1/4)
CW
3/8 "-32 2A THD UNEF
45
°
X .25
CHAMFER
10.32 + .00/ - .05
(.4062 + .000/ -.002)
PILOT DIA.
Environmental Characteristics
1
Operating Temperature Range ........................................................................ +1 °C to +125 °C
Storage Temperature Range .......................................................................... -65 °C to +125 °C
Temperature Coefficient Over Storage Temperature Range
2
......... ±20 ppm/°C maximum/unit
Vibration ..............................................................................................................................10 G
Wiper Bounce ................................................................................. 0.1 millisecond maximum
Total Resistance Shift .....................................................................................±2 % maximum
Voltage Ratio Shift .......................................................................................±0.1 % maximum
Shock...................................................................................................................................50 G
Wiper Bounce ................................................................................. 0.1 millisecond maximum
Total Resistance Shift .....................................................................................±2 % maximum
Voltage Ratio Shift .......................................................................................±0.1 % maximum
Load Life ..................................................................................................... 1,000 hours, 5 watts
Total Resistance Shift .....................................................................................±2 % maximum
Rotational Life (No Load).............................................................. 2,000,000 shaft revolutions
2
Total Resistance Shift .....................................................................................±5 % maximum
Moisture Resistance (MIL-STD-202, Method 103, Condition B)
Total Resistance Shift .....................................................................................±2 % maximum
IP Rating ............................................................................................................................. IP 40
20.64
(13/16)
39.4
FOR
(1.55)
ADDITIONAL CUP
ADD
1.02
WIDE
(.04)
SLOT
1.02
X
DEEP
(.04)
4.76
(3/16)
TYP.
2.36
DIA. TYP.
(.093)
6.34 + .00/ - .01
(.2497 + .0000/ - .0003)
SHAFT DIA.
14.3
(9/16)
3.18
DIA. ANTI-ROTATION PIN
(.125)
1.02
PAST MOUNTING SURFACE
EXTENDS
(.04)
Mechanical Characteristics
1
Stop Strength.......................................................................................53 N-cm (75 oz.-in.) min.
Mechanical Angle .................................................................................................3600° +4°, -0°
Torque (Starting & Running) ...........................................................0.35 N-cm (0.5 oz.-in.) max.
Mounting .................................................................................... 170-200 N-cm (15-18 lb.-in.)
Shaft Runout.......................................................................................0.08 mm (0.003 in.) T.I.R.
Lateral Runout .................................................................................... 0.13 mm (0.005 in.) T.I.R.
Shaft End Play .................................................................................... 0.25 mm (0.010 in.) T.I.R.
Shaft Radial Play ................................................................................ 0.08 mm (0.003 in.) T.I.R.
Pilot Diameter Runout ........................................................................ 0.08 mm (0.003 in.) T.I.R.
Backlash ............................................................................................................. 1.0 ° maximum
Weight .......................................................................................................Approximately 21 gm
Terminals ............................................................................................... Gold-plated solder lugs
Soldering Condition
Manual Soldering................................................. 96.5Sn/3.0Ag/0.5Cu solid wire or no-clean
rosin cored wire; 370 °C (700 °F) max. for 3 seconds
Wave Soldering ............96.5Sn/3.0Ag/0.5Cu solder with no-clean flux; 260 °C (500 °F) max.
for 5 seconds
Wash processes ........................................................................................Not recommended
Marking ....................................... Manufacturer’s name and part number, resistance value and
tolerance, linearity tolerance, wiring diagram, and date code.
Ganging (Multiple Section Pots.) ..................................................................... 2 cups maximum
Hardware .......................................... One lockwasher (H-37-2) and one mounting nut (H-38-2)
is shipped with each potentiometer.
1 At room ambient: +25 °C nominal and 50 % relative humidity nominal, except as noted.
2 Consult manufacturer for complete specification details for resistances below 500 ohms and above
100K ohms.
RECOMMENDED PANEL LAYOUT
10.41 ± .08
DIA.
(.410 ± .003)
14.30 ± .05
R
(.563 ± .002)
3.35 +.08/-.03
DIA.
(.132 +.003/-.001)
2.46
RECOMMENDED PCB THICKNESS:
(.097)
MOUNTING TORQUE: 15-18 LB.-IN.
TOLERANCES: EXCEPT WHERE NOTED
.25
.13
DECIMALS: .XX
±
.XXX
±
(.010),
(.005)
FRACTIONS:
±1/64
MM
DIMENSIONS:
( IN.)
2
CCW
WIPER
Recommended Part Numbers
Part Number
Resistance (Ω)
Resolution (%)
1
CLOCKWISE
3
CW
3400S-1-102L
3400S-1-502L
3400S-1-103L
1,000
5,000
10,000
.020
.013
.010
BOLDFACE
LISTINGS ARE IN STOCK AND READILY AVAILABLE
THROUGH DISTRIBUTION.
