0002065108

Description
Pin & Socket Connectors .062" PIN&SOCKET 18-24 AWG FE
CategoryThe connector    Connector bracket
File Size22KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

0002065108 Online Shopping

Suppliers Part Number Price MOQ In stock
0002065108 - - View Buy Now

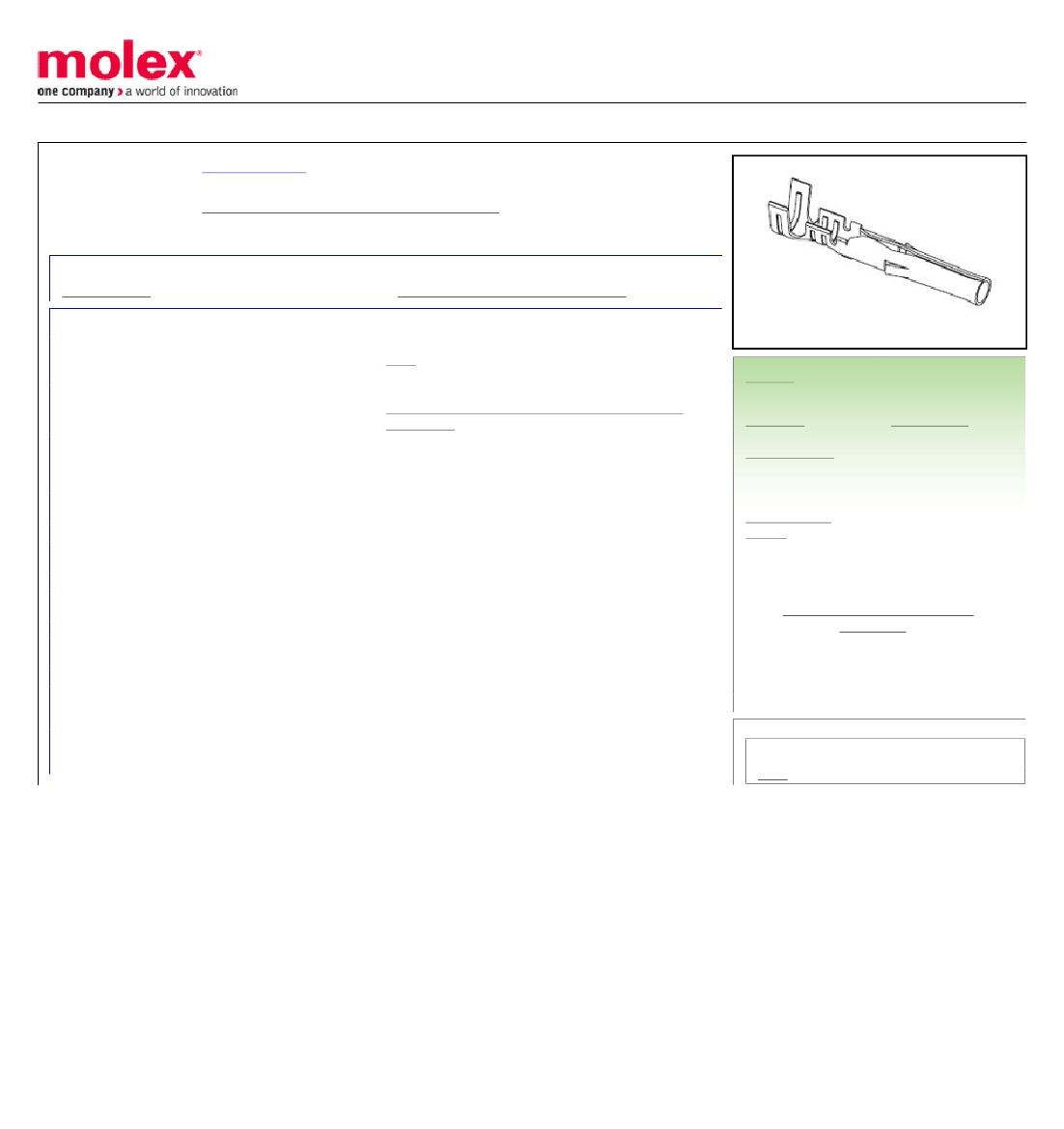

0002065108 Overview

Pin & Socket Connectors .062" PIN&SOCKET 18-24 AWG FE

0002065108 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
package instructionHALOGEN FREE AND ROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Is SamacsysN
Assembly nameCONTACT
Maximum number of cable entries0.12 inch
Minimum cable entry0.06 inch
Connector bracket typeCONNECTOR ACCESSORY
Contact point genderFEMALE
Contact styleCOMPRESSION
DIN complianceNO
Finished thickness30
IEC complianceNO
MIL complianceNO
MaterialBRASS
Terminal typeCRIMP
Maximum wire diameter24 AWG
Minimum wire diameter18 AWG
Base Number Matches1
This document was generated on 02/05/2018
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0002065108
Active
Standard .062" Pin and Socket Power Connectors
1.57mm Diameter, Standard .062" Pin and Socket Crimp Terminal, Female, with
Selective Gold (Au) Plated Brass Contact, 18-24 AWG, Reel
Documents:
Drawing (PDF)
General
Product Family
Series
Application
Crimp Quality Equipment
Overview
Packaging Alternative
Product Name
UPC
Physical
Gender
Material - Metal
Material - Plating Mating
Material - Plating Termination
Net Weight
Packaging Type
Plating min - Mating
Plating min - Termination
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Material Info
Engineering Number
Reference - Drawing Numbers
Sales Drawing
RoHS Certificate of Compliance (PDF)
Crimp Terminals
1561
Power
Yes
Standard .062" Pin and Socket Power Connectors
02-06-5109 (Loose)
Standard .062"
800753615755
Female
Brass
Gold
Tin
0.080/g
Reel
0.762µm
2.540µm
Crimp or Compression
1.52-3.05mm
18, 20, 22, 24
N/A
1561-(P563)
SD-1561-*
Series image - Reference only
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per -
ED/30/2017 (7 July
2017)
Halogen-Free
Status
Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Not Relevant
Not Contained
Search Parts in this Series
1561 Series
This document was generated on 02/05/2018
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
