800B

Description
PUSHBUTTON SWITCH, SPST, MOMENTARY, 0.02A, 20VDC, SURFACE MOUNT-RIGHT ANGLE
Categoryunclassified
File Size161KB,1 Pages
ManufacturerE-Switch
Websitehttp://www.e-switch.com
Download Datasheet Parametric View All

800B Overview

PUSHBUTTON SWITCH, SPST, MOMENTARY, 0.02A, 20VDC, SURFACE MOUNT-RIGHT ANGLE

800B Parametric

Parameter NameAttribute value
Maximum DC contact current0.0200 A
Maximum DC contact voltage20 V
Maximum operating temperature85 Cel
Minimum operating temperature-30 Cel
Maximum AC contact current0.0200 A
Maximum AC contact voltage20 V
stateCONSULT MFR
sealEPOXY TERMINAL SEALED
Electrical life50000 Cycle(s)
switch functionSPST
terminal coatingGOLD
Manufacturer Series800B
Control valvePLUNGER
width8.13 mm
high5.08 mm
length or diameter9.11 mm
Installation featuresSURFACE MOUNT-RIGHT ANGLE
Switch actionMOMENTARY
Switch typePUSHBUTTON SWITCH
Terminal typeSOLDER

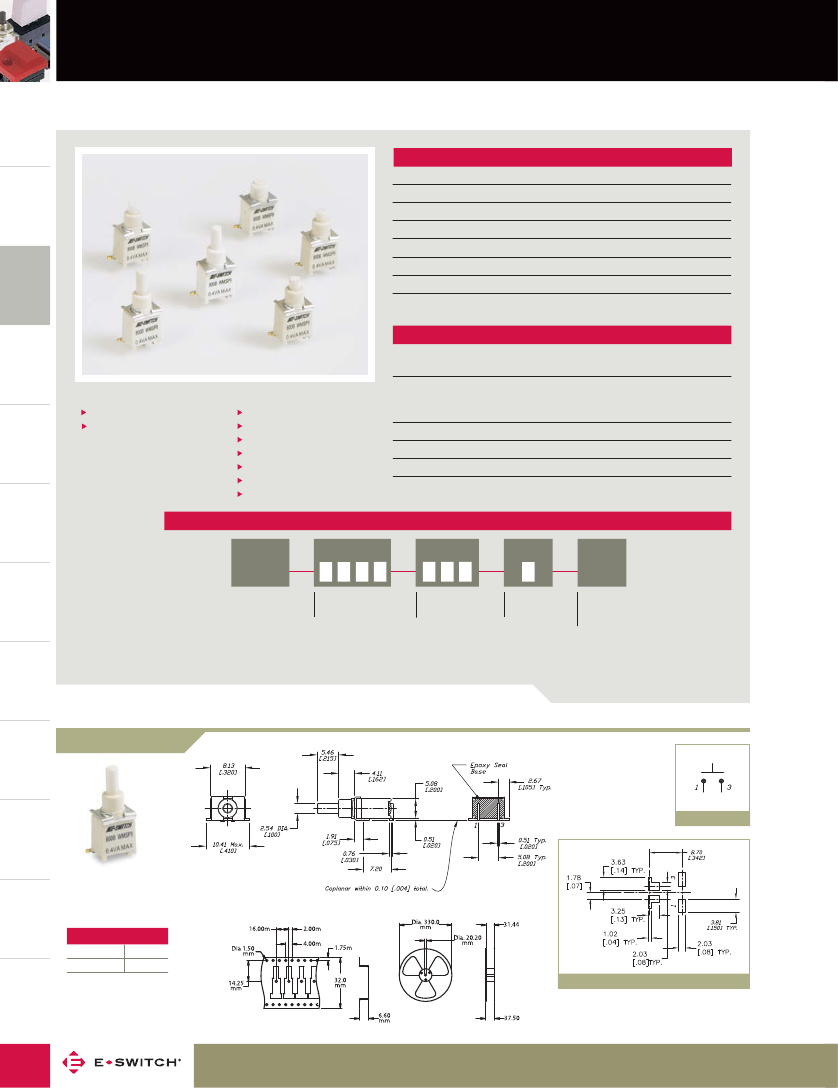

SERIES 800B SWITCHES
TACT
SWITCHES
PUSHBUTTON SWITCHES - SUB-MINIATURE
SPECIFICATIONS
NAVIGATION
SWITCHES
Contact Rating:
Life Expectancy:
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
0.4 VA max. @ 20 VAC or DC max. (gold)
50,000 make-and-break cycles at full load
20 mΩ typical initial @ 2-4 VDC, 100 mA
1,000 MΩ min.
1,000 V RMS @ sea level
Tape & Reel
PUSHBUTTON
SWITCHES
Operating Temperature: -30°C to 85°C
Packaging:
TOGGLE
SWITCHES
MATERIALS
Case & Bushing:
Plunger:
High temperature material, glass filled 4/6 Nylon,
flame retardant, heat stabilized (UL94-V0)
High temperature material, glass filled Nylon 4/6,
flame retardant, heat stabilized (UL94-V0) Internal
O-Ring seal standard.
Brass/Steel, tin or tin-lead plated.
Epoxy
FEATURES & BENEFITS
ROCKER
SWITCHES
Surface mount design
Tape & reel packaging
APPLICATIONS/MARKETS
Telecommunications
Networking
Computers/servers
Performance audio
Instrumentation
Low power on/off designs
External hard drives and modems
Switch Support:
Terminal Seal:
Contacts/Terminals: Gold plate over nickel plated copper alloy.
SLIDE
SWITCHES
HOW TO ORDER
SERIES
MODEL NO.
TERMINATION
CONTACT
MATERIAL
SEAL
SNAP-ACTION
SWITCHES
800 B
WSP8
WSP9
SM6
R = Gold
E
E = Epoxy
Sealed at
Base
Example Ordering Number
800B_ WSP9_ SM6_ R_ E
Specifications subject to change without notice
1.8.2018
DIP
SWITCHES
KEYLOCK
SWITCHES
WSP9
DETECTOR
SWITCHES
ROTARY
SWITCHES
SCHEMATIC
Model No.
WSP8
WSP9
Type
SPDT
SPST
P.C. MOUNTING
CAP
OPTIONS
80
Phone: 800-867-2717
Fax: 763-531-8235
