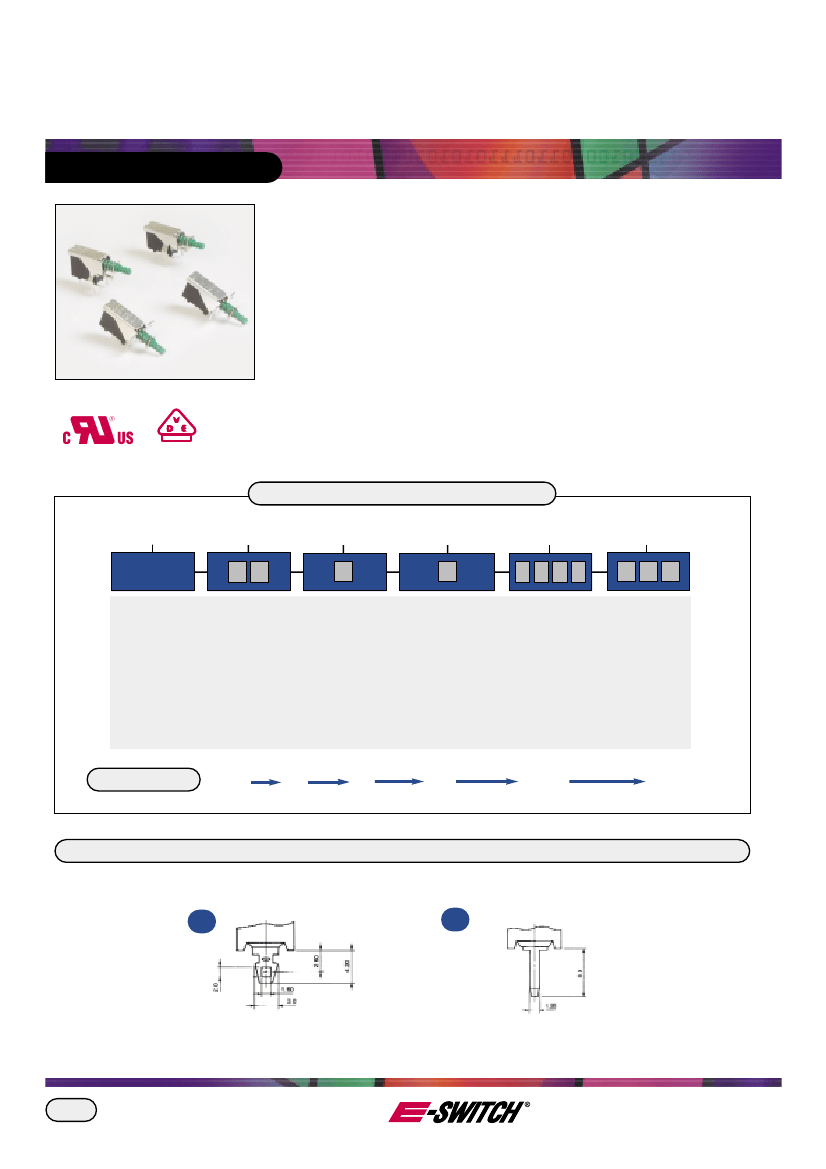

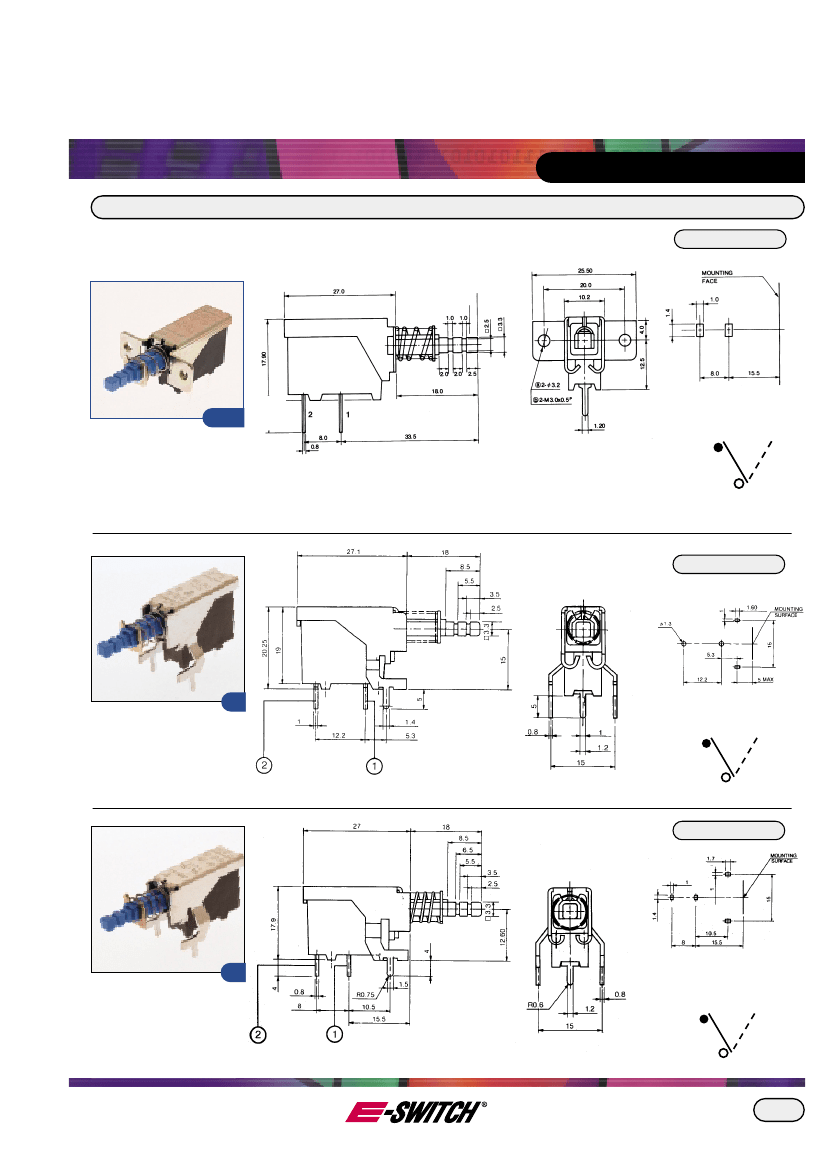

S E R I E S
P197
POWER PUSHBUTTON SERIES
SWITCHES
SPECIFICATIONS
Rating:
10A @ 125 VAC - UL, CUL
5A @ 250 VAC - UL, CUL, VDE
TV-5 @ 125 VAC - UL, CUL
In Rush, 80A @ 250 VAC - VDE
10,000 cycles
100mΩ max. typical; initial @ 2-4 VDC
> 1,500 volts 1 minute
> 3,000 volts between poles
300 ±100 gram force
Electrical Life:
Contact Resistance:
Dielectric Strength:
Operating Force:
MATERIALS
Housing:
Actuator:
Bracket:
Contacts:
Terminals:
6/6 Nylon
Acetal
Tin plated steel
Silver plated copper alloy
Silver plated copper alloy
HOW TO ORDER
Series
Mechanical
Configuration
Termination
Bracket Type
Cap
Cap Color
P197
EE=Latching
OA=
Momentary
S=Solder Lug
P=PC Pin
A=2-Ø3.2
Non-Threaded
Panel Mount
B=2-M3.0 x 0.5
Threaded Panel Mt.
C=12.2mm PC Mt.
D=8mm PC Mt.
NOTE: Also available in 2 pole version. Contact E - Switch for more information.
P
See Cap Options
EXAMPLE
P197
EE
P
B
TA12
BLU
TERMINATION OPTIONS
S
P
72
Phone: 763-504-3525
Fax: 763-531-8235
www.e -switch.com
info@e-switch.com
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
S E R I E S
P197
S W I T C H E S
POWER PUSHBUTTON SWITCHES
BRACKET OPTIONS
P.C. MOUNTING
A/B
A = 2 - Ø3.2 (Non-Threaded)
B = 2 - M3.0 x 0.5P (Threaded)
Schematic
1
2
P.C. MOUNTING
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
C
C = 12.2 mm P.C. Pin
Spacing (measured from
terminal 2 to terminal 1)
Schematic
2
1
P.C. MOUNTING
D
D = 8 mm P.C. Pin Spacing
(measured from terminal 2
to terminal 1)
Schematic
2
1
