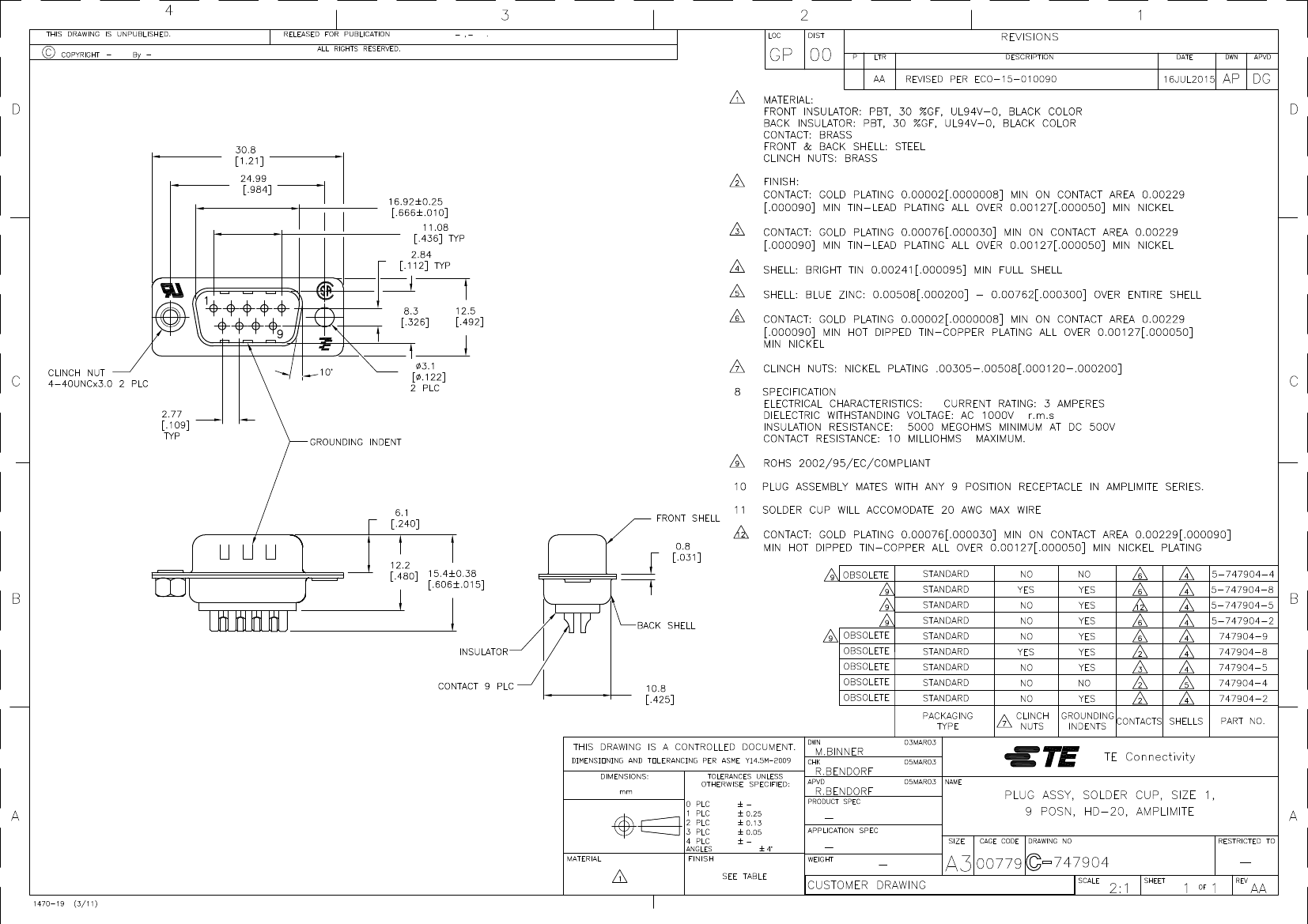

9 Plug Solder Cup, G/F w/ CN,
| Parameter Name | Attribute value |
| Housing type | All metal casing |
| Connector type | plug |
| Connector System | cable to board |
| Housing size | 1 |
| shield | yes |
| Sealable | no |
| Connectors and terminals terminate to | A printed circuit board |
| ground dent | with |
| grade | standard |
| Number of Positions | 9 |
| Pre-installed | yes |
| Shell plating material | tin |
| Pin material | thermoplastic |
| color | black |
| Shell material | steel |
| Terminal base material | Phosphor bronze |
| PCB terminal termination area plating materials | Tinned copper |
| Terminal configuration | solder cup |
| Terminal base material | nickel |
| Terminal size | 20 |
| Contact Current Rating (Max) (A) | 3 |
| Terminal contact plating material | Thin gold plating |
| Terminal Contact Plating Thickness (µin) | .8 |
| Terminal type | Pin |
| Cable termination method | welding |
| PCB mounting fixation type | none |
| Engage connector latch | with |
| Mating connector latch type | Clamp Nut, 4-40 UNC |
| Connector mounting type | board mounting |
| installation angle | Straight |
| shell | Without |
| Centerline (Pitch) | 2.77 mm [ .11 in ] |
| Wire diameter range | .5 – .6 mm² [ 20 AWG ] |
| Working group temperature range | -55 – 105 °C [ -67 – 221 °F ] |
| Circuit Application | Signal |
| UL flammability rating | UL 94V-0 |
| Pin flammability rating | UL 94V-0 |
| Encapsulation method | tray |
