85513-0001 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 85513-0001

85513-0001: DescriptionModular Connectors / Ethernet Connectors VERT SMT 8/8 RJ45 low profile; CategoryThe connector The connector; File Size34KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

85513-0001 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	85513-0001	-	-	View	Buy Now

85513-0001 Overview

Modular Connectors / Ethernet Connectors VERT SMT 8/8 RJ45 low profile

85513-0001 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOW PROFILE, TOP ENTRY
Board mount options	SOLDER HOLDING FLANGE
body width	0.594 inch
subject depth	0.5 inch
body length	0.6 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (50) OVER NICKEL
Contact completed and terminated	TIN (75) OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	POLYAMIDE46
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of ports	1
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	50u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Shell material	POLYAMIDE46
Terminal length
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	8
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

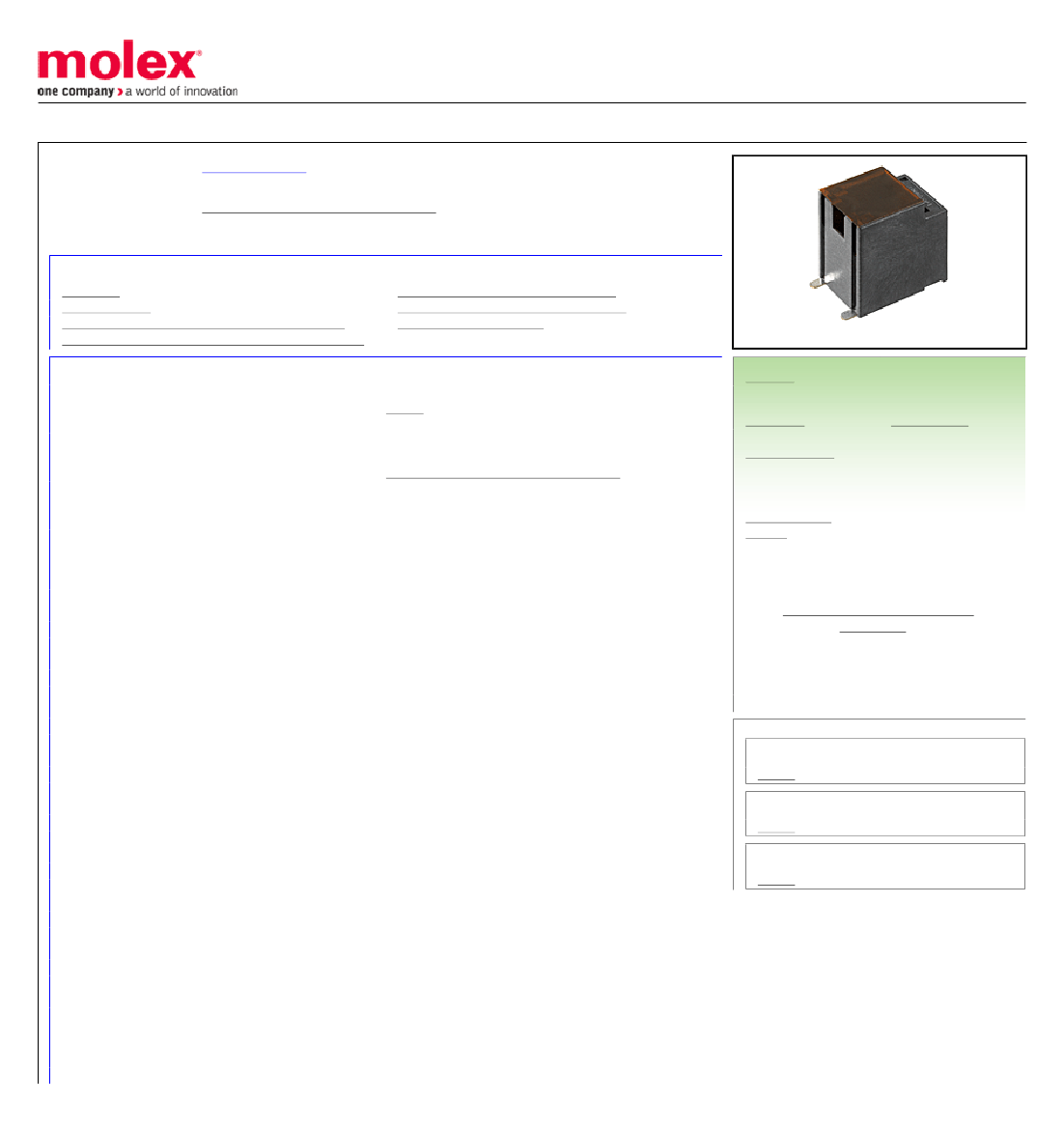

This document was generated on 03/01/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0855135114

Active

Magnetic and Modular Jacks and Plugs

Modular Jack, Vertical, Top Entry, Surface Mount, 6/6, Low Profile, Pick-and-Place

Polyimide Tape, 13" Reel

Documents:

3D Model

Drawing (PDF)

Product Specification PS-85513-002-001 (PDF)

Application Specification AS-85513-001-001 (PDF)

General

Product Family

Series

Comments

Component Type

Magnetic

Overview

Performance Category

Power over Ethernet (PoE)

Product Literature Order No

Product Name

UPC

Physical

Boot Color

Color - Resin

Durability (mating cycles max)

Inverted / Top Latch

Jack Height

Lightpipes/LEDs

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Ports

Positions / Loaded Contacts

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Waterproof / Dustproof

Wire/Cable Type

Electrical

Current - Maximum per Contact

Shielded

Voltage - Maximum

Test Summary STR-1425-001 (PDF)

RoHS Certificate of Compliance (PDF)

Product Literature (PDF)

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2018 (15

January 2018)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Modular Jacks/Plugs

85513

Reflow Capable, Small Panel Cutout

PCB Jack

Magnetic and Modular Jacks and Plugs

N/A

987650-8441

Modular Jack 6/6

887191677651

N/A

Black

2500

12.70mm

None

Copper Alloy

Gold over Palladium Nickel

Tin

High Temperature Thermoplastic

2.258/g

Vertical (Top Entry)

Yes

Embossed Tape on Reel

1.02mm

1.27mm

0.051µm, 1.016µm

1.905µm

6/6

Yes

-40°C to +85°C

Surface Mount

N/A

1.5A

125V DC

Search Parts in this Series

85513 Series

Mates With

90075 Modular Plug

Use With

90075 Modular Plugs

85513-0001 Related Products

	85513-0001	0855135114	85513-5114
Description	Modular Connectors / Ethernet Connectors VERT SMT 8/8 RJ45 low profile	Modular Connectors / Ethernet Connectors MDJCK 6/6 VT LOPRO SMT	Modular Connectors / Ethernet Connectors JACK T/ENTRY SHORT TRUE SMT 6/6 P&P
Is it Rohs certified?	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant
Other features	LOW PROFILE, TOP ENTRY	STANDARD: RJ12	LATCHED
Body/casing type	JACK	JACK	JACK
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (50) OVER NICKEL	NOT SPECIFIED	GOLD
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	NOT SPECIFIED	COPPER ALLOY
DIN compliance	NO	NO	NO
empty shell	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
MIL compliance	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	POLYAMIDE46	POLYETHYLENE	POLYETHYLENE
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	8	6	6
Contact completed and terminated	TIN (75) OVER NICKEL	-	TIN
JESD-609 code	e3	-	e3
package instruction	-	LOW HALOGEN, ROHS AND REACH COMPLIANT	LOW HALOGEN AND ROHS COMPLIANT
Is Samacsys	-	N	N
Base Number Matches	-	1	1
