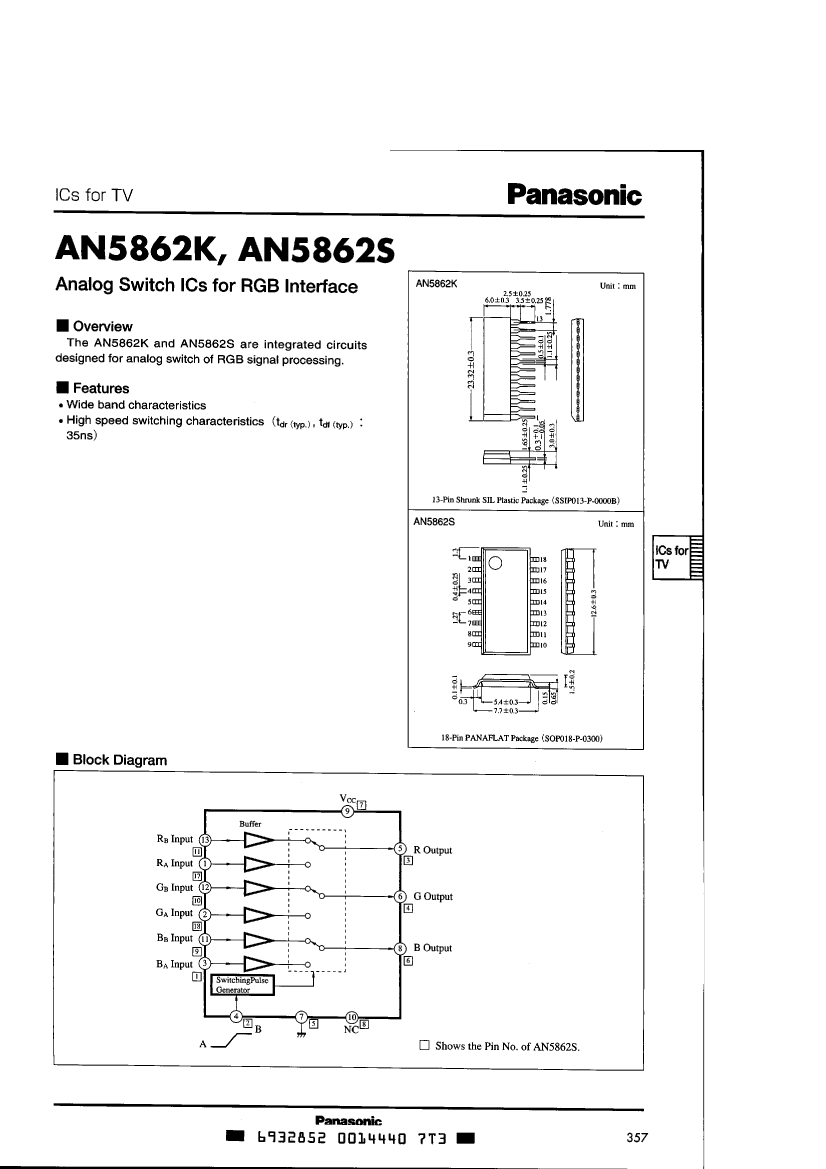

AN5862K Overview

ANALOG SWITCH ICS FOR RGB INTERFACE

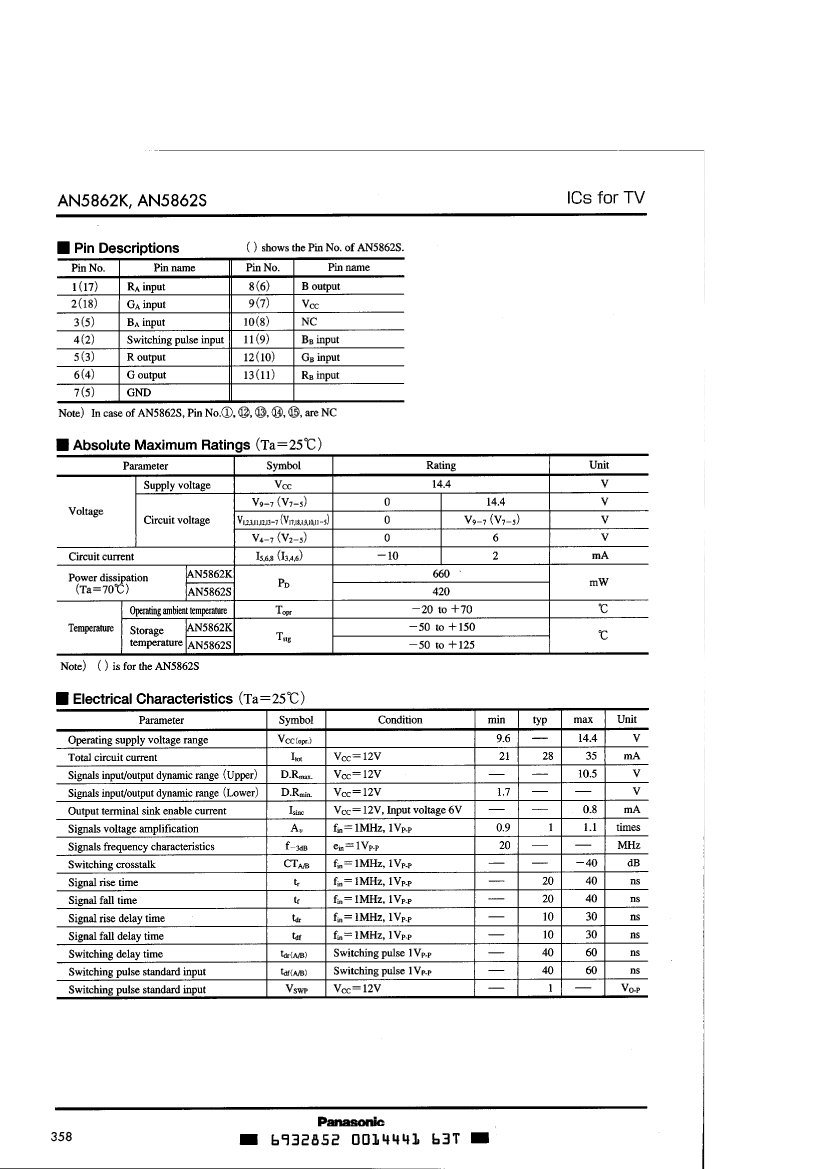

Parameter Name	Attribute value
Parts packaging code	SIP
package instruction	SIP, SIP13,.05,70
Contacts	13
Reach Compliance Code	unknow
Analog Integrated Circuits - Other Types	ANALOG CIRCUIT
JESD-30 code	R-PSIP-T13
length	23.32 mm
Number of functions	1
Number of terminals	13
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
output	SEPARATE OUTPUT
Package body material	PLASTIC/EPOXY
encapsulated code	SIP
Encapsulate equivalent code	SIP13,.05,70
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	12 V
Certification status	Not Qualified
Maximum seat height	9.05 mm
Nominal supply voltage (Vsup)	12 V
surface mount	NO
Maximum connection time	70 ns
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	1.778 mm
Terminal location	SINGLE
width	3 mm
Base Number Matches	1

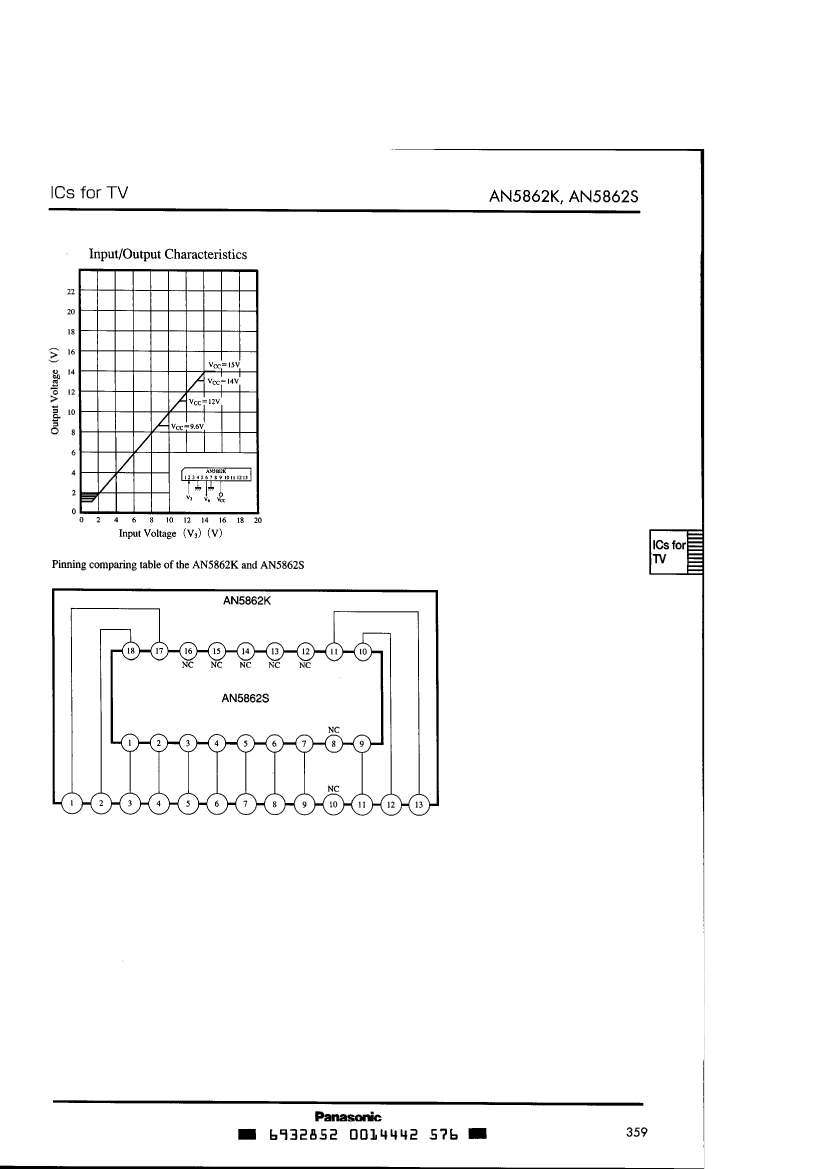

	AN5862K	AN5862S
Description	ANALOG SWITCH ICS FOR RGB INTERFACE	ANALOG SWITCH ICS FOR RGB INTERFACE
Parts packaging code	SIP	SOIC
package instruction	SIP, SIP13,.05,70	SOP, SOP18,.3
Contacts	13	18
Reach Compliance Code	unknow	unknow
Analog Integrated Circuits - Other Types	ANALOG CIRCUIT	ANALOG CIRCUIT
JESD-30 code	R-PSIP-T13	R-PDSO-G18
length	23.32 mm	12.6 mm
Number of functions	1	1
Number of terminals	13	18
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C
output	SEPARATE OUTPUT	SEPARATE OUTPUT
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SIP	SOP
Encapsulate equivalent code	SIP13,.05,70	SOP18,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE
power supply	12 V	12 V
Certification status	Not Qualified	Not Qualified
Maximum seat height	9.05 mm	1.85 mm
Nominal supply voltage (Vsup)	12 V	12 V
surface mount	NO	YES
Maximum connection time	70 ns	70 ns
technology	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	GULL WING
Terminal pitch	1.778 mm	1.27 mm
Terminal location	SINGLE	DUAL
width	3 mm	5.4 mm
Base Number Matches	1	1
