52011-1210

Description
Headers & Wire Housings 2.5 WIRE TRAP VER 12 push cover style
CategoryThe connector    The connector
File Size30KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

52011-1210 Online Shopping

Suppliers Part Number Price MOQ In stock
52011-1210 - - View Buy Now

52011-1210 Overview

Headers & Wire Housings 2.5 WIRE TRAP VER 12 push cover style

52011-1210 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresPUSH-COVER STYLE
body width0.276 inch
subject depth0.394 inch
body length1.303 inch
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance20 mΩ
DIN complianceNO
Dielectric withstand voltage1000VAC V
Filter functionNO
IEC complianceNO
Insulation resistance1000000000 Ω
insulator materialGLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL complianceNO
Plug contact pitch0.098 inch
Plug informationRIBBON CABLE
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.126 inch
Terminal pitch2.5 mm
Termination typeWIRE TRAP
Total number of contacts12
UL Flammability Code94V-0
This document was generated on 01/18/2013
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
Documents:
3D Model
Drawing (PDF)

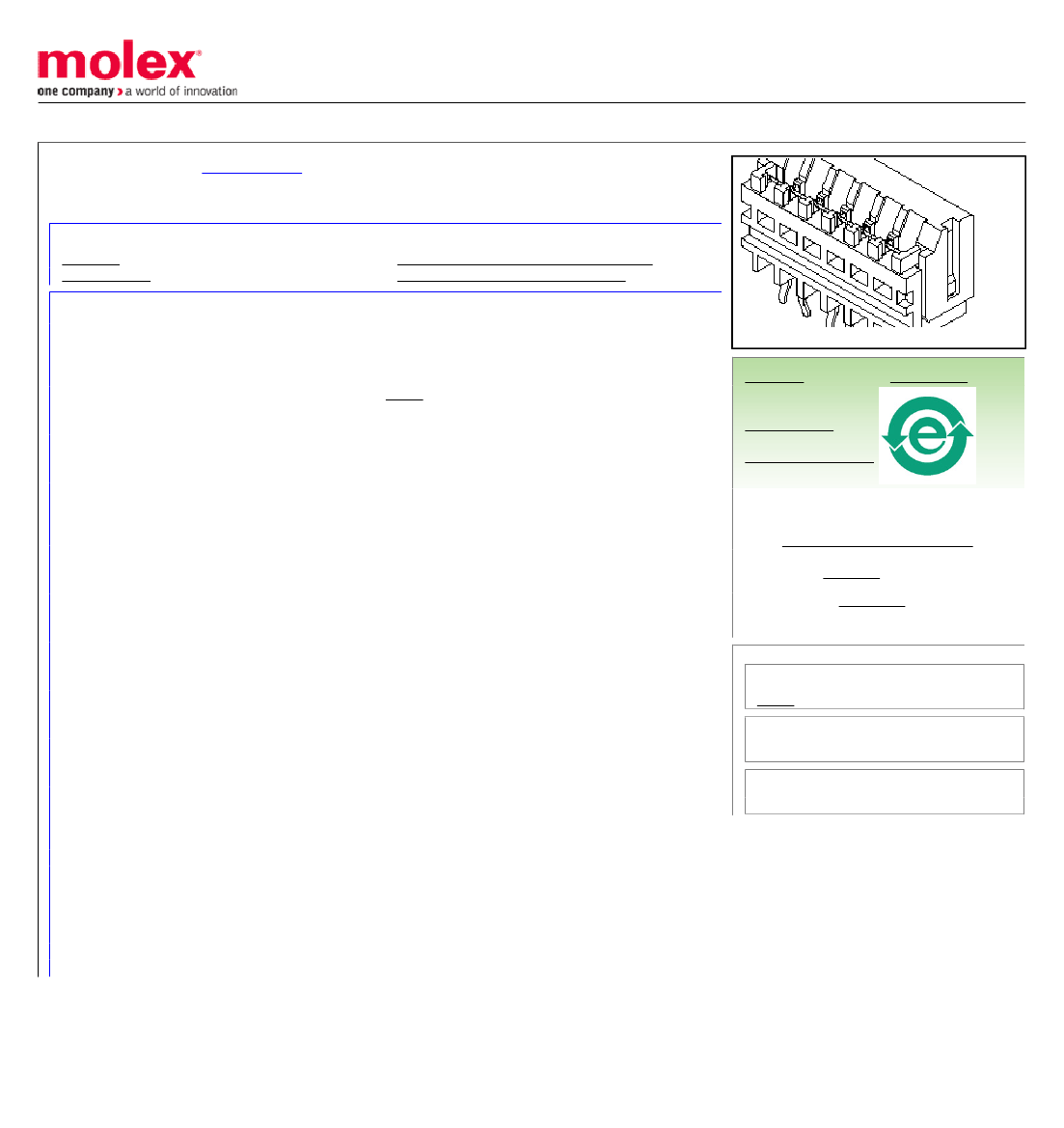

52011-1210
Active
2.50mm Pitch Wire Trap, Push-Cover Style, Vertical, 12 Circuits
Product Specification PS-52011-001 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
UL
E29179
image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Low-Halogen Status
Not Low-Halogen
China RoHS
Series
General
Product Family
Series
Comments
Component Type
Glow-Wire Compliant
Product Name
UPC
Ribbon Cable / Wire Trap Connectors
52011
Push-Cover
One Piece
No
Board-In, Wire Trap
800753630734
Physical
Circuits (Loaded)
Entry Angle
Flammability
Lock to Mating Part
Material - Plating Mating
Net Weight
Number of Rows
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Polarized to Mating Part
Polarized to PCB
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Wire Insulation Diameter
Wire Size AWG
Wire/Cable Type
12
Vertical
94V-0
None
Tin
1023.000/mg
1
Yes
1.60mm
Tray
2.50mm
N/A
No
No
No
-40°C to +105°C
1.70mm max.
24, 26
Ribbon Cable
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
52011Series
Mates With
N/A
Use With
Topcoated Ribbon Cable
Electrical
Current - Maximum per Contact
Voltage - Maximum
3A
250V
Material Info
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-52011-001
SD-52011-**10
This document was generated on 01/18/2013
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
