35507-1200

Description
Headers & Wire Housings 12 Ckt Housing Sherlock W-T-B
CategoryThe connector    The connector
File Size28KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

35507-1200 Online Shopping

Suppliers Part Number Price MOQ In stock
35507-1200 - - View Buy Now

35507-1200 Overview

Headers & Wire Housings 12 Ckt Housing Sherlock W-T-B

35507-1200 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time7 weeks
Other featuresSHERLOCK, COMPATIBLE CONTACTS: 50212-8000, LOW PROFILE, POLARIZED
body width0.248 inch
subject depth0.307 inch
body length1.035 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage500VAC V
Durability30 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force8.0064 N
Insulation resistance1000000000 Ω
Insulator colorNATURAL
insulator materialPOLYESTER
MIL complianceNO
Plug contact pitch0.079 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1POLARIZED LCK
Installation option 2LOCKING
Installation typeCABLE
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
polarization keyPOLARIZED HOUSING
Rated current (signal)2 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length
Termination typeCRIMP
Total number of contacts12
UL Flammability Code94V-0
Maximum wire diameter24 AWG
Minimum wire diameter30 AWG
Evacuation force-minimum value.695 N
Base Number Matches1

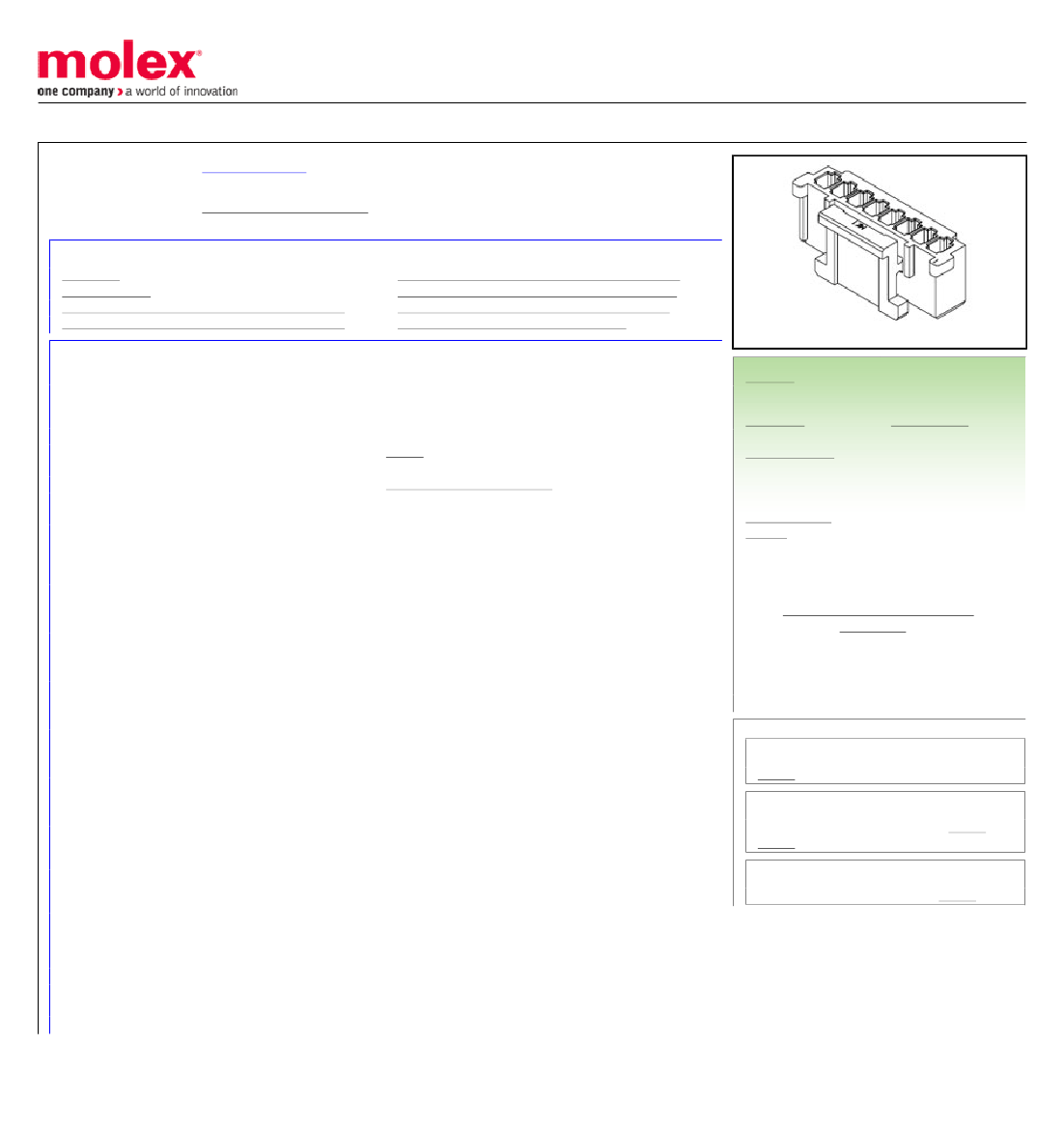

This document was generated on 03/01/2018
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0355071200
Active
Sherlock Connector System
2.00mm Pitch Sherlock Wire-to-Board Housing, Natural, 12 Circuits
Documents:
3D Model
Drawing (PDF)
Product Specification PS-35507-001-001 (PDF)
Product Specification PS-35507-002-001 (PDF)
Agency Certification
CSA
UL
General
Product Family
Series
Application
Overview
Product Name
UPC
Physical
Circuits (maximum)
Circuits Detail
Color - Resin
Flammability
Gender
Glow-Wire Capable
Keying to Mating Part
Lock to Mating Part
Material - Resin
Net Weight
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface
Polarized to Mating Part
Stackable
Temperature Range - Operating
Electrical
Current - Maximum per Contact
Solder Process Data
Lead-freeProcess Capability
Material Info
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
Product Specification PS-35507-003-001 (PDF)
Packaging Specification 355070200-100 (PDF)
Packaging Specification PK-35507-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
LR19980
E29179
Crimp Housings
35507
Signal, Wire-to-Board
Sherlock Connector System
Sherlock
800753877696
12
12
Natural
94V-0
Receptacle
No
None
Yes
Polyester
0.493/g
1
Bag
No
2.00mm
Yes
No
-40°C to +105°C
2.0A
N/A
Use With
2.00mm Pitch Crimp Terminal 50212
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per
-ED/01/2018 (15
January 2018)
Halogen-Free
Status
Not Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Not Relevant
Not Contained
Search Parts in this Series
35507 Series
Mates With
Sherlock Wire-to-Board Header 35362 ,
35363
355070200-100, PK-35507-001
PS-35507-001-001, PS-35507-002-001,
PS-35507-003-001
SD-35507-001, SD-35507-001-001
This document was generated on 03/01/2018
