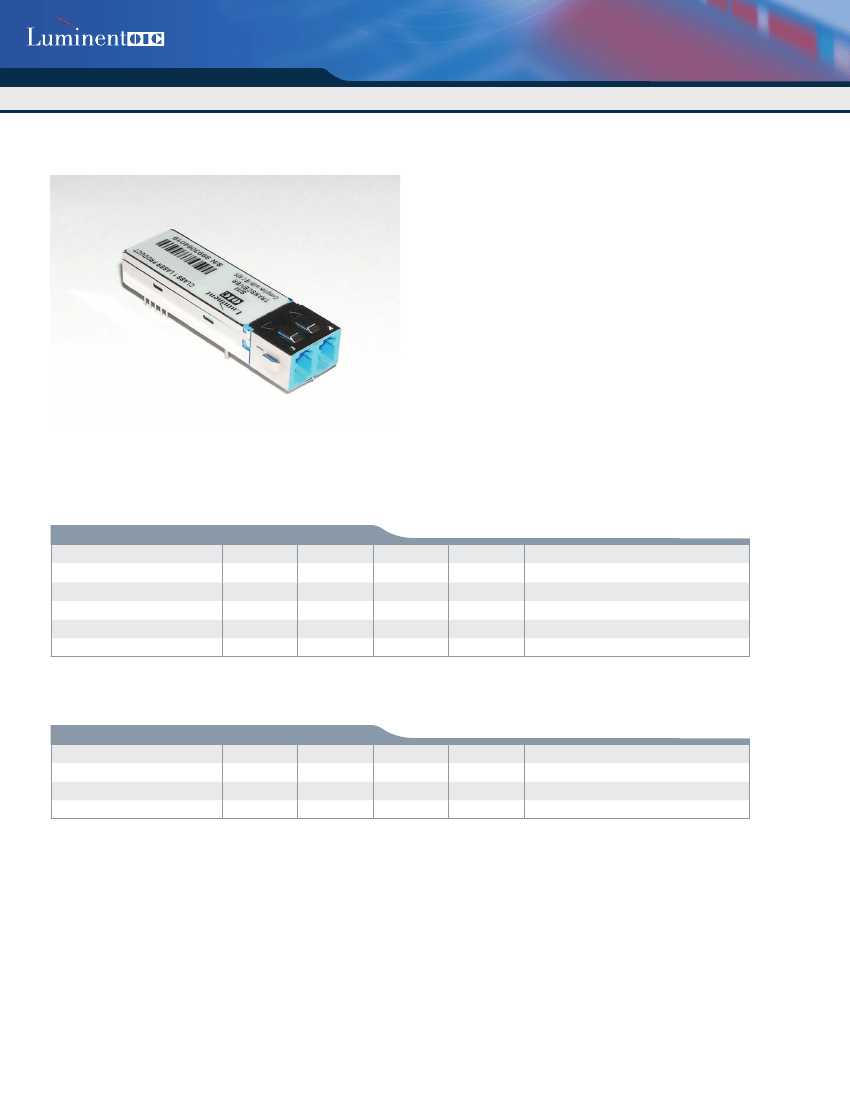

1.25 Gbps Single Mode SFF LC Transceiver
C-1xx-1250AC-FDFB-SLCx
Features
• Duplex LC Single Mode Transceiver
• Small Form Factor Multi-sourced 2x5 Pin Package
• Complies with IEEE 802.3 Gigabit Ethernet
• 1270 nm to1610 nm Wavelength, CWDM DFB Laser
• Single +3.3V Power Supply
• LVPECL Differential Inputs and Outputs
• LVTTL Signal Detection Output
• Temperature Range: 0 to 70 ºC
• Class 1 Laser International Safety Standard IEC 825
compliant
• Solderability to MIL-STD-883, Method 2003
• Pin Coating is Sn/Pb with minimum 2% Pb content
• Flammability to UL94V0
• Humidity RH 5-85% (5-90% short term) to IEC 68-2-3
• Complies with Bellcore GR-468-CORE
• Uncooled laser diode with MQW structure
• 1.25 Gbps Ethernet Links application
• 1.06 Gbps Fiber Channel application
• RoHS compliance available
Absolute Maximum Rating
Parameter
Power Supply Voltage
Output Current
Soldering Temperature
Operating Temperature
Storage Temperature
Symbol
V
cc
I
out
-
T
opr
T
stg
Min.
0
0
-
0
-40
Max.
3.6
30
260
70
85
Unit
V
mA
ºC
ºC
ºC
10 seconds on leads only
Note
Recommended Operating Condition
Parameter
Power Supply Voltage
Operating Temperature (Case)
Data rate
Symbol
V
cc
T
opr
Min.
3.1
0
-
Typ.
3.3
-
1250
Max.
3.5
70
-
Unit
V
ºC
Mbps
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
1
LUMNDS772-Mar0308
Rev A.1
1.25 Gbps Single Mode SFF LC Transceiver
C-1xx-1250AC-FDFB-SLCx
Transmitter Specifications
Parameter
Optical
Optical Transmit Power
Optical Transmit Power
Optical Transmit Power
Output center Wavelength
Output Spectrum Width
Side Mode Suppression Ratio
Extinction Ratio
Output Eye
Optical Rise Time
Optical Fall Time
Relative Intensity Noise
Total Jitter
tr
tf
RIN
TJ
P
o
P
o
P
o
λ
∆λ
Sr
ER
-5
-3
0
λ
p-5.5
-
30
9
-
-
-
-
-
-
-
λ
p
-
35
-
-
-
-
-
0
+2
+5
λ
p+7.5
1
-
-
0.26
0.26
-120
0.27
dBm
dBm
dBm
nm
nm
dBm
dB
ns
ns
dB/Hz
ns
Measured with 27-1 PRBS
20% to 80% Values
20% to 80% Values
C-1xx-1250AC-FDFB-SLC2
C-1xx-1250AC-FDFB-SLC3
C-1xx-1250AC-FDFB-SLC4
λ
p=1xx0 nm, C-1xx-1250AC-FDFB-SLCx
-20 dB width
CW, Po=5mW
Symbol
Min
Typical
Max
Unit
Notes
Compliant with IEEE 802.3
Transmitter Specifications
Parameter
Electrical
Power Supply Current
Transmit Enable Voltage
Transmit Disable Voltage
Data Input Current-Low
Data Input Current-High
Differential Data Input Voltage
I
CC
VEN
VD
Symbol
Min
Typical
Max
Unit
Notes
Maximum current is specified at Vcc=
Maximum @ maximum temperature
-
0
2.0
-200
-
650
-
-
-
-
-
-
180
0.8
Vcc
-
200
2000
mA
V
V
µA
µA
mV
I
IL
I
IH
V
IH
-V
IL
AC-coupled
Receiver Specifications
Parameter
Optical
Sensitivity
Maximum Input Power
Signal Detect-Asserted
Signal Detect-Deasserted
Signal Detect-Hysteresis
Wavelength of Operation
-
P
in
Pa
Pd
-
-3
-
-38
1.0
1100
-
-
-
-
-
-
-22
-
-22
-
-
1620
dBm
dBm
dBm
dBm
dB
nm
Measured on transition: low to high
Measured on transition: high to low
Measured with 2 -1 PRBS, BER = 10
7
-12
Symbol
Min
Typical
Max
Unit
Notes
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
2
LUMNDS772-Mar0308
Rev A.1
1.25 Gbps Single Mode SFF LC Transceiver
C-1xx-1250AC-FDFB-SLCx
Receiver Specifications
Parameter
Electrical
Power Supply Current
Differential Data Output Voltage
Signal Detect Output Voltage-Low
Signal Detect Output Voltage-High
I
CC
V
OH
-V
OL
V
SDL
V
SDH
-
800
-
2.0
-
-
-
-
120
1600
0.5
-
mA
mV
V
V
The current excludes the output load current
AC-coupled
LVTTL
Symbol
Min
Typical
Max
Unit
Note

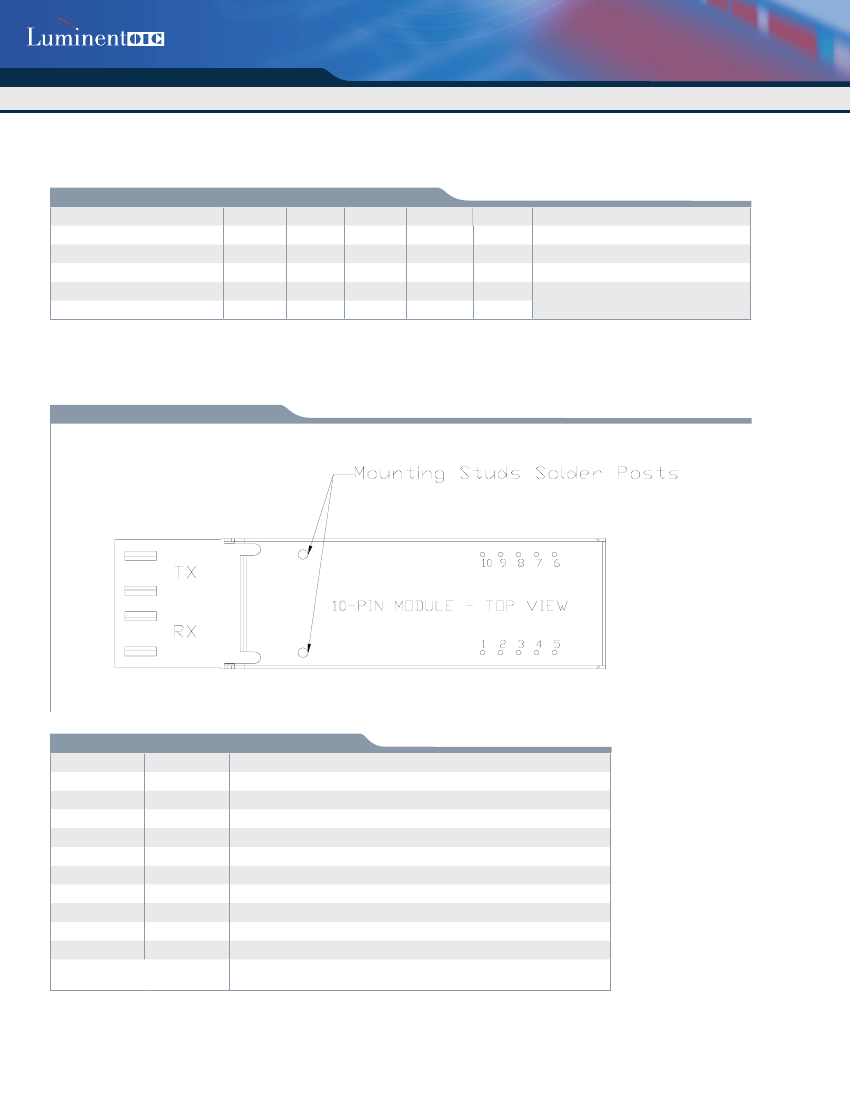

Connection Diagram
Legal Notice
PIN
1
2
3
4
5
6
7
8
9
10
Symbol
RxGND
TxVcc
SD
RD-
RD+
TxVcc
TxGND
TxDIS
TD+
TD-
Notes
Directly connect this pin to the receiver ground plane
+3.3 V dc power for the receiver section
Active high on this indicates a received optical signal(LVTTL)
Receiver Data Out Bar (LVPECL)
Receiver Dat Out (LVPECL)
+3.3 V dc power for the transmitter section
Directly connect this pin to the transmitter ground plane
Transmitter disable (LVTTL)
Transmitter Data In (LVPECL)
Transmitter Data In Bar (LVPECL)
The attaching posts are at case potential and may be connected to chassis
ground. They are isolated from circuit ground.
Attaching Posts
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
3
LUMNDS772-Mar0308
Rev A.1
1.25 Gbps Single Mode SFF LC Transceiver
C-1xx-1250AC-FDFB-SLCx

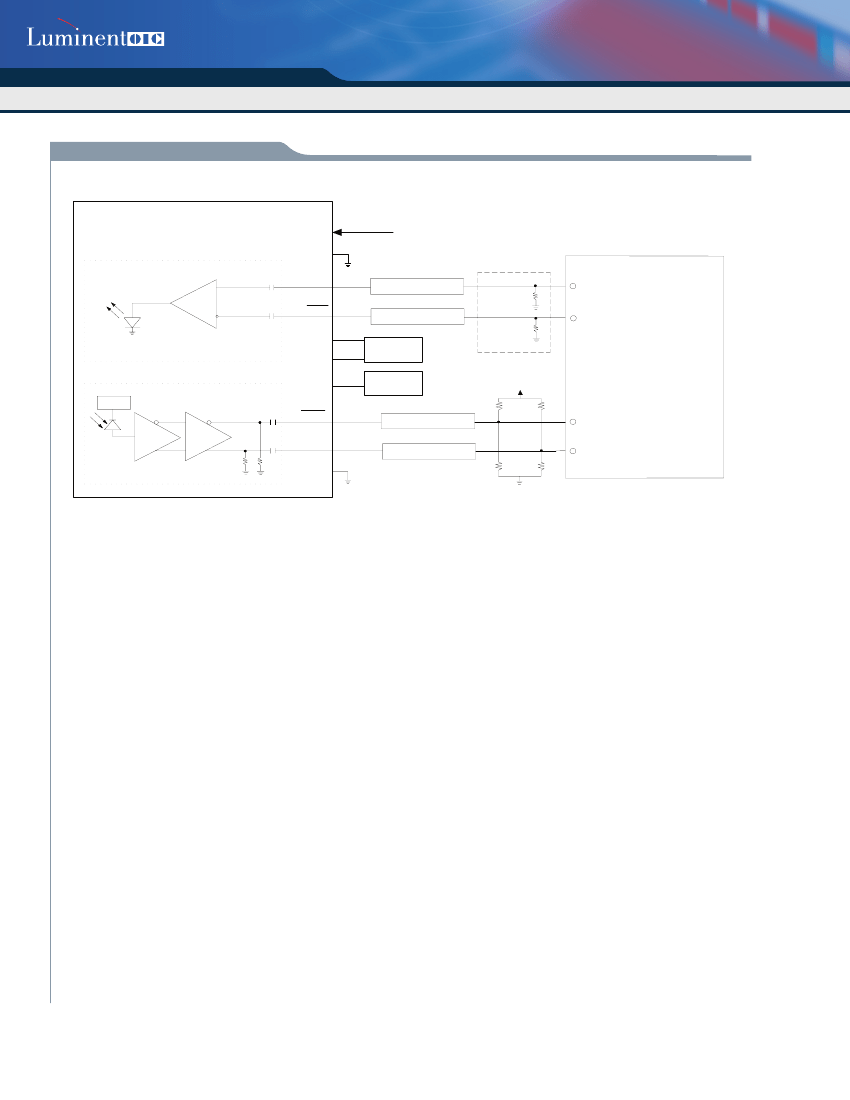

Recommended Circuit Schematic
TX_DIS
8
TTL logic level
TX_GND 7
TRANSMITTER
TX_D 9
DRIVER
LASER
Z=50½
Z=50½
TD +
TX_D 10
Vcc_TX
6
TD -
Vcc_RX
2
3
See
Fig. 3
Note 1
BIAS
PIN
TZ
AMP
SD
RX_D
POST
AMP
See
Fig. 2
Z=50½
82
Ω
Serializer / De-Serializer
with LV PECL lnputs/Outputs
Vcc= +3.3V
82
Ω
4
RD -
RX_D
5
Z=50½
130
Ω
130
Ω
RD +
RECEIVER
RX_GND
1
Figure 1: Recommended Transceiver and Receive Data Terminations
The split-loaded terminations for ECL signals need to be located at the input of devices receiving those ECL signals.
The power supply filtering is required for good EMI performance. Use short tracks from the inductor L1/L2 to the module Rx Vcc and Tx Vcc.
A GND plane under the module is required for good EMI and sensitivity performance.
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
4
LUMNDS772-Mar0308
Rev A.1
1.25 Gbps Single Mode SFF LC Transceiver
C-1xx-1250AC-FDFB-SLCx

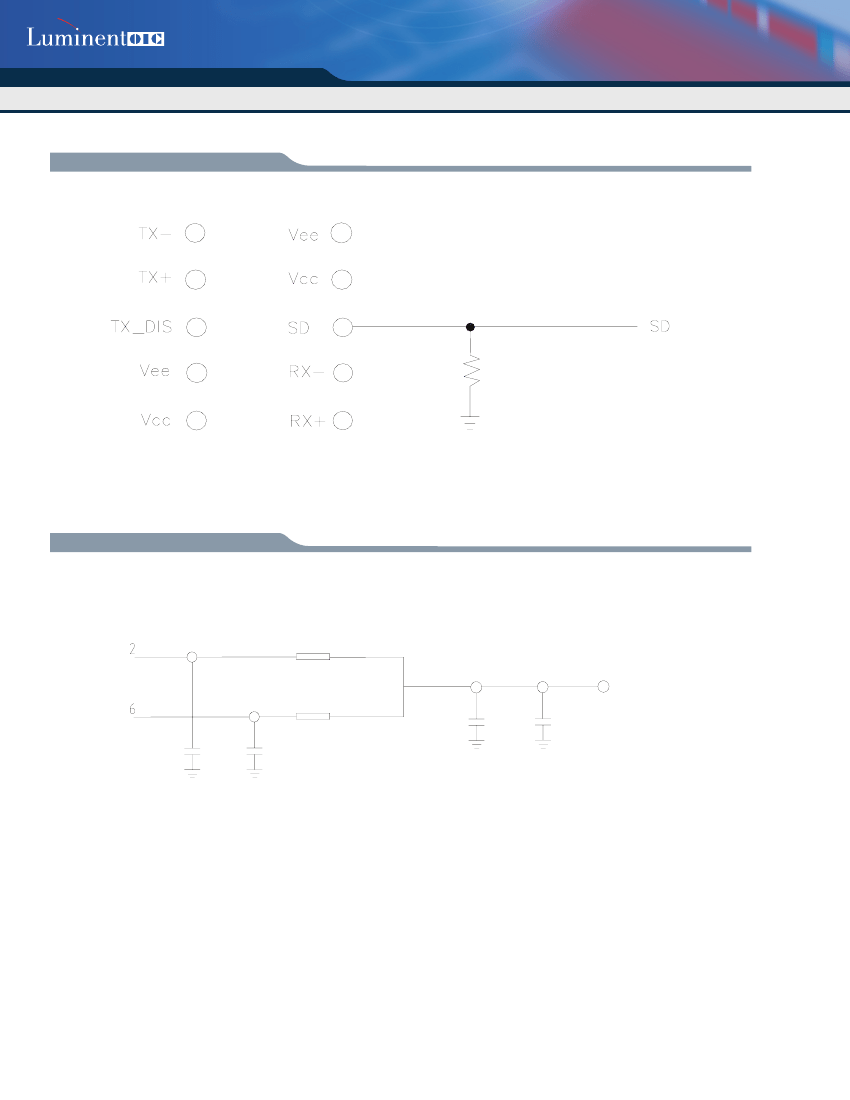

Signal Detect
The C-1xx-1250AC-FDFB-SLCx transceivers are equipped with LVTTL signal detect output. The standard LVTTL output
need for a LVPECL to LVTTL level shifter in most applications.
eliminates the
R1
R=N.C
Figure 2: Signal Detect
Power Coupling
A suggested layout for power and ground connections is given in figure 3A below. Connections are made via separate voltage and
ground planes. The mounting posts are at case ground and should not be connected to circuit ground. The mounting posts are at case ground
and should not be connected to circuit ground. The ferrite bead should provide a real impedance of 50 to 100 ohms at 100 to 1000 MHz. Bypass
capacitors should be placed as close to the 10-pin connector as possible.
L2
L1
C1
C2
Vcc
C3
C4
VALUES:
C1, C2 = 1000pF,
C3, = 0.1 uF
C4, = 10 uF,
L1, L2 = Real impednce of 50 to
100 Ohms to 1000 MHz.
Figure 3: Suggested Power Coupling-Electrical Schematic
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
5
LUMNDS772-Mar0308
Rev A.1
