TECHNICAL DATA SHEET
1/3

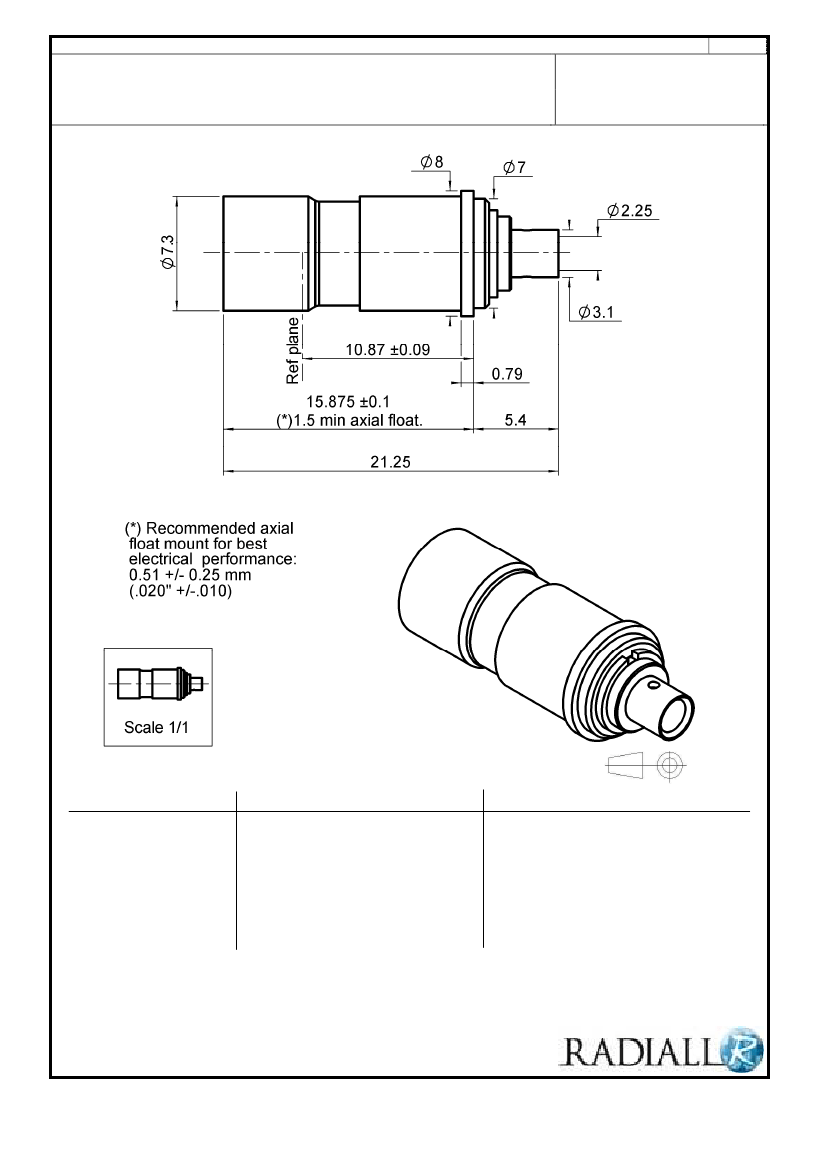

STRAIGHT CLIP-ON FLOATING JACK
SOLDER TYPE - CABLE .085
R128.294.710
Series :
BMA
All dimensions are in mm.
.
pn
.
ao
COMPONENTS
BODY
CENTER CONTACT
OUTER CONTACT
INSULATOR
GASKET
OTHERS PARTS
-
-
MATERIALS
STAINLESS STEEL
BERYLLIUM COPPER
BERYLLIUM COPPER
PTFE
-
BRASS
-
-
PLATING
(µm)
GOLD 0.5 OVER NICKEL 2
GOLD 1.3 OVER NICKEL2
NPGR
NICKEL 2
-
-
Issue : 1115
B
In the effort to improve our products, we reserve the right to make changes judged to
be necessary.
TECHNICAL DATA SHEET
2/3
STRAIGHT CLIP-ON FLOATING JACK
SOLDER TYPE - CABLE .085
R128.294.710
Series :
BMA
PACKAGING
SPECIFICATION
Standard
100
Unit
‘W’ option
Other
Contact us
ELECTRICAL CHARACTERISTICS
Impedance
50
Ω
Frequency
0-22
GHz
VSWR
1.05 + 0,0100
x F(GHz) Maxi
Insertion loss
0.03
√F(GHz)
dB Maxi
RF leakage
-(
90
- F(GHz)) dB Maxi
Voltage rating
500
Veff Maxi
Dielectric withstanding voltage
1000
Veff mini
Insulation resistance
5000
MΩ mini
Stripping
CABLE ASSEMBLY
a
1,78
b
0,00
c
0,00
d
0,00
e
0,00
f
0,00
mm
Assembly instruction
:
Recommended cable(s)
RG 405
KS 1
Characteristics indicated on this data sheet are those that can be
achieved with the highest performance cable. Intrinsic limitations of
the cable may diminish the performance of the assembly
MECHANICAL CHARACTERISTICS
Center contact retention
Axial force – Mating end
Axial force – Opposite end
Torque
27
N mini
27
N mini
NA
N.cm mini
Cable retention
- pull off
- torque
136
N mini
NA
N.cm
TOOLING
Part Number
.
R282.051.000
R282.062.000
R282.740.000
Description
.
STRIPPING TOOL
POINTER GAUGE
SOLDERING
MOUNTING
R282.860.130 SOLDER
POSITIONER BMA
Hexagon
.
Recommended torque
Mating
Panel nut
Clamp nut
A/F clamp nut
Mating life
Weight
NA
NA
NA
0,0000
N.cm
N.cm
N.cm
mm
1000
Cycles mini
3,3000
g
OTHER CHARACTERISTICS
* Mated with waterproof male connector
ENVIRONMENTAL
Operating temperature
Hermetic seal
Panel leakage
-40/+105
° C
NA
Atm.cm3/s
IP54*
It is recommended to use a service
loop to facilitate the float features of
the connector
Issue : 1115
B
In the effort to improve our products, we reserve the right to make changes judged to
be necessary.
TECHNICAL DATA SHEET
3/3
STRAIGHT CLIP-ON FLOATING JACK
SOLDER TYPE - CABLE .085
COMPONENT
BODY
R128.294.710
Series :
BMA

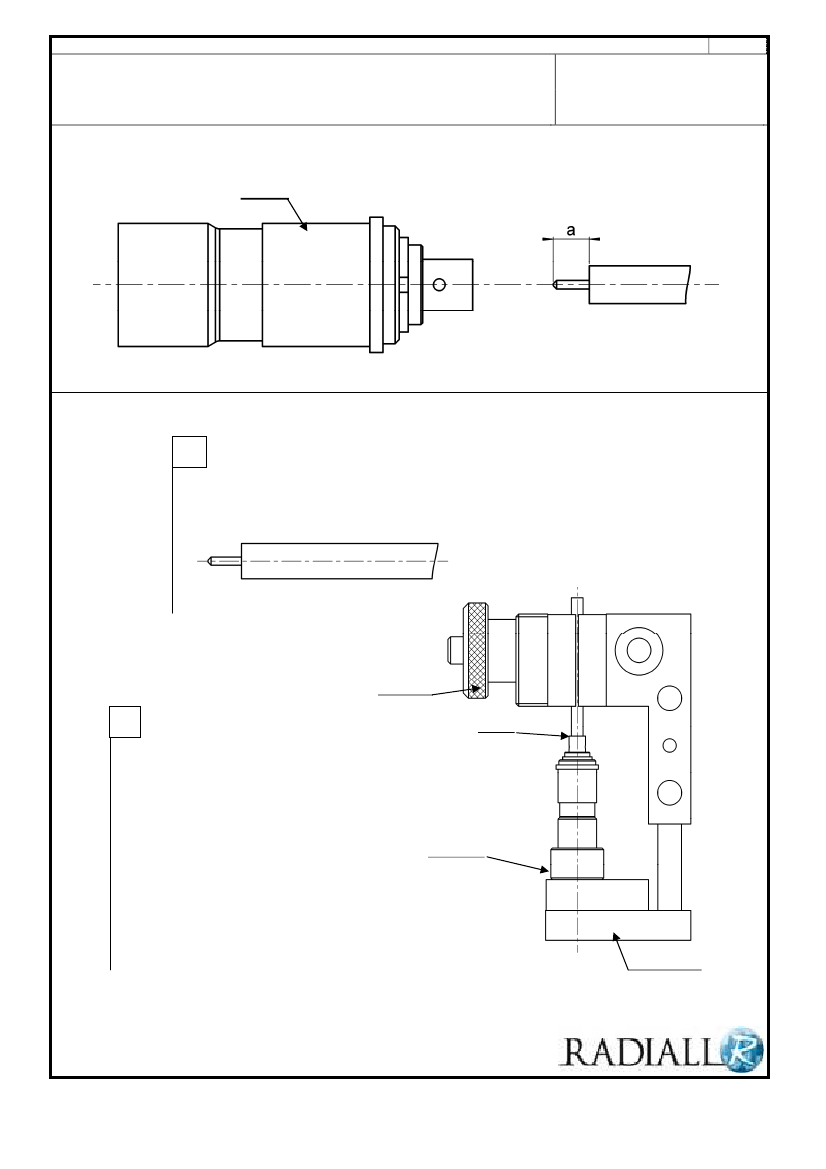

STRIPPING DIMENSION
We recommend a cable thermal preconditioning before assembly
1
-Strip the cable with the cable stripping tool.
-Trim the cable inner conductor with the trimmer.
-Clean the cable
Tightning
2
-Introduce the cable into the body until
contact with the body shoulder.
-Place the sub-assembly on assembly
jig with the positioner and tighten it.
-Solder body on the cable.
-Let assembly cool down before
removing it from the jig.
Solder
Positioner
Assembly jig
Issue : 1115
B
