39-01-2140 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 39-01-2140

39-01-2140: DescriptionHeaders & Wire Housings 14 CKT RCPT HOUSING; CategoryThe connector The connector; File Size28KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

39-01-2140 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	39-01-2140	-	-	View	Buy Now

39-01-2140 Overview

Headers & Wire Housings 14 CKT RCPT HOUSING

39-01-2140 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	6 weeks
Is Samacsys	N
Other features	MINI-FIT JR, COMPATIBLE CONTACTS: 39-00-0077; 39-00-0038, POLARIZED
body width	0.46 inch
subject depth	0.77 inch
body length	0.105 inch
Body/casing type	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR
Contact arrangement	S0P14
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	6.672 N
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	NYLON
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	CABLE
Number of connectors	ONE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Guideline	UL
reliability	COMMERCIAL
Shell material	POLYAMIDE66
Termination type	CRIMP
Total number of contacts	14
UL Flammability Code	94V-2
Base Number Matches	1

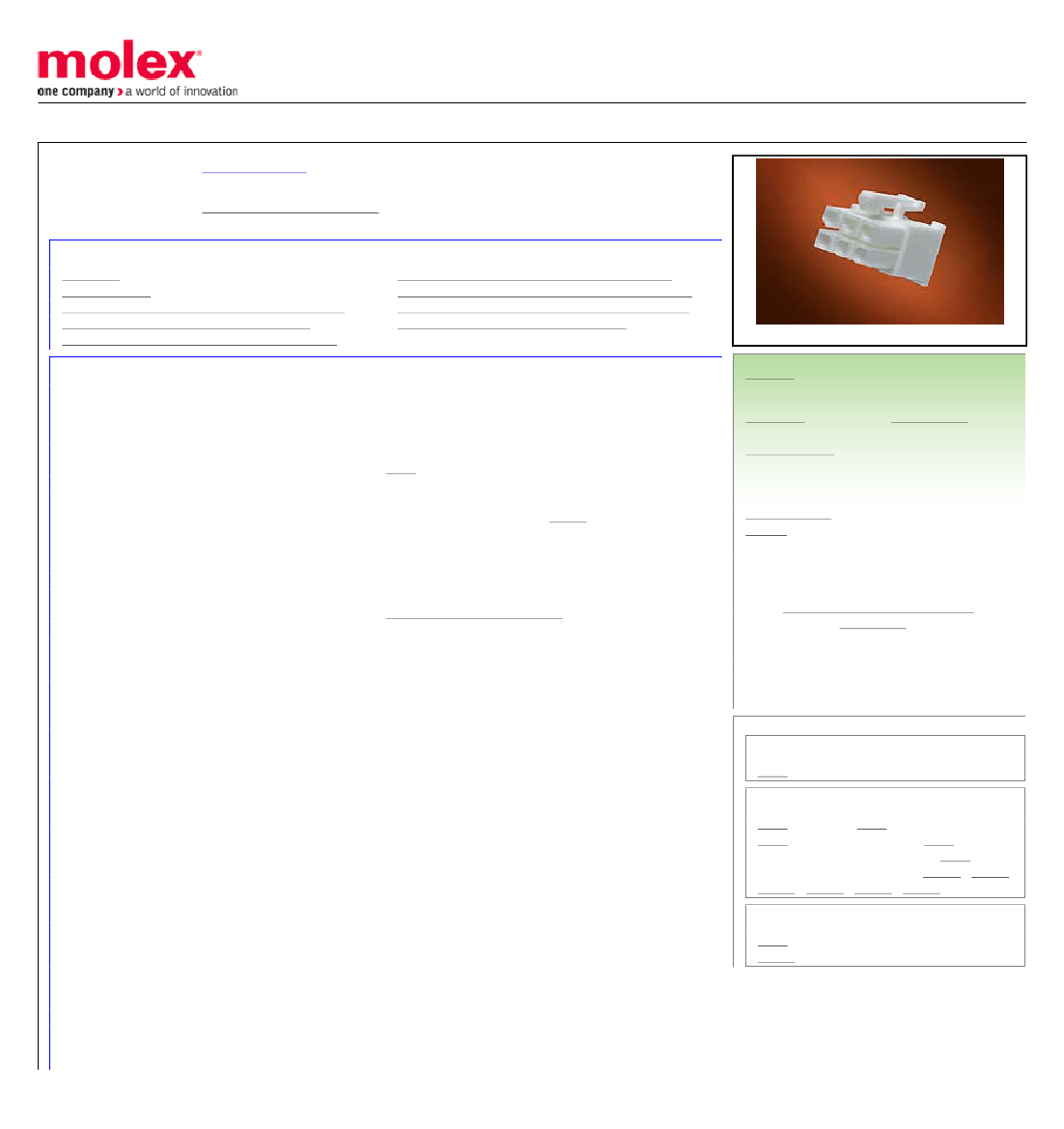

Preview

Download Datasheet

View All

This document was generated on 03/01/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0039012140

Active

Mini-Fit Jr. Power Connectors

Mini-Fit Jr. Receptacle Housing, Dual Row, 14 Circuits, UL 94V-2, Natural

Documents:

3D Model

Drawing (PDF)

Product Specification PS-45750-001-001 (PDF)

Product Specification PS-5556-001 (PDF)

Product Specification PS-5557-001-001 (PDF)

Agency Certification

CSA

General

Product Family

Series

Application

Comments

Product Specification TS-5556-002-001 (PDF)

Application Specification AS-5557-001-001 (PDF)

Packaging Specification PK-5557-002-000 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2018 (15

January 2018)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

LR19980

E29179

Crimp Housings

5557

Power, Wire-to-Board, Wire-to-Wire

Current = 13A max. per circuit when header is mated

to a receptacle loaded with 45750 series terminals

crimped to 16 AWG wire. . See Molex product

specification PS-45750-001 for additional current

derating information.

E-5557-005

Mini-Fit Jr. Power Connectors

Mini-Fit Jr.

800753583948

Natural

94V-2

Receptacle

Nylon

2.864/g

Bag

4.20mm

Yes

-40°C to +105°C

13.0A

N/A

5557-14R

Current Released Drawing

Current Released Revision

Overview

Product Name

UPC

Physical

Breakaway

Circuits (maximum)

Color - Resin

Flammability

Gender

Glow-Wire Capable

Material - Resin

Net Weight

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Stackable

Temperature Range - Operating

Electrical

Current - Maximum per Contact

Solder Process Data

Lead-freeProcess Capability

Material Info

Engineering Number

Search Parts in this Series

5557 Series

Mates With

5559 Dual Row, 5566 Vertical with Pegs,

5566 Vertical without Pegs, 5569 Right

Angle Dual Row with Flanges, 5569 Right

Angle Dual Row with Pegs, 43810 , 44068 ,

44281 , 87427 , 42404 , 42440

Use With

5556 Mini-Fit Female Crimp Terminals,

45750 Mini-Fit Plus HCS Crimp Terminal
