Part Number: XDMR06C
8mm (0.32") SINGLE DIGIT NUMERIC DISPLAY
Features
●
Low power consumption
●
Robust package
●
I.C. Compatible
●
Standard configuration: Gray face w/ white
segments
●
Optional black face provides superior color
contrast
●
RoHS Compliant

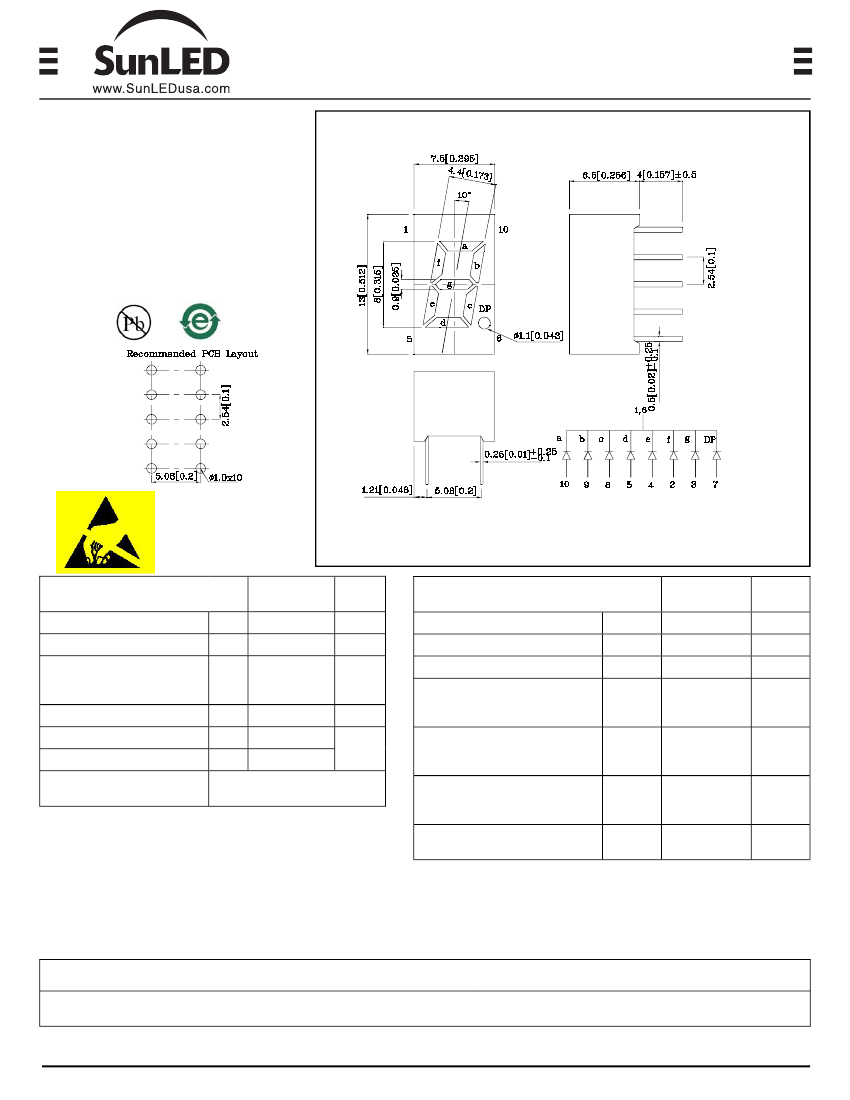

Package Schematics
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES
ATTENTION
Notes:
1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted.
2. Specifications are subject to change without notice.
Unit
V
mA
mA
mW
°C
Operating Characteristics
(T
A
=25°C)
Forward Voltage (Typ.) (I
F
=10mA)
Forward Voltage (Max.) (I
F
=10mA)
Reverse Current (Max.) (V
R
=5V)
Wavelength of Peak
Emission CIE127-2007* (Typ.)
(I
F
=10mA)
Wavelength of Dominant
Emission CIE127-2007* (Typ.)
(I
F
=10mA)
Spectral Line Full Width
At Half-Maximum (Typ.)
(I
F
=10mA)
Capacitance (Typ.)
(V
F
=0V, f=1MHz)
V
F
V
F
I
R
λP
Red
(GaAlAs)
1.8
2.5
10
655*
Unit
V
V
uA
nm
Absolute Maximum Ratings
(T
A
=25°C)
Reverse Voltage
Forward Current
Forward Current (Peak)
1/10 Duty Cycle
0.1ms Pulse Width
Power Dissipation
Operating Temperature
Storage Temperature
Lead Solder Temperature
[2mm Below Package Base]
V
R
I
F
i
FS
P
D
T
A
Tstg
Red
(GaAlAs)
5
30
155
75
-40 ~ +85
-40 ~ +85
λD
640*
nm
260°C For 3-5 Seconds
△λ
20
nm
A Relative Humidity between 40% and 60% is recommended in
ESD-protected work areas to reduce static build up during assembly
process (Reference JEDEC/JESD625-A and JEDEC/J-STD-033)
C
45
pF
Part
Number
Emitting
Color
Emitting
Material
Luminous Intensity
CIE127-2007*
(I
F
=10mA)
ucd
min.
typ.
36990
9990*
Wavelength
CIE127-2007*
nm
λP
Description
XDMR06C
Red
GaAlAs
14000
5600*
655*
Common Cathode,
Rt.Hand Decimal.
XDSA0130
V11-X
Layout: Maggie L.
P. 1/3
*Luminous intensity value and wavelength are in accordance with CIE127-2007 standards.
Oct 17,2016
Part Number: XDMR06C
8mm (0.32") SINGLE DIGIT NUMERIC DISPLAY

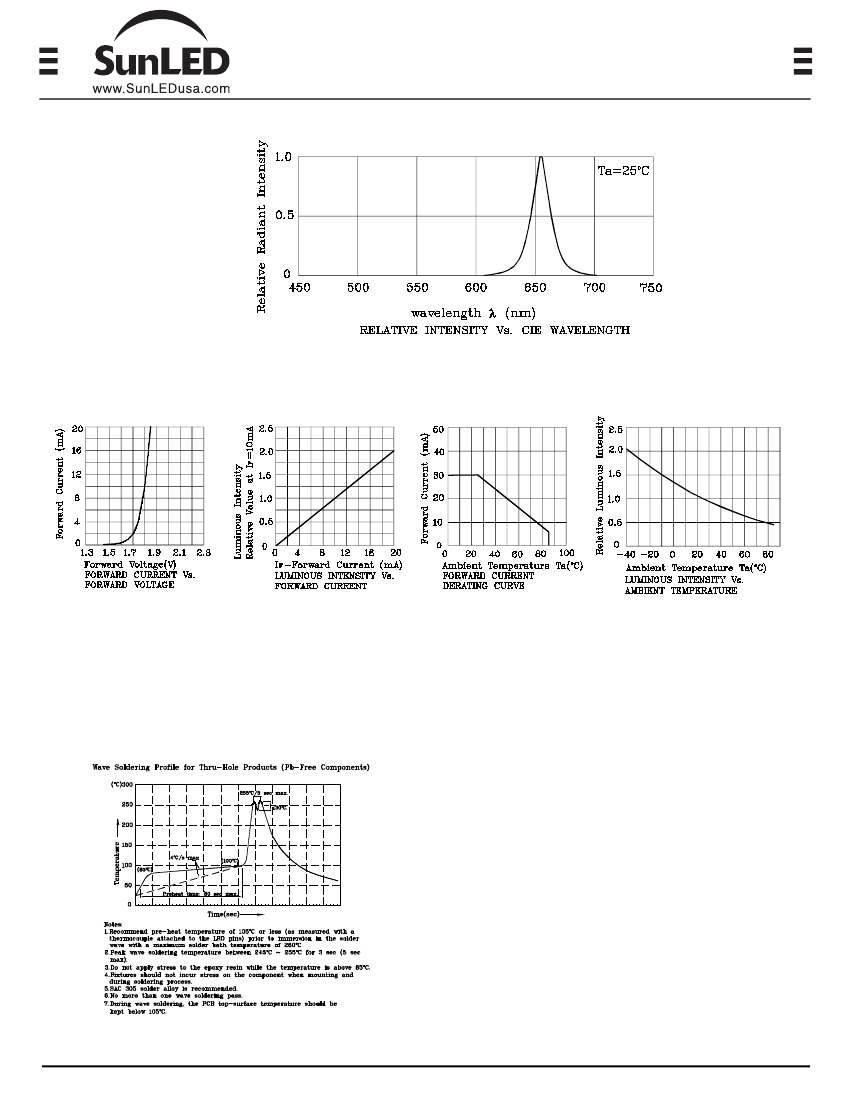

Red
Red
Remarks:
If special sorting is required (e.g. binning based on forward voltage,
luminous intensity / luminous flux, or wavelength),
the typical accuracy of the sorting process is as follows:
1. Wavelength: +/-1nm
2. Luminous Intensity / Luminous Flux: +/-15%
3. Forward Voltage: +/-0.1V
Note: Accuracy may depend on the sorting parameters.
Oct 17,2016
XDSA0130
V11-X
Layout: Maggie L.
P. 2/3
Part Number: XDMR06C
8mm (0.32") SINGLE DIGIT NUMERIC DISPLAY

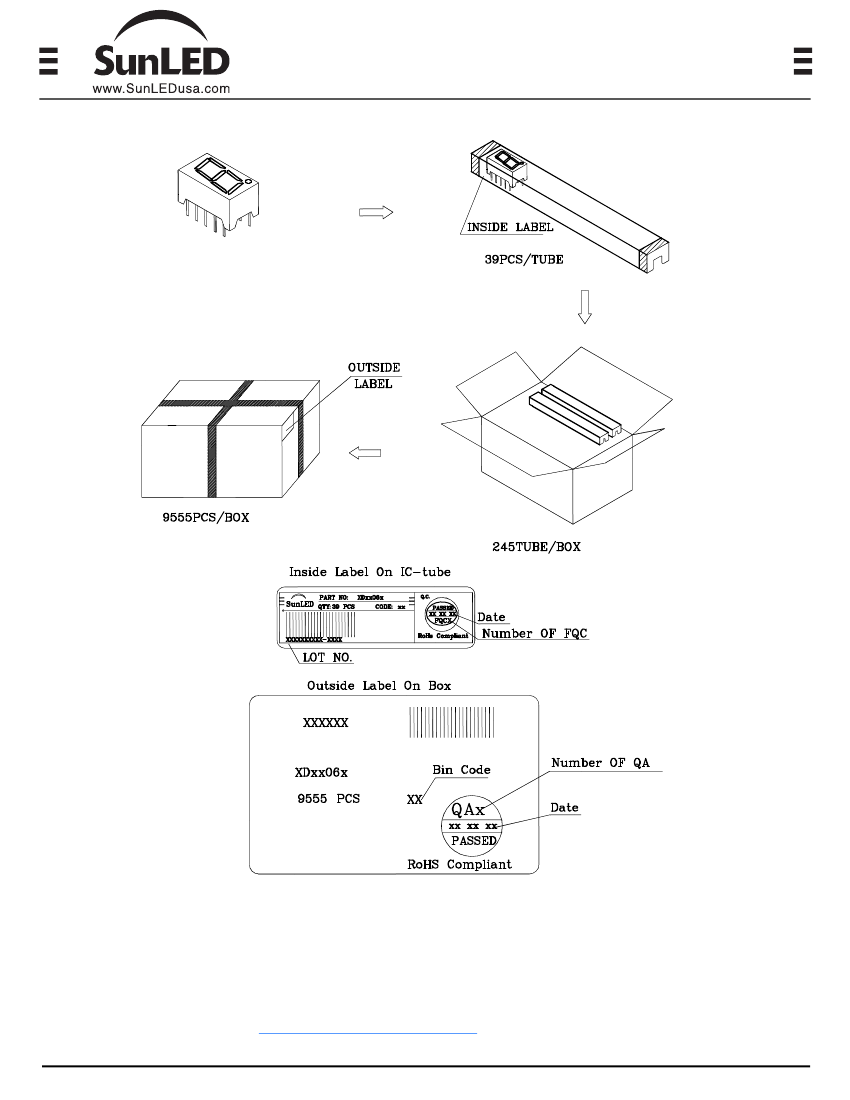

PACKING & LABEL SPECIFICATIONS
TERMS OF USE
1. Data presented in this document reflect statistical figures and should be treated as technical reference only.
2. Contents within this document are subject to improvement and enhancement changes without notice.
3. The product(s) in this document are designed to be operated within the electrical and environmental specifications indicated on the datasheet.
User accepts full risk and responsibility when operating the product(s) beyond their intended specifications.
4. The product(s) described in this document are intended for electronic applications in which a person’s life is not reliant upon the LED. Please
consult with a SunLED representative for special applications where the LED may have a direct impact on a person’s life.
5. The contents within this document may not be altered without prior consent by SunLED.
6. Additional technical notes are available at
http://www.SunLEDusa.com/TechnicalNotes.asp
Oct 17,2016
XDSA0130
V11-X
Layout: Maggie L.
P. 3/3
