SC-614
Speech And Music Processor
Data sheet
Features
Advanced, integrated speech synthesizer for
high-quality sound.
Operates up to 12.32 MHz (performs up to 12
MIPS).
Single-chip solution for up to 6.8 minutes of
speech.
External ROM interface for up to
18.8 hours
of
speech.
Supports high-quality synthesis algorithms such
as MX, CX, Simple CX, LX, ADPCM, and
polyphonic music.
Simultaneous speech plus music capability.
Very low-power operation, ideal for hand-held
devices.
Low-voltage operation, sustainable by three
batteries.
Reduced power stand-by modes, less than 10
µA
in deep-sleep mode.
Contains 64k byte words onboard ROM (2k
words reserved).
640-word RAM.
64 I/O pins consisting of 40 general-purpose bit
configurable I/O.
8 inputs with programmable pullup resistor and
dedicated interrupt (key-scan).
16 dedicated output pins.
Direct speaker driver, 32Ω (PDM).
One-bit comparator with edge-detection
interrupt service.
Resistor-trimmed oscillator or 32.768 khz
crystal reference oscillator.
Serial scan port for in-circuit emulation and
diagnostics.
The SC-614 is sold in die form, or 100-pin
LQFP package.
An emulator device is available in a ceramic
package for development (SC-614-P).
Description
The SC-614 is a low-cost, mixed-signal processor that
combines a speech synthesizer, general-purpose I/O,
onboard ROM, and direct speaker-drive in a single
package. The computational unit utilizes a powerful new
DSP which gives the SC-614 unprecedented speed and
computational flexibility compared with previous devices
of its type. The SC-614 supports a variety of speech and
audio coding algorithms, providing a range of options
with respect to speech duration and sound quality.
16-Bit
Microprocessor
SC-614 Block Diagram
10-Bit
DAC
640-words
RAM
TIMER 1
TIMER 2
PLLM
64 KBytes
ROM
COMPARATOR
64 I/O
The device consists of a micro-DSP core, embedded
program, and data memory, and a self-contained clock generation system. General-purpose periphery is
comprised of 64 bits of partially configurable I/O.
The core processor is a general-purpose 16-bit microcontroller with DSP capability. The basic core block
includes computational unit (CU), data address unit, program address unit, two timers, eight level interrupt
processor, and several system and control registers. The core processor gives the SC-614 break-point
capability in emulation.
The processor is Harvard type for efficient DSP algorithm execution. It requires separate program and data
memory blocks to permit simultaneous access. It is configured in 32K 17-bit words.
The total ROM space is divided into two areas:
1. The lower 2K words are reserved by Sensory for the purposes of a built-in self-test
2. The upper 30K is for user program/data
© 2003 Sensory Inc.
P/N 80-0210-C
1
SC-614
Data sheet
The data memory is internal static RAM. The RAM is configured in 640 17-bit words. Both memories are
designed to consume minimum power at a given system clock and algorithm acquisition frequency.
A flexible clock generation system enables the software to control the clock over a wide frequency range. The
implementation uses a phase-locked loop (PLL) circuit that drives the processor clock at a selectable frequency
between the minimum and maximum achievable. Selectable frequencies for the processor clock are spaced
apart in 65.536 kHz steps. The PLL clock-reference is also selectable; either a resistor-trimmed oscillator or a
crystal-referenced oscillator may be used. Internal and external clock sources are controlled separately to
provide different levels of power management.
The periphery consists of five 8-bit wide general-purpose I/O ports, one 8-bit wide dedicated input port, and one
16-bit wide dedicated output port. The bidirectional I/O can be configured under software control as either high-
impedance inputs or as totem-pole outputs. They are controlled via addressable I/O registers. The input-only
port has a programmable pullup option (70k minimum resistance) and a dedicated service interrupt. These
features make the input port especially useful as a key-scan interface.
A simple one-bit comparator is also included in the periphery. The comparator is enabled by a control register,
and its pin access is shared with two pins in one of the general-purpose I/O ports. Rounding out the SC-614
periphery is a built-in pulse-density-modulated DAC (digital-to-analog converter) with direct speaker-drive
capability. The functional block diagram gives an overview of the SC-614 functionality.

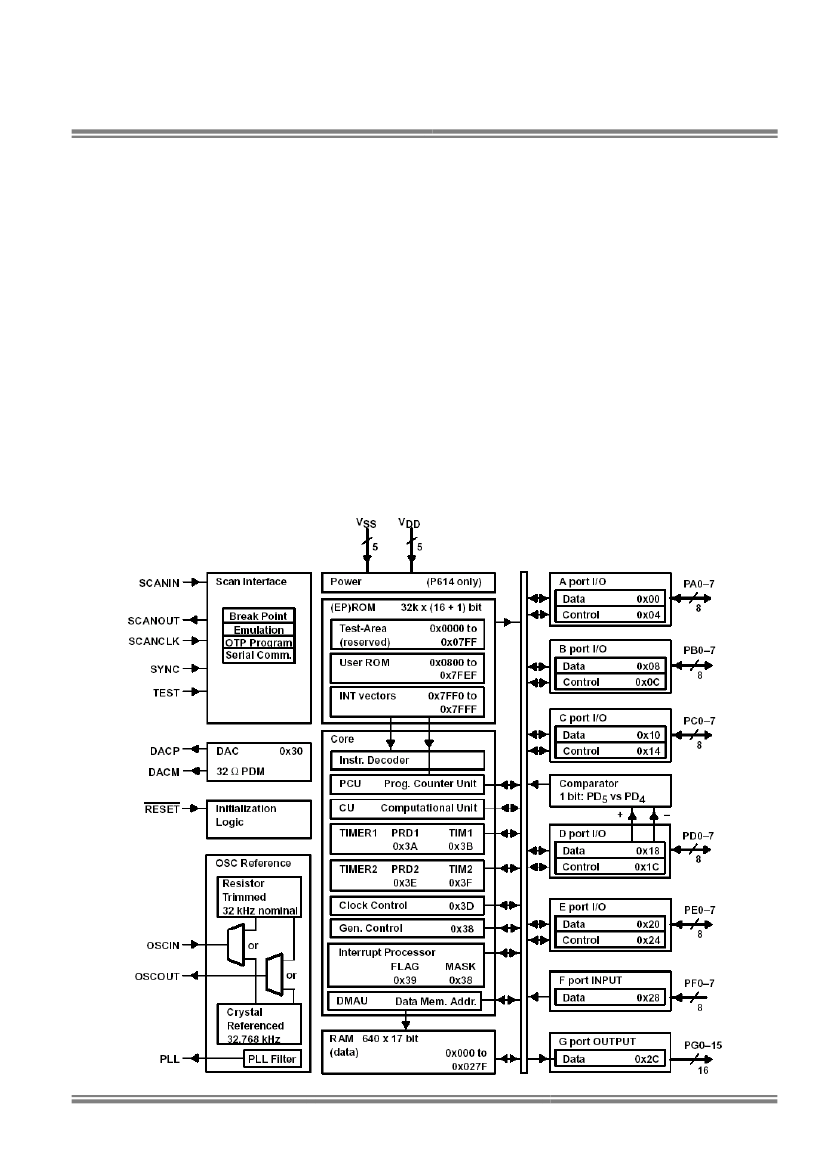

Functional Block Diagram
2
P/N 80-0210-C
© 2003 Sensory Inc.
Data Sheet
SC-614
Pin Assignment
PD7
VDD2
VSS2
PC0
PD0
PD1
PD2
PD3
PD4
PD5
PD6
PC1
PC2
PC3
PC4
PC5
PC6
PC7
PB0
76
75
74
73
72
71
70
69
68
67
66
65
NC
NC
NC
NC
80
79
NC
NC
78
77
99
98
97
96
95
94
93
92
91
90
89
VSS3/DA
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
100
82
81
88
87
86
85
84
83
PB1
PB2
PB3
PB4
PB5
PB6
PB7
VDD1
VSS1
PA0
PA1
PA2
PA3
PA4
PA5
PA6
PA7
PLL
OSCIN
OSCOUT
NC
NC
NC
VSS
PE0
19
1
NC
NC
NC
20
85
DACM
VDD3/DA
DACP
VDD
PF7
PF6
PF5
PF4
PF3
PF2
PF1
PF0
NC
PG15
PG14
PG13
PG12
PG11
PG10
PG9
S C -614
(top view of the die)
SC-614
(100-lead LQFP)
64
63
62
61
60
59
58
57
56
55
54
53
52
51
41
65
42
64
PG8
SCANOUT
TEST
VDD4
NC
NC
PG7
SYNC
SCANCLK
PG6
PG5
PG4
PG3
PG2
PG1
PG0
PE5
PE4
PE3
PE2
SCANIN
RESET_
NAME
PA0 – PA7
PB0 – PB7
PC0 – PC7
PD0 – PD7
PE0 – PE7
PF0 – PF7
PG0 – PG7
PG8 – PG15
PIN NO.
66
→
59
76
→
69
90
→
83
100
→
93
51
→
44
16
→
9
37
→
30
25
→
18
PAD NO.
75
→
68
85
→
78
8
→
1
18
→
11
63
→
56
31
→
24
49
→
42
39
→
32
VSS4
I/O
I/O
I/O
I/O
I/O
I/O
I
DESCRIPTION
Port A general-purpose I/O (1 Byte)
Port B general-purpose I/O (1 Byte)
Port C general-purpose I/O (1 Byte)
Port D general-purpose I/O (1 Byte)
Port E general-purpose I/O (1 Byte)
Port F key-scan input (1 Byte)
O Port G dedicated output (2 Bytes)
Pins PD4 and PD5 may be dedicated to the comparator function, if the comparator enable bit is set.
Scan Port Control Signals
SCANIN
42
SCANOUT
38
SCANCLK
41
SYNC
40
TEST
39
54
50
53
52
51
I
O
I
I
I
Scan port data input
Scan port data output
Scan port clock
Scan port synchronization
SC-614: test modes
The scan port pins must be bonded out on any SC-614 production board.
Reference Oscillator Signals
OSCOUT
56
65
OSCIN
57
66
PLL
58
67
Digital-to-Analog Sound Output
DACP
7
22
DACM
5
20
Initialization
RESET_
43
55
Power Signals
†
†
V
SS
1 , 26, 52, 67, 91 9, 19 , 40, 64, 76
†
†
V
DD
6 , 8, 27, 68, 92 10, 21 , 23, 41, 77
O Resistor/crystal reference out
I Resistor/crystal reference in
O Phase-lock-loop filter
O Digital-to-analog plus output (+)
O Digital-to-analog minus output (–)
I
-
-
Initialization
Ground
Processor power (+)
† The V
SS
and V
DD
connections service the DAC circuitry. Their pins tend to sustain a higher current draw. A dedicated decoupling capacitor
across these pins is therefore required.
