Soft Shell
Pin and Socket Connectors
AMP

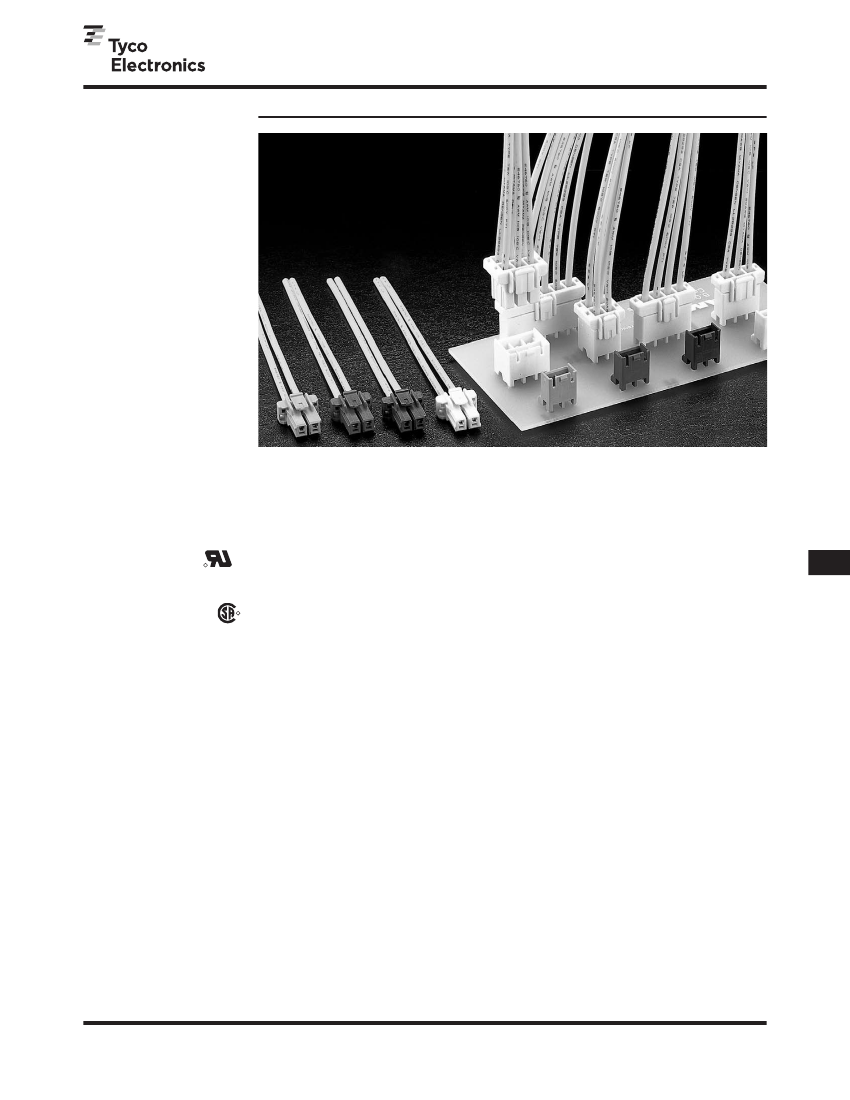

5.0 mm Power Key Connectors (5.0 PKC) (Wire-to-Board)
Product Facts
I
Compact design with
19.4 mm mated height
Power circuit connector with
5.0 mm contact centerline
Wire-to-board connectors
consisting of plug housings
for wires and PCB header
assemblies
With a clear clicking sound,
contact insertions can be
made easier. The double
lock plate provides for
complete loading of contacts
Locking levers are
surrounded by walls, which
protect levers and prevent
tangling with wires
Connector is designed to
release bubbles created
by the process of potting
(PC board coating)
Housing lances also help
prevent tangling of wired
contacts
Recognized under the
Component Program
of Underwriters
Laboratories Inc.,
File No. E28476
I
I
I
I
I
Standard Density
I
I
5.0 mm Power Key
Connectors are for power
circuits of home appliances,
especially targeting gas
appliances. The connector
features four kinds of keying
per housing.
Only color-coding of hous-
ings limited the efficiency
of blind mating where you
could not see connectors.
However, the new keying
mechanism not only
improves assembly
efficiency but also helps
prevent mismating.
Part numbers involved
can be reduced so that
purchasing and stock
level control can be
made simpler.
Performance Characteristics
Voltage Rating—300
Current Rating—10A
max.
2
Operating Temperature—
-30°C ~ +105˚C
Applicable Wire—24-16
AWG
Applicable PC Board Thickness—
1.6 mm
VAC
1
Technical Documents
Product Specification
108-5699
Application Specification
114-5292
R
5.0 mm Power Key Connectors
.197
[5.00]
Centerline
I
Certified by Canadian
Standards Association,
File No. LR7189
R
1 Excludes header tyne round
space. Usable for 150 VAC
applications when the round
dimensions are 3 mm or less.
2 Specified values vary according to
the number of contacts and the
wire used. The 10 A maximum
value applies to 16 AWG wire
used with 2 contacts.
135
Catalog 82181
Revised 4-08
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
Soft Shell
Pin and Socket Connectors
AMP
5.0 mm Power Key Connectors (5.0 PKC) (Wire-to-Board)
(Continued)
Quick Reference Chart for Mating Part Numbers
Plug Housing
No. of Pos.
Type of Keying/Color
Type A/Natural
Type B/Red
Type C/Blue
Type D/Yellow
Type A/Natural
Type B/Red
Type C/Blue
Type D/Yellow
Type A/Natural
Type B/Red
Type C/Blue
Type D/Yellow
Type A/Natural
Type B/Red
Type C/Blue
Type D/Yellow
Type A/Natural
Type B/Red
Type C/Blue
Type D/Yellow
Type A/Natural
Type B/Red
Type C/Blue
Type D/Yellow
Part Number
1376388-1
1-1376388-2
2-1376388-3
3-1376388-4
1376389-1
1-1376389-2
2-1376389-3
3-1376389-4
1376390-1
1-1376390-2
2-1376390-3
3-1376390-4
1376391-1
1-1376391-2
2-1376391-3
3-1376391-4
1376392-1
1-1376392-2
2-1376392-3
3-1376392-4
1376393-1
1-1376393-2
2-1376393-3
3-1376393-4
Applicable
Double Lock Plate
Part Number
1376394-1
1376394-1
1376294-1
1376394-1
1376395-1
1376395-1
1376395-1
1376395-1
1376396-1
1376396-1
1376396-1
1376396-1
1376397-1
1376397-1
1376397-1
1376397-1
1376394-1
1376394-1
1376394-1
1376394-1
1376395-1
1376395-1
1376395-1
1376395-1
Mating Header Assy.
Part Number
1376382-1
1-1376382-2
2-1376382-3
3-1376382-4
1376383-1 1376421-1
1-1376383-2 1-1376421-2
2-1376383-3 2-1376421-3
3-1376383-4 3-1376421-4
1376384-1
1-1376384-2
2-1376384-3
3-1376384-4
1376385-1
1-1376385-2
2-1376385-3
3-1376385-4
1376386-1
1-1376386-2
2-1376386-3
3-1376386-4
1376387-1
1-1376387-2
2-1376387-3
3-1376387-4
2
3
4
6
2 Row
Standard Density
4
6
*Included in Header Assy. line are Tube Stick version. Refer to the appropriate description in the catalog.
Note: All part numbers are RoHS Compliant.
5.0 mm Power Key Connectors
.197
[5.00]
Centerline
Note:
Dimensions shown are metric.
136
Catalog 82181
Revised 4-08
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
Soft Shell
Pin and Socket Connectors
AMP
5.0 mm Power Key Connectors (5.0 PKC) (Wire-to-Board)
(Continued)
Receptacle Contacts
Material and Finish
Pre-tinned Copper Alloy
Section X-X
Wire Range
AWG
mm
2
24~20
0.22~0.53
20~16
0.5~1.25
Wire Ins. Dia.
1.89~2.7
2.0~3.1
Receptacle Contact
Part No.
1376348-1 (Strip Form)
1376347-1 (Strip Form)
Applicator
Part No.
*
*
Standard Density
* Contact the Tooling Assistance Center (TAC) at 1-800-722-1111 for Applicator Part Number.
Note:
Dimensions shown are metric.
Note: All part numbers are RoHS Compliant.
Double Lock Plates
5.0 mm Power Key Connectors
.197
[5.00]
Centerline
Material and Finish
UL94V-0, 6/6 Nylon, glass filled, Black
No. of Pos.
2
3
4
6
Dimensions (Double Lock Plate)
A
13.5
18.5
23.5
33.5
B
5
10
15
25
Double Lock Plate
Part No.
1376394-1
1376395-1
1376396-1
1376397-1
Applicable
Plug Part No.
-1376388-
-1376392-
-1376389-
-1376393-
-1376390-
-1376391-
* Contact the Tooling Assistance Center (TAC) for Applicator Part Number.
Note:
Dimensions shown are metric.
Note: All part numbers are RoHS Compliant.
137
Catalog 82181
Revised 4-08
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
Soft Shell
Pin and Socket Connectors
AMP
5.0 mm Power Key Connectors (5.0 PKC) (Wire-to-Board)
(Continued)

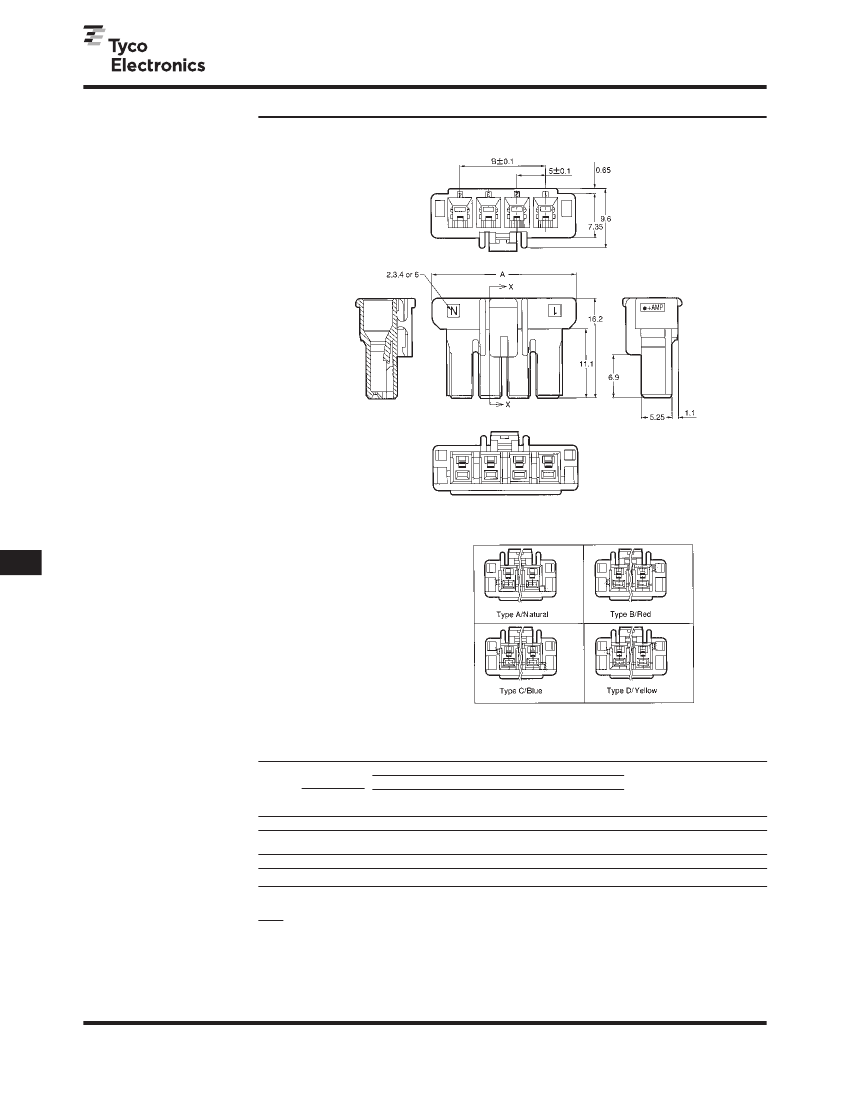

Plug Housings
(For Receptacle Contacts)
Material and Finish
Housing—6/6
Nylon, glass filled
Related Product Data
Receptacle Contacts—page
137
Double Lock Plates—page
137
Mating Headers—page
140
Section X-X
Standard Density
Type of Keying/Color
5.0 mm Power Key Connectors
.197
[5.00]
Centerline
No. of
Pos.
2
3
4
6
Dimensions
A
15
20
25
35
B
—
10
15
25
Type A
Natural
1376388-1
1376389-1
1376390-1
1376391-1
Plug Housing Part No.
Type of Keying/Color
Type B
Red
1-1376388-2
1-1376389-2
1-1376390-2
1-1376391-2
Type C
Blue
2-1376388-3
2-1376389-3
2-1376390-3
2-1376391-3
Type D
Yellow
3-1376388-4
3-1376389-4
3-1376390-4
3-1376391-4
Applicable
Double
Lock Plate
Part Number
1376394-1
1376395-1
1376396-1
1376397-1
Mating
Header Assy.
Part Number
-1376382-
-1376383-
-1376421-
-1376384-
-1376385-
Note:
Dimensions shown are metric.
Note: All part numbers are RoHS Compliant.
138
Catalog 82181
Revised 4-08
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
Soft Shell
Pin and Socket Connectors
AMP
5.0 mm Power Key Connectors (5.0 PKC) (Wire-to-Board)
(Continued)

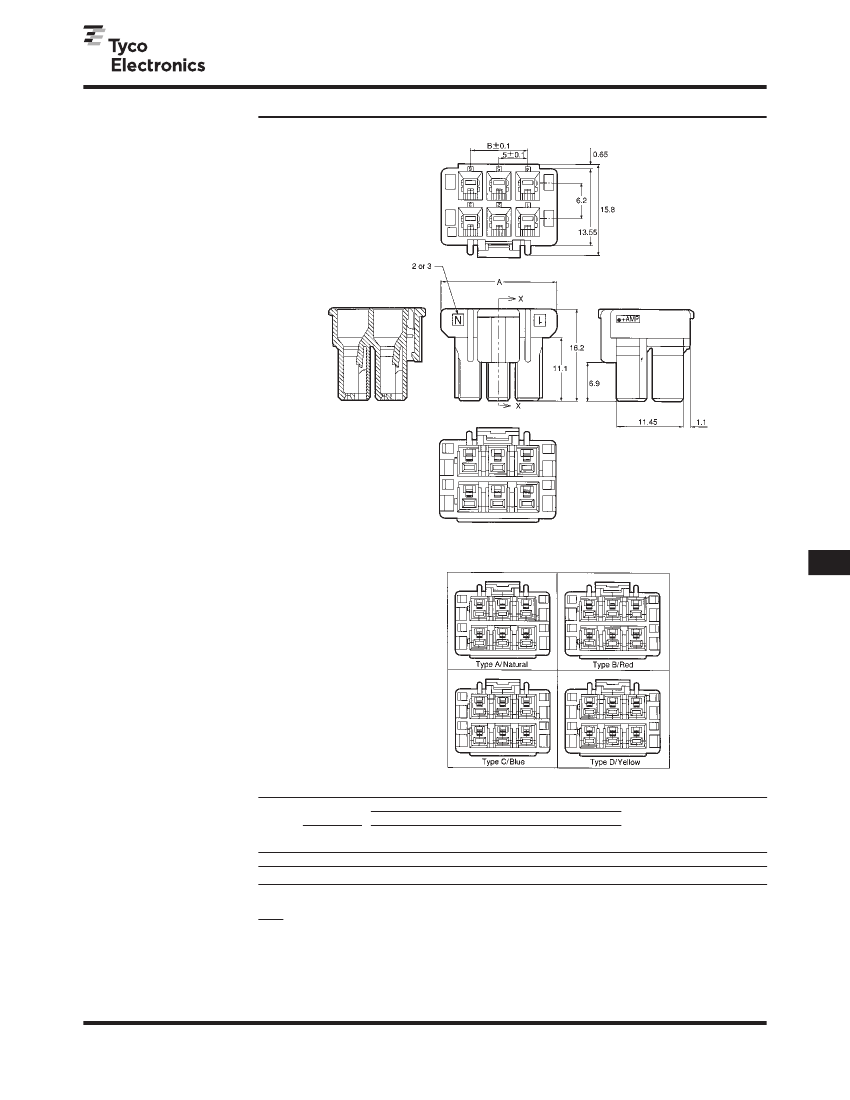

Plug Housing (2 Rows)
(For Receptacle Contacts)
Material and Finish
Housing—6/6
Nylon, glass filled
Related Product Data
Receptacle Contacts—page
137
Double Lock Plates—page
137
Mating Headers—page
141
Section X-X
Standard Density
Type of Keying/Color
5.0 mm Power Key Connectors
.197
[5.00]
Centerline
No. of
Pos.
4
6
Dimensions
A
15
20
B
—
10
Plug Housing Part No.
Type of Keying/Color
Type A
Type B
Natural
Red
1376392-1 1-1376392-2
1376393-1 1-1376393-2
Type C
Blue
2-1376392-3
2-1376393-3
Type D
Yellow
3-1376392-4
3-1376393-4
Applicable
Double
Lock Plate
Part Number
1376394-1
1376395-1
Mating
Header Assy.
Part Number
-1376386-
-1376387-
Note:
Dimensions shown are metric.
Note: All part numbers are RoHS Compliant.
139
Catalog 82181
Revised 4-08
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
