Description
Body
Pin
Insulation
O Ring
Washer
Nut
Spacer
Support
Heat Shrink
Material
Brass
BE CU
PTFE
Si Rubber
Brass
Brass
PTFE
Brass
Polyolefin
Finish
Nickel
Gold
N/A
Rubber
Nickel
Nickel
N/A
Nickel
Black
SIDE VIEW
RECOMMENDED
MOUNTING HOLE
Ø0.256
(6.50)
0.236
(6.00)
REVISIONS
REV
A
B
DESCRIPTION
Add heat shrink, new frame, revised stripping instruct./dims
Added new title block; update material
DATE
4/26/10
11-JUL-12
APPV
CJ
BPM
PIN
Ø0.020
(0.50)
SPACER
Ø0.049
(1.24)
HEAT SHRINK
SUPPORT
0.500
(12.70)
1/4"-36UNS-2A
THREADS
FLAT 0.228
(5.80)
Ø0.236
(6.00)
H0.433
(11.00)
Ø0.102
(2.60)
0.787
(20.00)
WASHER
0.197
(5.00)
H0.315
(8.00)
Ø0.402
(10.20)
1/4-36UNS-2B
THREADS
Ø0.118
(3.00)
BACK VIEW
NUT
0.417
(10.60)
0.083
(2.10)
0.748
(19.00)
0.248
(6.30)
FLAT 0.228
(5.80)
0.433
(11.00)

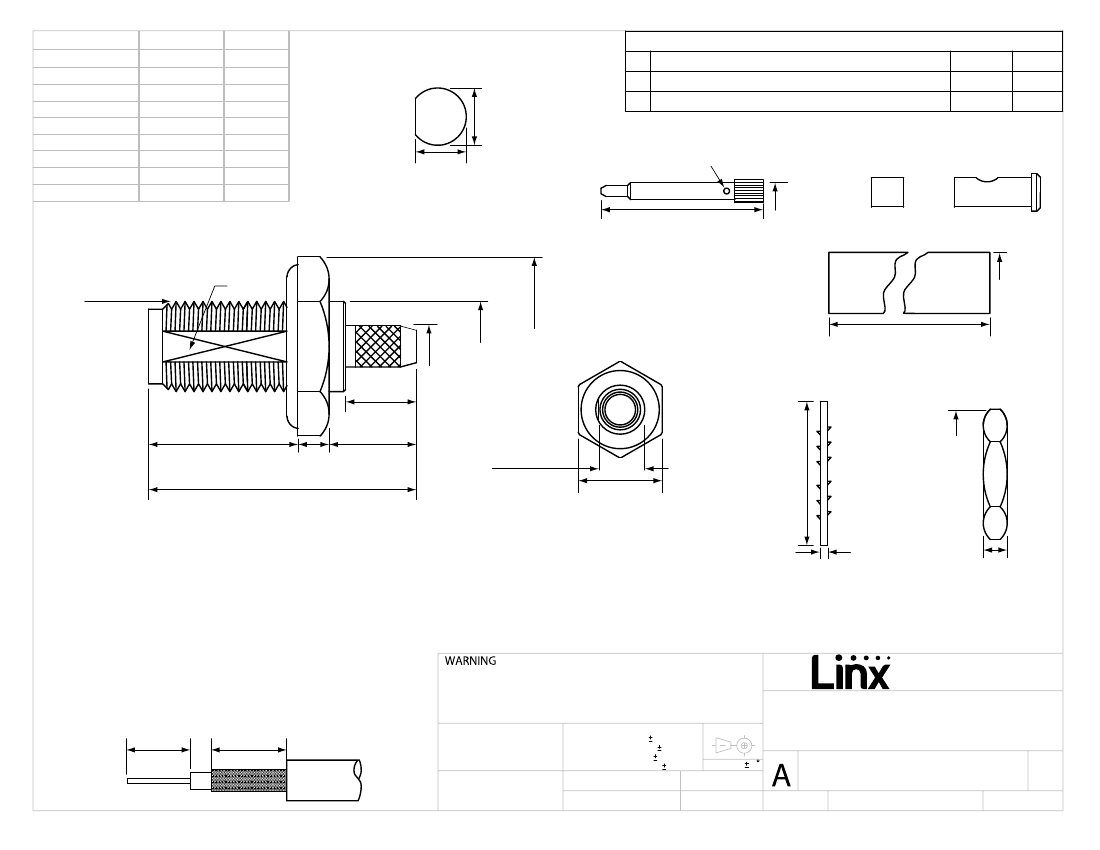

CONREVSMA014-R178 ASSEMBLY INSTRUCTIONS
1. Strip the cable to the recommended dimensions.
2. Slide the coax into the support until the outside insulation bottoms out
against the inside shoulder of the support.
3. Solder the support onto the braid.
4. Place the spacer onto the center conductor.
5. Solder or crimp the pin onto the center conductor.
6. Insert the pin, center conductor, spacer, and support into the body
until the top of the pin is flush to end of the body.
7. Crimp the tail of the body onto the support with a 0.093” hex crimp tool.
RECOMMENDED CABLE STRIPPING DIMENSIONS
0.020
(0.50)
0.065
(1.65)
0.217 0.032
(5.50) (0.80)
0.197
(5.00)
RG-178 Cable
MATERIAL:
THAT IS THE SOLE PROPERTY OF LINX TECHNOLOGIES, AND SHALL BE
TREATED AS SUCH. NO DISCLOSURE OR REPRODUCTION OF THIS
DOCUMENT IS PERMITTED, IN WHOLE OR IN PART, WITHOUT THE
EXPRESS WRITTEN PERMISSION OF LINX TECHNOLOGIES OR ITS
DESIGNATED AGENTS.
NOTES: (UNLESS OTHERWISE SPECIFIED)
1. ALL DIMENSIONS ARE IN INCHES [mm]. 3. MANUFACTURE TO BE COMPLIANT WITH EU RoHS DIRECTIVE.
2. DIMENSIONS APPLY AFTER FINISHING. 4. SAFETY BREAK ALL SHARP CORNERS AND EDGES .02 MAXIMUM.
:
THIS DRAWING CONTAINS PROPRIETARY INFORMATION
159 ORT LANE
TITLE:
MERLIN, OR 97532
FINISH:
PROJECTION:
TOLERANCES:
.020 [0.50]-.200 [5.00]= .008 [0.20]
.200 [5.00]-1.200 [30.00]= .016 [0.40]
1.20 [30.0]-4.75 [120.0]= .024 [0.60]
4.75 [120.0]-12.40 [315.0]= .040 [1.0]
ANGLES: 1
RP-SMA FEMALE BULKHEAD MOUNT CABLE
END CRIMP WITH O-RING FOR RG178 CABLE
SIZE
DWG. NO.
SCALE: 2:1
DRAWN:
CJ
ENGR:
DT:
4/26/10
DT:
CONREVSMA014-R178
DO NOT SCALE DRAWING
REV
B
SHEET 1 OF 1
LDCFDLT_A
