Part Number

Search

504051-1001

Description
Headers & Wire Housings PicoLock 1.5 W/B REC HOUSING 10P
CategoryThe connector
File Size28KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

504051-1001 Online Shopping

Suppliers Part Number Price MOQ In stock
504051-1001 - - View Buy Now

504051-1001 Overview

Headers & Wire Housings PicoLock 1.5 W/B REC HOUSING 10P

504051-1001 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerMolex
Product CategoryHeaders & Wire Housings
RoHSDetails
ProductWire Housings
Number of Positions10 Position
Pitch1.5 mm
Number of Rows1 Row
Mounting Style-
Termination Style-
Contact Gender-
Contact Plating-
Mating Post Length-
Termination Post Length-
PackagingBulk
ApplicationWire-to-Board
Current Rating2 A
Housing MaterialThermoplastic
Contact Material-
Flammability RatingUL 94 V-0
Housing GenderReceptacle
Maximum Operating Temperature+ 85 C
Minimum Operating Temperature- 25 C
NumOfPackaging1
Factory Pack Quantity10000
Unit Weight0.003845 oz

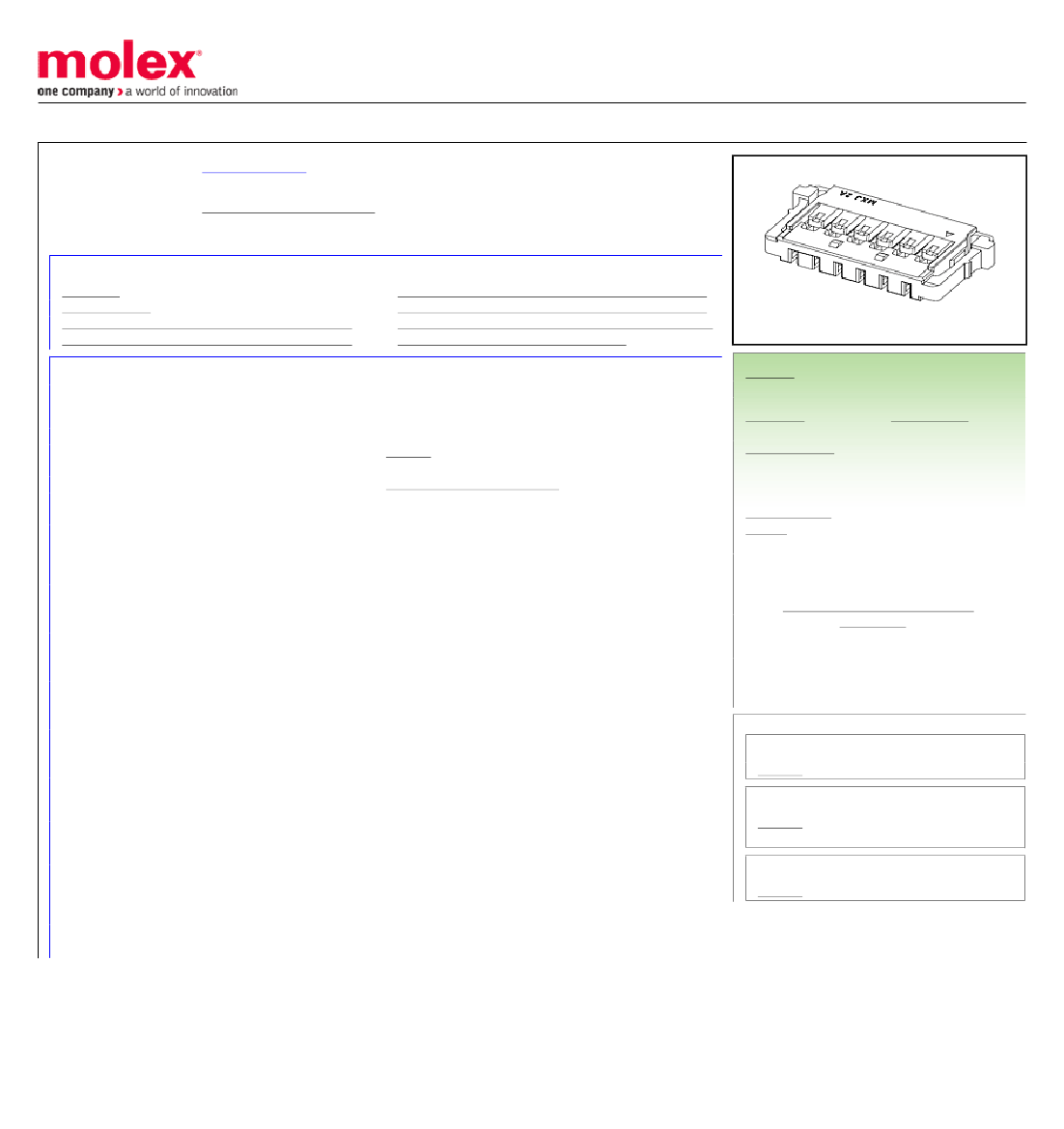

This document was generated on 03/01/2018
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
5040511001
Active
Pico-Lock Connector System
1.50mm Pitch Pico-Lock Crimp Housing, 2.00mm Mated Height, Positive Side Locks,
10 Circuits
Documents:
3D Model
Drawing (PDF)
Product Specification PS-504051-001-001 (PDF)
Product Specification PS-504051-002-001 (PDF)
Agency Certification
UL
General
Product Family
Series
Application
Overview
Product Name
UPC
Physical
Circuits (maximum)
Color - Resin
Gender
Glow-Wire Capable
Keying to Mating Part
Lock to Mating Part
Material - Resin
Net Weight
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface
Polarized to Mating Part
Stackable
Temperature Range - Operating
Electrical
Current - Maximum per Contact
Material Info
Reference - Drawing Numbers
Application Specification
Packaging Specification
Product Specification
Sales Drawing
Application Specification AS-504051-001-001 (PDF)
Application Specification AS-504051-002-001 (PDF)
Packaging Specification SPK-504051-001-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per
-ED/01/2018 (15
January 2018)
Halogen-Free
Status
Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Not Relevant
Not Contained
E29179
Crimp Housings
504051
Wire-to-Board
Pico-Lock Connector System
Pico-Lock
884982939929
10
Black
Receptacle
No
N/A
Yes
High Temperature Thermoplastic
109.000/mg
1
Bag
No
1.50mm
Yes
No
-40°C to +105°C
2.0A
Search Parts in this Series
504051 Series
Mates With
504050 Pico-Lock SMT Wire-to-Board
Header
Use With
504052 Pico-Lock Crimp Terminal
AS-504051-001-001, AS-504051-002-001
SPK-504051-001-001
PS-504051-001-001, PS-504051-002-001
SD-504051-001
This document was generated on 03/01/2018
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
