Low DCR, High Energy storage, suitable for large currents
Ideal for a variety of DC-DC converter inductor applications
Pb
RoHS/RoHS II Compliant
3.0 x 3.0 x 1.2mm
APPLICATIONS:
•
•
•
•
Partable communication equipment
OA equipment
LCD, DVD, modem, set-top box
DC/DC converters
ELECTRICAL SPECIFICATIONS:
Abracon P/N:
Operating Temperature
Storage Temperature
Part Number
ASPI-3012S-
Inductance Code
Units
Symbol
ASPI-3012S-R82
ASPI-3012S-1R0
ASPI-3012S-1R2
ASPI-3012S-1R5
ASPI-3012S-1R8
ASPI-3012S-2R2
ASPI-3012S-2R4
ASPI-3012S-2R7
ASPI-3012S-3R3
ASPI-3012S-3R9
ASPI-3012S-4R7
ASPI-3012S-6R8
ASPI-3012S-100
ASPI-3012S-120
ASPI-3012S-150
ASPI-3012S-180
ASPI-3012S-220
ASPI-3012S-270
ASPI-3012S-330
ASPI-3012S-360
ASPI-3012S-390
ASPI-3012S-470
ASPI-3012S-680
ASPI-3012S-820
ASPI-3012S-101
ASPI-3012S Series
:
:
Inductance
μH
L
0.82
1.0
1.2
1.5
1.8
2.2
2.4
2.7
3.3
3.9
4.7
6.8
10
12
15
18
22
27
33
36
39
47
68
82
100
-40ºC to +125ºC
-10ºC to +40ºC and 70% R.H.
L Tolerance
−
N, M
N
N
N
N
N
N
N
M,N
M,N
M,N
M,N
M,N
M,N
M,N
M,N
M,N
M,N
M,N
M,N
M,N
M,N
M,N
M,N
M,N
M,N
DC Resistance
(±30%)
Ω
DCR
0.030
0.040
0.045
0.045
0.063
0.075
0.068
0.085
0.100
0.145
0.120
0.190
0.265
0.345
0.360
0.545
0.645
0.870
0.875
0.950
1.330
1.450
1.670
2.540
2.860
Saturation
Current
A
Isat
2.05
1.87
2.22
1.62
1.30
1.20
1.15
1.14
1.05
1.00
0.90
0.75
0.60
0.48
0.45
0.43
0.42
0.35
0.36
0.34
0.30
0.27
0.24
0.17
0.21
Temperature
Rise Current
A
Irms
2.47
2.20
2.01
2.01
1.65
1.55
1.60
1.48
1.36
1.24
1.24
0.98
0.83
0.73
0.71
0.58
0.53
0.47
0.46
0.44
0.37
0.35
0.33
0.27
0.25
Min. Self resonant
frequency
MHz
SRF
180
120
120
110
90
84
100
65
64
61
61
61
42
32
27
25
23
21
18
18
18
14
12
12
12
R82
1R0
1R2
1R5
1R8
2R2
2R4
2R7
3R3
3R9
4R7
6R8
100
120
150
180
220
270
330
360
390
470
680
820
101
Inductance
Code
t.
Test Conditions:
a. Ambient Temperature: 20± 15
o
C
b. Relative Humidity: 65%±20%
c. Air
Pressure:
86KPa to 106KPa
Inductance (L): ZM2355
LCR meter or equivalent, 100kHz, 1V
rms
Direct Current Resistance
(DCR):
HIOKI 3540 or equivalent
Saturation
Current
(Isat):
E3260B meter or equivalent
Isat:
Based on inductance change (Δ L/Lo :Δ
-30%)
Temperature rise current
(Irms):
Electric
Power,
Electric current meter, Thermometer
Irms:
Based on temperature rise (Δ T : 40
o
C TYP. )
ABRACON IS
ISO 9001:2008
ISO 9001 / QS 9000
CERTIFIED
30332
Esperanza, Rancho
Santa Margarita,
California
9268
Visit
www.abracon.com
for Terms & Conditions of Sale
Revised: 08.14.13
tel
949-546-8000
|
fax
949-546-8001
| www.abracon.com
SMD SHIELDED POWER INDUCTOR
ASPI-3012S
ELECTRICAL SPECIFICATIONS:
Pb
RoHS/RoHS II Compliant
3.0 x 3.0 x 1.2mm

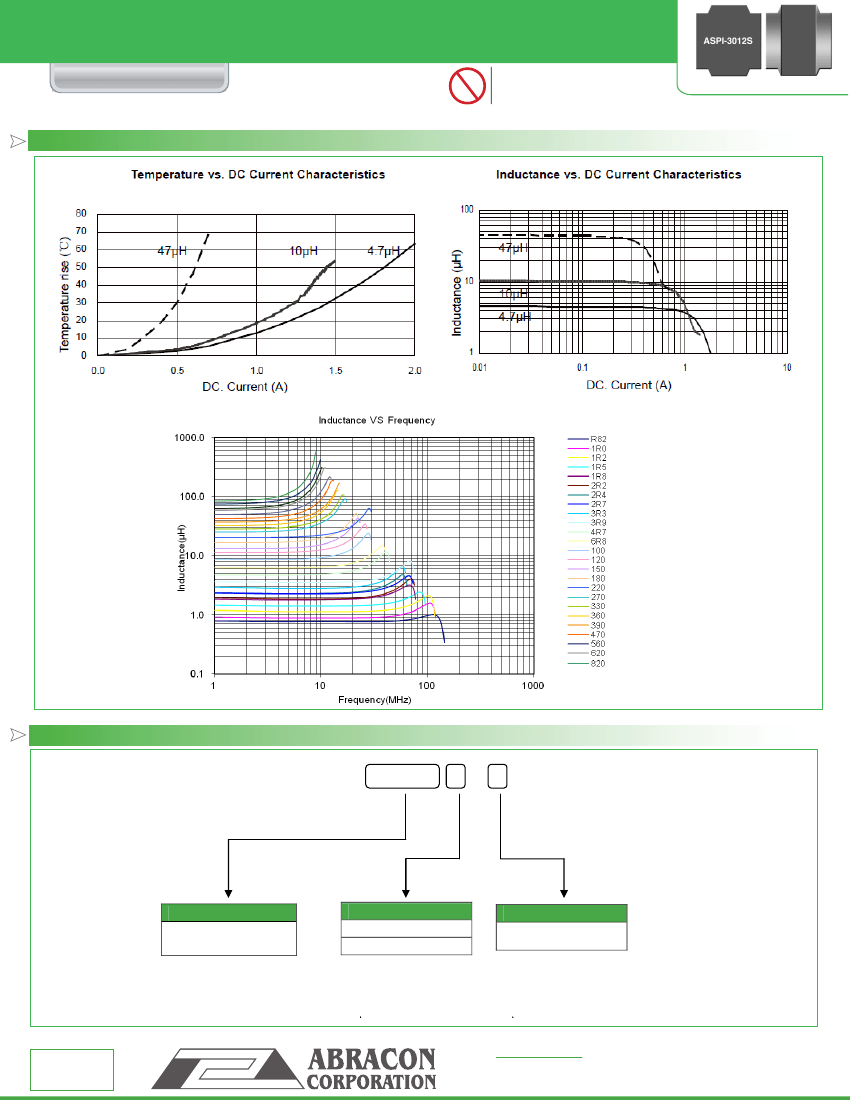

OPTIONS AND PART IDENTIFICATION
ASPI-3012S -
-
t.
Inductance Code
Please refer to the
table above
Tolerance
M: ±20% *
N: ±30% *
*M for 2.7µH~100µH
*N for 0.82µH~100µH
T: Tape and Reel
(2kpcs / reel)
Packaging
ABRACON IS
ISO 9001:2008
ISO 9001 / QS 9000
CERTIFIED
30332 Esperanza, Rancho Santa Margarita, California 9268
Visit
www.abracon.com
for Terms & Conditions of Sale
Revised: 08.14.13
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
SMD SHIELDED POWER INDUCTOR
ASPI-3012S

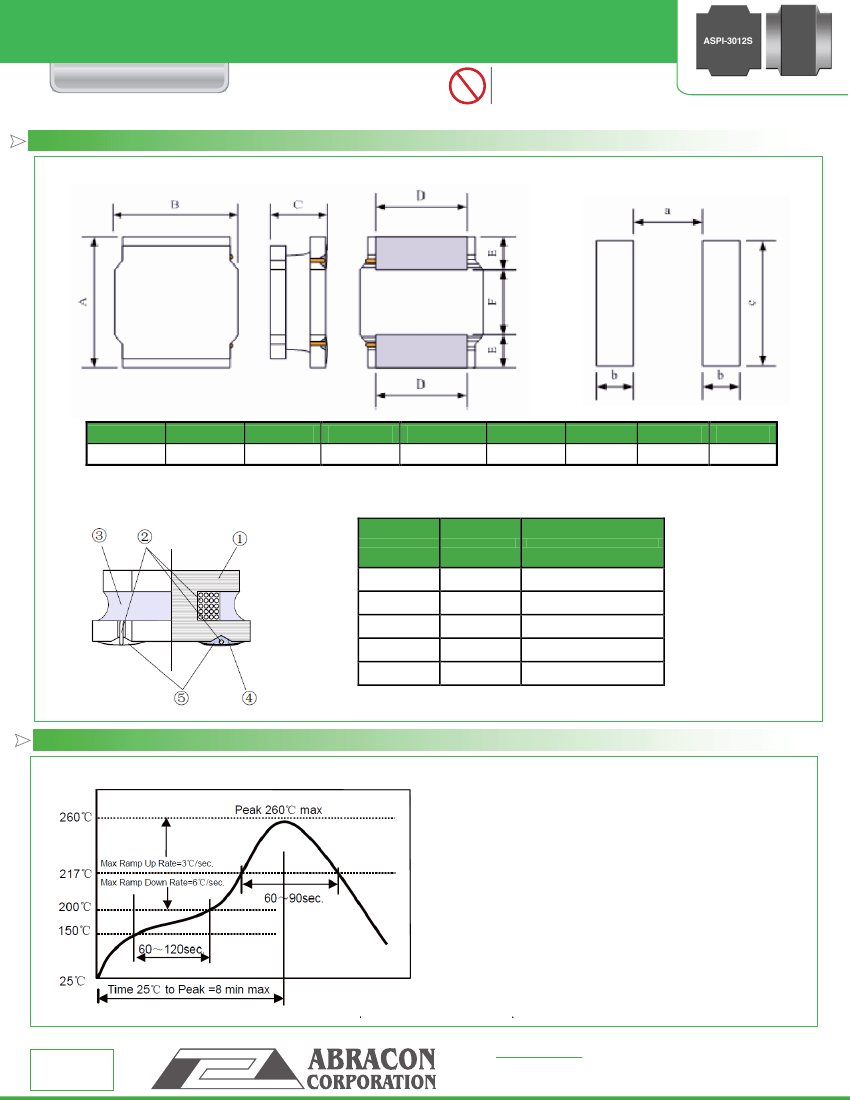

OUTLINE DIMENSIONS:
Recommended Land Pattern
Pb
RoHS/RoHS II Compliant
3.0 x 3.0 x 1.2mm
A
3.0±0.2
B
3.0±0.2
C Max.
1.2Max.
D
2.5±0.2
E
0.75±0.2
F
1.5±0.2
a Typ.
1.5Typ.
b Typ.
0.8Typ.
c Typ.
2.7Typ
Materials
No
Components
Material
Dimensions: mm
1
2
3
4
5
Ferrite Core
Wire
Magnetic Glue
Plating Electrodes
Outer Electrodes
Ni-Zn Ferrite
Polyurethane System enameled copper
wire
Epoxy resin and magnetic powder
Plating: Ag/Ni/Sn
Top surface solder coating:
Sn96.5%/Ag3%/Cu0.5%
REFLOW PROFILE:
Δ
Δ
Δ
Δ
Δ
Δ
Allowed time above 217C: 60~90sec.
Max temp: 260
o
C
Max time at max temp: 5sec.
Solder paste: Sn/3.0Ag/0.5Cu
Allowed Reflow time: 2x max
Preheat condi
tion: 150 ~200
o
C/60~120sec.
ABRACON IS
ISO 9001:2008
ISO 9001 / QS 9000
CERTIFIED
30332 Esperanza, Rancho Santa Margarita, California 9268
Visit
www.abracon.com
for Terms & Conditions of Sale
Revised: 08.14.13
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
SMD SHIELDED POWER INDUCTOR
ASPI-3012S

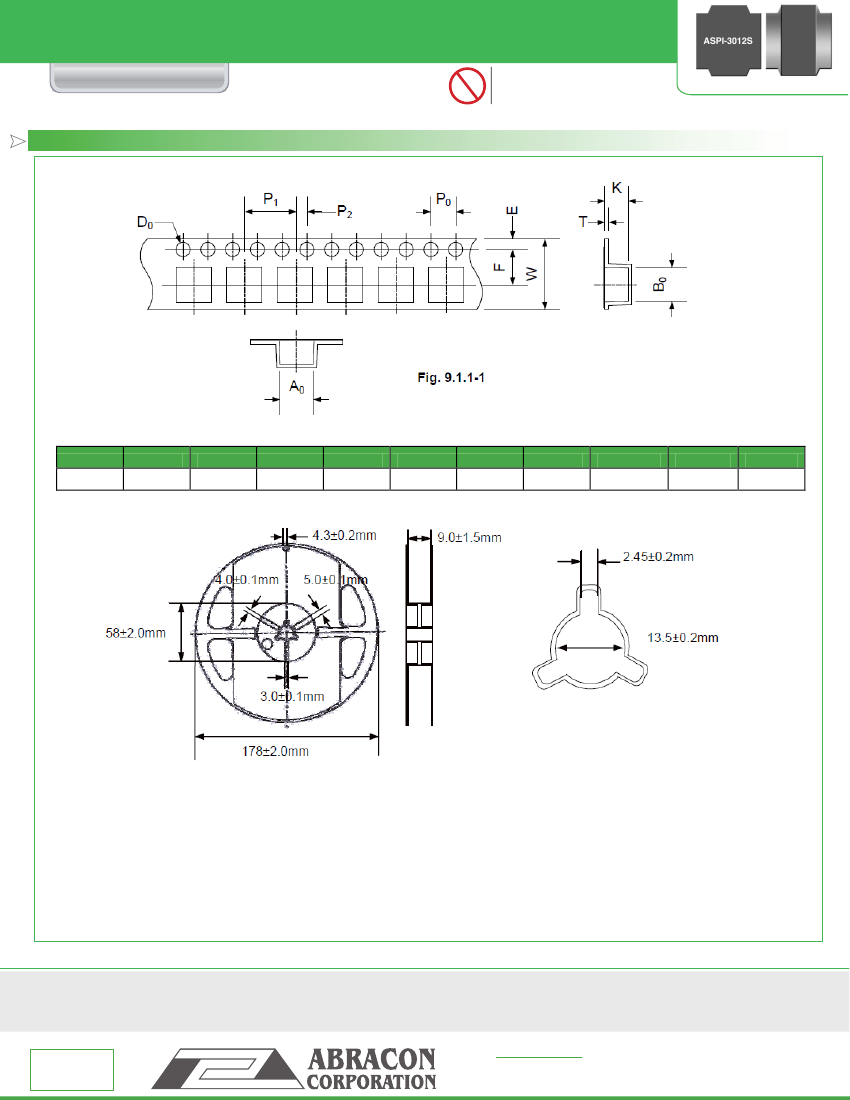

TAPE & REEL:
Pb
RoHS/RoHS II Compliant
3.0 x 3.0 x 1.2mm
A0
3.3±0.1
B0
3.3±0.1
W
8.0±0.3
E
1.75±0.1
F
3.5±0.05
P0
4.0±0.1
P1
4.0±0.1
P2
2.0±0.1
D0
1.5+0.1/-0.0
T
0.25±0.03
K
1.6±0.1
Storage Conditions
a.
b.
c.
d.
To maintain the solderability of terminal electrodes and to keep the packing material in good condition, temperature and
humidity in the storage area should be controlled.
Recommended conditions: -10
o
C ~ 40
o
C, 70% RH (Max.)
Even under ideal storage conditions, solderability of products electrodes may decrease as time passes. For this reason, product
should be used with one year from the time of delivery.
In case of storage over 6 months, solderability shall be checked before actual usage.
Dimension: mm
ATTENTION:
Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applications.
Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where component
failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and authorization from
Abracon Corporation is required. Please contact Abracon Corporation for more information.
ABRACON IS
ISO 9001:2008
ISO 9001 / QS 9000
CERTIFIED
Visit
www.abracon.com
for Terms & Conditions of Sale
30332 Esperanza, Rancho Santa Margarita, California 9268
