HA-A390 Overview

CRYSTAL CLOCK OSCILLATORS

Preview

Download Datasheet

View All

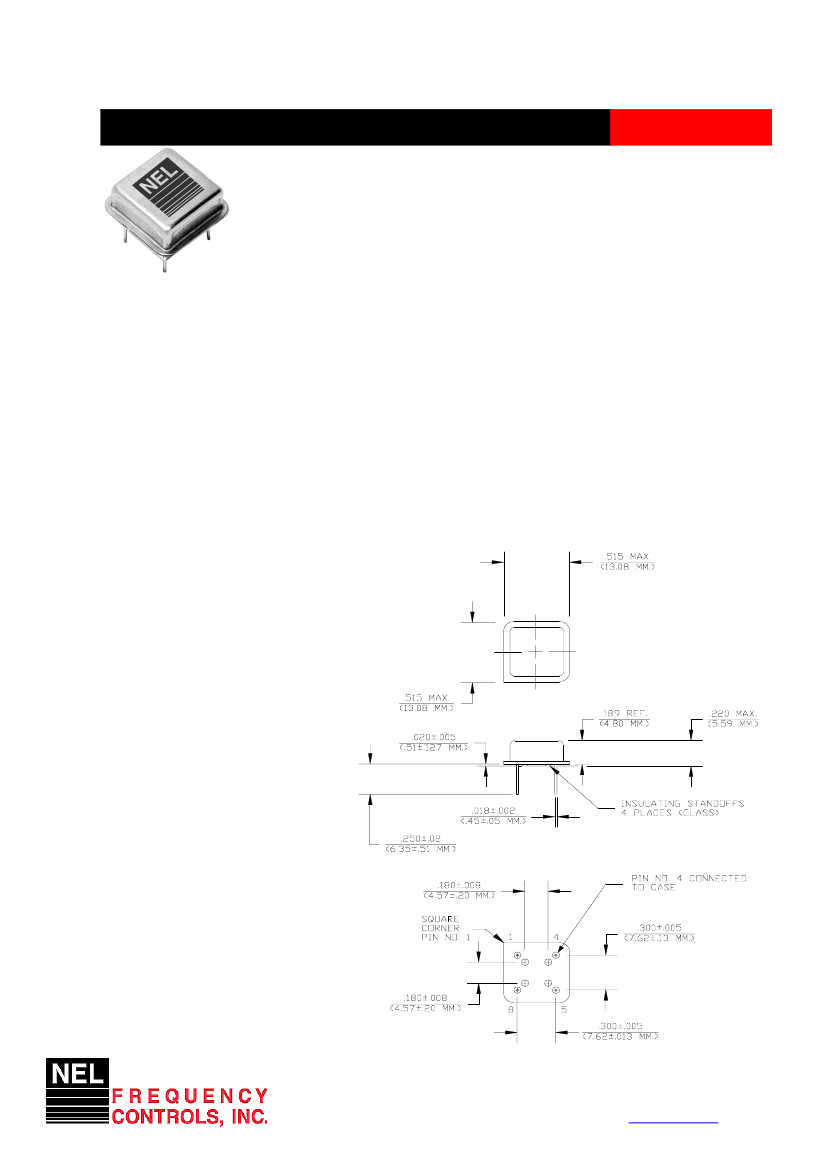

CRYSTAL CLOCK OSCILLATORS

CMOS

Data Sheet 0019A

Rev. C

HA-A390 Series

Description

The

HA-A390 Series

of quartz crystal oscillators provide CMOS compatible signals for general purpose

timing applications.

Features

• Wide frequency range–70.1MHz to 125.0MHz

• User specified tolerance available

• Will withstand vapor phase temperatures of 253°C

for 4 minutes maximum

• Space-saving alternative to discrete component

oscillators

• High shock resistance, to 3000g

• 3.3 volt operation

• Low Jitter

Electrical Connection

Connection

N.C.

Grd & Case

Output

• High Q Crystal actively tuned oscillator circuit

• Power supply decoupling internal

• No internal PLL avoids cascading PLL problems

• High frequencies due to proprietary design

•

All metal, resistance weld, hermetically sealed

package

• Gold plated leads - Solder dipped leads available

upon request

Dimensions are in inches and MM.

357 Beloit Street, P.O. Box 457, Burlington, WI 53105-0457 U.S.A. Phone 262/763-3591 FAX 262/763-2881

Email:

nelsales@nelfc.com

www.nelfc.com
