OISM-103121121 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Optical fiber> OISM-103121121

OISM-103121121: DescriptionIsolator, 1295nm Min, 1325nm Max,; CategoryWireless rf/communication Optical fiber; File Size180KB，2 Pages; ManufacturerLaser Components USA Inc.

Download Datasheet Parametric View All

OISM-103121121 Overview

Isolator, 1295nm Min, 1325nm Max,

OISM-103121121 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
body height	30 mm
Body length or diameter	3 mm
Fiber optic equipment types	ISOLATOR
Fiber type	SMF-28
Maximum insertion loss	0.5 dB
Minimum isolation	30 dB
Maximum operating temperature	70 °C
Minimum operating temperature	-5 °C
Maximum operating wavelength	1325 nm
Minimum operating wavelength	1295 nm
Nominal operating wavelength	1310 nm
Maximum optical input power	400 mW
Maximum polarization dependent loss	0.1 dB
minimum return loss	60 dB
Base Number Matches	1

Preview

Download Datasheet

View All

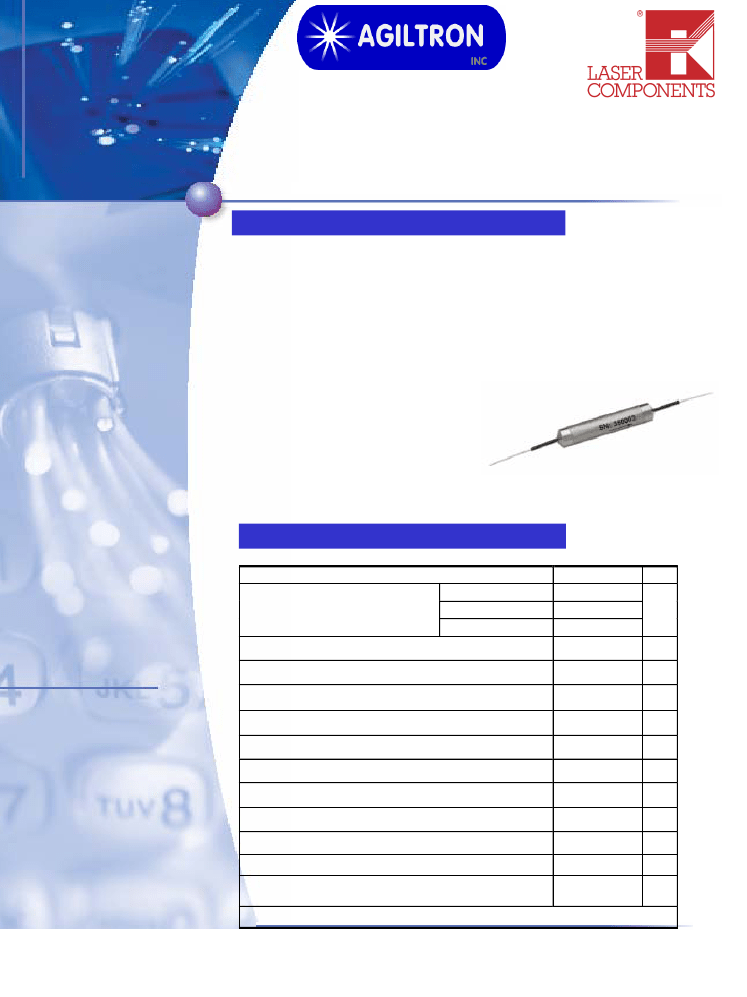

1310/1550 Single Mode

Single Stage Optical Isolator

Product Description

The OISM Series 1310/1550 single stage optical Isolator is a passive device

that guides light at 1310/1550 nm in the normal direction while

minimizing back reflection and back scattering in the reverse direction

for any state of polarization. Employing Agiltron’s proven advanced micro

optics design, it features low insertion loss, extremely high isolation,

compact structure, and high stability. These Telcordia

qualified components have excellent

characteristics, making them an ideal

choice for application in fiber

amplifier systems, pump laser diodes

and optical fiber sensors.

Features

•

Low Insertion Loss

High Isolation

Low PDL

High Reliability

Low Cost

Performance Specifications

OISM Single Stage

Operation Wavelength (λo)

1310

C Band

L Band

Specification Unit

1310 ± 15

1550 ± 15

1585 ± 15

≤

0.3

≤

0.5

≥

≤

0.1

≤

0.2

≥

-5 ~ +70

-40 ~ +85

≤

400

∅5.5

x L34 or

∅3.0

x L30

Typical Insertion Loss (λc, 23

C, no connector)

Maximum Insertion Loss (Over

λo,

C, no connector)

Minimum Isolation (Over

λo,

Applications

•

Optical Fiber Amplifier

Pump Laser Source

Fiber Optic Sensor

Instrumentation

Typical Peak Isolation (λc, 23

Polarization Dependant Loss

Polarization Mode Dispersion *

Return Loss (Minimum, Input/Output)

Operating Temperature

Storage Temperature

Optical Power Handling

Package Dimensions

* Special order for PMD

≤

0.05ps with compensator

LASER COMPONENTS GmbH

Werner-von-Siemens-Str. 15, 82140 Olching, Germany, Phone: +49 8142 2864 0, Fax: +49 8142 2864 11, info@lasercomponents.com
