RCH855NP-151K

Description
Fixed Inductors 150uH 0.32A 10% THRU HOLE INDUCTOR
CategoryPassive components    inductor
File Size218KB,7 Pages
ManufacturerSUMIDA
Websitehttp://www.sumida.com/
Environmental Compliance
Download Datasheet Parametric View All

RCH855NP-151K Online Shopping

Suppliers Part Number Price MOQ In stock
RCH855NP-151K - - View Buy Now

RCH855NP-151K Overview

Fixed Inductors 150uH 0.32A 10% THRU HOLE INDUCTOR

RCH855NP-151K Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerSUMIDA
Reach Compliance Codeunknown
ECCN codeEAR99
structureUnshielded
DC Resistance0.71 Ω
Nominal inductance(L)150 µH
Inductor typeGENERAL PURPOSE INDUCTOR
Lead diameter0.7 mm
Lead length5 mm
lead spacing5 mm
Number of functions1
Number of terminals2
Package diameter7.8 mm
Package length5.5 mm
Package formRadial
Maximum rated current0.32 A
Shape/Size DescriptionCYLINDRICAL PACKAGE
shieldNO
surface mountNO
Terminal locationRADIAL
Terminal shapeWIRE
Test frequency0.001 MHz
Tolerance10%

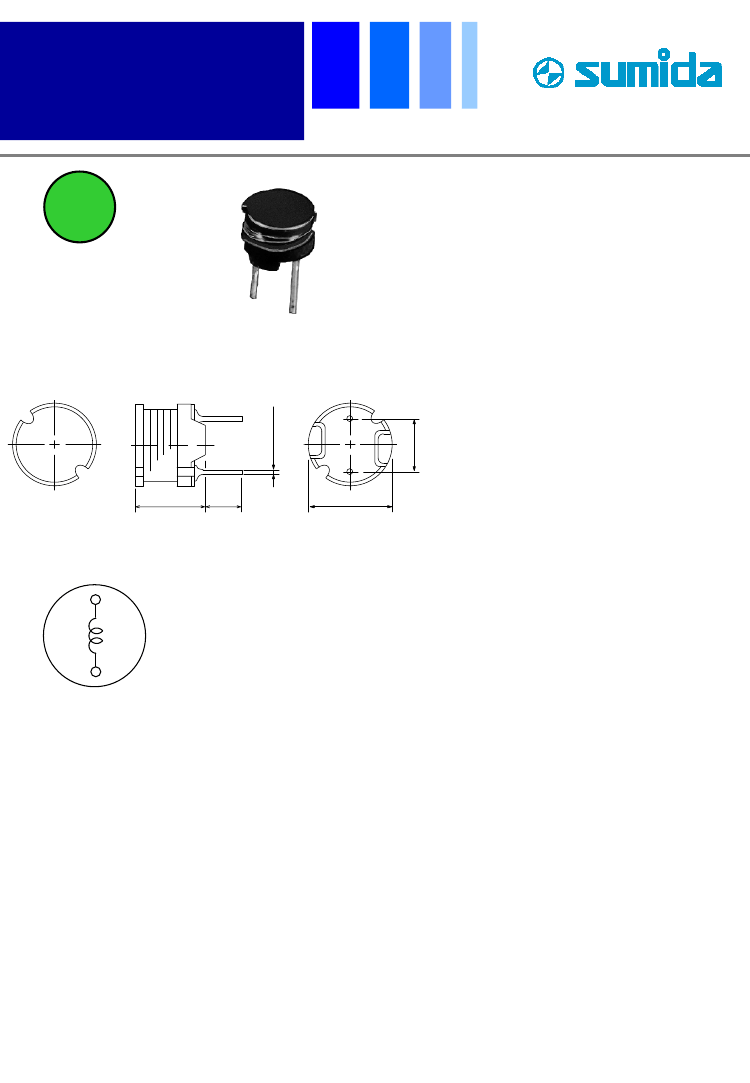

PIN Power Inductor
RCH-855
Description
• Ferrite drum core construction.
• Magnetically unshielded.
• L×W×H: 8.3×8.3×5.5mm Max.
• Product weight: 0.9g(Ref.)
• Moisture Sensitivity Level: 1
• RoHS compliance.
Environmental Data
• Operating temperature range: -40℃½+100℃
(including coil’s self temperature rise)
• Storage temperature range: -40℃½+100℃
+0.1
φ 0.7-0.05
5.0±0.3
φ. ±.
78 05
RoHS
Dimension - [mm]
Packaging
• Box packaging.
Applications
• Ideally used in Printers, LCD TV, DVD, Copy
Machine, Mainboard of the compounding
machines etc. as DC-DC Converter inductors.
MX55
A..
±.
10
50
.
Schematics - [mm]
Page 1 of 7
Revised: 10-Jan-17
