1-2823595-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wire/cable> 1-2823595-1

1-2823595-1: DescriptionLOW PROFILE 2G/3G/4G,MIMO+GPS WHITE ANTE; CategoryWire/cable; File Size840KB，4 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

1-2823595-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-2823595-1	-	-	View	Buy Now

1-2823595-1 Overview

LOW PROFILE 2G/3G/4G,MIMO+GPS WHITE ANTE

1-2823595-1 Parametric

Parameter Name	Attribute value
Connection Type	SMA plug
Bands	LTE World Band
Antenna type	external
Antenna type	shell
Frequency band (MHz)	1562 – 1612, 1700 – 2700, 698 – 960
Installation method	external antenna
wireless applications	GPS, GSM, LTE, WiMAX

Preview

Download Datasheet

View All

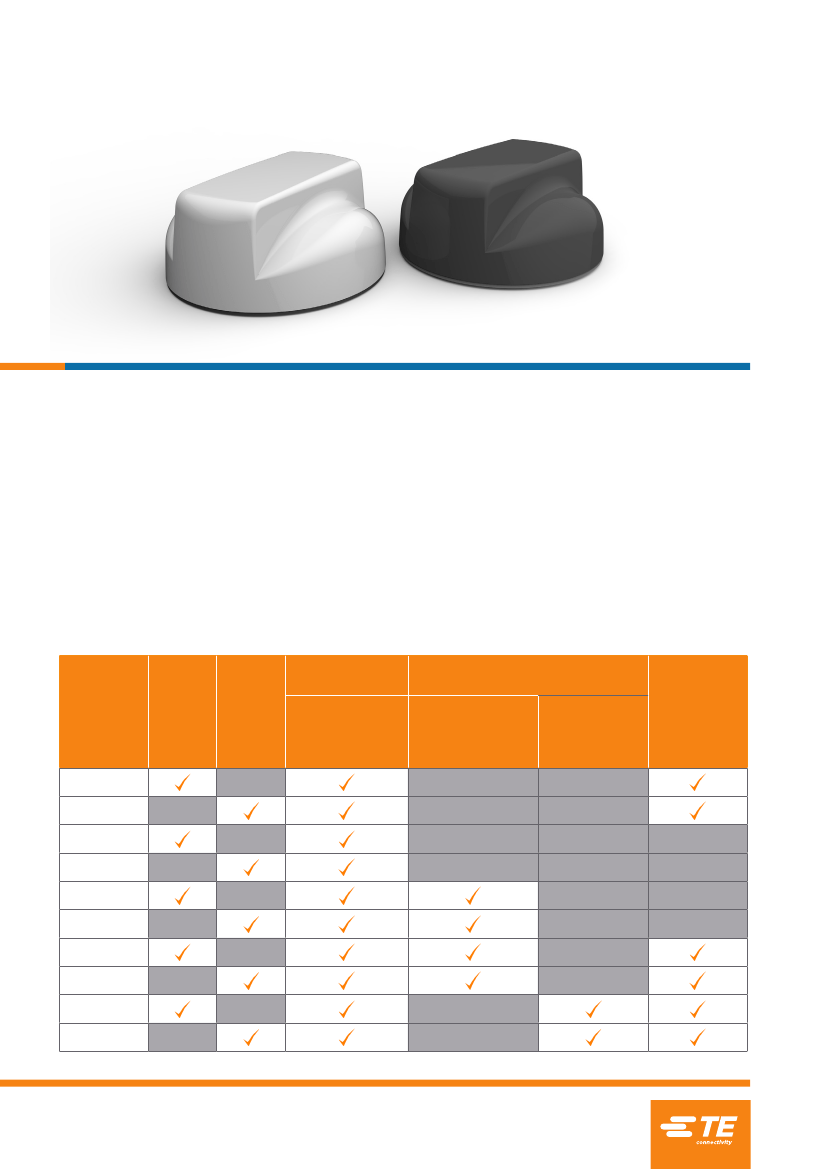

LTE MiMo ANTENNA

LOW PROFILE MiMo ANTENNA WITH GPS

The light transit low profile MiMo antenna range has been designed to support the new generation of vehicular

LTE routers. The antenna enclosure contains three isolated high performance antenna elements; two ultra-

wideband elements covering 698-2700MHz support MiMo/diversity at cellular/LTE frequencies and a high

performance GPS antenna with an integrated 26dB gain LNA and high quality filtering to combat noise.

The antenna does not require a metalic ground plane, and maintains a high level of performance even when

mounted on a non-metalic surface.

Ordering Information

Elements 1 & 2

TE Part

number

Housing Housing

colour: Colour:

White

Black

2x Cellular

Elements (698-

960/

1710-2700MHz)

Elements 3, 4 & 5

2x WLAN

Elements

(2.4/4.906GHz)

3x WLAN

Elements

(2.4/4.9-

6GHz)

1x GPS

(1575MHz

26dB gain)

1-2823595-1

1-2823595-2

1-2823596-1

1-2823596-2

1-2823597-1

1-2823597-2

1-2823598-1

1-2823598-2

1-2823599-1

1-2823599-2

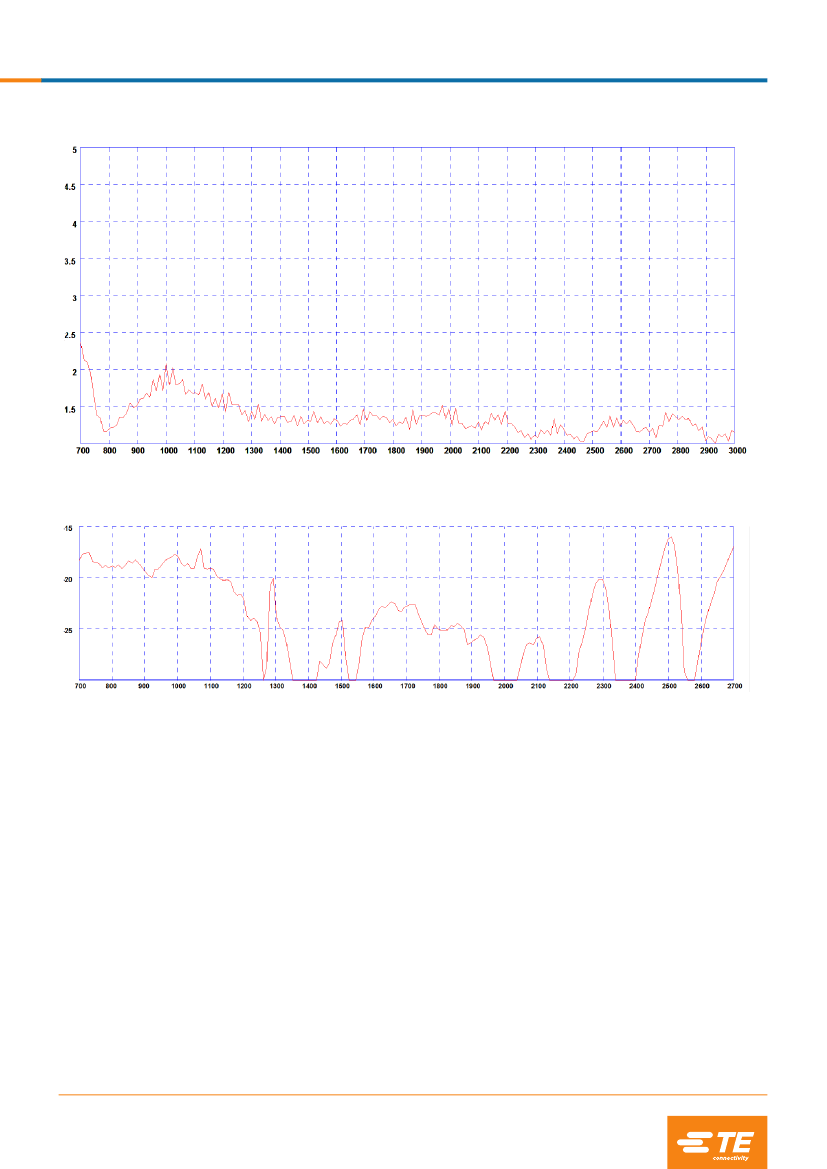

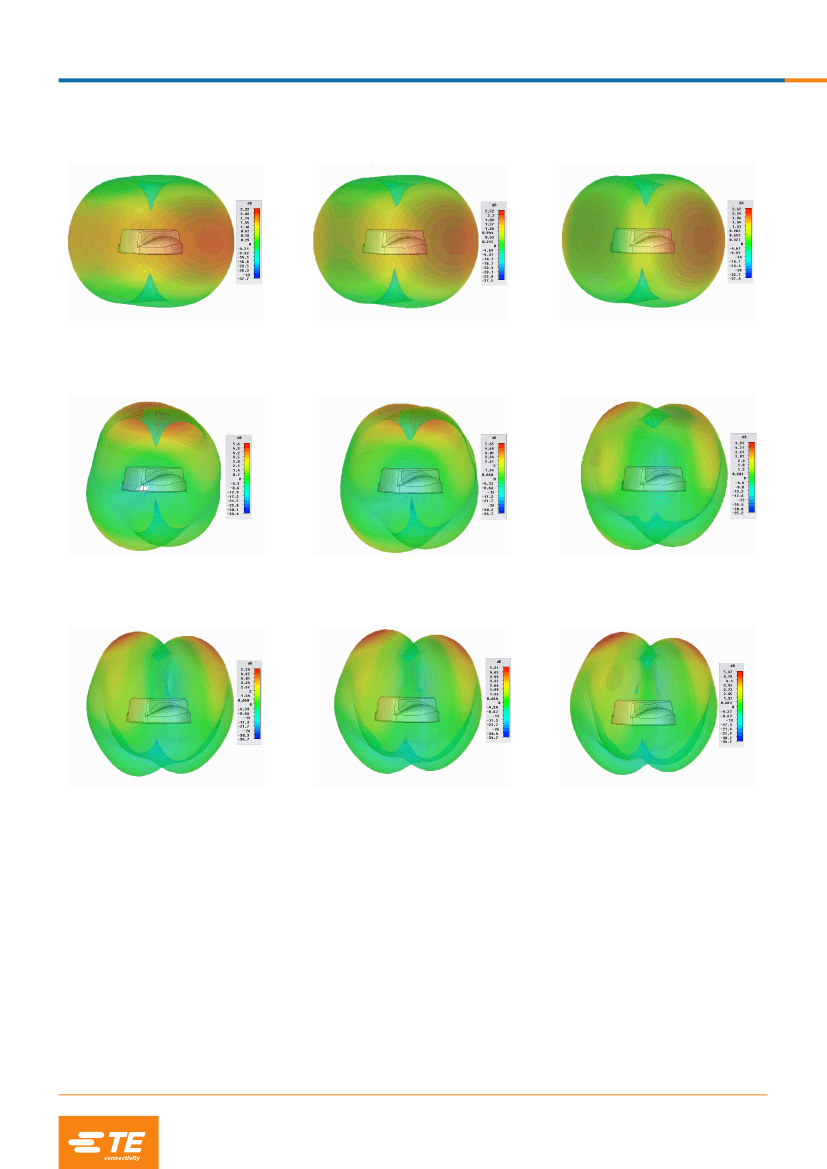

LTE MiMo ANTENNA

/// DATA SHEET

1-2823595-1 Related Products

	1-2823595-1	1-2823598-2	1-2823596-1	1-2823596-2	1-2823597-1
Description	LOW PROFILE 2G/3G/4G,MIMO+GPS WHITE ANTE	LOW PROFILE 2G/3G/4G,MIMO BLACK ANTENNA	LOW PROFILE 2G/3G/4G,MIMO WHITE ANTENNA	LOW PROFILE 2G/3G/4G,MIMO BLACK ANTENNA	LOW PROFILE 2G/3G/4G,MIMO WHITE ANTENNA
Connection Type	SMA plug	SMA plug	SMA plug	SMA plug	SMA plug
Bands	LTE World Band	LTE World Band	LTE World Band	LTE World Band	LTE World Band
Frequency band (MHz)	1562 – 1612, 1700 – 2700, 698 – 960	1562 – 1612, 1710 – 2700, 2400 – 2485, 4900 – 6000, 698 – 960	1710 – 2700, 698 – 960	1710 – 2700, 698 – 960	1710 – 2700, 2400 – 2485, 4900 – 6000, 698 – 960
wireless applications	GPS, GSM, LTE, WiMAX	GPS, GSM, LTE, Wi-Fi, WiMAX	GSM, LTE, WiMAX	GSM, LTE, WiMAX	GSM, LTE, Wi-Fi, WiMAX
Antenna type	shell	shell	shell	shell	shell

Recommended Resources

Sound and light alarm DC regulated power supply circuit

Rongsheng DCX-63A dual temperature electronic disinfection cabinet circuit diagram

3V-12V DC DC conversion circuit 2

Ultra-precision long delay circuit
