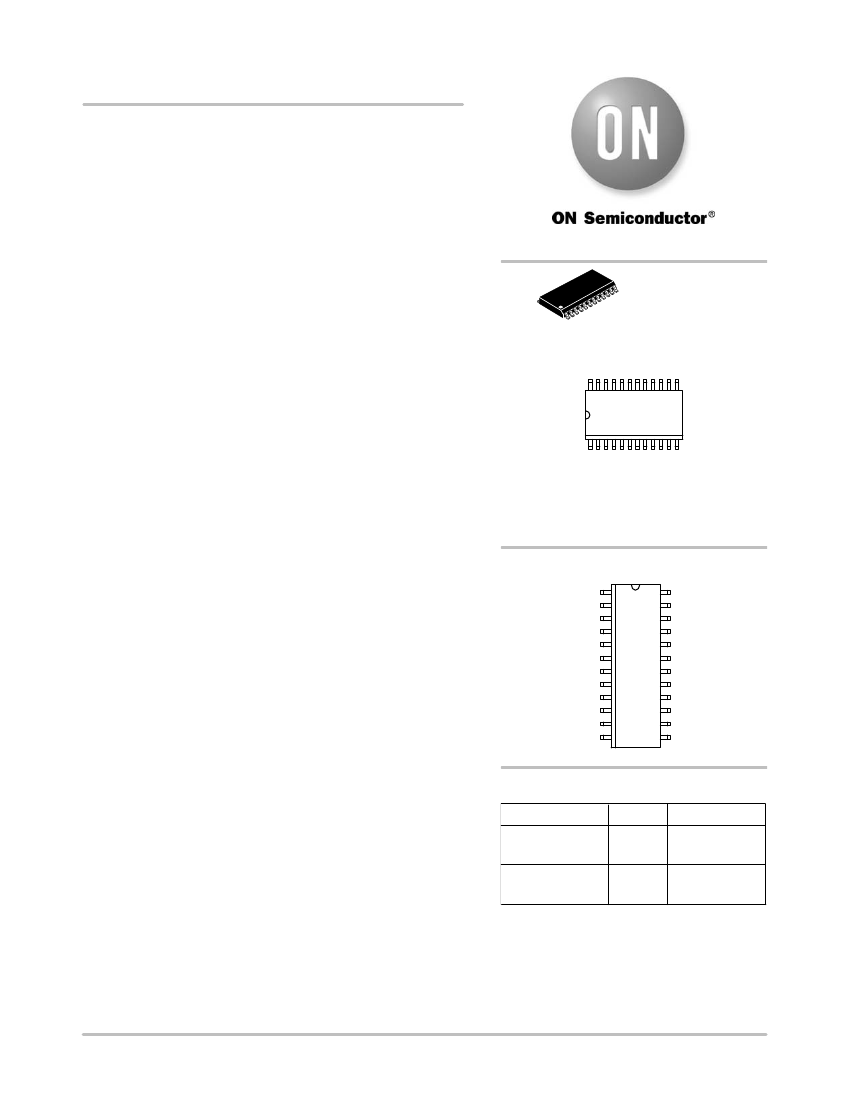

NCV7702B

1 A Dual H-Bridge Driver

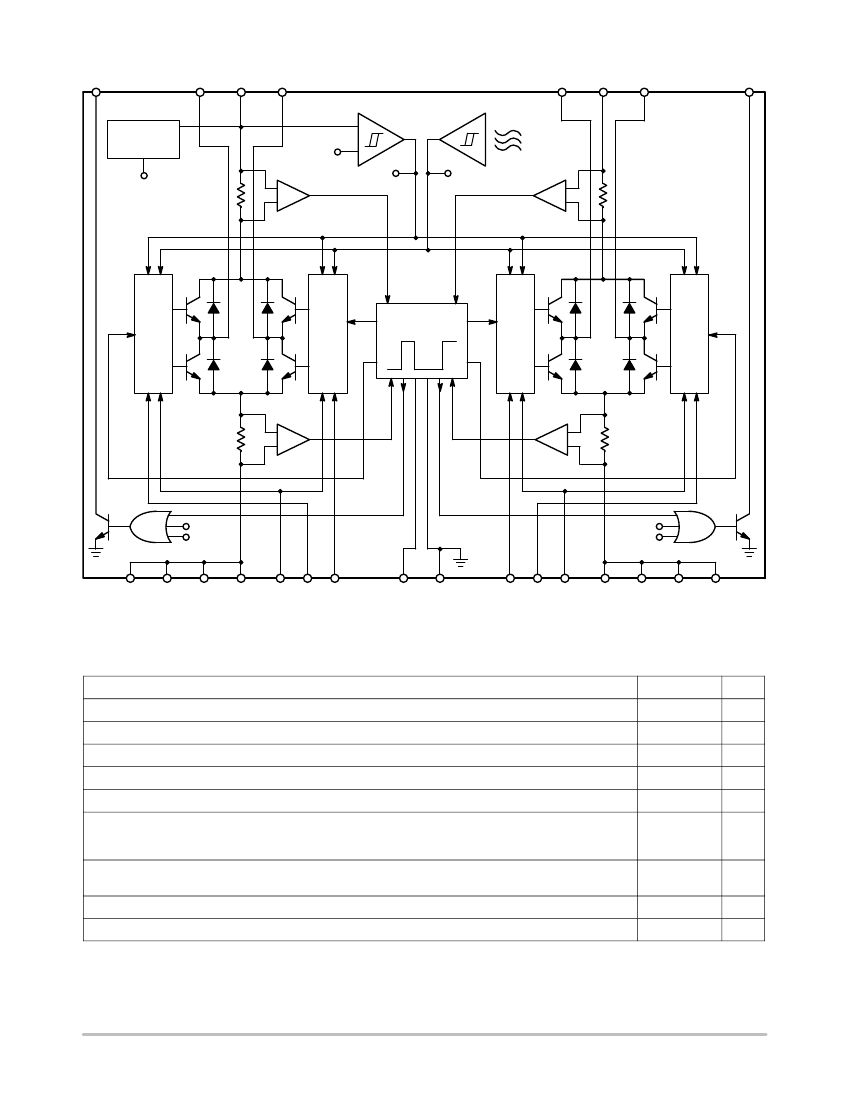

This dual full-bridge driver IC is intended for 14 V automotive

stepper and DC motor applications. Its four half-bridge outputs are

configured as two channels and are programmed by six TTL

compatible inputs, allowing flexible control of bridge operation. The

device operates in standby mode, run mode, or brake mode and

typically consumes less than 1

while in standby. In run mode,

each half-bridge output can deliver load current in either direction.

Brake mode activates the low side transistors or high side transistors

at the selected outputs. On-chip recirculation diodes are provided,

and the IC has multiple fault protection modes. Overcurrent

detection protects against shorted loads between outputs and shorts

to supply or ground at each output. An overcurrent fault condition

activates an internal timer, which modulates faulted outputs at low

duty cycle. An overcurrent condition in one channel does not affect

operation in the other. Overvoltage and overtemperature detection

are also provided, and turn off all bridge outputs during these fault

conditions. Recovery from all fault conditions is automatic; the IC

will resume normal operation in its previously selected mode upon

fault resolution. Diagnostic ability is provided by two open-collector

STATUS outputs which report the fault status of each channel

independently during overcurrent faults, and together during

overvoltage or overtemperature faults.

Features

http://onsemi.com

SO-24L

DW SUFFIX

CASE 751E

MARKING DIAGRAM

NCV7702B

AWLYYWWG

= Assembly Location

= Wafer Lot

= Year

= Work Week

= Pb-Free Device

•

Single 7 V-16 V Supply

•

Low Standby Current:

•

♦

PIN CONNECTIONS

VB1

OUT1B

OUT1A

STATUS1

PGND

IN1A

IN1B

AGND

EN1

VB2

OUT2B

OUT2A

STATUS2

PGND

IN2A

IN2B

EN2

•

< 1.0

Typically

3.3 V / 5 V Compatible Inputs

Independent Channel Enable

Channels Configurable as:

♦

Full-Bridge Drive

♦

Half-Bridge, High Side or Low Side Drive

On-Chip Recirculation Diodes

Fault Protection with Automatic Recovery for:

♦

Overcurrent

♦

Overvoltage

♦

Overtemperature

Fault Diagnostic STATUS Outputs

Internally Fused Leads in SO–24L Package

AEC Qualified

PPAP Capable

These are Pb-Free Devices*

ORDERING INFORMATION

Device

NCV7702BDWG

Package

SO-24L

(Pb-Free)

Shipping†

31 Units/Rail

NCV7702BDWR2G

Applications

♦

•

Automotive and Industrial Driver for:

DC or Stepper Motors

Relays or Solenoids

Unipolar or Bipolar Loads

SO-24L 1000 Tape & Reel

(Pb-Free)

†For information on tape and reel specifications,

including part orientation and tape sizes, please

refer to our Tape and Reel Packaging Specifications

Brochure, BRD8011/D.

*For additional information on our Pb-Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting

Techniques Reference Manual, SOLDERRM/D.

Semiconductor Components Industries, LLC, 2007

October, 2007 - Rev. 1

Publication Order Number:

NCV7702B/D
