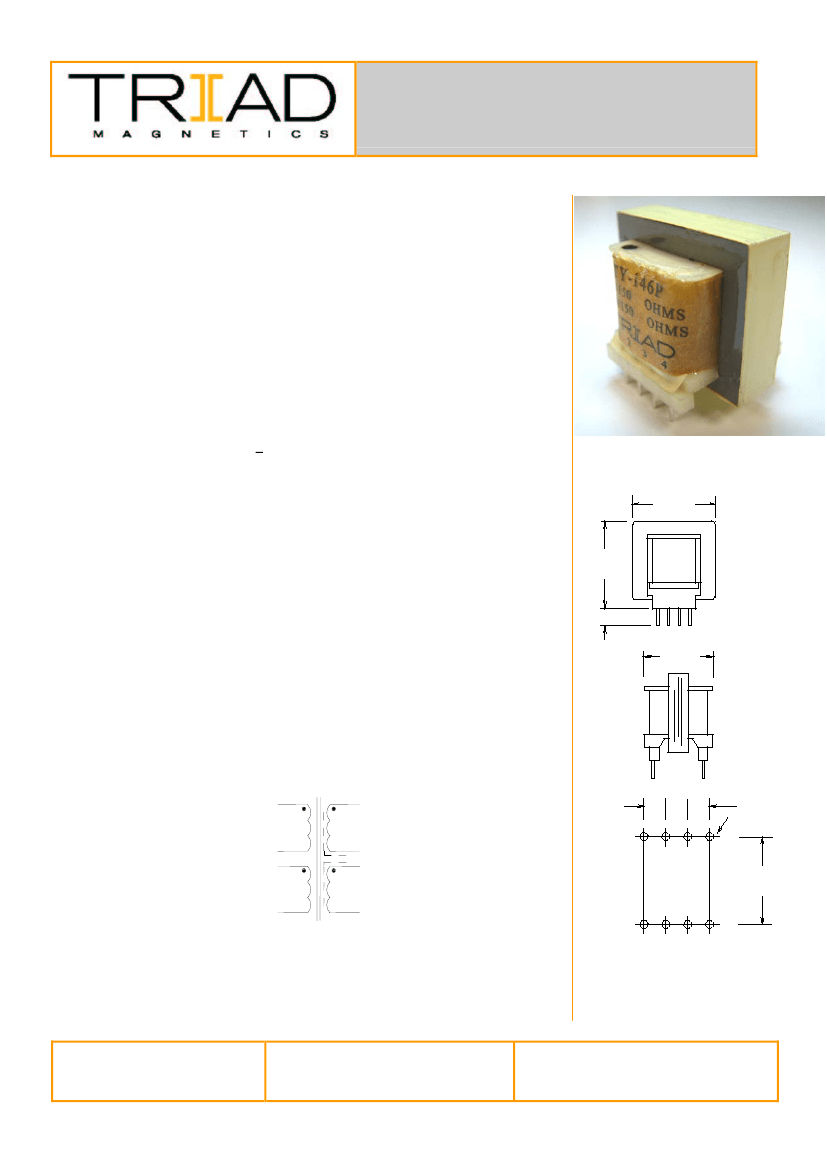

A u d i o Tr a n s f o r m e r

PC Mount

T Y- 1 4 6 P

Description:

These transformers operate in the 200 Hz to 15,000 Hz range, making them

suitable for a broad application spectrum in the audio industry. These devices

are used in line matching, telephone coupling, pulse trigger, driver, interstage,

output, isolation and input applications.

Operating Temperature Range:

Electrical Specifications at 25º C:

Primary Impedance:

2. Secondary Impedance:

3. Output:

4. Primary DC Unbalance:

5. Frequency Response:

6. Impedance Matching:

7. Longitudinal Balance

8. Insertion Loss @ 1K Hz:

9. Return Loss:

10. Total Harmonic Distortion

11. DCR:

Primary (1-2)

Primary (3-4)

Secondary (5-6)

Secondary (7-8)

12. Turns Ratio:

13. Dielectric Strength

0º C to 105º C

600Ω CT / 150§

+ 15% with 600Ω load

600Ω CT / 150§

0 Ma

+ 2db from 200 to 15,000 Hz

10% over full frequency range

> 45db

< 1.5db

> 26db

< 0.5% between 275Hz and3.5KHz

17Ω Nominal



19Ω

Nom



inal



14.5Ω Nominal

22Ω Nominal

1:1

1500V Pri to Sec to Core

1.187

REF

1.375

REF

1 2 3 4

.187 REF

MAX

1.187

Construction:

Bobbin has plug-in terminals which are spaced to provide fixed mounting centers.

Pins are a rugged .042” square, minimizing the incidence of bent pins from

handling.

Outline Dimensions:

A. Dimensions: As figures show

B. PIN DIM. : .0375” x .020”

C. Weight. : 3.0 oz.

Schematic:

PRI 1

Z = 150/600

PRI 2

SEC 1

Z = 150/600

SEC 2

.200 .200 .200

.060 DIA HOLES

1.00

RoHS Compliance:

As of manufacturing date February 2005, all standard

products meet the requirements of 2011/65/EU, known as the RoHS initiative.

*Upon printing, this document is considered “uncontrolled”. Please contact

Triad Magnetics website for the most current version.

For soldering and

washing information please see http://www.triadmagnetics.com/faq.html

web:www.TriadMagnetics.com

Phone 951-277-0757

Fax 951-277-2757

460 Harley Knox Blvd.

Perris, California 92571

Publish Date: June 16, 2016
