VJ HVArc Guard
®
www.vishay.com
Vishay Vitramon
Surface Mount Multilayer Ceramic Chip Capacitors
Prohibit Surface Arc-Over in High-Voltage Applications
FEATURES
For this Worldwide Patented Technology
• Specialty: high-voltage applications

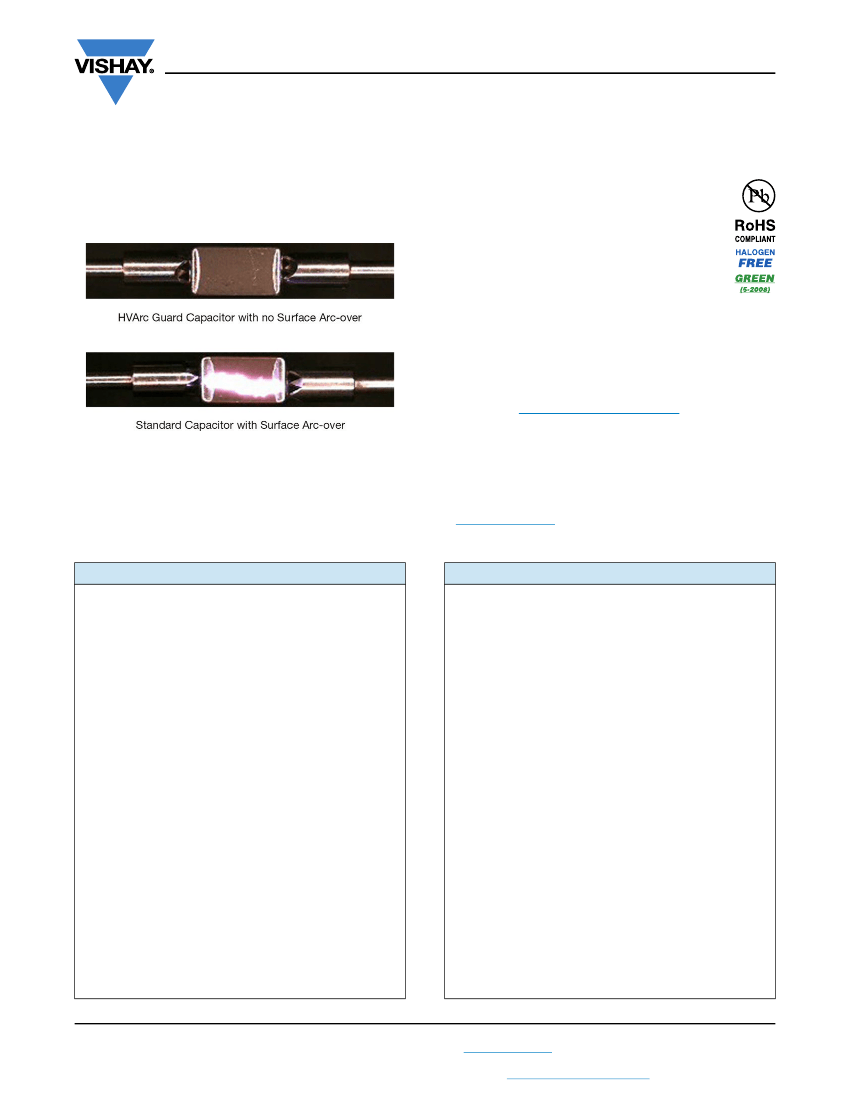

• MLCC that protects against surface arc-over
• Excellent high-voltage performance
• Higher capacitances and smaller case sizes that
save board space, as compared to standard
Available
high-voltage MLCCs
• Voltage breakdowns as much as twice that of competitors’ products
• Available with polymer termination for increase resistance to
board flex cracking. Please contact factory for availability
• Wet build process
• Reliable Noble Metal Electrode (NME) system
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
APPLICATIONS
•
•
•
•
Power supplies
DC/DC converters (buck and boost)
Voltage multipliers for flyback converters
For lighting and other AC applications please contact:
mlcc@vishay.com
ELECTRICAL SPECIFICATIONS
C0G (NP0)
GENERAL SPECIFICATION
Note
Electrical characteristics at +25 °C unless otherwise specified
X7R
GENERAL SPECIFICATION
Note
Electrical characteristics at +25 °C unless otherwise specified
Operating Temperature:
-55 °C to +125 °C
Capacitance Range:
10 pF to 8.2 nF
Voltage Range:
1000 V
DC
to 2500 V
DC
Temperature Coefficient of Capacitance (TCC):
0 ppm/°C ± 30 ppm/°C from -55 °C to +125 °C
Dissipation Factor (DF):
0.1 % maximum at 1.0 V
RMS
and
1 MHz for values
1000 pF
0.1 % maximum at 1.0 V
RMS
and
1 kHz for values > 1000 pF
Insulating Resistance:
at +25 °C 100 000 M min. or 1000
F
whichever is less
at +125 °C 10 000 M min. or 100
F
whichever is less
Aging Rate:
0 % maximum per decade
Dielectric Strength Test:
performed per method 103 of EIA 198-2-E.
Applied test voltages
150 % of rated voltage
1000 V
DC
-rated:
1500 V
DC
, 2500 V
DC
-rated:
120 % of rated voltage
Operating Temperature:
-55 °C to +125 °C
Capacitance Range:
220 pF to 270 nF
Voltage Range:
250 V
DC
to 1000 V
DC
Temperature Coefficient of Capacitance (TCC):
± 15 % from -55 °C to +125 °C, with 0 V
DC
applied
Dissipation Factor (DF):
2.5 % maximum at 1.0 V
RMS
and 1 kHz
Insulating Resistance:
at +25 °C 100 000 M min. or 1000
F
whichever is less
at +125 °C 10 000 M min. or 100
F
whichever is less
Aging Rate:
1 % maximum per decade
Dielectric Strength Test:
performed per method 103 of EIA 198-2-E.
Applied test voltages
200 % of rated voltage
250 V
DC
-rated:
500 V
DC
-rated:
min. 150 % of rated voltage
630 V
DC
, 1000 V
DC
-rated: min. 120 % of rated voltage
Revision: 25-May-2018
Document Number: 45197
1
For technical questions, contact:
mlcc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VJ HVArc Guard
®
www.vishay.com
Vishay Vitramon
QUICK REFERENCE DATA
DIELECTRIC
CASE
0805
1206
C0G (NP0)
1210
2220
2225
0805
1206
X7R
1210
1808
1812
Note
• Detail ratings see “Selection Chart”
MAXIMUM VOLTAGE
(V)
1500
1500
1500
1500
2500
1000
1000
1000
1000
1000
CAPACITANCE
MINIMUM
10 pF
10 pF
10 pF
470 pF
470 pF
470 pF
220 pF
220 pF
220 pF
220 pF
MAXIMUM
390 pF
1.5 nF
2.7 nF
5.6 nF
8.2 nF
3.3 nF
47 nF
82 nF
100 nF
270 nF
ORDERING INFORMATION
VJ0805
CASE
CODE
A
DIELECTRIC
101
(4)
J
CAPACITANCE
TOLERANCE
X
TERMINATION
(5)
G
DC
VOLTAGE
RATING
(1)
P = 250 V
E = 500 V
L = 630 V
G = 1000 V
R = 1500 V
O = 2500 V
A
MARKING
T
PACKAGING
5Z
(2)
PROCESS
CODE
CAPACITANCE
NOMINAL
CODE
Expressed in
picofarads (pF).
The first two
digits are
significant, the
third is a
multiplier.
Examples
102 = 1000 pF
223 = 22 000 pF
0805
1206
1210
1808
1812
2220
2225
A = C0G
(NP0)
Y = X7R
J=±5%
K = ± 10 %
M = ± 20 %
X = Ni barrier
100 % matte tin
plate finish
F, E = AgPd
(3)
B = polymer
100 % matte tin
plate finish
(4)
A=
unmarked
5Z = HVArc
Guard
®
T = 7" reel / plastic tape
R = 11 1/4" / 13" reel / plastic tape
Notes
(1)
DC voltage rating should not be exceeded in application. Other application factors may affect the MLCC performance.
Consult for questions:
mlcc@vishay.com
(2)
Process code has to be added
(3)
Termination code “E” is for conductive epoxy assembly, contact
mlcc@vishay.com
for availability
(4)
Please contact factory for polymer termination availability
(5)
Other termination options contact
mlcc@vishay.com
for availability
ENVIRONMENTAL STATUS
TERMINATION CODE
X
E
B
F
TERMINATION DESCRIPTION
Ni barrier 100 % tin plated matte finish
AgPd
Polymer layer, 100 % tin plated matte finish
AgPd
RoHS COMPLIANT
Yes
Yes
Yes
Yes
VISHAY GREEN
Yes
Yes
No
No
Revision: 25-May-2018
Document Number: 45197
2
For technical questions, contact:
mlcc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VJ HVArc Guard
®
www.vishay.com
Vishay Vitramon
SELECTION CHART C0G (NP0)
DIELECTRIC
STYLE
CASE CODE
VOLTAGE (V
DC
)
VOLTAGE CODE
CAP. CODE
100
120
150
180
220
270
330
390
470
560
680
820
101
121
151
181
221
271
331
391
471
561
681
821
102
122
152
182
222
272
332
392
472
562
682
822
CAP.
10 pF
12 pF
15 pF
18 pF
22 pF
27 pF
33 pF
39 pF
47 pF
56 pF
68 pF
82 pF
100 pF
120 pF
150 pF
180 pF
220 pF
270 pF
330 pF
390 pF
470 pF
560 pF
680 pF
820 pF
1.0 nF
1.2 nF
1.5 nF
1.8 nF
2.2 nF
2.7 nF
3.3 nF
3.9 nF
4.7 nF
5.6 nF
6.8 nF
8.2 nF
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
G
VJ0805
0805
1000
1500
R
G
VJ1206
(1)
1206
1000
1500
R
G
C0G (NP0)
VJ1210
(1)
1210
1000
1500
R
G
VJ2220
(1)
2220
1000
1500
R
1000
G
VJ2225
(1)
2225
1500
R
2500
O
Notes
(1)
See soldering recommendations within this data book, or visit
www.vishay.com/doc?45034
• Available in plastic carrier tape only
RoHS-compliant
Revision: 25-May-2018
Document Number: 45197
4
For technical questions, contact:
mlcc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VJ HVArc Guard
®
www.vishay.com
Vishay Vitramon
X7R
SELECTION CHART X7R
DIELECTRIC
STYLE
CASE CODE
VOLTAGE (V
DC
)
VOLTAGE CODE
CAP. CODE
CAP.
101
100 pF
121
120 pF
151
150 pF
181
180 pF
221
220 pF
271
270 pF
331
330 pF
391
390 pF
471
470 pF
561
560 pF
681
680 pF
821
820 pF
102
1.0 nF
122
1.2 nF
152
1.5 nF
182
1.8 nF
222
2.2 nF
272
2.7 nF
332
3.3 nF
392
3.9 nF
472
4.7 nF
562
5.6 nF
682
6.8 nF
822
8.2 nF
103
10 nF
123
12 nF
153
15 nF
183
18 nF
223
22 nF
273
27 nF
333
33 nF
393
39 nF
473
47 nF
563
56 nF
683
68 nF
823
82 nF
104
100 nF
124
120 nF
154
150 nF
184
180 nF
224
220 nF
274
270 nF
334
330 nF
VJ0805
0805
630 1000 250
L
G
P
VJ1206
1206
500 630 1000 250
E
L
G
P
(1)
VJ1210
1210
500 630 1000 250
E
L
G
P
(1)
VJ1808
(1)
1808
500 630 1000 250
E
L
G
P
VJ1812
(1)
1812
500 630 1000
E
L
G
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Notes
(1)
See soldering recommendations within this data book, or visit
www.vishay.com/doc?45034
• Available in plastic carrier tape only
RoHS-compliant
Revision: 25-May-2018
Document Number: 45197
5
For technical questions, contact:
mlcc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
