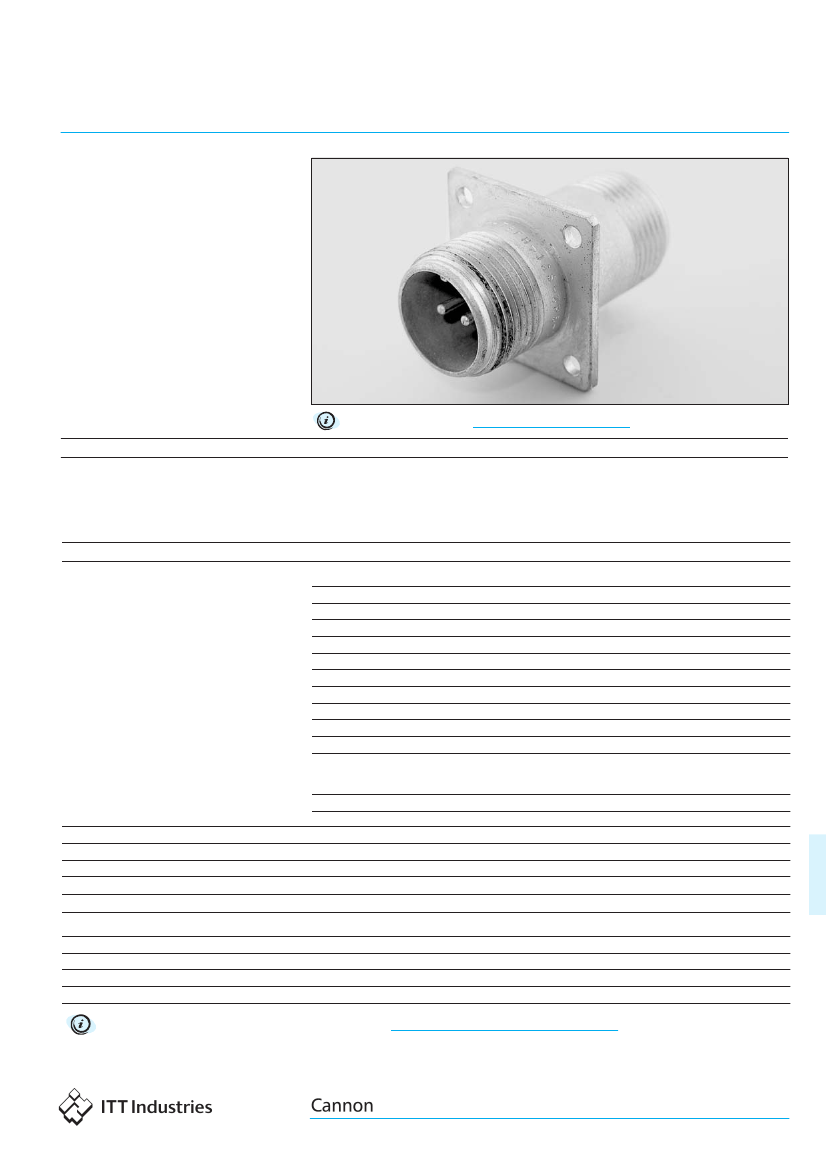

Hermetic; MIL-C-5015
BFH/TBFH
T
he BFH (Bulkhead Fitting) and TBFH
(Thru-Bulkhead Fitting) are hermetically
sealed versions of the BFR and TBF
receptacle connectors. They meet the
requirements of MIL-C-5015.
The TBFH-100 and TBFH-200 are jam nut
mounted with an O-ring for sealing against
the bulkhead. TBFH-100 will accommodate a
panel thickness of 4,75 (.187) through 7,92
(.312) and a TBFH-200 will accommodate a
longer overall length for a panel thickness of
9,52 (.375) through 19,05 (.750)
The square flange mounted TBFH-110 mates
with 3106 and 3108 plugs.
Applications:
•
Commercial Aircraft
•
Industrial
•
Military
For more information: www.ittcannon.com/cat280
Product Features
•
Meets the requirements of MIL-C-5015.
•
Solder or laser weld mount.
•
Square flange mount.
Performance Specifications
Air Leakage Rate
Connector Durability
Contact Retention
Contact Termination
Coupling
DWV
Flange Type
Insulation Resistance
Number of Circuits
Operating Temperature
Service Class
Shell Style
Wire Accommodation
Electrical Service Data
Contact Size
Current Rating (max.)✧
Contact Resistance (max.)
•
Locknut mount.
•
Pin or socket contacts are available in
selected layouts.
•
Resistance to very high pressure differential
is achieved using individual glass beads.
However, DWV ratings are lower.
≤1 micron ft
3
/hr max. (1.04 x 10
–5
cm
3
/s) at one atmosphere pressure differential
100 mating cycles min.
500 psi min., considerably higher with individual glass seals
Eyelet; PC Tail; Solder
Threaded
Dependent upon contact cavity arrangement
Circular; Flangeless; Hex; Square
5000 MΩ min. at 500 V dc
Up to 75
–54°C to 150°C (–65°F to 302°F) for standard finishes
Hermetically Sealed
Bulkhead
Thru-Bulkhead, Jam Nut Mounting
Thru-Bulkhead, Square Flange
Up to #0 AWG, dependent upon contact cavity arrangement
16
10 A
12.50 mΩ
12
17 A
7.40 mΩ
8
33 A
4.00 mΩ
4
60 A
2.10 mΩ
0
100 A
1.25 mΩ
Materials and Finishes
Description
Shell
Insulator
Contact
O-Ring
Material
Steel
High Grade Plastic
Steel
Nitrile per AN6227
Finish
Clear Chromate over Cadmium
#
—
Clear Chromate over Cadmium
#
—
Please contact your local Cannon representative: www.ittcannon.com/support/ContactUs
✧
This is the maximum current for one single contact. Using MIL-W-5088 and current carried by all contacts within the connector, heat rise can be predicted.
The heat rise must not cause the connector temperature range to be exceeded.
#
Additional finishes for high temperature and special applications are available.
Receptacles with a maximum air leakage rate of .01 micron cubic foot per hour are also available.
Dimensions are shown in mm (inch)
Dimensions subject to change
Version 05.01.03
J-01
