Explanation of Symbols in This Catalog
WEB
Links are provided to the latest information from the PDF version of the catalog, which is available on the web.
For applications that do not require the particular reliability such as
the general equipment
Infotainment for Automotive
The product for entertainment equipment like car navigations, car
audios, and body control equipment like wipers, power windows.
Powertrain/Safety for Automotive
Product used for applications (running, turning, stopping and safety
devices) which particularly concern human life, such as in devices for
automobiles.
Medical-grade products for Implanted Medical Devices
These products are intended for use in implanted medical devices
such as cardiac pacemakers, cochlear implants, insulin pumps and
gastric electrostimulators.
They are suitable for use in non-critical circuits.
*1
*1
Non-critical circuits
This term refers to circuits in implanted medical devices that are
not directly linked to life support, i.e. circuits that will not directly
endanger the life of the patient should the functionality of the
device be reduced or halted by failure of the circuit.
AEC-Q200 compliant product
Safety Standard Certified Product
Products that acquired safety standard certification IEC60384-14
and products based on the Electrical Appliance and Material Safety
Law of Japan.
Low dissipation for high frequency
By devising ceramic materials and electrode materials, low
dissipation is achieved in frequency bands of VHF, UHF and
microwave or beyond.
Low inductance
This capacitor is designed so that the parasitic inductance
component (ESL) that the capacitor has on the high frequency side
becomes lower.
Fail safe product
This capacitor is designed to prevent failures as much as possible by
short mode.
Product resistant to deflection cracking
This capacitor is designed to prevent failures as much as possible by
short mode caused by cracking when there is board deflection.
Product with solder cracking suppression
This capacitor is configured with metal terminals and leads
connected to the chip. The metal terminals and leads relieve the
stress from expansion and contraction of the solder, to suppress
solder cracking.
Product suitable for acoustic noise reduction and low distortion
This product suppresses acoustic noise, which occurs when a
ceramic capacitor is used, by devising the materials and
configuration.
No DC bias characteristics
Polymer capacitor is no capacitance change with DC bias due to
aluminum oxidized film for dielectric.
Low-inductance product suitable for noise suppression.
This product has extremely low ESL and is suitable for suppression
of noise, including high frequencies.
This product can also be used as a low-ESL, high-performance
bypass capacitor.
Limited to Conductive Glue Mounting
Since silver palladium is used for the external electrodes,the
capacitor can be mounted by conductive adhesive.

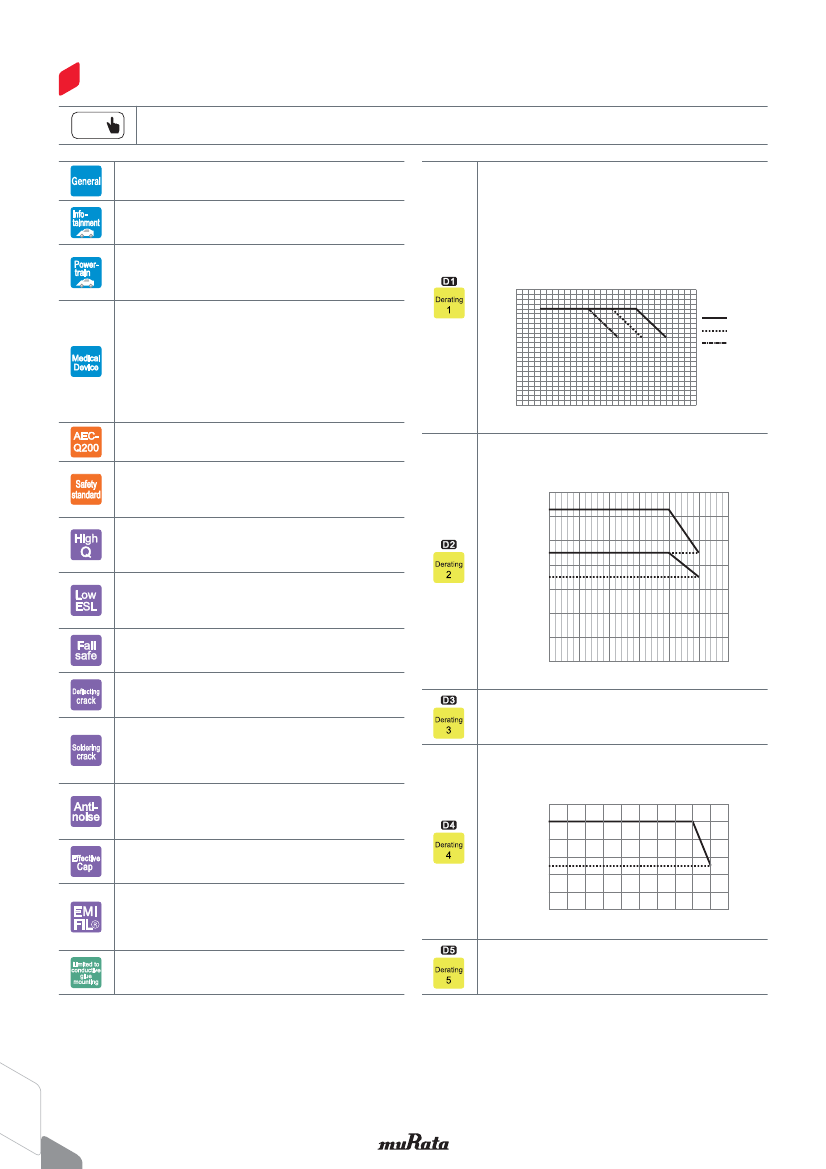

Derating 1
This product is suitable when a voltage continuously applied to a
capacitor in an operating circuit, is used below (derated) the rated
voltage of the capacitor. This model guarantees the test conditions in
the endurance test, at a rated voltage x 100% at the maximum
operating temperature. A reliability assurance level equivalent to a
common product can be secured, by using this product within the
voltage and temperature derated conditions recommended in the
figure below.
Recommended Conditions of the Derating Operating Voltage and Temperature
Operating Voltage/Rated Voltage (%)
120
100
125°C Type
80
60
40
20
0
0
25
50
75
100
125
150
105°C Type
85°C Type
Product Temperature (°C)
Derating 2
When the product temperature exceeds 105°C, please use this
product within the voltage and temperature derated conditions in the
figure below.
700
Rated Voltage 630V
600
500
Rated Voltage (V)
(450V)
400
(350V)
Rated Voltage 450V
300
200
100
0
0
25
50
75
100
125
150
Product Temperature (°C)
Derating 3
Please apply the derating curve according to the operating
temperature.
Please refer to detailed specifications sheet for details.
Derating 4
When the product temperature exceeds 125°C, please use this
product within the voltage and temperature derated conditions in the
figure below.
Operating Voltage/Rated Voltage (%)
120
100
80
60
(50)
40
20
0
-75 -50 -25
0
25
50
75
100 125 150 175
Product Temperature (°C)
Derating 5
Please apply the rated voltage derating over 150°C. Please refer to
detailed specifications sheet for details.
2
!Note
• Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
C03E.pdf
Jun 22,2017

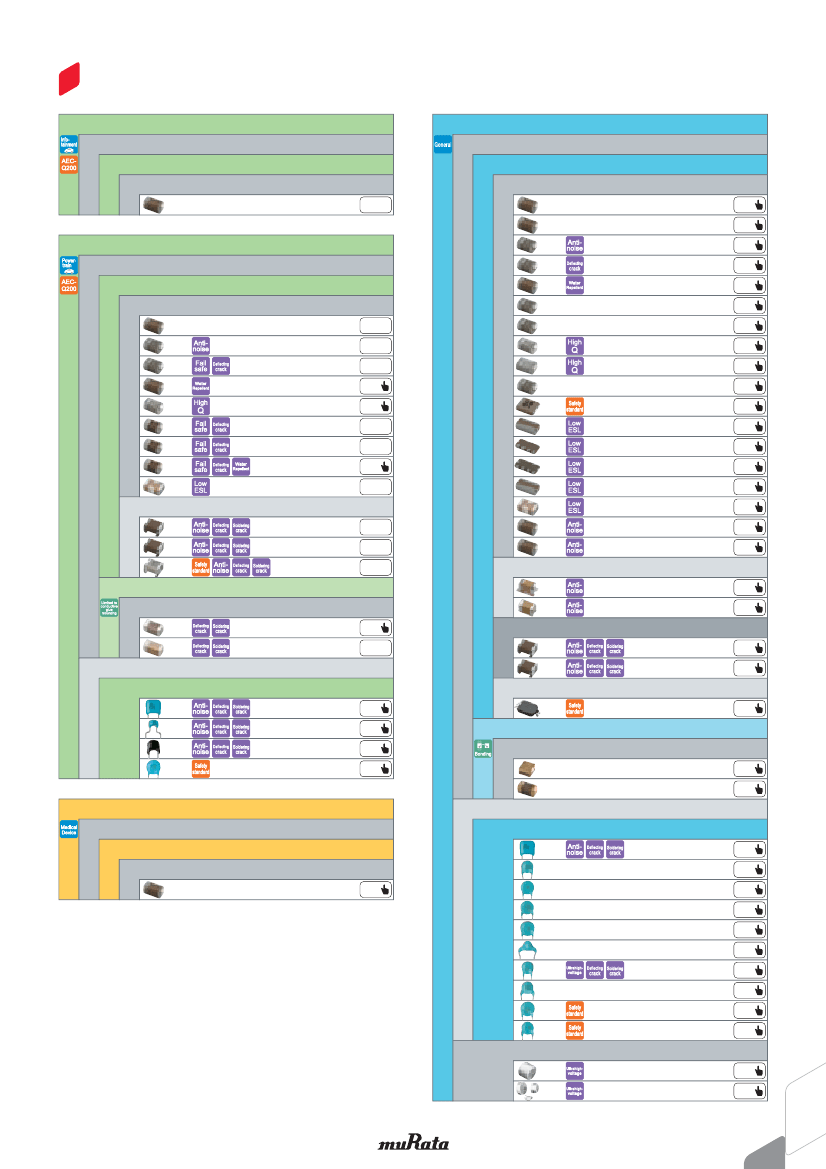

Selection Guide for Capacitors
Infotainment for automotive
SMD
Solder mounting
Chip type
GRT
P23
For general
SMD
Solder mounting
Chip type
GRM
GRM
Powertrain/Safety for automotive
SMD
Solder mounting
Chip type
GCM
GC3
GCJ
GGM
GCQ
GCD
GCE
GGD
NFM
Metal terminal type
KCM
KC3
KCA
Limited to Conductive Glue Mounting
Chip type
GCB
GCG
Lead type
Solder mounting
RCE
RHE
RHS
DE6
150°C operation leaded
200°C operation leaded
Ni plating + Pd plating termination
WEB
conductive glue mounting
AgPd termination conductive glue
mounting
High effective capacitance &
high ripple current
MLSC design
Soft termination MLSC design
MLSC design
3 terminals
High effective capacitance &
high ripple current
Soft termination
For LCD backlight inverter circuit
only
High effective capacitance &
high ripple current
Soft termination
WEB
WEB
WEB
WEB
WEB
For information devices only
For camera flash circuit only
GR3
GRJ
GXM
GR4
P29
P37
P39
WEB
WEB
WEB
WEB
WEB
GR7
GJM
GQM
GA2
GA3
LLL
LLA
LLM
LLR
NFM
High power
WEB
Based on the Electrical Appliance
WEB
and Material Safety Law of Japan
WEB
LW reversed
8 terminals
10 terminals
LW reversed controlled ESR
3 terminals
Low distortion
Low acoustic noise
P45
P47
WEB
WEB
WEB
WEB
WEB
WEB
WEB
WEB
P49
P51
P54
P57
GJ4
GJ8
On interposer board
ZRA
ZRB
Metal terminal type
KRM
KR3
Resin molding SMD type
WEB
WEB
P60
WEB
High effective capacitance &
high ripple current
WEB
WEB
WEB
WEB
WEB
DK1
Wire bonding mounting
Chip type
GMA
GMD
Microchip
WEB
WEB
WEB
Medical-grade products for implanted medical devices
SMD
Solder mounting
Chip type
GCH
WEB
Lead type
Solder mounting
RDE
DEH
DEA
DEB
DEC
DEF
DHR
DEJ
DE1
DE2
Screw termination mounting
DHS
DHK
High voltage AC rated
For LCD backlight inverter circuit
only
High temperature low loss
High temperature Class 1
Class 2
WEB
WEB
WEB
WEB
WEB
WEB
WEB
Based on the Electrical Appliance
WEB
and Material Safety Law of Japan
X1/Y1 Class certified product
X1/Y2 Class certified product
WEB
WEB
WEB
WEB
3
