Snap-in capacitors
焊片式电容器
Long life
-
105ºC
长寿½型 -
105ºC
B43255
Long-life grade capacitors
长寿½电容器
Applications
应用
■
Frequency converters
■
变频器
■
Professional power supplies
■
专业电源
■
Solar and wind power generator
■
太阳½和风力发电设备
■
Uninterruptiple power supplies
■
不间断电源
Features
特点
■
RoHS-compatible
■
符合RoHS要求
■
High reliability
■
高可靠性
■
Useful life of 5000h at 105 ºC
■
105 ºC 5000h½用寿½
Construction
结构
■
Aluminum case, fully insulated
■
铝质外壳，整½绝缘
■
Minus pole marking on the insulating sleeve
■
绝缘套管上标注负极
■
Overload protection by safety vent on the base
■
底部安全阀过½½保护
Page 2 of 9
Snap-in capacitors
焊片式电容器
Long life
-
105ºC
长寿½型 -
105ºC
B43255
Specifications and characteristics in brief
规格性½参数一览表
Rated voltage V
R
200…450 V DC
额定电压V
R
Surge voltage V
S
1.15
∙
V
R
(for V
R
≤ 315V DC)
1.10
∙
V
R
(for V
R
> 315V DC)
浪涌电压V
S
Operating temperature V
R
≤
400V DC: -40 ºC…+105 ºC
V
R
≥
450V DC: -25 ºC…+105 ºC
range
工½温度范围
Rated capacitance C
R
47…1500
µF
额定电容量C
R
(20 ºC,120 Hz)
Capacitance tolerance ±20% M
电容量公差
Dissipation factor(max.) V
R
( V DC)
200…400
450
损耗正切角(最大值)
0.15
0.20
tanδ
20ºC,120Hz.
Leakage current I
leak
∙
)
(20 ºC,after 5 minutes) I
leak
≤
0.02μA∙(
漏电流
I
leak
(20 ºC,5分钟后)
V
R
( V DC)
300…400
160…250
450
Low temperature
stability
Z (-25 ºC)
4
4
8
½温稳定性
120Hz
Z (+20 ºC)
(max impedance ratio)
Z (-40 ºC)
8
6
-
(最大阻抗比率)
Z (+20 ºC)
Useful life
5000 h
Requirements
要求:
½用寿½
≤
±20% of initial value
初始值的±20%
△C/C
(105 ºC,V
R
,I
AC,R
)
≤
2 times initial specified limit 2倍初始规定值
tanδ
I
leak
≤
initial specified limit
初始规定值
Shelf life
After storage for 1000 h at 105 ºC, the capacitors shall meet the requirement of
储存寿½
useful life test after reforming process. After test: VR to be applied for 30 minutes,
24 to 48 hours before measurement.
105ºC高温贮存1000小时，并预处理后，电容器必须符合½用寿½测试中对其电性
½的要求。预处理方法：先加额定电压充电30分钟，恢复24至48小时后再测试。
Frequency multiplier for
rated ripple current
额定纹波电流频率系数
Temperature multiplier
for rated ripple current
额定纹波电流温度系数
50 Hz
0.80
+40 ºC
2.70
120 Hz
1.00
+55 ºC
2.50
1 kHz
1.20
+70 ºC
2.10
10 kHz
1.50
+85 ºC
1.70
20 kHz
1.55
+105 ºC
1.00
Sectional specification
IEC 60384-4
分规范
Page 3 of 9
Snap-in capacitors
焊片式电容器
Long life
-
105ºC
长寿½型 -
105ºC

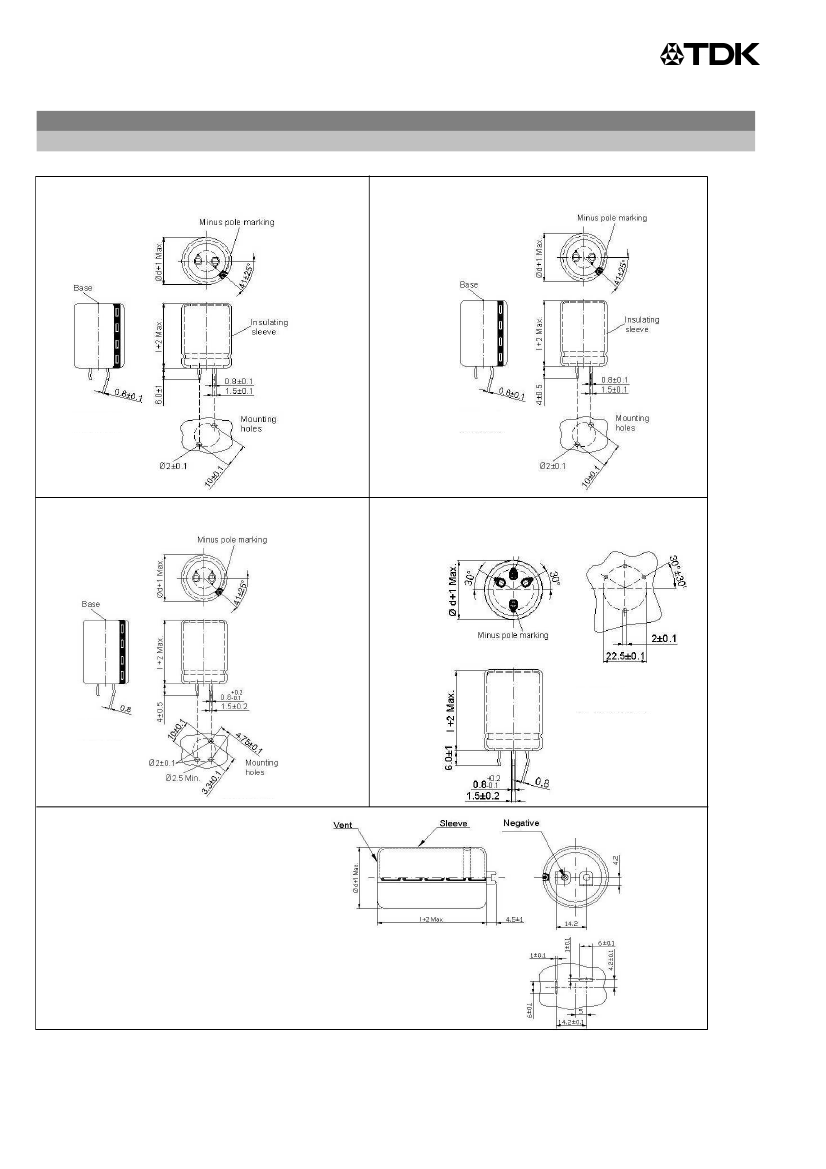

Dimensional drawing
snap-in standard terminals (6.0±1) mm
digit 15 of part number = 0
snap-in short terminals (4.0±0.5) mm
digit 15 of part number = 7
B43255
snap-in 3 terminals terminals (4.0±0.5) mm
digit 15 of part number = 2
snap-in 4 terminal terminals (6.0±1) mm
digit 15 of part number = 4
vibration-resistance terminals (4.5±1) mm
digit 15 of part number = 8
Page 4 of 9
Snap-in capacitors
焊片式电容器
Long life
-
105ºC
长寿½型 -
105ºC
B43255
Technical dates and ordering codes
V
R
C
R
Case
dimensions
120Hz
d×l
20 ºC
mm
µF
V DC
22.0 × 25
200 220
25.4 × 25
270
25.4 × 30
330
25.4 × 35
390
25.4 × 40
470
30.0 × 35
560
30.0 × 40
680
35.0 × 35
820
35.0 × 35
1000
35.0 × 40
1200
35.0 × 50
1500
22.0 × 25
250 150
22.0 × 30
180
25.4 × 30
220
25.4 × 35
270
30.0 × 25
270
30.0 × 30
330
30.0 × 35
390
35.0 × 30
470
35.0 × 35
560
35.0 × 40
680
35.0 × 45
820
35.0 × 50
1000
22.0 × 25
315 82
22.0 × 30
100
25.4 × 25
120
30.0 × 25
150
30.0 × 25
180
30.0 × 30
220
35.0 × 30
270
35.0 × 30
330
35.0 × 35
390
35.0 × 40
470
35.0 × 45
560
35.0 × 50
680
* = Insulation feature
0 = PVC sleeve
6 = PET sleeve
I
AC,R
120 Hz
105 ºC
A
0.82
1.00
1.18
1.35
1.56
1.76
2.03
2.29
2.53
2.69
3.25
0.68
0.79
0.96
1.13
1.03
1.28
1.47
1.65
1.89
2.18
2.50
2.87
0.48
0.57
0.64
0.78
0.86
1.00
1.20
1.33
1.52
1.74
1.98
2.27
Ordering code
B43255A2227M0*#
B43255A2277M0*#
B43255A2337M0*#
B43255A2397M0*#
B43255A2477M0*#
B43255A2567M0*#
B43255A2687M0*#
B43255A2827M0*#
B43255A2108M0*#
B43255A2128M0*#
B43255A2158M0*#
B43255E2157M0*#
B43255E2187M0*#
B43255E2227M0*#
B43255E2277M0*#
B43255F2277M0*#
B43255E2337M0*#
B43255E2397M0*#
B43255E2477M0*#
B43255E2567M0*#
B43255E2687M0*#
B43255E2827M0*#
B43255E2108M0*#
B43255A0826M0*#
B43255A0107M0*#
B43255A0127M0*#
B43255A0157M0*#
B43255A0187M0*#
B43255A0227M0*#
B43255A0277M0*#
B43255A0337M0*#
B43255A0397M0*#
B43255A0477M0*#
B43255A0567M0*#
B43255A0687M0*#
# = Terminal style
0 = snap-in standard terminals (6.0±1) mm
2 = snap-in 3 terminals (4.0±0.5) mm
4 = snap-in 4 terminals (6.0±1) mm
7 = snap-in short terminals (4.0±0.5) mm
8 = vibration-resistance terminals (4.5±1) mm
Page 5 of 9
