P6EU-XXXXZH30 3KV ISOLATED 1W UNREGULATED DUAL OUTPUT SIP6

Available Inputs:

5 and 12 VDC

Available Outputs:

(+/-) 5, 9, 12 and 15 VDC

Other specifications please enquire.

Electrical Specifications

(Typical at + 25° C, nominal input voltage, rated output current unless otherwise specified)

Input Specifications

Voltage range

Filter

Isolation Specifications

Rated voltage

Leakage current

Resistance

Capacitance

Output Specifications

Voltage accuracy

Ripple and noise (at 20 MHz BW)

Short circuit protection

Line voltage regulation

Load voltage regulation

Temperature coefficient

General Specifications

Efficiency

Switching frequency

Environmental Specifications

Operating temperature (ambient)

Storage temperature

Derating

Humidity

Cooling

Physical Characteristics

Dimensions SIP

Weight

Case material

+/- 10 %

Capacitors

3000 VDC

1 mA

Ohm

50 pF typ.

+/- 5 %, max.

75 mV p-p, max.

Momentary

+/- 1,2 % / 1,0 % of Vin

+/- 8 %, load = 20 ~ 100 %

+/- 0,02 % / °C

72 % to 82 %

90 KHz, typ.

- 40° C to + 85° C

- 55 °C to + 125 °C

See graph

Up to 90 %, non condensing

Free air convection

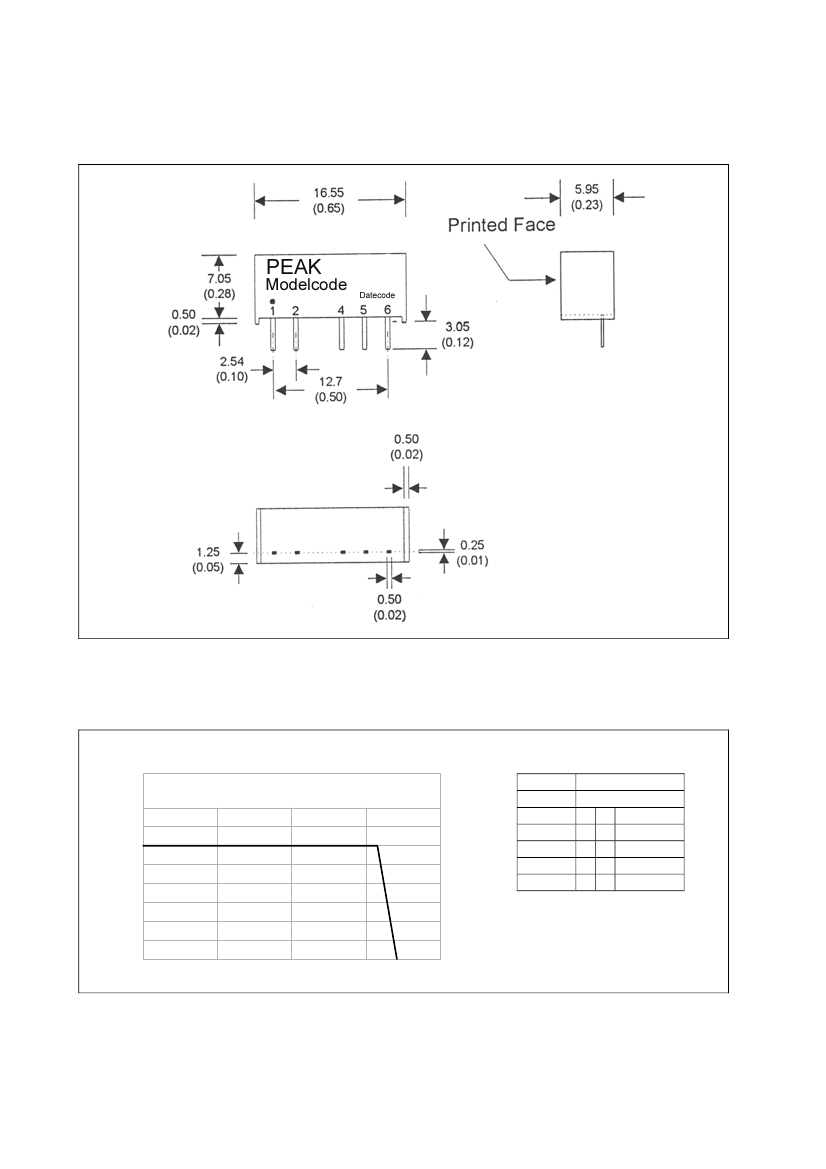

16.55 x 5.95 x 7.55 mm

0,65 x 0,23 x 0,30 inches

1.8 g

Non conductive black plastic

Examples of Partnumbers

PART

NO.

INPUT

VOLTAGE

(VDC)

INPUT

CURRENT

NO LOAD

INPUT

CURRENT

FULL

LOAD

OUTPUT

VOLTAGE

(VDC)

OUTPUT

CURRENT

(max. mA)

EFFICIENCY FULL LOAD

(% TYP.)

P6EU-0505ZH30

P6EU-0509ZH30

P6EU-0512ZH30

P6EU-0515ZH30

P6EU-1205ZH30

P6EU-1209ZH30

P6EU-1212ZH30

P6EU-1215ZH30

277

253

250

111

105

104

102

+/- 5

+/- 9

+/- 12

+/- 15

+/ - 5

+/- 9

+/- 12

+/- 15

+/- 100

+/- 55

+/- 42

+/- 34

+/- 100

+/- 55

+/- 42

+/ 34
