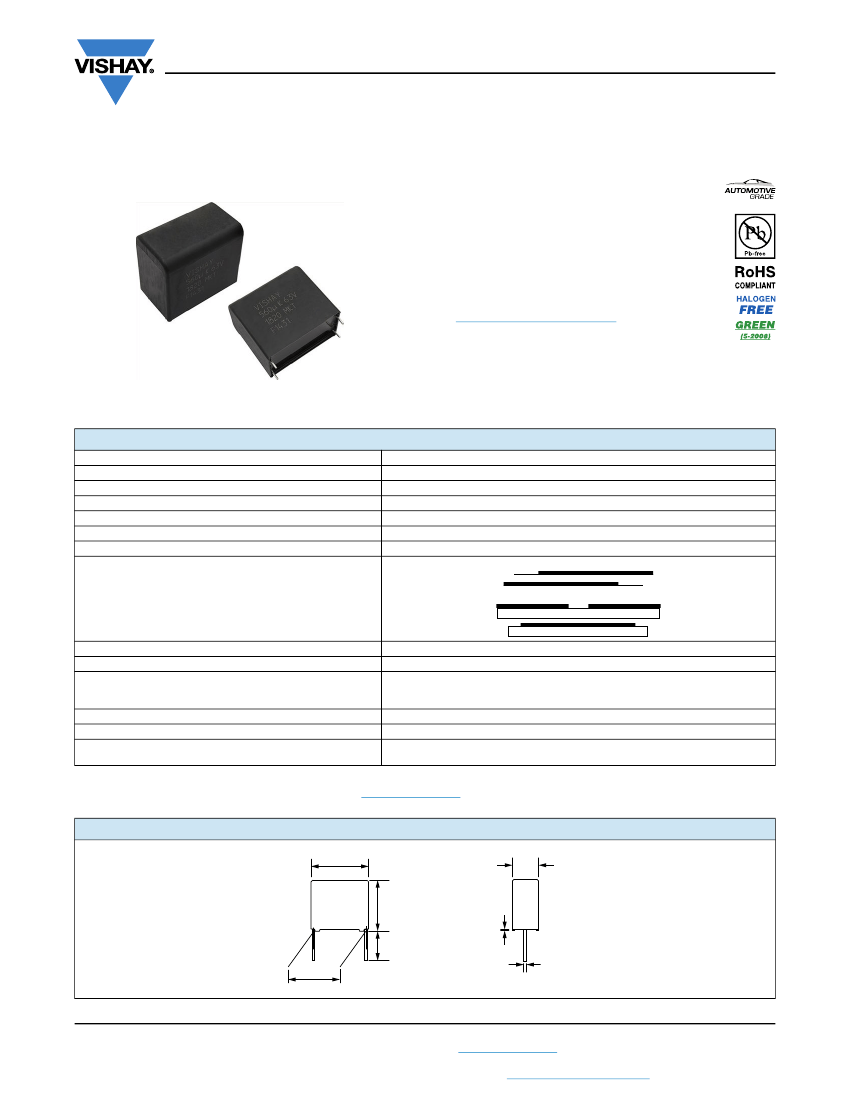

MKT1820
www.vishay.com
Vishay Roederstein
DC Film Capacitors
MKT Radial Potted Type
FEATURES
• AEC-Q200 qualified (rev. D) for PCM
27.5 mm
(for larger available components on request)
• High temperature capabilities, up to 150 °C
• Capacitance up to 560 μF
• 4-pin version available under request for pitch
37.5 mm, under request
• Material categorization:
for definitions of compliance please see
www.vishay.com/doc?99912
Available
APPLICATIONS
• Automotive
• DC filtering
• Low voltage DC link
QUICK REFERENCE DATA
Capacitance range
Capacitance tolerance
Climatic testing class according to IEC 60068-1
Maximum application temperature
Reference standards
Dielectric
Electrodes
1000 pF to 560 μF
± 20 %, ± 10 %, ± 5 %
55/125/56
125 °C
IEC 60384-2
Polyester film
Metallized
Mono construction
Series construction (630 V and 1000 V)
Construction
Encapsulation
Leads
Marking
Rated (DC) voltage
Rated (AC) voltage
Maximum operating temperature for limited time
Plastic case, epoxy resin sealed, flame retardant UL-class 94 V-0
Tinned wire
C-value; tolerance; rated voltage; code for dielectric material;
code for manufacturing origin; manufacturer’s type designation;
manufacturer's logo or name; year and week of manufacture
63 V
DC
, 100 V
DC
, 160 V
DC
, 250 V
DC
, 400 V
DC
, 630 V
DC
, 1000 V
DC
40 V
AC
, 63 V
AC
, 160 V
AC
, 200 V
AC
, 220 V
AC
150 °C at 0.3 U
R
for maximum 200 h
(not applicable for pitch
37.5 mm)
Note
• For more detailed data and test requirements, contact
dc-film@vishay.com
DIMENSIONS
in millimeters
l
w
h
0.6
l
t
= 6 - 1
(other on request)
PCM ± 0.4
Ø d
t
Revision: 02-Feb-18
Document Number: 26011
1
For technical questions, contact:
dc-film@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MKT1820
www.vishay.com
COMPOSITION OF CATALOG NUMBER
MULTIPLIER
(nF)
0.1
1
10
100
1000
10 000
2
3
4
5
656
56 000 nF
270 000 nF
56 µF
270 µF
433
547
Example:
330 nF
4700 nF
0.33 µF
4.7 µF
W
V
G
CAPACITANCE
(numerically)
SPECIAL
LETTER FOR
SIZE
Standard version
M
Compact version
SPECIAL
LETTER FOR TAPED
Bulk / Tray
Reel diameter 350 mm
Reel diameter 500 mm
Ammopack
Vishay Roederstein
6
7
727
MKT 1820
4
33
01
VOLTAGE
4
X
4
5
6
X
±5%
± 10 %
± 20 %
TOLERANCE
TYPE CONSTRUCTION
Un = 06 = 63 V
DC
Un = 01 = 100 V
DC
METALLIZED POLYESTER
Un = 16 = 160 V
DC
Un = 25 = 250 V
DC
Un = 40 = 400 V
DC
Un = 63 = 630 V
DC
Un = 10 = 1000 V
DC
Notes
• For detailed tape specifications refer to packaging information
www.vishay.com/docs?28139
or end of catalog
• For PCM
37.5 mm, 4 pin versions are available under customer request
SPECIFIC REFERENCE DATA
DESCRIPTION
Tangent of loss angle:
C
0.1 μF
0.1 μF < C
1.0 μF
1.0 μF < C
10.0 μF
10.0 μF < C
100 μF
C > 100 μF
PITCH
(mm)
10
15
22.5
27.5
37.5
52.5
63 V
DC
12
8
5
3
0.8
0.2
100 V
DC
18
10
6
5
1
0.3
160 V
DC
-
-
-
6
2
0.4
250 V
DC
36
20
12
8
3
1
at 100 Hz
-
-
35 x 10
-4
50 x
70 x
10
-4
10
-4
400 V
DC
52
32
18
14
-
-
at 1 kHz
80 x
10
-4
80 x 10
-4
150 x 10
-4
300 x
-
10
-4
VALUE
at 10 kHz
150 x
-
-
-
630 V
DC
70
66
38
28
-
-
> 15 000 M
> 30 000 M
> 5000 s
> 10 000 s
> 30 000 M
(1)
;
at 100 kHz
250
x 10
-4
-
-
-
-
1000 V
DC
260
130
68
50
-
-
10
-4
150 x 10
-4
MAXIMUM PULSE RISE TIME (dU/dt)
R
[V/μs]
If the maximum pulse voltage is less than the rated voltage higher dU/dt values can be permitted.
R between leads, for C
0.33 μF and U
R
100 V
R between leads, for C
0.33 μF and U
R
> 100 V
RC between leads, for C > 0.33 μF and U
R
100 V
RC between leads, for C > 0.33 μF and U
R
> 100 V
R between leads and case, 100 V; (foil method)
Withstanding (DC) voltage (cut off current 10 mA)
Withstanding (DC) leads and case
Maximum application temperature
Note
(1)
See “Voltage Proof Test for Metalized Film Capacitors”:
www.vishay.com/doc?28169
Revision: 02-Feb-18
Document Number: 26011
2
For technical questions, contact:
dc-film@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
rise time < 1000 V/s
1.6 x U
RDC
, 1 min
2 x U
RDC
, 1 min
125 °C
MKT1820
www.vishay.com
Vishay Roederstein
DIMENSIONS
wxhxl
(mm)
(1)
3.5 x 8.0 x 13.0
3.5 x 8.0 x 13.0
3.5 x 8.0 x 13.0
4.0 x 9.0 x 13.0
4.5 x 9.5 x 13.0
5.5 x 10.5 x 13.0
6.5 x 11.5 x 13.0
9.0 x 15.5 x 13.0
6.5 x 12.5 x 18.0
9.0 x 15.5 x 13.0
7.5 x 13.5 x 18.0
8.5 x 14.5 x 18.0
8.5 x 17.5 x 18.0
8.5 x 16.5 x 26.5
10.5 x 18.5 x 26.5
9.0 x 19.0 x 32.0
11.0 x 21.0 x 32.0
11.0 x 21.0 x 32.0
06
40
13.0 x 23.0 x 32.0
13.0 x 23.0 x 32.0
15.0 x 25.0 x 32.0
18.0 x 28.0 x 32.0
18.0 x 28.0 x 32.0
21.0 x 31.0 x 32.0
21.0 x 31.0 x 32.0
18.5 x 35.5 x 43.0
18.5 x 35.5 x 43.0
18.5 x 35.5 x 43.0
21.5 x 38.5 x 43.0
24.0 x 44.0 x 42.0
30.0 x 45.0 x 42.0
30.0 x 45.0 x 42.0
25.0 x 45.0 x 57.5
25.0 x 45.0 x 57.5
25.0 x 45.0 x 57.5
30.0 x 45.0 x 57.5
35.0 x 50.0 x 57.5
35.0 x 50.0 x 57.5
ELECTRICAL DATA
U
RDC
(V)
CAP.
(μF)
0.22
0.33
0.47
0.68
1.0
1.5
2.2
3.3
3.3
4.7
4.7
6.8
10.0
15.0
22.0
18.0
22.0
27.0
63
33.0
39.0
47.0
56.0
68.0
82.0
100.0
100.0
120.0
150.0
180.0
220.0
270.0
330.0
220.0
270.0
330.0
390.0
470.0
560.0
CAPACITANCE
CODE
422
433
447
468
510
515
522
533
533
547
547
568
610
615
622
618
622
627
633
639
647
656
668
682
710
710
712
715
718
722
727
733
722
727
733
739
747
756
VOLTAGE
CODE
V
AC
PCM
(mm)
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
15.0
10.0
15.0
15.0
15.0
22.5
22.5
27.5
27.5
27.5
27.5
27.5
27.5
27.5
27.5
27.5
27.5
37.5
37.5
37.5
37.5
37.5
37.5
37.5
52.5
52.5
52.5
52.5
52.5
52.5
1.2
1.0
0.80
d
t
± 0.08 mm
(mm)
ORDERING CODE FOR 10 %
TOL./BULK PACKING
(2)
MKT1820422065
MKT1820433065
MKT1820447065
MKT1820468065
MKT1820510065
MKT1820515065
MKT1820522065
MKT1820533065M
MKT1820533065
MKT1820547065M
MKT1820547065
MKT1820568065
MKT1820610065
MKT1820615065
MKT1820622065M
MKT1820618065
MKT1820622065
MKT1820627065
MKT1820633065
MKT1820639065
MKT1820647065
MKT1820656065
MKT1820668065
MKT1820682065
MKT1820710065M
MKT1820710065
MKT1820712065
MKT1820715065
MKT1820718065
MKT1820722065M
MKT1820727065M
MKT1820733065M
MKT1820722065
MKT1820727065
MKT1820733065
MKT1820739065
MKT1820747065
MKT1820756065
Notes
(1)
For tolerances see chapter “Space Requirements for Printed-Circuit Board Applications and Dimension Tolerances”
(2)
Please replace “5” by: “4” for 5 % tolerance or “6” for 20 % tolerance
Revision: 02-Feb-18
Document Number: 26011
3
For technical questions, contact:
dc-film@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MKT1820
www.vishay.com
Vishay Roederstein
DIMENSIONS
wxhxl
(mm)
(1)
3.5 x 8.0 x 13.0
3.5 x 8.0 x 13.0
3.5 x 8.0 x 13.0
3.5 x 8.0 x 13.0
4.0 x 9.0 x 13.0
4.5 x 9.5 x 13.0
5.5 x 10.5 x 13.0
5.5 x 10.5 x 13.0
5.5 x 10.5 x 18.0
6.5 x 12.5 x 18.0
6.5 x 12.5 x 18.0
8.5 x 14.5 x 18.0
8.5 x 14.5 x 18.0
7.5 x 15.5 x 26.5
8.5 x 16.5 x 26.5
10.5 x 18.5 x 26.5
10.5 x 18.5 x 26.5
11.0 x 21.0 x 32.0
01
63
13.0 x 23.0 x 32.0
13.0 x 23.0 x 32.0
15.0 x 25.0 x 32.0
18.0 x 28.0 x 32.0
18.0 x 28.0 x 32.0
21.0 x 31.0 x 32.0
21.0 x 31.0 x 32.0
18.5 x 35.5 x 43.0
18.5 x 35.5 x 43.0
18.5 x 35.5 x 43.0
21.5 x 38.5 x 43.0
24.0 x 44.0 x 42.0
30.0 x 45.0 x 42.0
30.0 x 45.0 x 42.0
25.0 x 45.0 x 57.5
25.0 x 45.0 x 57.5
25.0 x 45.0 x 57.5
30.0 x 45.0 x 57.5
35.0 x 50.0 x 57.5
35.0 x 50.0 x 57.5
ELECTRICAL DATA
U
RDC
(V)
CAP.
(μF)
0.068
0.10
0.15
0.22
0.33
0.47
0.68
1.0
1.0
1.5
2.2
3.3
4.7
4.7
6.8
10.0
15.0
15.0
100
18.0
22.0
27.0
33.0
39.0
47.0
56.0
56.0
68.0
82.0
100.0
120.0
150.0
180.0
120.0
150.0
180.0
220.0
270.0
330.0
CAPACITANCE
CODE
368
410
415
422
433
447
468
510
510
515
522
533
547
547
568
610
615
615
618
622
627
633
639
647
656
656
668
682
710
712
715
718
712
715
718
722
727
733
VOLTAGE
CODE
V
AC
PCM
(mm)
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
15.0
15.0
15.0
15.0
15.0
22.5
22.5
22.5
22.5
27.5
27.5
27.5
27.5
27.5
27.5
27.5
27.5
37.5
37.5
37.5
37.5
37.5
37.5
37.5
52.5
52.5
52.5
52.5
52.5
52.5
1.2
1.0
0.8
d
t
± 0.08 mm
(mm)
ORDERING CODE FOR 10 %
TOL./BULK PACKING
(2)
MKT1820368015
MKT1820410015
MKT1820415015
MKT1820422015
MKT1820433015
MKT1820447015
MKT1820468015
MKT1820510015M
MKT1820510015
MKT1820515015
MKT1820522015
MKT1820533015
MKT1820547015M
MKT1820547015
MKT1820568015
MKT1820610015
MKT1820615015M
MKT1820615015
MKT1820618015
MKT1820622015
MKT1820627015
MKT1820633015
MKT1820639015
MKT1820647015
MKT1820656015M
MKT1820656015
MKT1820668015
MKT1820682015
MKT1820710015
MKT1820712015M
MKT1820715015M
MKT1820718015M
MKT1820712015
MKT1820715015
MKT1820718015
MKT1820722015
MKT1820727015
MKT1820733015
Notes
(1)
For tolerances see chapter “Space Requirements for Printed-Circuit Board Applications and Dimension Tolerances”
(2)
Please replace “5” by: “4” for 5 % tolerance or “6” for 20 % tolerance
Revision: 02-Feb-18
Document Number: 26011
4
For technical questions, contact:
dc-film@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MKT1820
www.vishay.com
Vishay Roederstein
DIMENSIONS
wxhxl
(mm)
(1)
9.0 x 19.0 x 32.0
11.0 x 21.0 x 32.0
11.0 x 21.0 x 32.0
13.0 x 23.0 x 32.0
15.0 x 25.0 x 32.0
18.0 x 28.0 x 32.0
18.0 x 28.0 x 32.0
31.0 x 31.0 x 32.0
18.5 x 35.5 x 43.0
18.5 x 35.5 x 43.0
16
63
18.5 x 35.5 x 43.0
21.5 x 38.5 x 43.0
21.5 x 38.5 x 43.0
24.0 x 44.0 x 42.0
30.0 x 45.0 x 42.0
30.0 x 45.0 x 42.0
25.0 x 45.0 x 57.5
25.0 x 45.0 x 57.5
25.0 x 45.0 x 57.5
30.0 x 45.0 x 57.5
35.0 x 50.0 x 57.5
35.0 x 50.0 x 57.5
3.5 x 8.0 x 13.0
3.5 x 8.0 x 13.0
3.5 x 8.0 x 13.0
3.5 x 8.0 x 13.0
4.5 x 9.5 x 13.0
5.5 x 10.5 x 13.0
6.5 x 11.5 x 13.0
6.5 x 11.5 x 13.0
25
160
5.5 x 10.5 x 18.0
9.0 x 15.5 x 13.0
6.5 x 12.5 x 18.0
7.5 x 13.5 x 18.0
8.5 x 14.5 x 18.0
10.5 x 17,5 x 18.0
8.5 x 16.5 x 26.5
10.5 x 18.5 x 26.5
12.5 x 20.0 x 26.5
ELECTRICAL DATA
U
RDC
(V)
CAP.
(μF)
4.7
6.8
10.0
15.0
18.0
22.0
27.0
33.0
33.0
39.0
160
47.0
56.0
68.0
82.0
100.0
120.0
82.0
100.0
120.0
150.0
180.0
220.0
0.022
0.033
0.047
0.068
0.10
0.15
0.22
0.33
250
0.33
0.47
0.47
0.68
1.0
1.5
1.5
2.2
3.3
CAPACITANCE
CODE
547
568
610
615
618
622
627
633
633
639
647
656
668
682
710
712
682
710
712
715
718
722
322
333
347
368
410
415
422
433
433
447
447
468
510
515
515
522
533
VOLTAGE
CODE
V
AC
PCM
(mm)
27.5
27.5
27.5
27.5
27.5
27.5
27.5
27.5
37.5
37.5
37.5
37.5
37.5
37.5
37.5
37.5
52.5
52.5
52.5
52.5
52.5
52.5
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
15.0
10.0
15.0
15.0
15.0
15.0
22.5
22.5
22.5
0.8
1.2
1.0
0.8
d
t
± 0.08 mm
(mm)
ORDERING CODE FOR 10 %
TOL./BULK PACKING
(2)
MKT1820547165
MKT1820568165
MKT1820610165
MKT1820615165
MKT1820618165
MKT1820622165
MKT1820627165
MKT1820633165M
MKT1820633165
MKT1820639165
MKT1820647165
MKT1820656165
MKT1820668165
MKT1820682165M
MKT1820710165M
MKT1820712165M
MKT1820682165
MKT1820710165
MKT1820712165
MKT1820715165
MKT1820718165
MKT1820722165
MKT1820322255
MKT1820333255
MKT1820347255
MKT1820368255
MKT1820410255
MKT1820415255
MKT1820422255
MKT1820433255M
MKT1820433255
MKT1820447255M
MKT1820447255
MKT1820468255
MKT1820510255
MKT1820515255M
MKT1820515255
MKT1820522255
MKT1820533255
Notes
(1)
For tolerances see chapter “Space Requirements for Printed-Circuit Board Applications and Dimension Tolerances”
(2)
Please replace “5” by: “4” for 5 % tolerance or “6” for 20 % tolerance
Revision: 02-Feb-18
Document Number: 26011
5
For technical questions, contact:
dc-film@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
京公网安备 11010802033920号
EEWORLD
