Document 894-1
Chip Inductors – 0603HL Series (1608)
• Higher inductance values than other 0603 inductors
• Inductance range: 330 nH – 3.3 µH
Part
number
1
Inductance
2
±5% (nH)
Q typ
3
SRF typ
4
(MHz)
DCR max
5
(Ohms)
Irms
6
(mA)
Color
code
7
0603HL-331XJR_
0603HL-391XJR_
0603HL-471XJR_
0603HL-511XJR_
0603HL-561XJR_
0603HL-681XJR_
0603HL-821XJR_
0603HL-102XJR_
0603HL-122XJR_
0603HL-152XJR_
0603HL-182XJR_
0603HL-222XJR_
0603HL-272XJR_
0603HL-332XJR_
330 @ 25 MHz
390 @ 25 MHz
470 @ 25 MHz
510 @ 25 MHz
560 @ 25 MHz
680 @ 25 MHz
820 @ 25 MHz
1000 @ 25 MHz
1200 @ 25 MHz
1500 @ 25 MHz
1800 @ 25 MHz
2200 @ 25 MHz
2700 @ 25 MHz
3300 @ 25 MHz
13 @ 25 MHz
13 @ 25 MHz
12 @ 25 MHz
12 @ 25 MHz
12 @ 25 MHz
12 @ 25 MHz
14 @ 25 MHz
14 @ 25 MHz
14 @ 25 MHz
15 @ 25 MHz
16 @ 25 MHz
16 @ 25 MHz
16 @ 25 MHz
18 @ 25 MHz
420
400
200
340
330
310
290
250
230
190
180
165
150
135
0.970
1.05
1.15
1.20
1.35
1.80
2.45
2.80
3.20
4.10
5.30
5.90
7.00
9.10
330
330
300
300
300
260
190
190
180
150
140
130
120
110
Violet
Gray
White
Black
Brown
Red
Orange
Yellow
Green
Blue
Violet
Gray
White
Black
1. When ordering, please specify
termination
and
packaging
code:
0603HL-332XJRC
Termination: R
= RoHS compliant
matte tin over nickel over silver-
Special order:
Q
= RoHS tin-silver-copper (95.5/4/0.5)
or
P
= non-RoHS tin-lead (63/37).
Packaging: C
= 7″ machine-ready reel. EIA-481 embossed plastic
tape (2000 parts per full reel).
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge),
use code letter C instead.
2. Inductance measured at 0.1 Vrms, using a Coilcraft SMD-A fixture in
Agilent/HP 4287A impedance analyzer or equivalent with Coilcraft-
provided correlation pieces.
3. Q measured using a Coilcraft SMD-A fixture in Agilent/HP 4287A
impedance analyzer or equivalent.
4. SRF measured using Agilent/HP 8753D network analyzer with Coilcraft
SMD-D test fixture.
5. DCR measured on Cambridge Technology Micro-ohmmeter or
equivalent.
6. Current that causes a 15°C temperature rise from 25°C ambient. This
information is for reference only and does not represent absolute
maximum ratings.
7. Each part is marked with a single dot.The color dots are not unique
identifiers and correspond to multiple inductance values.
8. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
Designer’s Kit C449
contains 10 of each value
Core material
Ceramic
Environmental
RoHS compliant without exemption, halogen free
Terminations
RoHS compliant matte tin over nickel over silver-plati-
num-glass frit. Other terminations available at additional cost.
Weight
3.2 – 4.4 mg
Ambient temperature
–40°C to +125°C with
Irms
current
Maximum part temperature
+140°C (ambient + temp rise).
Storage temperature
Component: –40°C to +140°C.
Tape & reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Temperature Coefficient of Inductance (TCL)
+50 to +150 ppm/°C
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
One per billion hours / one billion hours, calculated per Telcordia SR-332
Packaging
2000 per 7″ reel. Plastic tape: 8 mm wide,
0.23 mm thick, 4 mm pocket spacing, 1.0 mm pocket depth
PCB washing
Tested to MIL-STD-202 Method 215 plus an additional
aqueous wash. See
Doc787_PCB_Washing.pdf.
platinum-glass frit
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 894-1
Revised 10/12/15
© Coilcraft Inc. 2017
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
Document 894-2
Chip Inductors – 0603HL Series

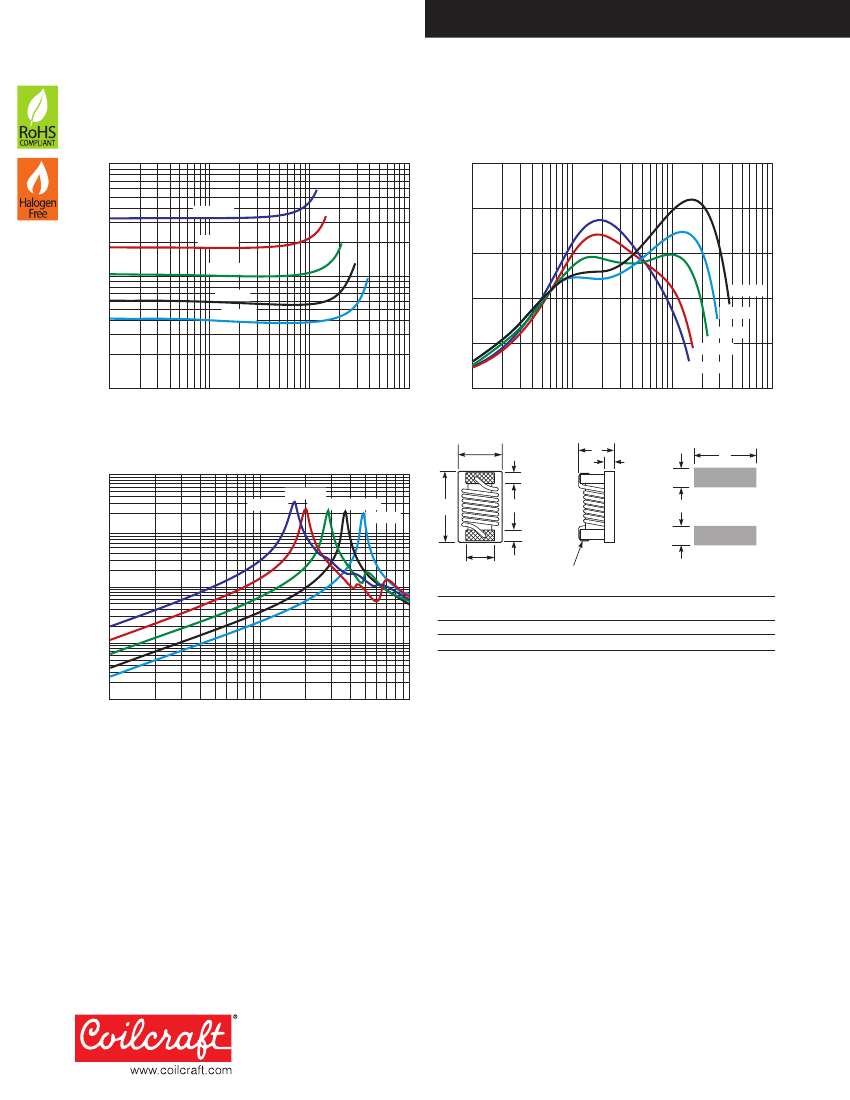

Typical L vs Frequency
10,000
3300 nH
Typical Q vs Frequency
25
20
Inductance (nH)
1800 nH
1000 nH
560 nH
390 nH
5
1000
Q Factor
15
560 nH
10
390 nH
1000 nH
1800 nH
3300 nH
100
0
1
10
100
1000
1
10
100
1000
Frequency (MHz)
Frequency (MHz)
B
overall
F
C
Typical Impedance vs Frequency
100
3300 nH
1800 nH
1000 nH
560 nH
390 nH
D
I
H
A
G
F
E
terminal
Terminal wraparound:
approx 0.01/0,25 both ends
J
I
Impedance (kOhms)
10
1
Recommended
Land Pattern
0.1
A
B
C
max max max
0.071 0.047 0.037
1,80 1,19 0,94
D
E
F
G
H
I
J
0.010 0.030 0.011 0.038 0.040 0.025 0.025 inches
0,25 0,76 0,28 0,97 1,02 0,64 0,64 mm
Note:
Height dimension (C) is before optional solder application. For maximum
height dimension including solder, add 0.006 in / 0,152 mm.
0.01
10
100
1000
Frequency (MHz)
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 894-2
Revised 10/12/15
© Coilcraft Inc. 2017
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
