8803-060-170L: DescriptionBoard Connector, 62 Contact(s), Female, Right Angle, Solder Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size300KB，2 Pages; ManufacturerKEL Corporation

Download Datasheet Parametric Compare View All

8803-060-170L Overview

Board Connector, 62 Contact(s), Female, Right Angle, Solder Terminal, Black Insulator, Plug

8803-060-170L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	KEL Corporation
Reach Compliance Code	unknown
Board mount options	HOLE .086-.098
body width	0.276 inch
subject depth	0.705 inch
body length	2.001 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact arrangement	S60P2
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact resistance	25 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	650VAC V
maximum insertion force	1.0008 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED NYLON
Manufacturer's serial number	8803
Mixed contacts	YES
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Plating thickness	FLASH inch
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Termination type	SOLDER
Total number of contacts	62
Evacuation force-minimum value	.1946 N
Base Number Matches	1

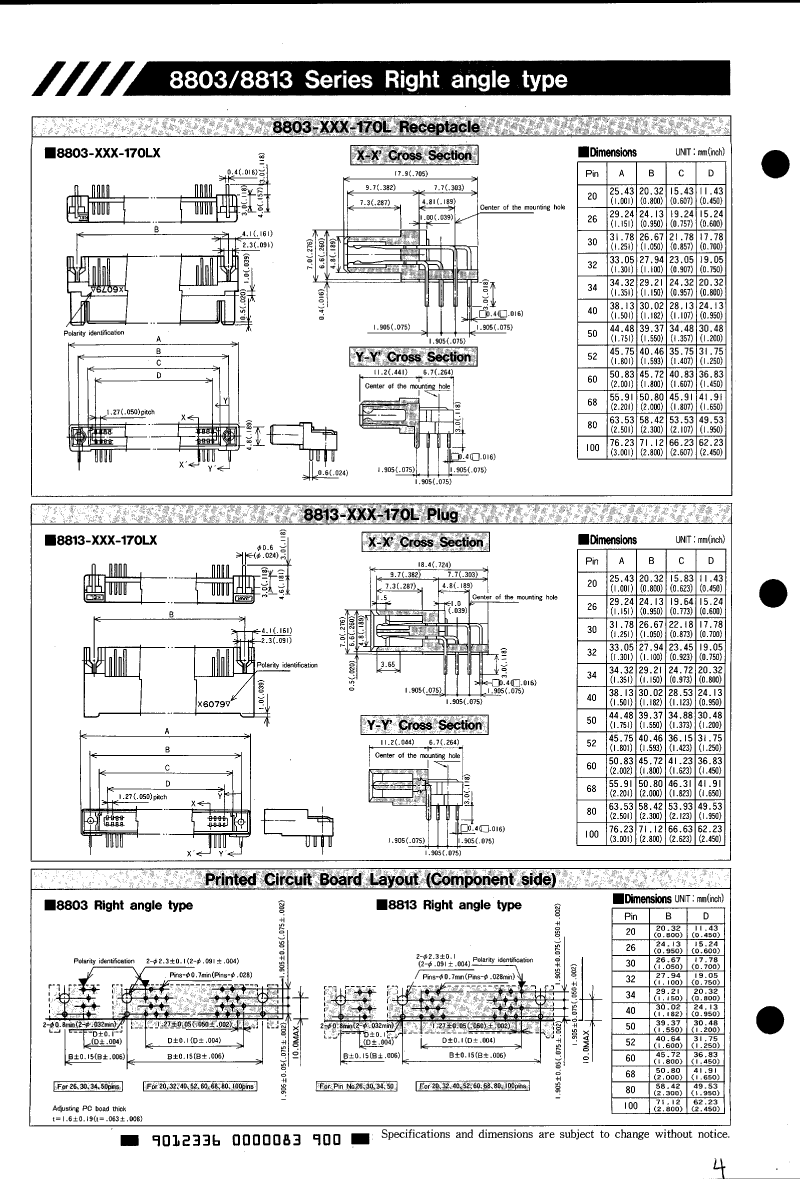

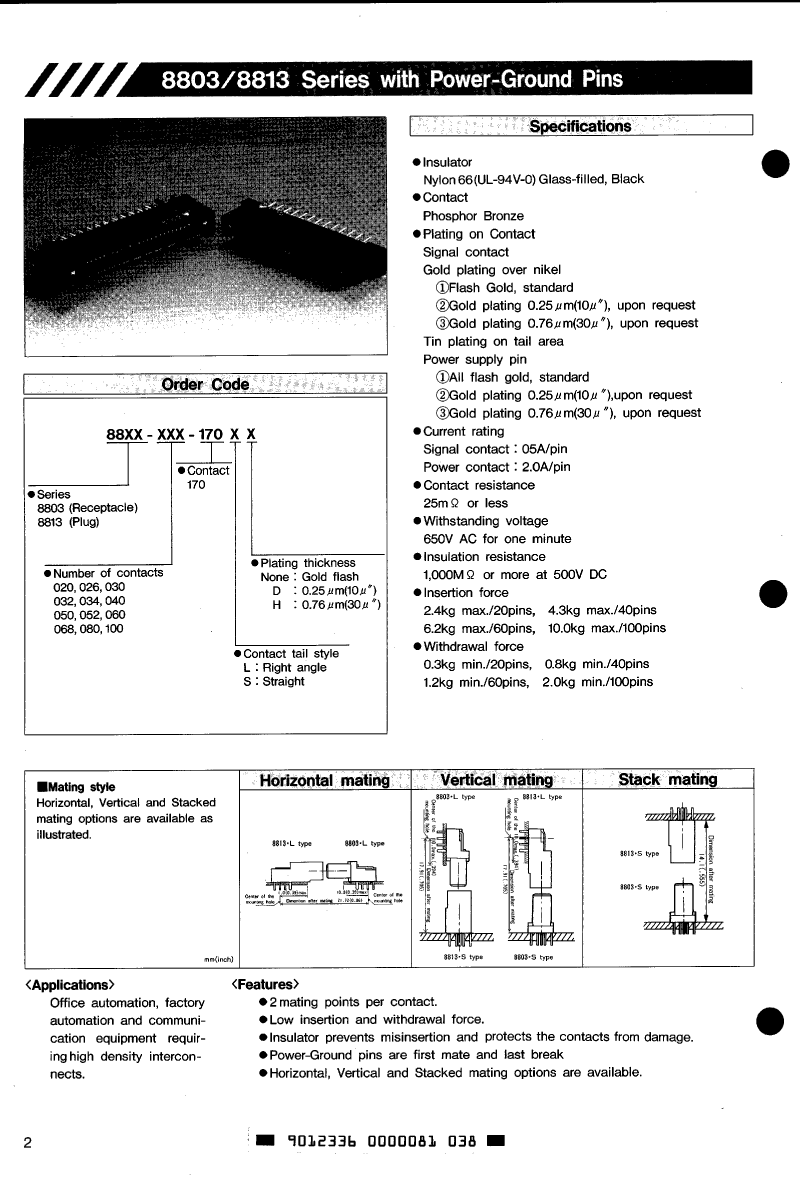

Preview

Download Datasheet

View All

8803-060-170L Related Products

	8803-060-170L	8803-068-170L	8803-040-170L	8813-068-170L	8803-050-170L	8813-050-170L	8813-040-170L
Description	Board Connector, 62 Contact(s), Female, Right Angle, Solder Terminal, Black Insulator, Plug	Board Connector, 70 Contact(s), Female, Right Angle, Solder Terminal, Black Insulator, Plug	Board Connector, 42 Contact(s), Female, Right Angle, Solder Terminal, Black Insulator, Plug	Board Connector, 70 Contact(s), Male, Right Angle, Solder Terminal, Black Insulator, Receptacle	Board Connector, 52 Contact(s), Female, Right Angle, Solder Terminal, Black Insulator, Plug	Board Connector, 52 Contact(s), Male, Right Angle, Solder Terminal, Black Insulator, Receptacle	Board Connector, 42 Contact(s), Male, Right Angle, Solder Terminal, Black Insulator, Receptacle
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	KEL Corporation	KEL Corporation	KEL Corporation	KEL Corporation	KEL Corporation	KEL Corporation	KEL Corporation
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Board mount options	HOLE .086-.098	HOLE .086-.098	HOLE .086-.098	HOLE .086-.098	HOLE .086-.098	HOLE .086-.098	HOLE .086-.098
body width	0.276 inch	0.276 inch	0.276 inch	0.276 inch	0.276 inch	0.276 inch	0.276 inch
subject depth	0.705 inch	0.705 inch	0.705 inch	0.724 inch	0.705 inch	0.724 inch	0.724 inch
body length	2.001 inch	2.201 inch	1.501 inch	2.201 inch	1.751 inch	1.751 inch	1.501 inch
Body/casing type	PLUG	PLUG	PLUG	RECEPTACLE	PLUG	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact arrangement	S60P2	S68P2	S40P2	S68P2	S50P2	S50P2	S40P2
Contact to complete cooperation	AU	AU	AU	AU	AU	AU	AU
Contact point gender	FEMALE	FEMALE	FEMALE	MALE	FEMALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact resistance	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ
Dielectric withstand voltage	650VAC V	650VAC V	650VAC V	650VAC V	650VAC V	650VAC V	650VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON
Manufacturer's serial number	8803	8803	8803	8813	8803	8813	8813
Mixed contacts	YES	YES	YES	YES	YES	YES	YES
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE
Plating thickness	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch
Rated current (signal)	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	62	70	42	70	52	52	42
Base Number Matches	1	1	1	1	1	1	1
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	-	BELLOWED TYPE	-	-
