SAF-C503-LN datasheet, PDF - EEWORLD Datasheet

SAF-C503-LN: Description8-Bit CMOS Microcontroller; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，42 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric View All

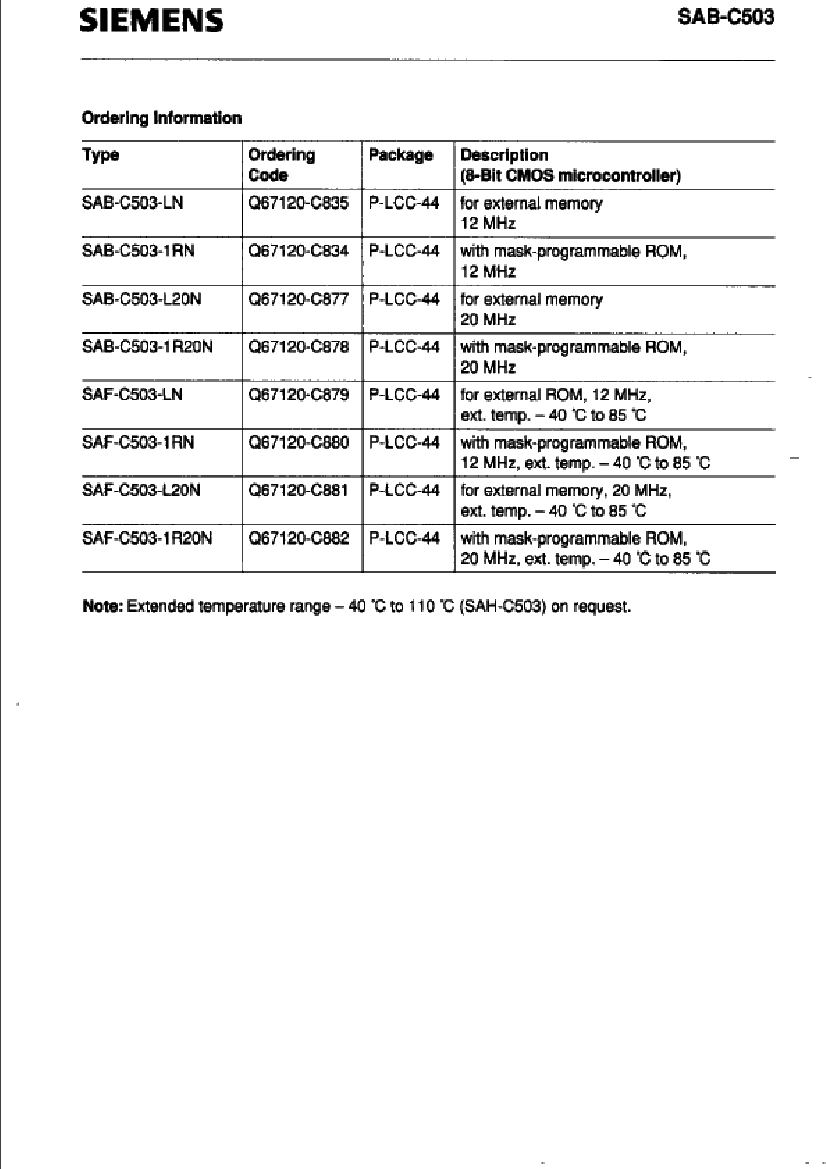

SAF-C503-LN Overview

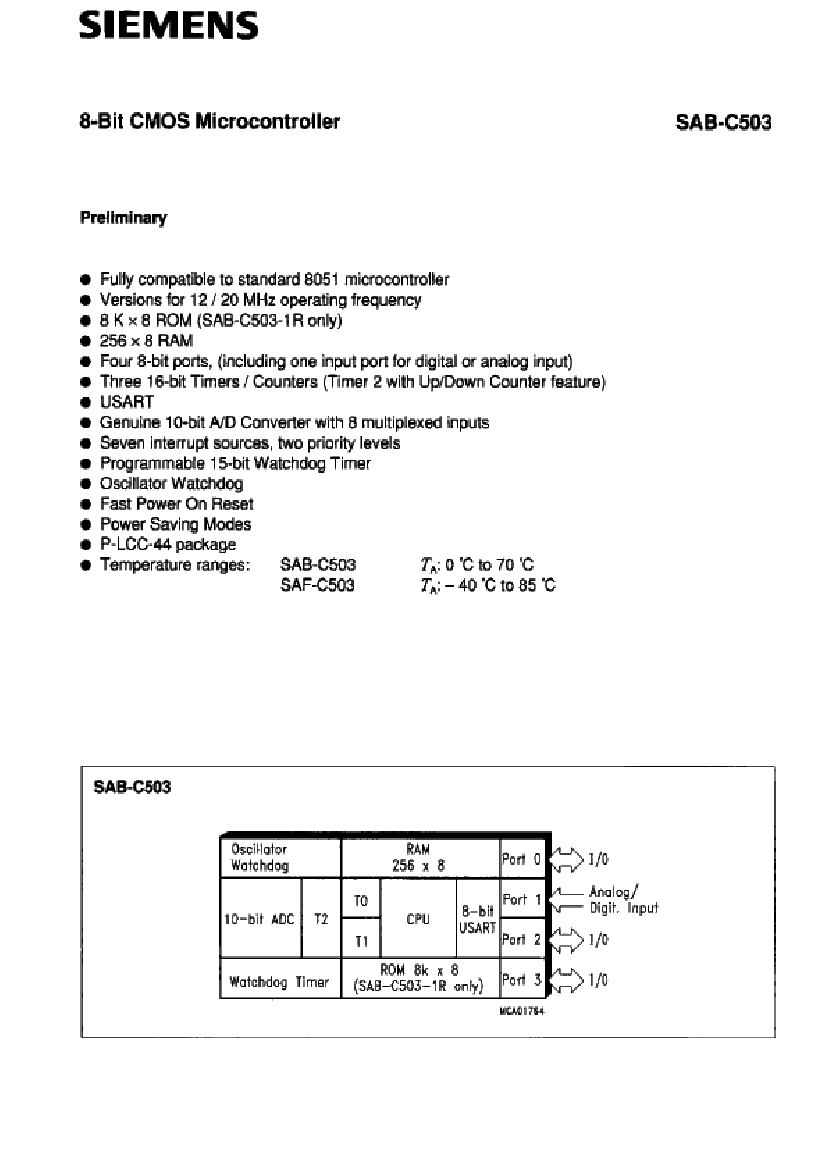

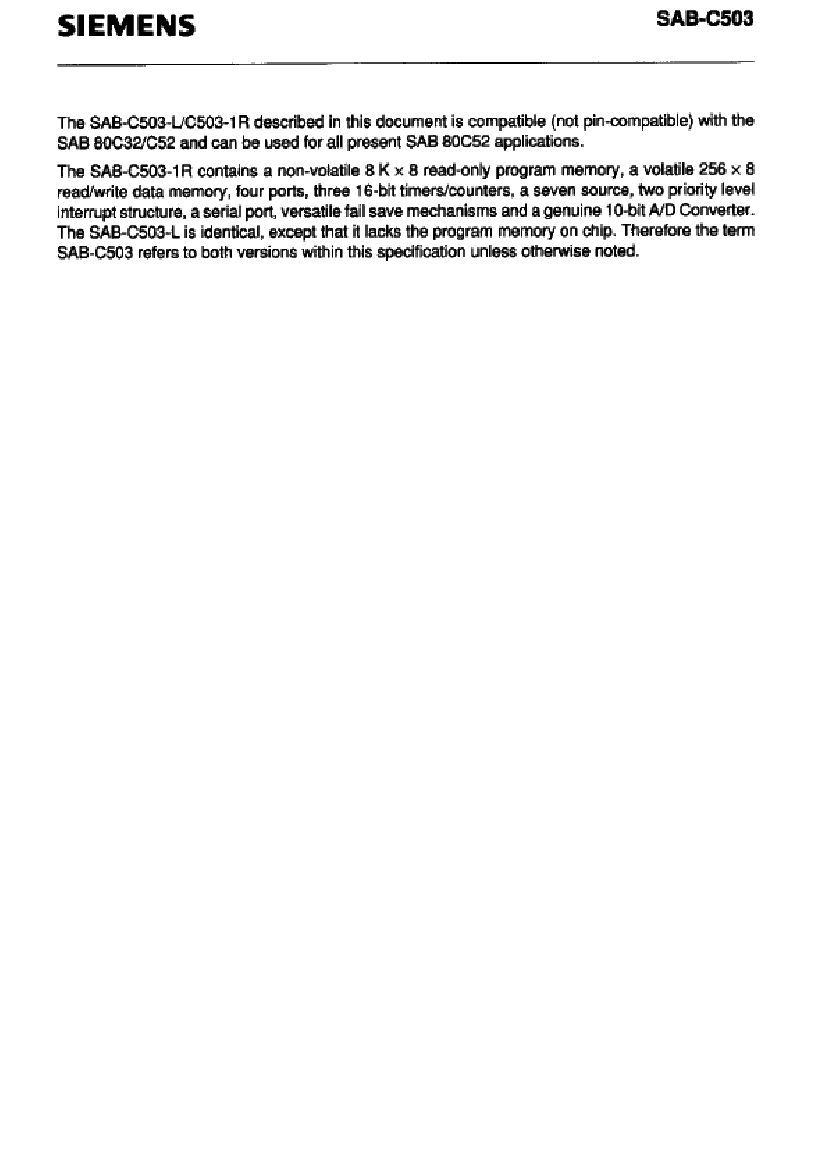

8-Bit CMOS Microcontroller

Parameter Name	Attribute value
Maker	SIEMENS
package instruction	,
Reach Compliance Code	unknow
Has ADC	YES
Address bus width	16
bit size	8
boundary scan	NO
maximum clock frequency	12 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
Format	FIXED POINT
Integrated cache	NO

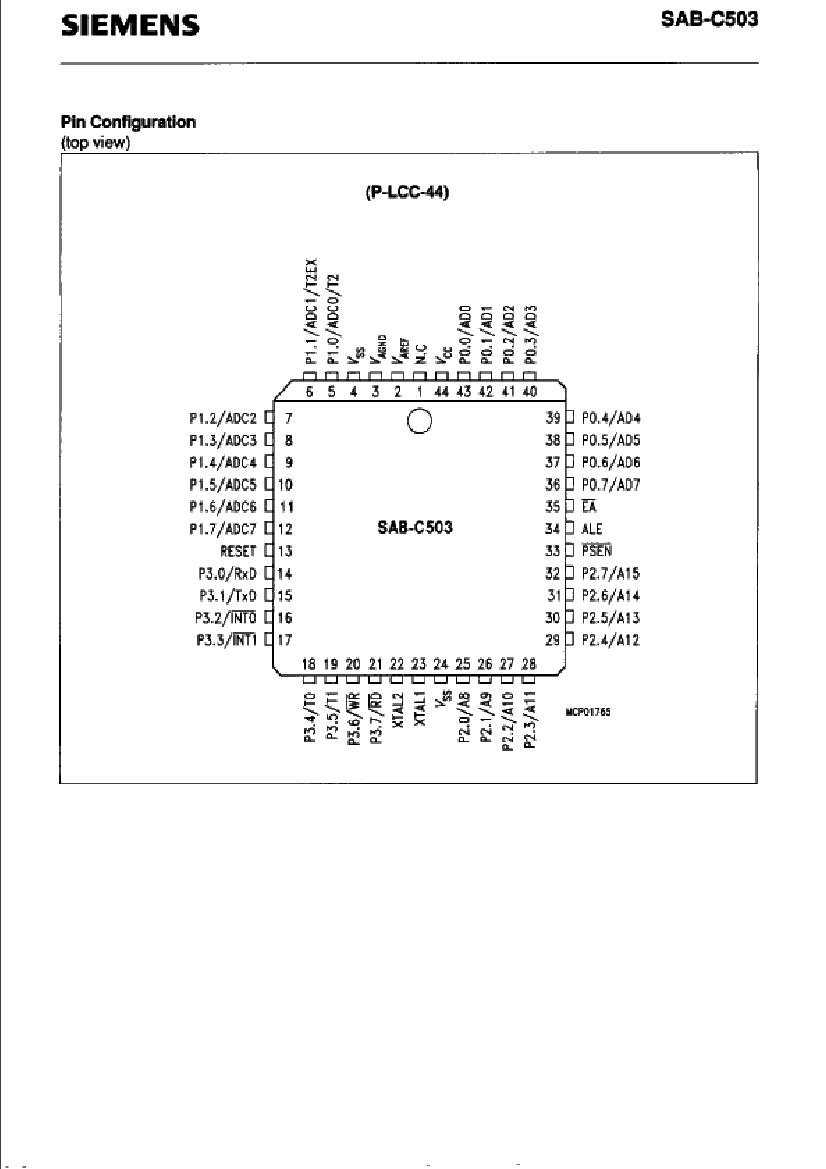

JESD-30 code	S-PQCC-J44
low power mode	YES
Number of DMA channels
Number of external interrupt devices	2
Number of I/O lines	32
Number of serial I/Os	1
Number of terminals	44
Number of timers	3
On-chip data RAM width	8
On-chip program ROM width
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
RAM (number of words)	256
rom(word)	0
speed	12 MHz
Maximum slew rate	25.8 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.25 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	J BEND
Terminal location	QUAD
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
