C&K DM Series
Miniature Illuminated Power Rocker Switches
Features/Benefits
•
3 AMPS to 10 AMPS
•
Illuminated LED
•
Positive detent
•
RoHS compliant
Typical Applications
•
Instrumentation
•
Industrial
•
Office machines
Models Available
Specifications
CONTACT RATING: DM14 and DM24 Models: 3 AMPS @
125 V AC; 2 AMPS @ 250 V AC. DM54 and DM64 Models:
10 AMPS @ 125 V AC; 5 AMPS @ 250 V AC (UL/CSA).
ELECTRICAL LIFE: 10,000 make-and-break cycles at full load.
INSULATION RESISTANCE: 109
Ω
min.
DIELECTRIC STRENGTH: 1,000 Vrms min. @ sea level.
NOTE:
Any models supplied with Q contact material are RoHS compliant. For the latest
information regarding RoHS compliance, please go to: www.ittcannon.com/rohs.
NOTE:
Specification and materials listed above are for standard switches.
For information on specific and custom switches, consult Customer Service Center.
Materials
HOUSING: 6/6 nylon (UL94V-2), black.
ACTUATOR: 6/6 nylon (UL94V-2), black.
MOVABLE CONTACTS: DM14 and DM24 Models: Copper,
silver plated. DM54 and DM64 Models: Coin silver, silver plated.
STATIONARY CONTACTS & TERMINALS: Copper or brass,
silver plated.
LED TERMINALS: Brass, unplated.
CONTACT SPRING: Music wire or stainless steel.
OPERATING TEMPERATURE: -20ºC to +85ºC
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown
and described on pages H–75 and H–78. For additional options not shown in catalog, consult Customer Service Center.
Switch Function
DM14
SPST, 3 AMP
DM24
DPST, 3 AMP
DM54
SPST, 10 AMP
DM64
DPST, 10 AMP
Actuator
J7
Rocker with colorless
LED window
Actuator Color
2
Black
1
White
Housing Style/Color
S2
Snap-in, black
G2
Actuator guard, black
Terminations
05
Quick connect
Contact Material
Q
Silver
Rocker
LED Color
3
Red
4
Amber
6
Green
H
H–75
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
www.ittcannon.com
C&K DM Series
Miniature Illuminated Power Rocker Switches

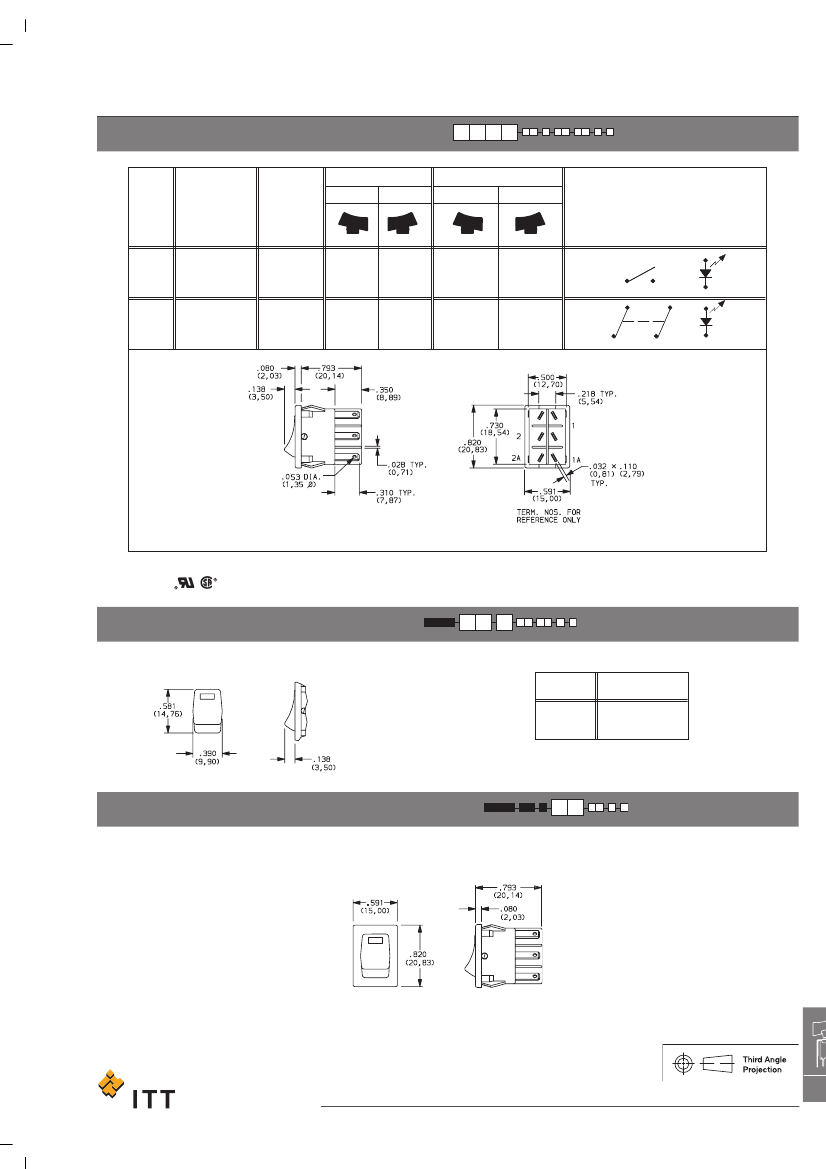

SWITCH FUNCTION
SWITCH FUNCTION
POS. 1
POS. 2
CONNECTED TERMINALS
POS. 1
POS. 2
NO.
POLES
MODEL
NO.
AMP
RATING*
3
ON
OFF
1-1A
OPEN
SPST
1
1
SCHEMATIC
3
DM14
SP
DM54
DM24
DP
10
3
ON
10
OFF
1-1A, 2-2A
OPEN
1A
2
4
3
DM64
DPST
1A
2A
4
DPDT
2B
1B
Actuator shown in pos. 1 – 'ON' position.
Part number shown: DM24J72S205Q3
SPST models (DM14 & DM54),
omit terminals 2 and 2A.
* RATINGS: DM14 and DM24 models: 3 AMPS @ 125 V AC; 2 AMPS @ 250 V AC. DM54 and DM64 models: 10 AMPS @ 125 V AC; 5 AMPS @ 250 V AC.
All models
with all options.
ACTUATOR
J7
ROCKER WITH COLORLESS LED WINDOW
OPTION
CODE
ACTUATOR
COLOR
BLACK
WHITE
2
1
NOTE:
Other colors available, consult
Customer Service Center.
HOUSING STYLE/COLOR
S2
SNAP-IN, BLACK
Rocker
NOTE:
Housing finish: matte. Other colors
available, consult Customer Service Center.
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
H
H–76
www.ittcannon.com
C&K DM Series
Miniature Illuminated Power Rocker Switches
HOUSING STYLE/COLOR
G2
ACTUATOR GUARD, BLACK
EW!
N
PANEL MOUNTING
'S2' & 'G2' housing style
NOTE:
Blank insert available for SP models only, see page H-80.
DIM ‘A’
‘S2’ & ‘G2’
HOUSING STYLES
0.756
(19,20)
0.764
(19,41)
.780
(19,81)
DIM ‘A’ with
‘G2’ option
SP MODELS ONLY
0.764
(19,41)
0.780
(19,81)
n/a
PANEL
THICKNESS
.030–.049
(0,76) (1,24)
.049–.079
(1,24) (2,01)
.079–.118
(2,01) (3,00)
TERMINATIONS
05
QUICK CONNECT
CONTACT MATERIAL
OPTION
CODE
RoHS
COMPLIANT *
YES
RoHS
COMPATIBLE *
YES
CONTACT AND
TERMINAL MATERIAL
SILVER 1,2
POWER
RATINGS
DM14 and DM24 Models: 3 AMPS @ 125 V AC; 2 AMPS @ 250 V AC.
DM54 and DM64 Models: 10 AMPS @ 125 V AC; 5 AMPS @ 250 V AC.
Q
* Note: See Technical Data section of this catalog for RoHS compliant and compatible definitions and specifications.
1 MOVABLE CONTACTS: DM14 and DM24 models: Copper, silver plated.
DM54 and DM64 models: Coin silver, silver plated.
2 STATIONARY CONTACTS & TERMINALS: Copper or brass, silver plated.
NOTE:
Any models supplied with Q contact material are RoHS compliant.
For the latest information regarding RoHS compliance, please go to: www.ittcannon.com/rohs.
All models
with all options.
LED COLOR
Rocker
RECOMMENDED RESISTOR @ VOLTAGE
OPTION CODE
LED
COLOR
Red
Amber
Green
FORWARD
VFD
2.1
2.2
2.1
CURRENT
LLED
10
20
20
REVERSE
VR
4V
4V
4V
INTENSITY
MCD
1.6 typ.
2.5 typ.
2.0 typ.
5V
270
150
150
12V
1K
510
510
24V
2.2K
1.2K
1.2K
3
4
6
H
H–77
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
www.ittcannon.com
C&K DM Series
Miniature Illuminated Power Rocker Switches

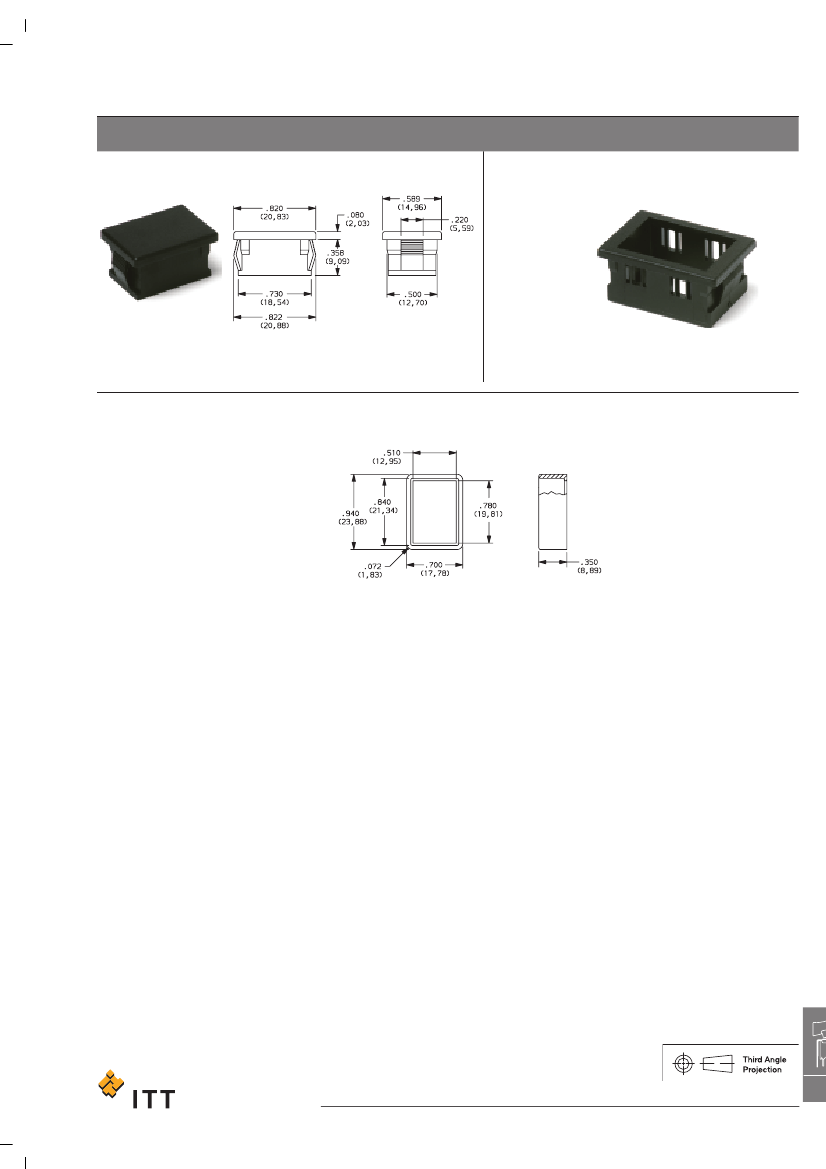

AVAILABLE HARDWARE
Blank Insert
Recessed Bracket
PART NO.
PART NO.
057190200
Material: Zinc nylon 6/6
Finish: Matte
057090100
Material: 6/6 Nylon
Finish: Matte
Actuator Gaurd
PART NO.
104C02000
Material: PBT thermoplastic
Finish: Matte
Rocker
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
H
H–78
www.ittcannon.com
