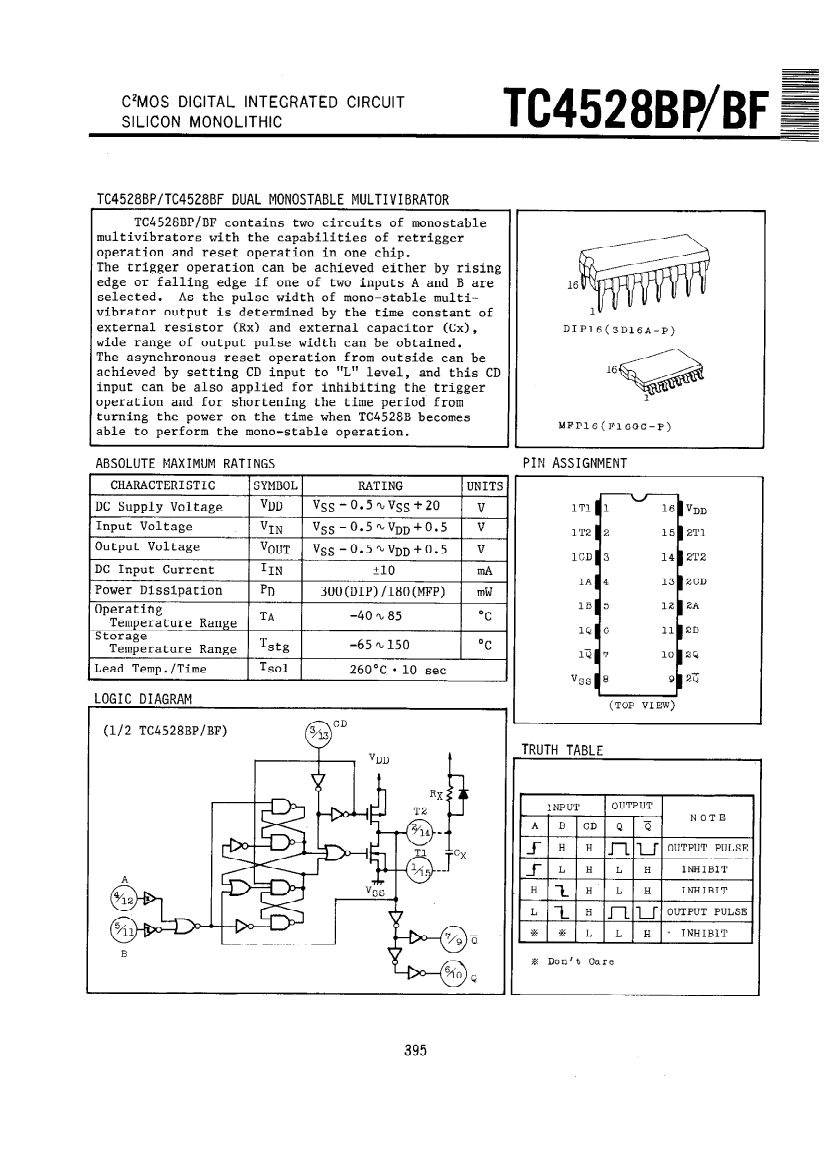

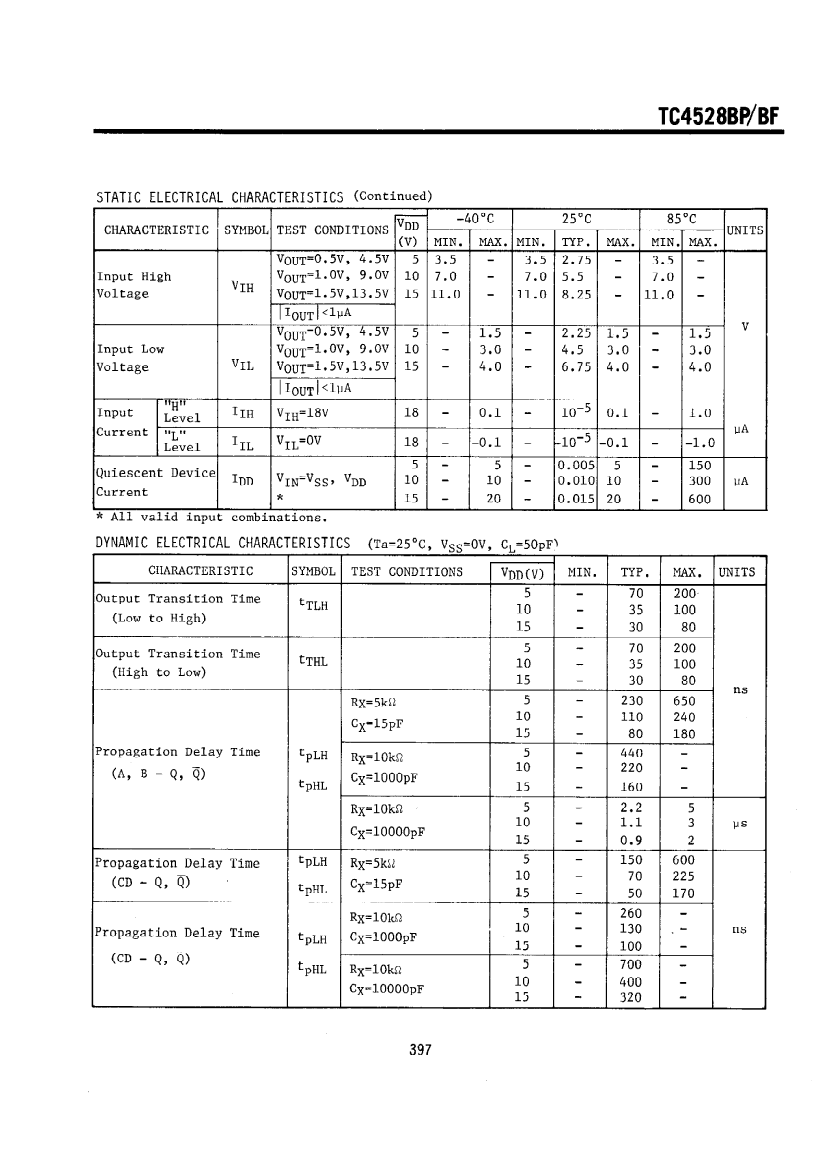

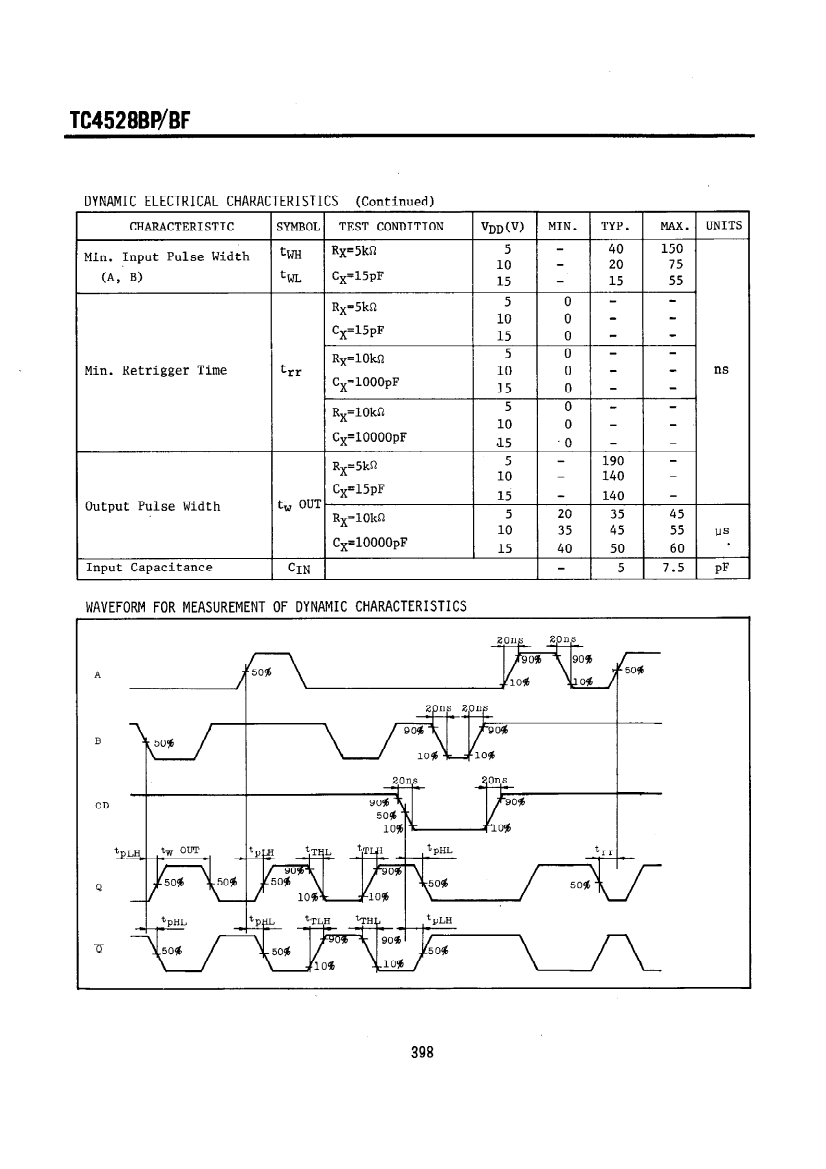

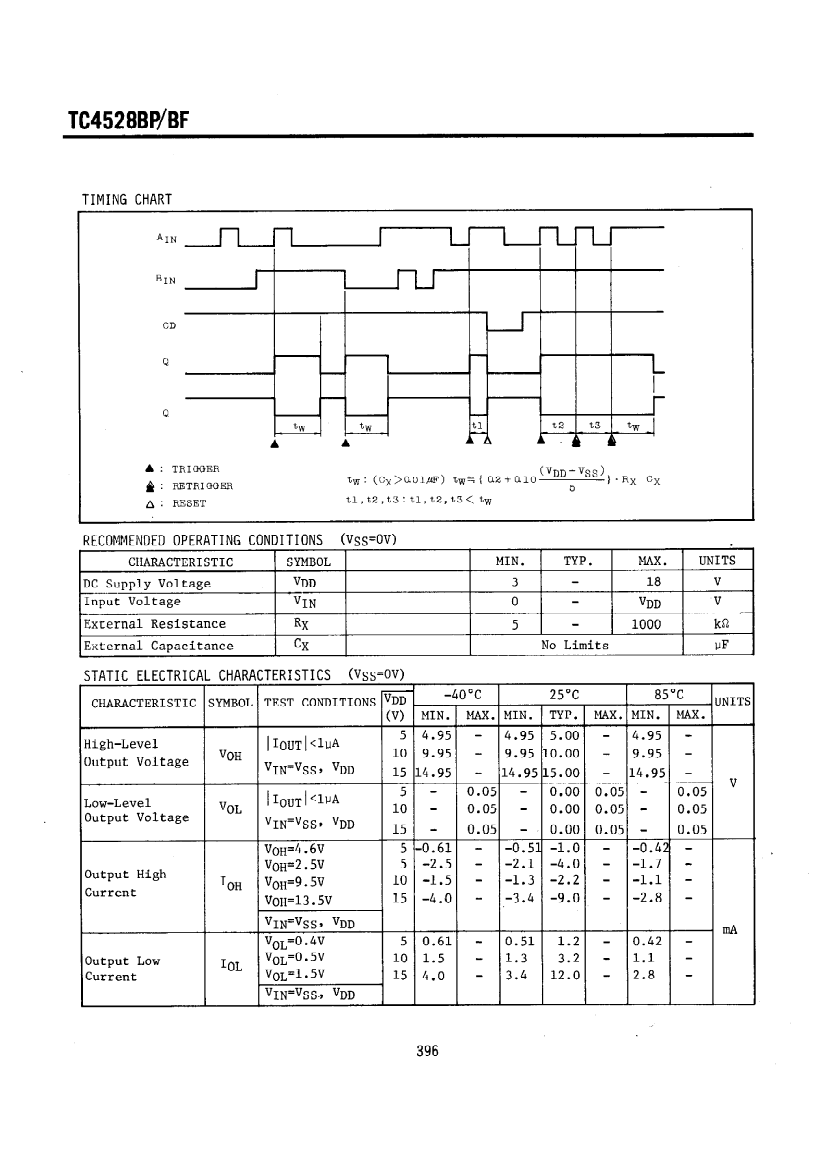

Preview

TC4528BF: DescriptionCMOS DIGITAL INTEGRATED CIRCUIT SILICON MONOLITHIC; Categorylogic logic; File Size566KB，5 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TC4528BF Overview

CMOS DIGITAL INTEGRATED CIRCUIT SILICON MONOLITHIC

TC4528BF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	SOIC
package instruction	0.300 INCH, PLASTIC, SOP-16
Contacts	16
Reach Compliance Code	unknow
Other features	RETRIGGERABLE; MIN O/P PULSE WIDTH = 190NS @ REXT = 5K OHM & CEXT = 15PF
series	4000/14000/40000
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
length	10.3 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	MONOSTABLE MULTIVIBRATOR
Number of data/clock inputs	2
Number of functions	2
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output polarity	COMPLEMENTARY
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
propagation delay (tpd)	650 ns
Certification status	Not Qualified
Maximum seat height	1.9 mm
Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	5.3 mm

Preview

Download Datasheet

View All

TC4528BF Related Products

	TC4528BF	TC4528BP	TC4528
Description	CMOS DIGITAL INTEGRATED CIRCUIT SILICON MONOLITHIC	CMOS DIGITAL INTEGRATED CIRCUIT SILICON MONOLITHIC	CMOS DIGITAL INTEGRATED CIRCUIT SILICON MONOLITHIC
Is it Rohs certified?	incompatible	incompatible	-
Maker	Toshiba Semiconductor	Toshiba Semiconductor	-
Parts packaging code	SOIC	DIP	-
package instruction	0.300 INCH, PLASTIC, SOP-16	DIP,	-
Contacts	16	16	-
Reach Compliance Code	unknow	unknow	-
Other features	RETRIGGERABLE; MIN O/P PULSE WIDTH = 190NS @ REXT = 5K OHM & CEXT = 15PF	RETRIGGERABLE; MIN O/P PULSE WIDTH = 190NS @ REXT = 5K OHM & CEXT = 15PF	-
series	4000/14000/40000	4000/14000/40000	-
JESD-30 code	R-PDSO-G16	R-PDIP-T16	-
JESD-609 code	e0	e0	-
length	10.3 mm	19.25 mm	-
Load capacitance (CL)	50 pF	50 pF	-
Logic integrated circuit type	MONOSTABLE MULTIVIBRATOR	MONOSTABLE MULTIVIBRATOR	-
Number of data/clock inputs	2	2	-
Number of functions	2	2	-
Number of terminals	16	16	-
Maximum operating temperature	85 °C	85 °C	-
Minimum operating temperature	-40 °C	-40 °C	-
Output polarity	COMPLEMENTARY	COMPLEMENTARY	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-
encapsulated code	SOP	DIP	-
Package shape	RECTANGULAR	RECTANGULAR	-
Package form	SMALL OUTLINE	IN-LINE	-
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	240	-
propagation delay (tpd)	650 ns	650 ns	-
Certification status	Not Qualified	Not Qualified	-
Maximum seat height	1.9 mm	4.45 mm	-
Maximum supply voltage (Vsup)	18 V	18 V	-
Minimum supply voltage (Vsup)	3 V	3 V	-
Nominal supply voltage (Vsup)	5 V	5 V	-
surface mount	YES	NO	-
technology	CMOS	CMOS	-
Temperature level	INDUSTRIAL	INDUSTRIAL	-
Terminal surface	TIN LEAD	Tin/Lead (Sn/Pb)	-
Terminal form	GULL WING	THROUGH-HOLE	-
Terminal pitch	1.27 mm	2.54 mm	-
Terminal location	DUAL	DUAL	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	-
width	5.3 mm	7.62 mm	-
