1
/
4
" x
5
/
8
" Fast-Acting, Glass Tube Fuses
Ordering
• Specify packaging, product and option code
AGA Series
Dimensions - mm (in)
Description
•
•
•
•
•
1
Fast-acting
/
4
" x
5
/
8
" (6.4 x 15.9mm) physical size
Glass tube, nickel-plated brass endcap construction
Optional axial leaded version available
UL Listed product meets standard 248-14
Electrical characteristics
% of Amp Rating
Opening Time
100%
4 hours minimum
135%
60 minutes maximum
200%
120 seconds maximum
Rated Current
1
/
4
- 10A
Agency Information
• UL Listed, Guide JDYX, File E19180 (AGA: 0 - 3
1
/
2
A)
• UL Recognized, Guide JDYX2, File E19180 (AGA: 12 - 30A)
Specifications
Part Number
(Amps)
AGA-
1
/
10
AGA-
1
/
4
AGA-
1
/
2
AGA-
3
/
4
AGA-1
AGA-1-
1
/
2
AGA-2
AGA-2-
1
/
2
AGA-3
AGA-5
AGA-6
AGA-7
AGA-7-
1
/
2
AGA-10
AGA-15***
AGA-20***
AGA-25***
AGA-30***
Voltage Rating
Vac
250
250
250
250
250
250
250
250
250
125
125
125
125
125
32
32
32
32
AC Interrupting Rating* (Amps)
250Vac
125Vac
32Vac
35
10,000
-
35
10,000
-
35
10,000
-
35
10,000
-
35
10,000
-
100
10,000
-
100
200
-
100
200
-
100
200
-
-
1000
-
-
1000
1000
-
1000
1000
-
1000
1000
-
1000
1000
-
-
1000
-
-
1000
-
-
1000
-
-
1000
Typical DC ColdResistance (Ω)**
Lower
Upper
6.186
8.370
0.649
0.879
0.223
0.301
0.116
0.157
0.088
0.118
0.056
0.076
0.038
0.052
0.027
0.036
0.022
0.030
0.013
0.017
0.011
0.015
0.008
0.011
0.008
0.010
0.006
0.008
0.003
0.004
0.002
0.003
0.001
0.002
0.001
0.002
* Interrupting Rating: Interrupting ratings has been measured at 70%-80% power factor.
** DC Cold Resistance (Measured at <10% of rated current)
*** UR Component Recognized at 125Vac 100A IR
1011
BU-SB111165
Page 1 of 2
Data Sheet 2039

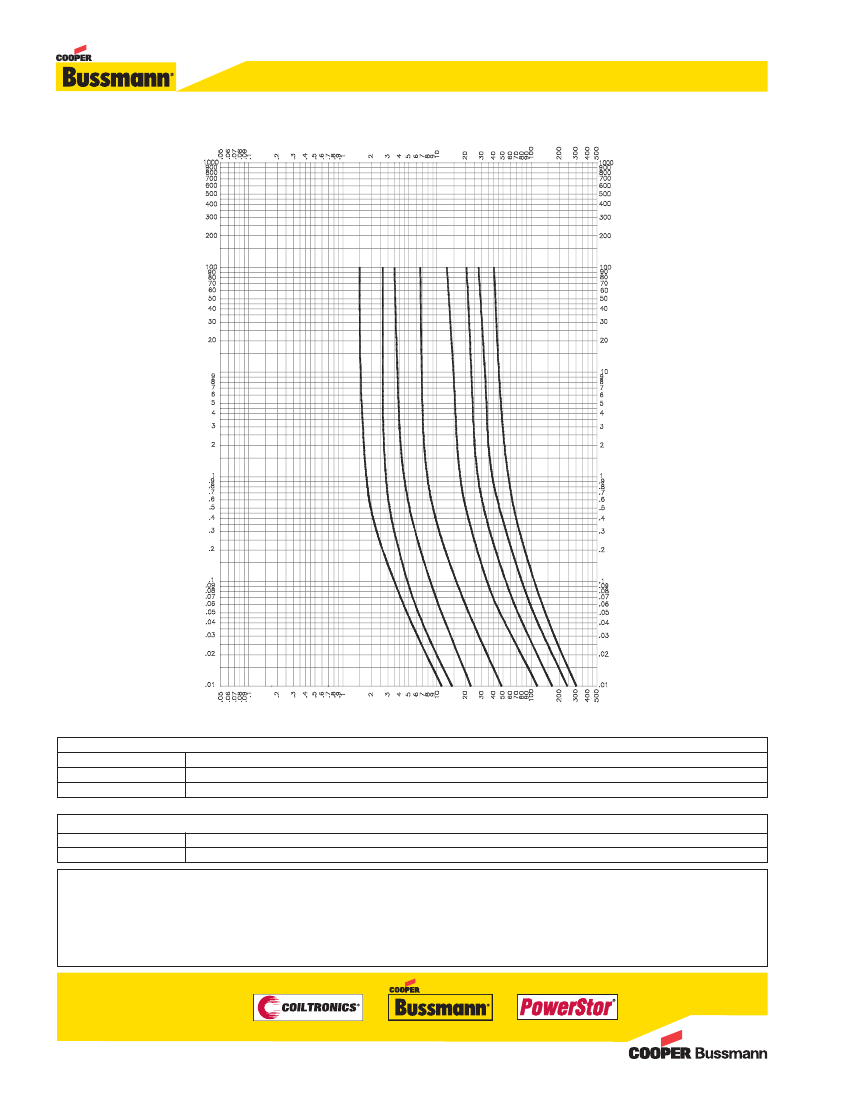

Time-Current Characteristic Curves–Average Melt
CURRENT IN AMPS
15
20
2
3
1
10
5
30
TIME IN SECONDS
TIME IN SECONDS
CURRENT IN AMPS
Packaging Code
Packaging Code
BK
BK8
Description
100 fuses packed into a cardboard carton
8000 fuses packed into a cardboard carton
Option Code
Option Code
B
Description
Board Washable - Hermetically sealed to withstand aqueous cleaning
The only controlled copy of this Data Sheet is the electronic read-only version located on the Cooper Bussmann Network Drive. All other copies of this document are by definition uncontrolled. This bulletin is
intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Cooper Bussmann reserves the right, without notice, to change
design or construction of any products and to discontinue or limit distribution of any products. Cooper Bussmann also reserves the right to change or update, without notice, any technical information con-
tained in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
Life Support Policy: Cooper Bussmann does not authorize the use of any of its products for use in life support devices or systems without the express written approval of an officer of the Company. Life sup-
port systems are devices which support or sustain life, and whose failure to perform, when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result
in significant injury to the user.
© 2011 Cooper Bussmann
www.cooperbussmann.com
1011
BU-SB111165
Page 2 of 2
Data Sheet 2039
