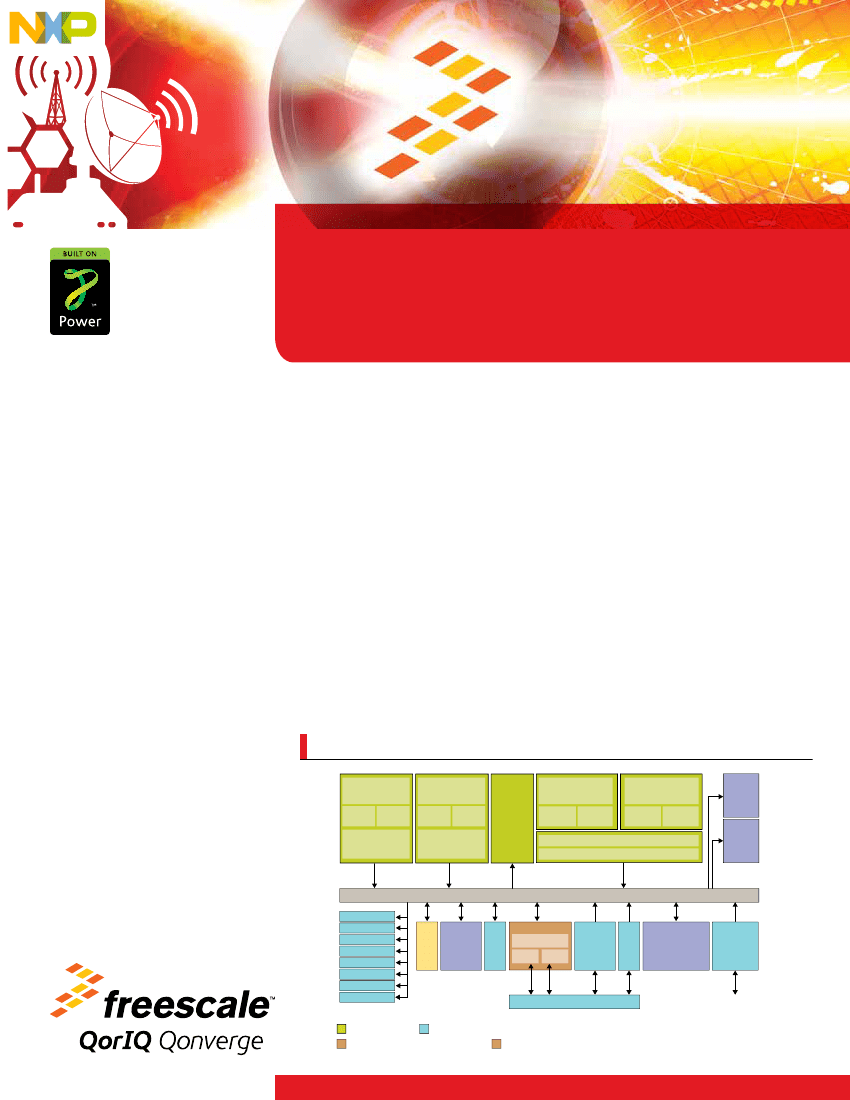

QorIQ Qonverge Platform
QorIQ Qonverge BSC9131 and
BSC9132 System on Chip Devices
Smart Grid
• Power relays
• Power protection
• Uninterruptible power supplies
A new dimension in GPP and DSP integration
Overview
The QorIQ Qonverge BSC9131 and BSC9132 processors are highly integrated System on Chip (SoC)
devices targeting network-connected industrial nodes and other systems requiring the computational
power of a digital signal processor not met by off the shelf solutions today. The two devices combine
1-2 e500 cores, built on Power Architecture
®
technology and 1-2 StarCore SC3850 DSP cores, each
running up to 1.2 GHz with a rich set of peripherals. The SoCs feature our trust architecture, which
builds a fortress of on-chip security with tamper protection, secure boot and isolation of cores, in
addition to cryptographic acceleration engines for secure off-chip communications. The BSC9131
and BSC9132 SoCs also offer the integration of IEEE
®
1588v2 on dual Ethernet ports, enabling time
stamping and redundancy for various industrial networking applications.
The integration of processing cores provides the advantages of reducing required board space,
memory chip count and power by up to 50% versus discrete processing solutions. In addition,
the specialized processing of heterogeneous cores can allow you to move from expensive ASIC
designs to a more programmable, off-the-shelf solution and, as part of the larger QorIQ family,
the BSC9131 and BSC9132 SoCs software compatible with more than 100 other Freescale
communications processors, giving you the ability to reuse code and protect your software
Aerospace and Defense
• JTRS
• Smart munitions
• Unmanned vehicles
• Software-defined radio
Industrial
• Factory automation
• Image analytics
Enterprise
• Voice gateways/PBX
• Video gateways
QorIQ Qonverge BSC9132 SoC Block Diagram
QorIQ Qonverge BSC9132 Processor
StarCore SC3850
DSP Core
32 KB L1 32 KB L1
I Cache D Cache
512 KB
L2 Cache
StarCore SC3850
DSP Core
32 KB L1 32 KB L1
I Cache D Cache
512 KB
L2 Cache
32 KB
Shared
M3 Memory
e500 Core
Built on
Power Architecture
®
32 KB L1 32 KB L1
I Cache D Cache
e500 Core
Built on
Power Architecture
32 KB L1
I Cache
32 KB L1
D Cache
32-bit
DDR3/3L
Memory
Controller
32-bit
DDR3/3L
Memory
Controller
Coherency Module
512 KB L2 Cache
Multicore Fabric
2x SPI
2x DUART
2x I
2
C
GPIO
USIM
IFC
eSDHC
Clocks/Reset
DMA
Security
Engine
V4.4
USB
2.0
Ethernet
IEEE
®
1588
1x GE
SGMII
1x GE
SGMII
PCI
Express
®
CPRI
MAPLE-B2P
Baseband
Accelerator
LTE/UMTS/WiMAX
JESD207
x2
x2
x4
4-lane 6 GHz SerDes
Core Complex
Basic Peripherals and Interconnect
Networking Elements
Accelerators and Memory Control
research and design investment. The
BSC9131 and BSC9132 SoCs also include
the MAPLE block for hardware acceleration
of common DSP functions such as fast
Fourier transform, discrete Fourier transform
and turbo Viterbi decoding.
The QorIQ Qonverge line of products has
a proven set of hardware and software
tools for code development and debug.
The CodeWarrior Development Studio is
a comprehensive integrated development
environment (IDE) that provides a highly
visual and automated framework to accelerate
the development of the most complex
embedded applications. The CodeWarrior
tools allow a consistent look and feel for
developing code on both cores as opposed to
competing solutions that may require multiple
debugging platforms. In addition to the IDE,
the BSC9131RDB and BSC9132QDS give
you the ability to develop and test code on
hardware systems before developing your
own hardware solution.

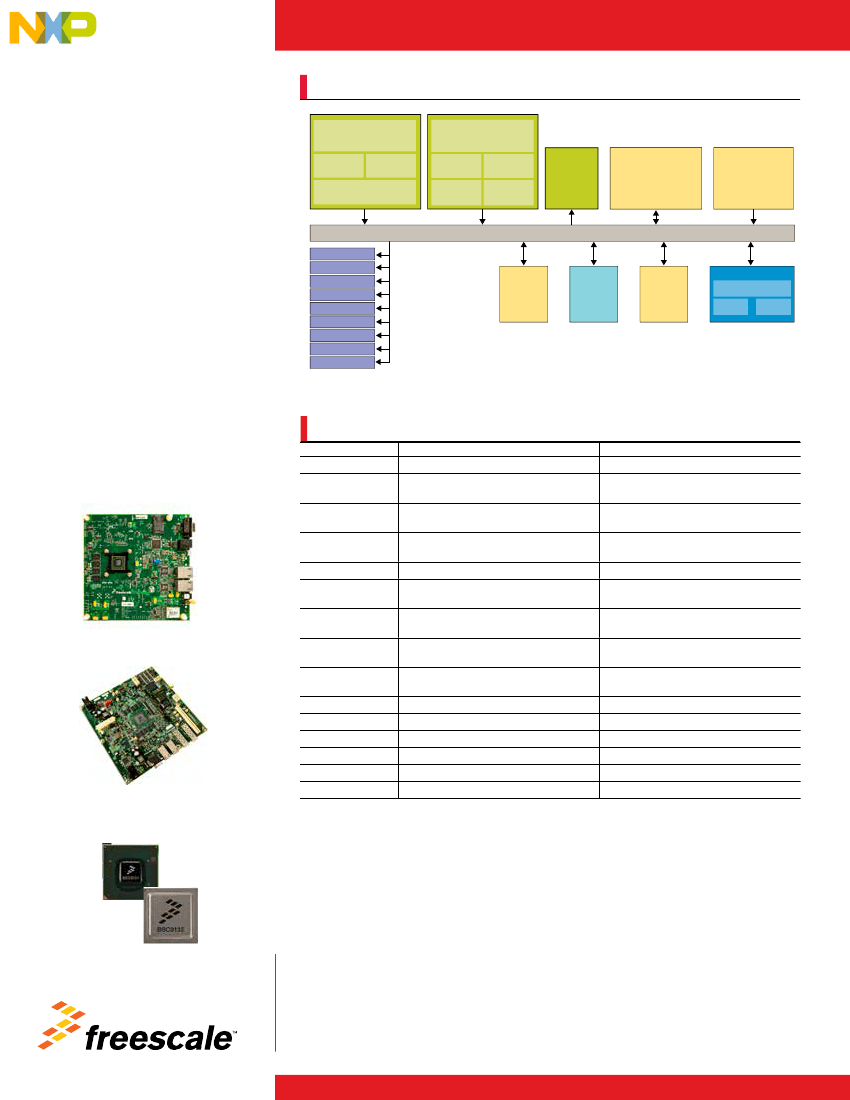

QorIQ Qonverge BSC9131
QorIQ Qonverge BSC9131 Processor
SoC
StarCore SC3850
DSP Core
32 KB L1
I-Cache
32 KB L1
D-Cache
e500 Core
Built on
Power Architecture
®
32 KB
I-Cache
Coherency
Module
32 KB
D-Cache
256 KB
L2 Cache
Block Diagram
512 KB
L2 Cache
32-bit
DDR3/3L
Memory
Controller
MAPLE-B2F
Baseband
Accelerator
LTE/UMTS/CDMA2K
RF Interface
(JESD207/ADI)
and MaxPHY
Multicore Fabric
4x eSPI
2x DUART
2x I
2
C
GPIO
USIM
IFC
eSDHC
2x PWM
Clocks/Reset
DMA
Security
Engine
V4.4
USB
2.0
Ethernet
IEEE
®
1588
1x GE
1x GE
QorIQ Qonverge BSC9131 and BSC9132 Comparison Chart
BSC9131
GPP
DSP/Starcore
DSP hardware
accelerators
Memory
Flash
Trust architecture
secure boot
1 x e500, 256 KB L2 up to 1 GHz
1 x SC3850 with 512 KB L2 cache
up to 1 GHz
BSC9132
2 x e500, 512 KB shared L2 up to 1.2 GHz
2 x SC3850 each with 512 KB L2 cache,
up to 1.2 GHz
1 x MAPLE B2F array
1 x MAPLE B2P array
FFT, convolution, Viterbi Turbo, Filtering, CRC FFT, convolution, Viterbi Turbo, Filtering, CRC
1 x DDR3, 32-bit (16-bit mode only with
ECC), up to 800 MHz
NOR, NAND and FPGA integrated
Yes
SEC v4.4
2
2
1 x 2.0
No
1
No
3: – 2 dual, 1 single lane
UART, SPI, eSDHC, USIM, and I C controller
2
2 x DDR3, 32-bit (40-bit including ECC),
up to 1333 MHz
NOR, NAND and FPGA integrated
Yes
SEC v4.4
2
2
1 x 2.0
Yes
2
Yes
4: – 3 dual, 1 single lane
UART, SPI, eSDHC, USIM, and I
2
C controller
QorIQ Qonverge BSC9131
ReferenceDesign Board
SEC hardware
encryption
Pulse width
modulators
GigE with integrated
1588v2
USB
PCIe
TDM
CPRI
JESD207
Other interfaces
QorIQ Qonverge BSC9132
Development Board
For more information about the QorIQ Qonverge BSC series,
visit
freescale.com/QorIQQonverge
Freescale, the Freescale logo, CodeWarrior, QorlQ, QorlQ Qonverge and StarCore are trademarks of Freescale Semiconductor,
Inc., Reg. U.S. Pat. & Tm. Off. All other product or service names are the property of their respective owners.
© 2014 Freescale Semiconductor, Inc.
Document Number: BSC913xNW Rev 0
