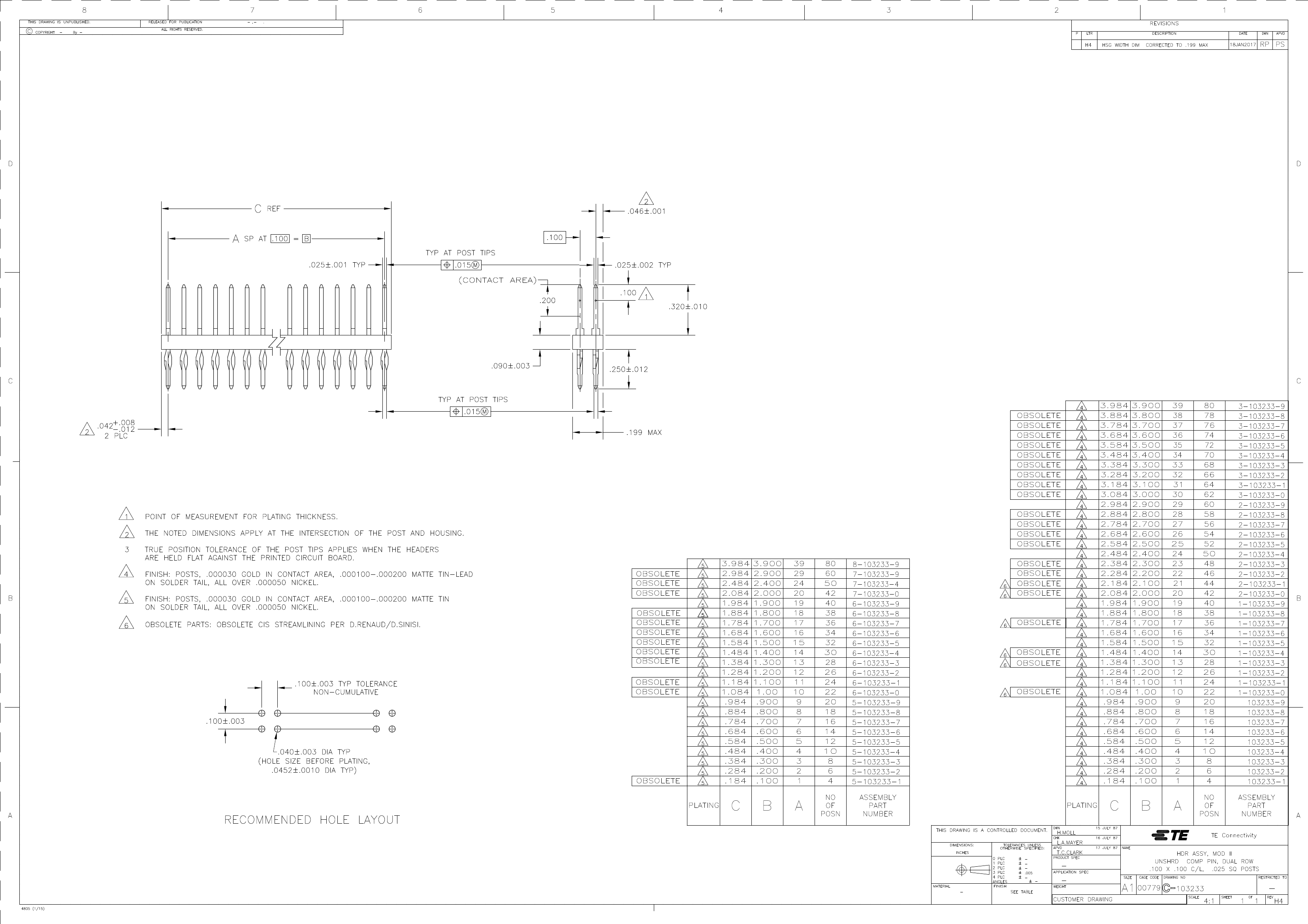

40 MODII HDR DRST UNSHRD A/PIN
| Parameter Name | Attribute value |
| PCB Connector Component Types | PCB mounting header |
| Connectors and terminals terminate to | A printed circuit board |
| Connector type | without hood |
| Line spacing | 2.54 mm [ .1 in ] |
| sealing ring | Without |
| stabilizing device | Without |
| plate support | Without |
| stress relief | Without |
| Connector terminal load status | Fully loaded |
| PCB mounting direction | vertical |
| Number of Positions | 40 |
| Rows | 2 |
| keying | no |
| Medium pressure resistance | 750 Vrms |
| Cylinder size | .64 mm [ .025 in ] |
| Terminal base material | copper alloy |
| PCB terminal termination area plating materials | tin |
| Terminal base material | nickel |
| Terminal protection | Without |
| Terminal shape | square |
| Terminal type | Pin |
| Contact Current Rating (Max) (A) | 3 |
| Terminal Contact Plating Thickness (µin) | 30 |
| Terminal contact plating material | gold |
| PCB Termination Methods | Through hole |
| Termination cylinder length | 6.35 mm [ .25 in ] |
| Terminal Plating Thickness (µin) | 100 – 200 |
| Terminal plating materials | Nickel base tin plating |
| PCB mounting fixation type | Function/Standard-compliant tail |
| PCB installation and fixation | with |
| Panel mount features | Without |
| Engage connector latch | Without |
| PCB installation method | Through hole |
| joint alignment | Without |
| Centerline (Pitch) | 2.54 mm [ .1 in ] |
| Shell material | thermoplastic |
| Shell color | black |
| PCB thickness (recommended) | 2.36 – 3.18 mm [ .093 – .125 in ] |
| Joint post length | 8.13 mm [ .32 in ] |
| Working group temperature range (°C) | -55 – 125 |
| High temperature shell | yes |
| High speed serial data connector | no |
| approved standards | CSA LE7189, UL E28476 |
| UL flammability rating | UL 94V-0 |
| Package quantity | 100 |
| Encapsulation method | carton |
