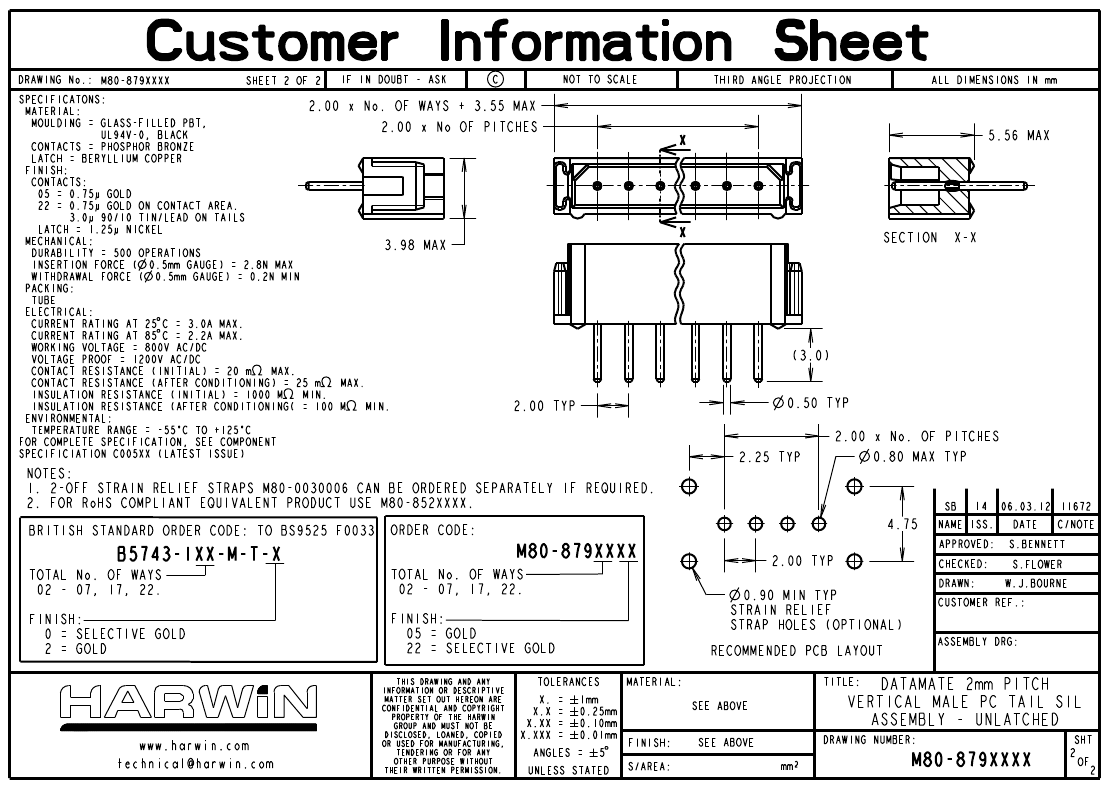

B5743-105-M-T-0

Description
Headers & Wire Housings 5 PIN MALE VERTICAL
CategoryThe connector    The connector
File Size55KB，1 Pages
ManufacturerHarwin
Websitehttp://www.harwin.com/
Download Datasheet Parametric Compare View All

B5743-105-M-T-0 Online Shopping

Suppliers Part Number Price MOQ In stock
B5743-105-M-T-0 - - View Buy Now

B5743-105-M-T-0 Overview

Headers & Wire Housings 5 PIN MALE VERTICAL

B5743-105-M-T-0 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerHarwin
Reach Compliance Codecompliant
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedTin/Lead (Sn/Pb)
Contact point genderMALE
Contact materialNOT SPECIFIED
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee0
MIL complianceNO
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded1
OptionsGENERAL PURPOSE
Termination typeSOLDER
Total number of contacts5
UL Flammability Code94V-0

Preview

Download Datasheet

B5743-105-M-T-0 Related Products

B5743-105-M-T-0 M80-8790622 B5743-104-M-T-0 M80-8790322 M80-8790422 M80-8791722 B5743-106-M-T-0 B5743-107-M-T-0 M80-8790522 M80-8792222
Description Headers & Wire Housings 5 PIN MALE VERTICAL Headers & Wire Housings 6 POS SIL MALE VERT UNLATCHED TINLD Headers & Wire Housings 4 PIN MALE VERTICAL Headers & Wire Housings 3 POS SIL MALE VERT UNLATCHED TINLD Headers & Wire Housings 4 POS SIL MALE VERT UNLATCHED TINLD Headers & Wire Housings 17 POS SIL MALE VERT UNLATCHED TINLD Headers & Wire Housings 6 PIN MALE VERTICAL Headers & Wire Housings 7 PIN MALE VERTICAL Headers & Wire Housings 5 POS SIL MALE VERT UNLATCHED TINLD Headers & Wire Housings 22 POS SIL MALE VERT UNLATCHED TINLD
Is it lead-free? Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible
Reach Compliance Code compliant not_compliant compliant not_compliant not_compliant not_compliant compliant compliant not_compliant compliant
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation NOT SPECIFIED TIN LEAD NOT SPECIFIED GOLD (30) GOLD (30) GOLD (30) NOT SPECIFIED NOT SPECIFIED GOLD (30) GOLD (30)
Contact completed and terminated Tin/Lead (Sn/Pb) Tin/Lead (Sn90Pb10) - with Nickel (Ni) barrier Tin/Lead (Sn/Pb) Tin/Lead (Sn90Pb10) - with Nickel (Ni) barrier Tin/Lead (Sn90Pb10) - with Nickel (Ni) barrier Tin/Lead (Sn90Pb10) - with Nickel (Ni) barrier Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn90Pb10) - with Nickel (Ni) barrier Tin/Lead (Sn/Pb)
Contact point gender MALE MALE MALE MALE MALE MALE MALE MALE MALE MALE
Contact material NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE NOT SPECIFIED NOT SPECIFIED PHOSPHOR BRONZE PHOSPHOR BRONZE
DIN compliance NO NO NO NO NO NO NO NO NO NO
Filter function NO NO NO NO NO NO NO NO NO NO
IEC compliance NO NO NO NO NO NO NO NO NO NO
JESD-609 code e0 e0 e0 e0 e0 e0 e0 e0 e0 e0
MIL compliance NO NO NO NO NO NO NO NO NO NO
Mixed contacts NO NO NO NO NO NO NO NO NO NO
Installation method STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD
Number of rows loaded 1 1 1 1 1 1 1 1 1 1
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Termination type SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER
Total number of contacts 5 6 4 3 4 17 6 7 5 22
UL Flammability Code 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0
ECCN code - EAR99 - EAR99 EAR99 EAR99 - - EAR99 EAR99
Other features - POLARIZED, SHROUDED - POLARIZED, SHROUDED POLARIZED, SHROUDED POLARIZED, SHROUDED - - POLARIZED, SHROUDED POLARIZED, SHROUDED
body width - 0.152 inch - 0.152 inch 0.152 inch 0.152 inch - - 0.152 inch 0.157 inch
subject depth - 0.213 inch - 0.213 inch 0.213 inch 0.213 inch - - 0.213 inch 0.219 inch
body length - 0.614 inch - 0.378 inch 0.457 inch 1.48 inch - - 0.535 inch 1.872 inch
contact mode - RECTANGULAR - RECTANGULAR RECTANGULAR RECTANGULAR - - RECTANGULAR RECTANGULAR
Contact resistance - 20 mΩ - 20 mΩ 20 mΩ 20 mΩ - - 20 mΩ 20 mΩ
Contact style - RND PIN-SKT - RND PIN-SKT RND PIN-SKT RND PIN-SKT - - RND PIN-SKT RND PIN-SKT
Durability - 500 Cycles - 500 Cycles 500 Cycles 500 Cycles - - 500 Cycles 500 Cycles
maximum insertion force - 2.78 N - 2.78 N 2.78 N 2.78 N - - 2.78 N 2.78 N
Insulation resistance - 1000000000 Ω - 1000000000 Ω 1000000000 Ω 1000000000 Ω - - 1000000000 Ω 1000000000 Ω
Insulator color - BLACK - BLACK BLACK BLACK - - BLACK BLACK
insulator material - GLASS FILLED POLYESTER - GLASS FILLED POLYESTER GLASS FILLED POLYESTER GLASS FILLED POLYESTER - - GLASS FILLED POLYESTER GLASS FILLED POLYESTER
Plug contact pitch - 0.079 inch - 0.079 inch 0.079 inch 0.079 inch - - 0.079 inch 0.079 inch
Plug information - MULTIPLE MATING PARTS AVAILABLE - MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE - - MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE
Installation option 1 - LOCKING - LOCKING LOCKING LOCKING - - LOCKING LOCKING
Number of connectors - ONE - ONE ONE ONE - - ONE ONE
PCB row number - 1 - 1 1 1 - - 1 1
Maximum operating temperature - 125 °C - 125 °C 125 °C 125 °C - - 125 °C 125 °C
Minimum operating temperature - -55 °C - -55 °C -55 °C -55 °C - - -55 °C -55 °C
PCB contact pattern - RECTANGULAR - RECTANGULAR RECTANGULAR RECTANGULAR - - RECTANGULAR RECTANGULAR
Plating thickness - 30u inch - 30u inch 30u inch 30u inch - - 30u inch 30u inch
Guideline - UL - UL UL UL - - UL UL
reliability - COMMERCIAL - COMMERCIAL COMMERCIAL COMMERCIAL - - COMMERCIAL COMMERCIAL
Terminal length - 0.118 inch - 0.118 inch 0.118 inch 0.118 inch - - 0.118 inch 0.118 inch
Terminal pitch - 2 mm - 2 mm 2 mm 2 mm - - 2 mm 2 mm
Evacuation force-minimum value - .1946 N - .1946 N .1946 N .1946 N - - .1946 N .1946 N
