Power entry modules without line filter
https://www.schurter.com /PG05
EC11

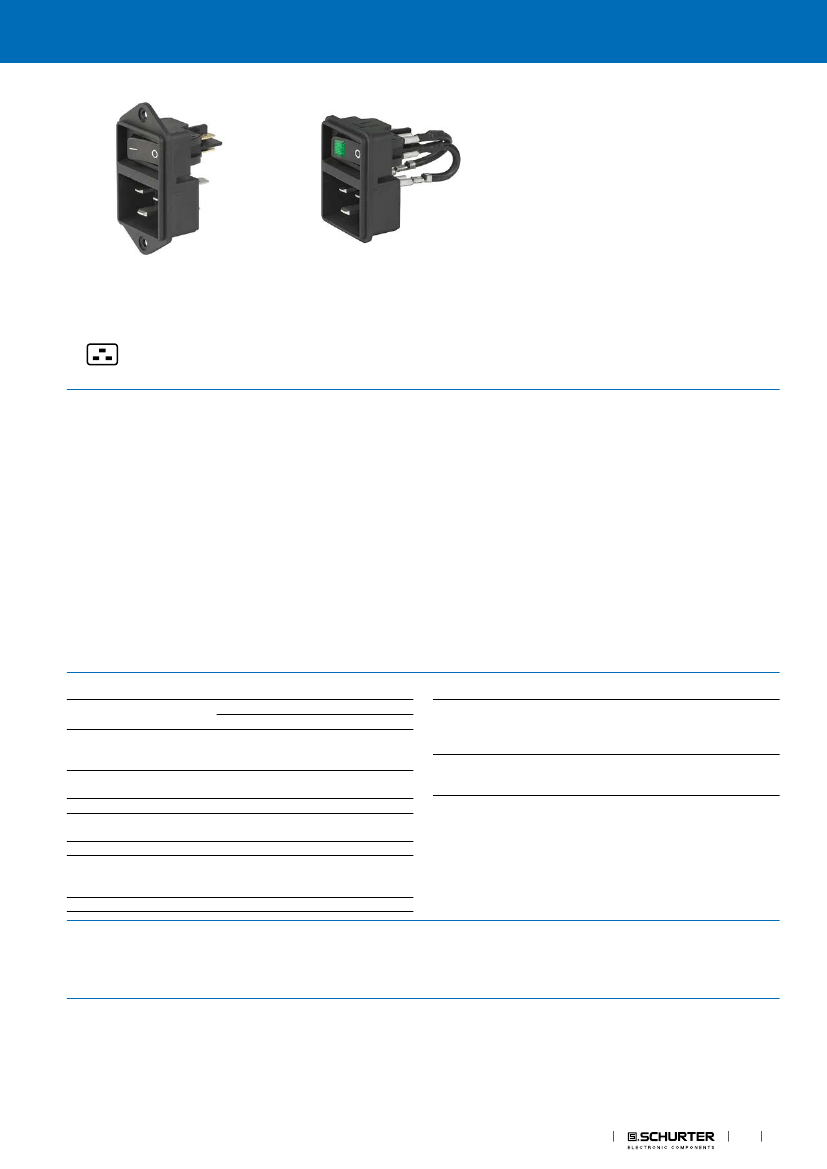

IEC Appliance Inlet C20 with Line Switch, 2-pole
Snap-In Version or Screw-On Version
illuminated version
C20
70° C
Approvals and Compliances
Description
- Panel Mount :
Screw-on version from front or rear side, snap-in version from front
side
- 2 Functions :
Appliance Inlet Protection class I , Line Switch 2-pole
- Quick connect terminals 6.3 x 0.8 mm
Characteristics
-
-
-
-
-
-
-
-
-
All single elements are already wired
Unwired versions available on request
Line switch non-illuminated or illuminated
Ideal for application with high transient loads
Suitable for use in equipment according to IEC/UL 60950
Unwired versions
Line switch with other rocker marking
For protection class II
Variant with notch for V-Lock mating Cordsets
Other versions on request
References
Weblinks
Alternative: version with line filter
EC12
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Accessories, Detailed request for product, Microsite
Newly available variants corresponding to V-Lock mating cordset. The connector is equipped with a notch intended for use with the latching cordset.
The cord latching system prevents against accidental removal of the cordset.
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
16 A / 250 VAC; 50 Hz
20 A / 250 VAC; 60 Hz
> 2.5 kVAC between L-N
> 3 kVAC between L/N-PE
(1 min/50 Hz)
-25 °C to 70 °C
from front side IP 40 acc. to IEC 60529
Suitable for appliances with protection
class I acc. to IEC 61140
Quick connect terminals 6.3 x 0.8 mm
Screw: max 8 mm
Mounting screw torque max 0.5 Nm
Snap-in: 1.5/2/2.5 mm
Thermoplastic, black, UL 94V-0
appliance inlet/-outlet
C20 acc. to IEC 60320-1,
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C, 16 A,
Protection Class I
Rocker switch 2-pole, non-illuminated
or illuminated, acc. to IEC 61058-1
Technical Details
Line Switch
Allowable Operation Tempe-
rature
IP-Protection
Insulation cover
Terminal
Panel Thickness S
Material: Housing
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Connectors
1
EC11
Approvals
Power entry modules without line filter
https://www.schurter.com /PG05
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: EC11
Approval Logo
Certificates
VDE Approvals
UL Approvals
CQC Approvals
Certification Body
VDE
UL
CQC
Description
Certificate Number: 40001031
UL File Number: E96454
CCC File Number: 2014010204683955
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Designed according to
Designed according to
Standard
IEC 60320-1
IEC 61058-1
UL 498
CSA C22.2 no. 42
Description
Appliance couplers for household and similar general purposes
Switches for appliances. Part 1. General requirements
Standard for Attachment Plugs and Receptacles
General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Designed for applications acc.
Standard
IEC/UL 60950
IEC 60335-1
Description
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
Safety of electrical appliances for household and similar purposes. Meets
the requirements for appliances in unattended use. This includes the en-
hanced requirements of glow wire tests acc. to IEC 60695-2-12 and -13.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
V-Lock system are based on a matching plug-dose combination. The
connector is equipped with a notch intended for use with the latching
cordset. The cord latching system prevents against accidental removal of
the cordset.
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG
MicrositeV-Lock
SCHURTER AG
2
Connectors
Power entry modules without line filter
https://www.schurter.com /PG05
EC11

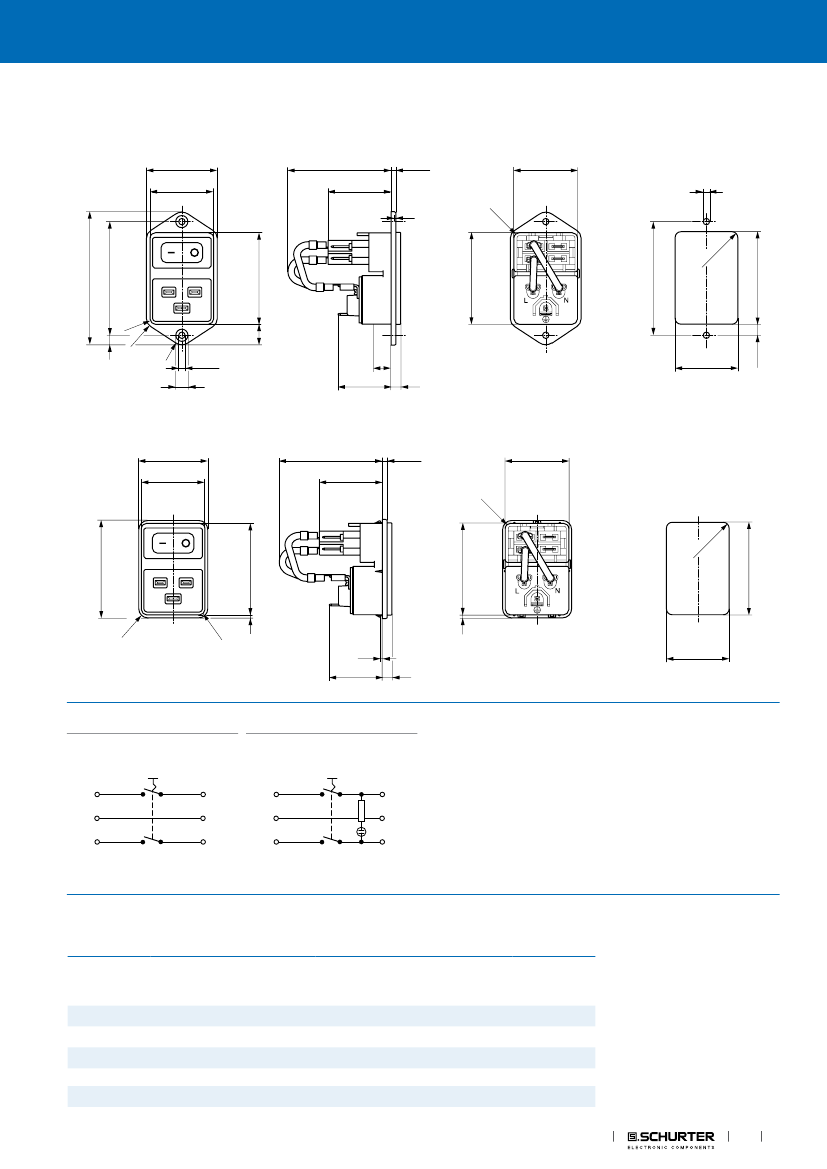

Dimensions [mm]
Screw-on mounting
36
32.2
ca. 52
31.6
R
2.3
31.7
3.6
0.8
R
2.
95
±0
.0
5
10.4
R 2.
8
5
4.
7
3.3
6.4
26.6
S
4.8
32.5
±0.10
Snap-in mounting
36
32.2
ca. 52
31.6
R
2.3
31.7
R
2.
95
±0
.
05
2.15
R
1.9
7
4.
S
±0.05
26.6
4.8
32.5
+0.05
-0.10
Diagrams
Line switch non-illuminated
Line switch illuminated
1)
L
PE
N
1
2)
1)
L
PE
N
1
2)
PE'
2
PE'
2
1) Line
2) Load
1) Line
2) Load
All Variants
Panel mounting
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Panel Thickness
s [mm]
1.5
1.5
1.5
1.5
1.5
1.5
Illumination
Color
-
-
Internally wired
l
V-Lock
Order Number
EC11.0001.201
EC11.0001.202
█
l
l
l
l
red
red
green
green
l
EC11.0021.201
EC11.0021.202
l
EC11.0031.201
EC11.0031.202
█
Connectors
46.5
-0.10
46.2
50
45.7
+0.05
3
5.25
±0.05
R
R6
46.5
±0.10
57
±0.10
6
2.
6
2.
46.2
45.7
67
57
R
2.8
EC11
Power entry modules without line filter
https://www.schurter.com /PG05
Panel mounting
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Screw
Screw
Screw
Screw
Screw
Screw
█
Most Popular.
Panel Thickness
s [mm]
2
2
2
2
2
2
2
2.5
2.5
2.5
2.5
2.5
2.5
-
-
-
-
-
-
Illumination
Color
-
-
-
Internally wired
l
l
V-Lock
Order Number
EC11.0001.301
█
l
EC11.0001.301.21
EC11.0001.302
l
l
l
l
red
red
green
green
-
-
l
EC11.0021.301
EC11.0021.302
l
EC11.0031.301
EC11.0031.302
l
EC11.0001.401
EC11.0001.402
l
l
l
l
red
red
green
green
-
-
l
EC11.0021.401
EC11.0021.402
l
EC11.0031.401
EC11.0031.402
l
l
EC11.0001.001.21
EC11.0001.002
l
l
l
l
red
red
green
green
l
EC11.0021.001
EC11.0021.002
█
l
EC11.0031.001
EC11.0031.002
█
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER

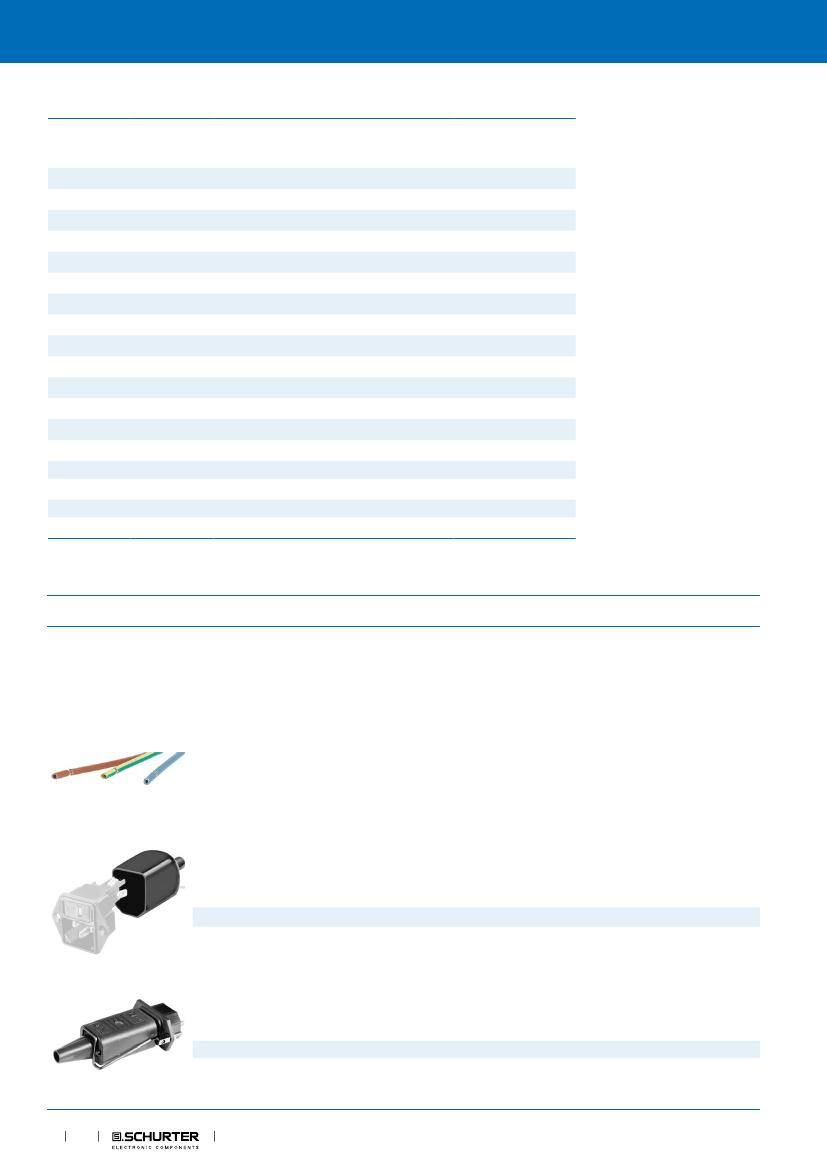

Packaging unit
Accessories
25 Pcs
Description
Wire Harness
Wire harness for SCHURTER products
Assorted Covers
Rear Cover
0859.0076
Cord retaining kits
Cord retaining strain relief
Flat head, H
4700.0008
4
Connectors
Power entry modules without line filter
https://www.schurter.com /PG05
EC11

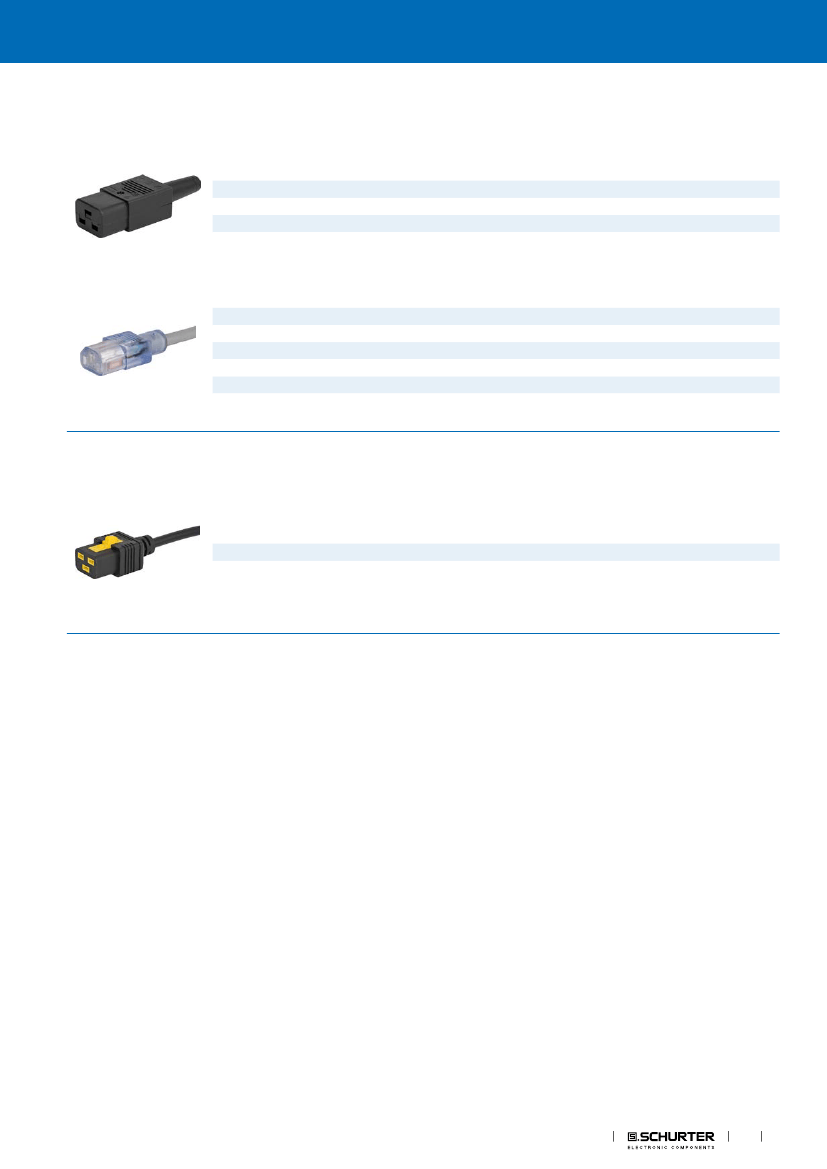

Mating Outlets/Connectors
Category / Description
Connector Overview complete
IEC Connector C19, Rewireable, Straight
IEC Connector C19, Rewireable, Angled
IEC Connector C19, Rewireable, Straight
Connector further types to EC11
4795
4790
0104U
Power Supply Cord Overview complete
Cord Sets 10 A, North America, 3.0 m, Connector IEC C13, SJT 3x18 AWG, Transparent
Cord Sets 16 A, Europlug, 2.5 m, Connector IEC C19, H05VV-F3G1.5, black
Cord Sets 16 A, Interconnection, 1.0 m, Connector IEC C19, H05VV-F3G1.5, black
Cord Sets 16 A, Interconnection, 2.0 m, Connector IEC C19, H05VV-F3G1.5, black
Cord Sets 16 A, North America, 2.5 m, Connector IEC C19, SJT 3x14 AWG, black
Power Supply Cord further types to EC11
4300.0920
6004.0395
6020.0392
6020.0394
6009.5195
Mating Outlets/Connectors shuttered
Power Cord Overview complete
Overview Power Cord with IEC Appliance Connector C19, V-Lock, straight
Power Cord further types to EC11
VAC19KS
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
Connectors
5
08.01.2018
