74ALVCH162245
Rev. 3 — 16 January 2018
16-bit bus transceiver with direction pin and
30 Ω termination resistor; 3-state
Product data sheet
1
General description
The 74ALVCH162245 is a 16-bit transceiver featuring non-inverting 3-state bus
compatible outputs in both send and receive directions.
The 74ALVCH162245 features two output enable (nOE) inputs for easy cascading and
two send/receive (nDIR) inputs for direction control. nOE controls the outputs so that the
buses are effectively isolated. This device can be used as two 8-bit transceivers or one
16-bit transceiver.
The 74ALVCH162245 is designed with 30 Ω series resistors in both HIGH and LOW
output states.
The 74ALVCH162245 has active bus hold circuitry which is provided to hold unused or
floating data inputs at a valid logic level. This feature eliminates the need for external
pull-up or pull-down resistors.
2
Features and benefits
•
•
•
•
•
•
•
•
Wide supply voltage range from 1.2 V to 3.6 V
CMOS low power consumption
MultiByte flow-through standard pin-out architecture
Low inductance multiple V
CC
and GND pins for minimum noise and ground bounce
Direct interface with TTL levels (2.7 V to 3.6 V)
Bus hold on all data inputs
Integrated 30 Ω termination resistor
Complies with JEDEC standards:
–
JESD8-5 (2.3 V to 2.7 V)
–
JESD8B/JESD36 (2.7 V to 3.6 V)
•
ESD protection:
–
HBM ANSI/ESDA/JEDEC JS-001 exceeds 2000 V
–
CDM JESD22-C101E exceeds 1000 V
3
Ordering information
Package
Temperature range
Name
TSSOP48
Description
plastic thin shrink small outline package;
48 leads; body width 6.1 mm
Version
SOT362-1
Table 1. Ordering information
Type number
74ALVCH162245DGG −40 °C to +85 °C
Nexperia
16-bit bus transceiver with direction pin and 30 Ω termination resistor; 3-state
74ALVCH162245
4
Functional diagram
1OE
1DIR
2OE
2DIR
G3
3EN1[BA]
3EN2[AB]
G6
6EN1[BA]
6EN2[AB]
1DIR
1OE
1A0
1B0
1A1
1B1
1A2
1B2
1A3
1B3
1A4
1B4
1A5
1B5
1A6
1B6
1A7
1B7
2DIR
2OE
2A0
2B0
2A1
2B1
2A2
2B2
2A3
2B3
2A4
2B4
2A5
2B5
2A6
2B6
2A7
2B7
001aaa789
1A0
1
2
1B0
1A1
1A2
1A3
1A4
1A5
1A6
1A7
2A0
4
5
2A1
2A2
2A3
2A4
2A5
2A6
2A7
1B1
1B2
1B3
1B4
1B5
1B6
1B7
2B0
2B1
2B2
2B3
2B4
2B5
2B6
2B7
001aaa790

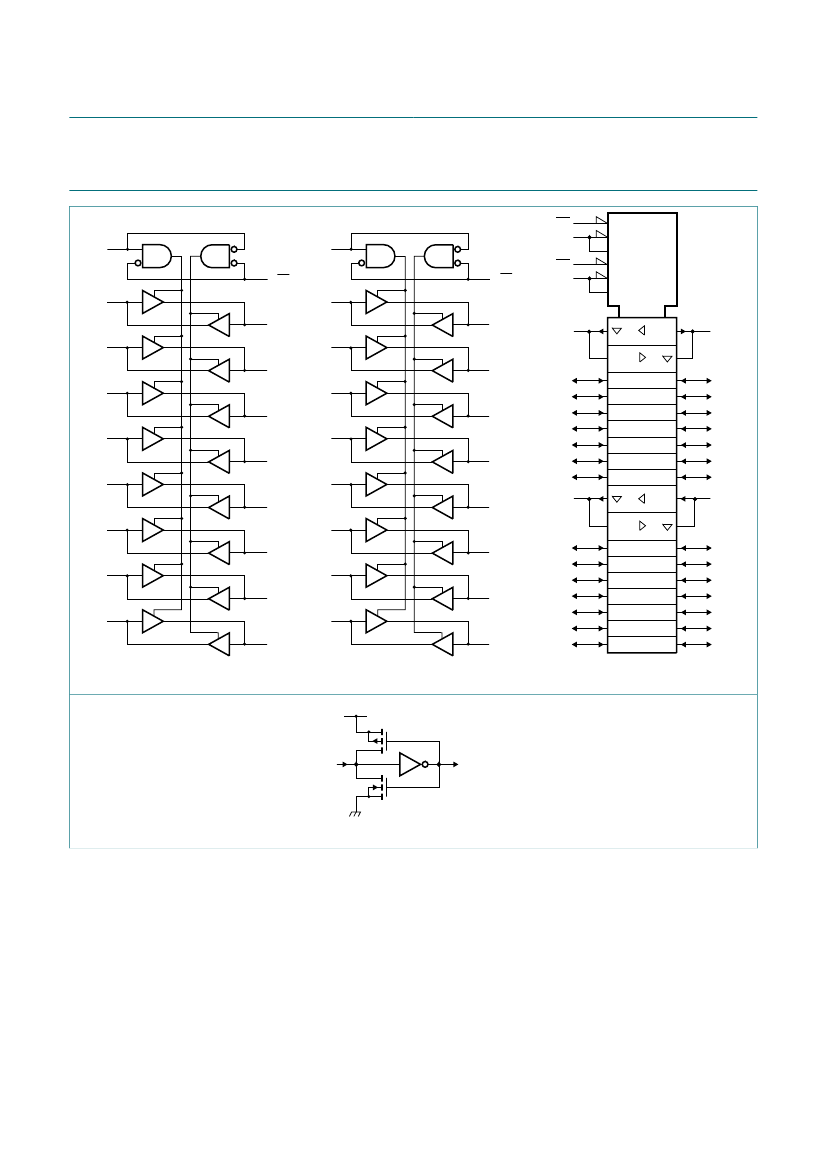

Figure 1. Logic symbol
V
CC
Figure 2. IEC logic symbol
data input
to internal circuit
mna705
Figure 3. Bus hold circuit
74ALVCH162245
All information provided in this document is subject to legal disclaimers.
© Nexperia B.V. 2018. All rights reserved.
Product data sheet
Rev. 3 — 16 January 2018
2 / 14
Nexperia
16-bit bus transceiver with direction pin and 30 Ω termination resistor; 3-state
74ALVCH162245
5
Pinning information
5.1 Pinning
74ALVCH162245
1DIR
1B0
1B1
GND
1B2
1B3
V
CC
1B4
1B5
1
2
3
4
5
6
7
8
9
48 1OE
47 1A0
46 1A1
45 GND
44 1A2
43 1A3
42 V
CC
41 1A4
40 1A5
39 GND
38 1A6
37 1A7
36 2A0
35 2A1
34 GND
33 2A2
32 2A3
31 V
CC
30 2A4
29 2A5
28 GND
27 2A6
26 2A7
25 2OE
aaa-028049
GND 10
1B6 11
1B7 12
2B0 13
2B1 14
GND 15
2B2 16
2B3 17
V
CC
18
2B4 19
2B5 20
GND 21
2B6 22
2B7 23
2DIR 24
Figure 4. Pin configuration SOT362-1 (TSSOP48)
5.2 Pin description
Table 2. Pin description
Symbol
1DIR, 2DIR
1A0, 1A1, 1A2, 1A3, 1A4, 1A5, 1A6, 1A7
2A0, 2A1, 2A2, 2A3, 2A4, 2A5, 2A6, 2A7
GND
1B0, 1B1, 1B2, 1B3, 1B4, 1B5, 1B6, 1B7
2B0, 2B1, 2B2, 2B3, 2B4, 2B5, 2B6, 2B7
1OE, 2OE
V
CC
Pin
1, 24
47, 46, 44, 43, 41, 40, 38, 37
36, 35, 33, 32, 30, 29, 27, 26
4, 10, 15, 21, 28, 34, 39, 45
2, 3, 5, 6, 8, 9, 11, 12
13, 14, 16, 17, 19, 20, 22, 23
48, 25
7, 18, 31, 42
Description
direction control input
data input/output
data input/output
ground (0 V)
data input/output
data input/output
output enable input (active-LOW)
supply voltage
74ALVCH162245
All information provided in this document is subject to legal disclaimers.
© Nexperia B.V. 2018. All rights reserved.
Product data sheet
Rev. 3 — 16 January 2018
3 / 14
Nexperia
16-bit bus transceiver with direction pin and 30 Ω termination resistor; 3-state
74ALVCH162245
6
Functional description
[1]
Table 3. Function table
Control
nOE
L
L
H
Input/output
nDIR
L
H
X
nAn
output nAn = nBn
input
Z
nBn
input
output nBn = nAn
Z
[1] H = HIGH voltage level; L = LOW voltage level; X = don’t care; Z = high-impedance OFF-state.
7
Limiting values
Table 4. Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134). Voltages are referenced to GND (ground = 0 V).
Symbol
V
CC
V
I
V
O
I
IK
I
OK
I
O
I
CC
I
GND
T
stg
P
tot
Parameter
supply voltage
input voltage
output voltage
input clamping current
output clamping current
output current
supply current
ground current
storage temperature
total power dissipation
T
amb
= −40 °C to +85 °C
TSSOP48 package
[1] The input and output voltage ratings may be exceeded if the input and output current ratings are observed.
[2] For TSSOP48 packages: above 55 °C derate linearly with 8 mW/K.
[2]
Conditions
data inputs
control inputs
V
I
< 0 V
V
O
> V
CC
or V
O
< 0 V
V
O
= 0 V to V
CC
[1]
[1]
[1]
Min
−0.5
−0.5
−0.5
−0.5
−50
-
-
-
−100
−65
-
Max
+4.6
+4.6
-
±50
±50
100
-
+150
600
Unit
V
V
mA
mA
mA
mA
mA
°C
mW
V
CC
+ 0.5 V
V
CC
+ 0.5 V
74ALVCH162245
All information provided in this document is subject to legal disclaimers.
© Nexperia B.V. 2018. All rights reserved.
Product data sheet
Rev. 3 — 16 January 2018
4 / 14
Nexperia
16-bit bus transceiver with direction pin and 30 Ω termination resistor; 3-state
74ALVCH162245
8
Recommended operating conditions
Parameter
supply voltage
Conditions
V
CC
= 2.5 V:
for maximum speed performance at C
L
= 30 pF
V
CC
= 3.3 V:
for maximum speed performance at C
L
= 50 pF
Min
2.3
3.0
0
0
in free air
V
CC
= 2.3 V to 3.0 V
V
CC
= 3.0 V to 3.6 V
−40
0
0
Max
2.7
3.6
V
CC
V
CC
+85
20
10
Unit
V
V
V
V
°C
ns/V
ns/V
Table 5. Recommended operating conditions
Symbol
V
CC
V
I
V
O
T
amb
Δt/ΔV
input voltage
output voltage
ambient temperature
input transition rise and fall rate
9
Static characteristics
Table 6. Static characteristics
At recommended operating conditions. Voltages are referenced to GND (ground = 0 V).
Symbol
V
IH
V
IL
V
OH
Parameter
HIGH-level input
voltage
LOW-level input
voltage
HIGH-level output
voltage
Conditions
V
CC
= 2.3 to 2.7 V
V
CC
= 2.7 to 3.6 V
V
CC
= 2.3 to 2.7 V
V
CC
= 2.7 to 3.6 V
V
I
= V
IH
or V
IL
I
O
= −100 μA; V
CC
= 2.3 V to 3.6 V
I
O
= −4 mA; V
CC
= 2.3 V
I
O
= −6 mA; V
CC
= 2.3 V
I
O
= −4 mA; V
CC
= 2.7 V
I
O
= −8 mA; V
CC
= 2.7 V
I
O
= −6 mA; V
CC
= 3.0 V
I
O
= −12 mA; V
CC
= 3.0 V
V
OL
LOW-level output
voltage
V
I
= V
IH
or V
IL
I
O
= 100 μA; V
CC
= 2.3 V to 3.6 V
I
O
= 4 mA; V
CC
= 2.3 V
I
O
= 6 mA; V
CC
= 2.3 V
I
O
= 4 mA; V
CC
= 2.7 V
I
O
= 8 mA; V
CC
= 2.7 V
I
O
= 6 mA; V
CC
= 3.0 V
I
O
= 12 mA; V
CC
= 3.0 V
-
-
-
-
-
-
-
GND
0.07
0.11
0.06
0.13
0.09
0.19
0.20
0.40
0.55
0.40
0.60
0.55
0.80
V
V
V
V
V
V
V
V
CC
- 0.2
V
CC
- 0.4
V
CC
- 0.6
V
CC
- 0.5
V
CC
- 0.7
V
CC
- 0.6
V
CC
- 1.0
V
CC
V
CC
- 0.11
V
CC
- 0.17
V
CC
- 0.09
V
CC
- 0.19
V
CC
- 0.13
V
CC
- 0.27
-
-
-
-
-
-
-
V
V
V
V
V
V
V
Min
1.7
2.0
-
-
Typ
[1]
Max
-
-
0.7
0.8
Unit
V
V
V
V
1.2
1.5
1.2
1.5
74ALVCH162245
All information provided in this document is subject to legal disclaimers.
© Nexperia B.V. 2018. All rights reserved.
Product data sheet
Rev. 3 — 16 January 2018
5 / 14
