BZT55C9V1-GS08

Description
Zener Diodes 9.1 Volt 0.5W 5%
Categorysemiconductor    Discrete semiconductor
File Size118KB,7 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric View All

BZT55C9V1-GS08 Online Shopping

Suppliers Part Number Price MOQ In stock
BZT55C9V1-GS08 - - View Buy Now

BZT55C9V1-GS08 Overview

Zener Diodes 9.1 Volt 0.5W 5%

BZT55C9V1-GS08 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerVishay
Product CategoryZener Diodes
RoHSDetails
Vz - Zener Voltage9.1 V
Mounting StyleSMD/SMT
Package / CaseSOD-80
Pd - Power Dissipation500 mW (1/2 W)
Voltage Tolerance5 %
Voltage Temperature Coefficient0.09 %/K
Zener Current100 nA
Zz - Zener Impedance10 Ohms
Maximum Operating Temperature+ 175 C
ConfigurationSingle
Test Current5 mA
PackagingCut Tape
PackagingMouseReel
PackagingReel
Diameter1.6 mm
Length3.7 mm
ProductSmall Signal Zener Diodes
TypeVoltage Regulator
Ir - Reverse Current100 nA
Factory Pack Quantity2500
Vf - Forward Voltage1.5 V
Unit Weight0.001827 oz
BZT55-Series

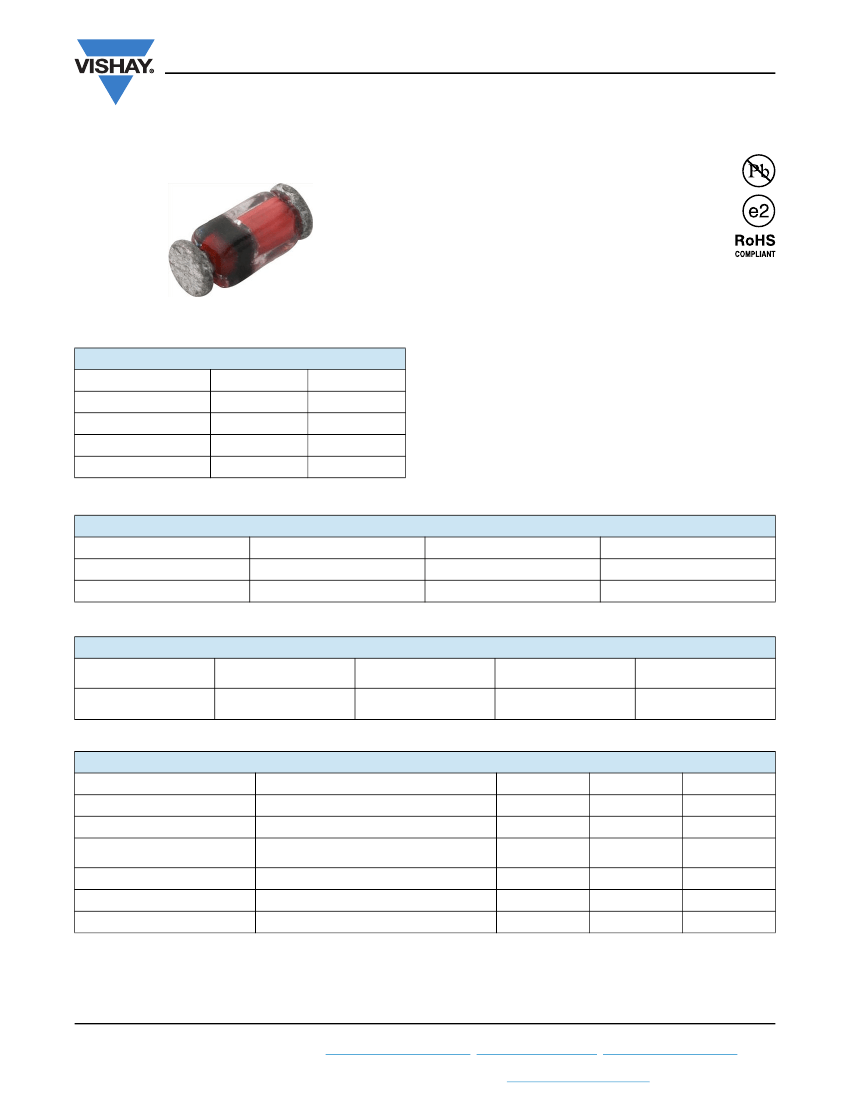

www.vishay.com
Vishay Semiconductors
Small Signal Zener Diodes
FEATURES
• Very sharp reverse characteristic
• Low reverse current level
• Very high stability
• Low noise
• AEC-Q101 qualified
• Compliant to RoHS Directive 2002/95/EC and in
accordance to WEEE 2002/96/EC
APPLICATIONS
PRIMARY CHARACTERISTICS
PARAMETER
V
Z
range nom.
Test current I
ZT
V
Z
specification
Int. construction
VALUE
2.4 to 75
2.5 to 5
Pulse current
Single
UNIT
V
mA
• Voltage stabilization
ORDERING INFORMATION
DEVICE NAME
BZT55-series
BZT55-series
ORDERING CODE
BZT55-series-GS18
BZT55-series-GS08
TAPED UNITS PER REEL
10 000 per 13" reel
2500 per 7" reel
MINIMUM ORDER QUANTITY
10 000/box
12 500/box
PACKAGE
PACKAGE NAME
QuadroMELF SOD-80
WEIGHT
34 mg
MOLDING COMPOUND MOISTURE SENSITIVITY
FLAMMABILITY RATING
LEVEL
UL 94 V-0
MSL level 1
(according J-STD-020)
SOLDERING
CONDITIONS
260 °C/10 s at terminals
ABSOLUTE MAXIMUM RATINGS
(T
amb
= 25 °C, unless otherwise specified)
PARAMETER
Power dissipation
Zener current
Junction to ambient air
Junction temperature
Storage temperature range
Forward voltage (max.)
I
F
= 200 mA
On PC board
50 mm x 50 mm x 1.6 mm
TEST CONDITION
R
thJA
300 K/W
SYMBOL
P
tot
I
Z
R
thJA
T
j
T
stg
V
F
VALUE
500
P
V
/V
Z
500
175
- 65 to + 175
1.5
UNIT
mW
mA
K/W
°C
°C
V
Rev. 1.7, 22-Nov-11
Document Number: 85637
