PCM12SMTR: DescriptionSLIDE SWITCH, SPDT, LATCHED, 0.3A, 6VDC, SURFACE MOUNT-RIGHT ANGLE; CategoryMechanical and electronic products switch; File Size180KB，2 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

PCM12SMTR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PCM12SMTR	-	-	View	Buy Now

PCM12SMTR Overview

SLIDE SWITCH, SPDT, LATCHED, 0.3A, 6VDC, SURFACE MOUNT-RIGHT ANGLE

PCM12SMTR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ITT
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	LOW PROFILE
body width	2.6 mm
body height	1.4 mm
Body length or diameter	6.7 mm
Maximum contact current (DC)	0.3 A
Contact (DC) maximum rated R load	.3A@6VDC
Maximum contact voltage (DC)	6 V
JESD-609 code	e4
Manufacturer's serial number	PCM
Installation features	SURFACE MOUNT-RIGHT ANGLE
Maximum operating temperature	85 °C
Minimum operating temperature	-10 °C
method of packing	TAPE AND REEL
surface mount	NO
Switch action	LATCHED
switch function	SPDT
Switch type	SLIDE SWITCH
Terminal surface	Silver (Ag)
Termination type	SOLDER

Preview

Download Datasheet

View All

C&K PCM Series

Ultraminiature Surface Mount Slide Switches

Features/Benefits

•

Ultraminiature surface mount

•

Low profile

•

SPDT & SP3T models

•

RoHS compliant

Typical Applications

•

Computer peripherals &

network products

•

Telecommunication products

•

Test & measurement equipment

J

Slide

Specifications

CONTACT RATING: 0.3A @ 6 VDC.

MECHANICAL LIFE: 10,000 cycles.

CONTACT RESISTANCE: 70 m

Ω

max.

INSULATION RESISTANCE: 100 m

Ω

min. @ 500V.

DIELECTRIC STRENGTH: 500 VAC min.

OPERATING TEMPERATURE: –10ºC to +85ºC.

SOLDERABILITY: 255C max. solder temperature.

PACKAGING: Tape & reel.

Materials

CASE: P.P.S.

COVER: Stainless steel.

SLIDER: Nylon 4/6

BRUSH: Copper alloy silver clad.

TERMINALS: Copper alloy, silver plated.

NOTE:

All models RoHS compliant and compatible with all options. For the latest infor-

mation regarding RoHS compliance, please go to: www.ittcannon.com/rohs.

NOTE:

Specifications and materials listed above are for switches with standard options.

For information on specific and custom switches, consult Customer Service Center.

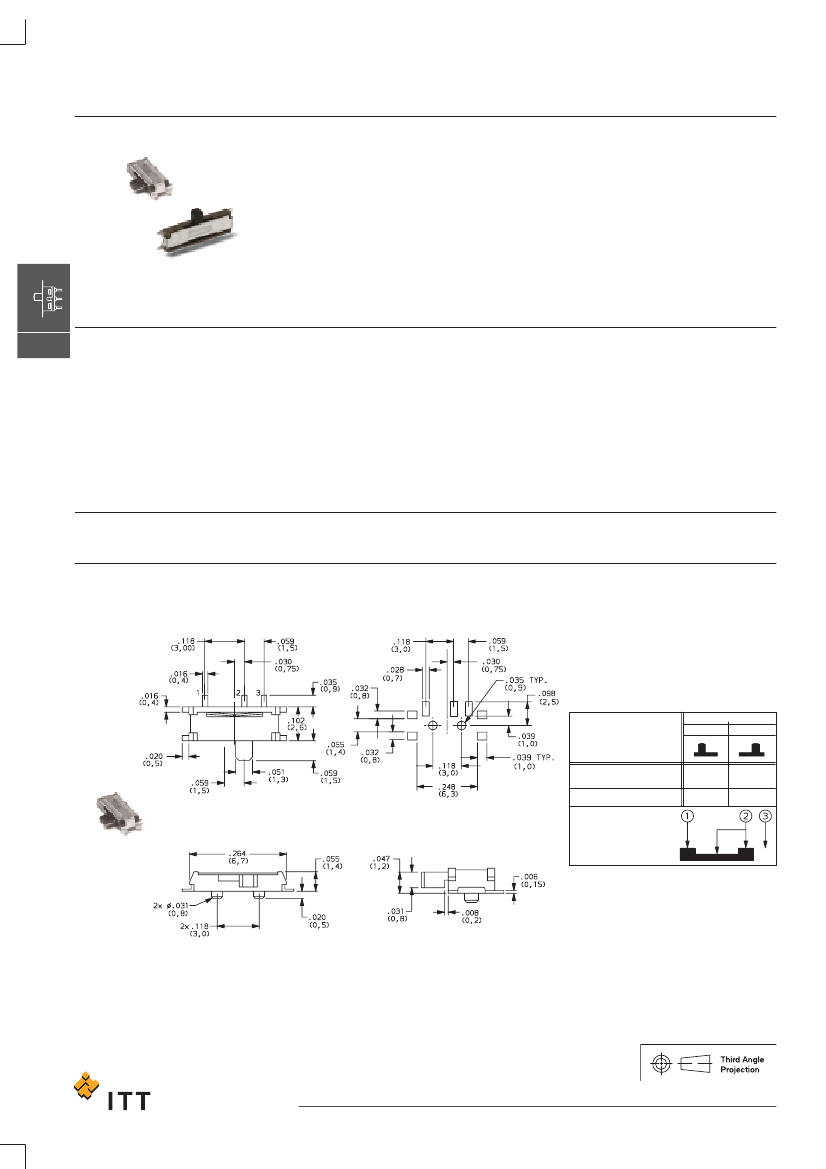

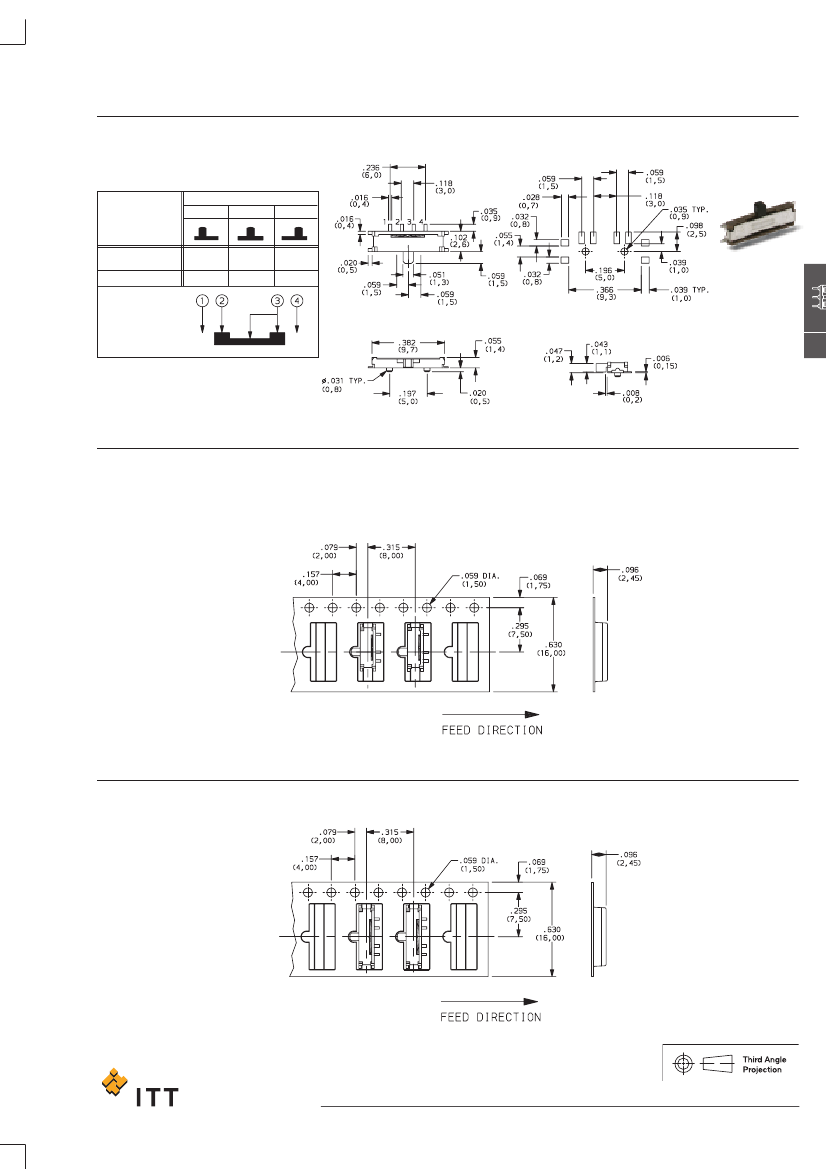

How To Order

Complete part numbers for PCM Series Ultraminiature Surface Mount Slide Switches are shown below and on page J–44.

PC MOUNTING

SWITCH FUNCTION

POS. 1

POS. 2

PART NUMBER

PCM12SMTR

CONN. TERMINALS

SCHEMATIC

ON

1-2

ON

2-3

PCM12SMTR

SPDT

Actuator shown in pos. 2

Dimensions are shown: Inch (mm)

Specifications and dimensions subject to change

J–43

www.ittcannon.com

PCM12SMTR Related Products

	PCM12SMTR	PCM13SMTR
Description	SLIDE SWITCH, SPDT, LATCHED, 0.3A, 6VDC, SURFACE MOUNT-RIGHT ANGLE	SLIDE SWITCH, SP3T, LATCHED, 0.3A, 6VDC, SURFACE MOUNT-RIGHT ANGLE
Is it Rohs certified?	conform to	conform to
Maker	ITT	ITT
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknow	unknow
ECCN code	EAR99	EAR99
Other features	LOW PROFILE	LOW PROFILE
body width	2.6 mm	2.6 mm
body height	1.4 mm	1.4 mm
Body length or diameter	6.7 mm	9.7 mm
Maximum contact current (DC)	0.3 A	0.3 A
Contact (DC) maximum rated R load	.3A@6VDC	.3A@6VDC
Maximum contact voltage (DC)	6 V	6 V
JESD-609 code	e4	e4
Manufacturer's serial number	PCM	PCM
Installation features	SURFACE MOUNT-RIGHT ANGLE	SURFACE MOUNT-RIGHT ANGLE
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-10 °C	-10 °C
method of packing	TAPE AND REEL	TAPE AND REEL
surface mount	NO	NO
Switch action	LATCHED	LATCHED
switch function	SPDT	SP3T
Switch type	SLIDE SWITCH	SLIDE SWITCH
Terminal surface	Silver (Ag)	Silver (Ag)
Termination type	SOLDER	SOLDER
