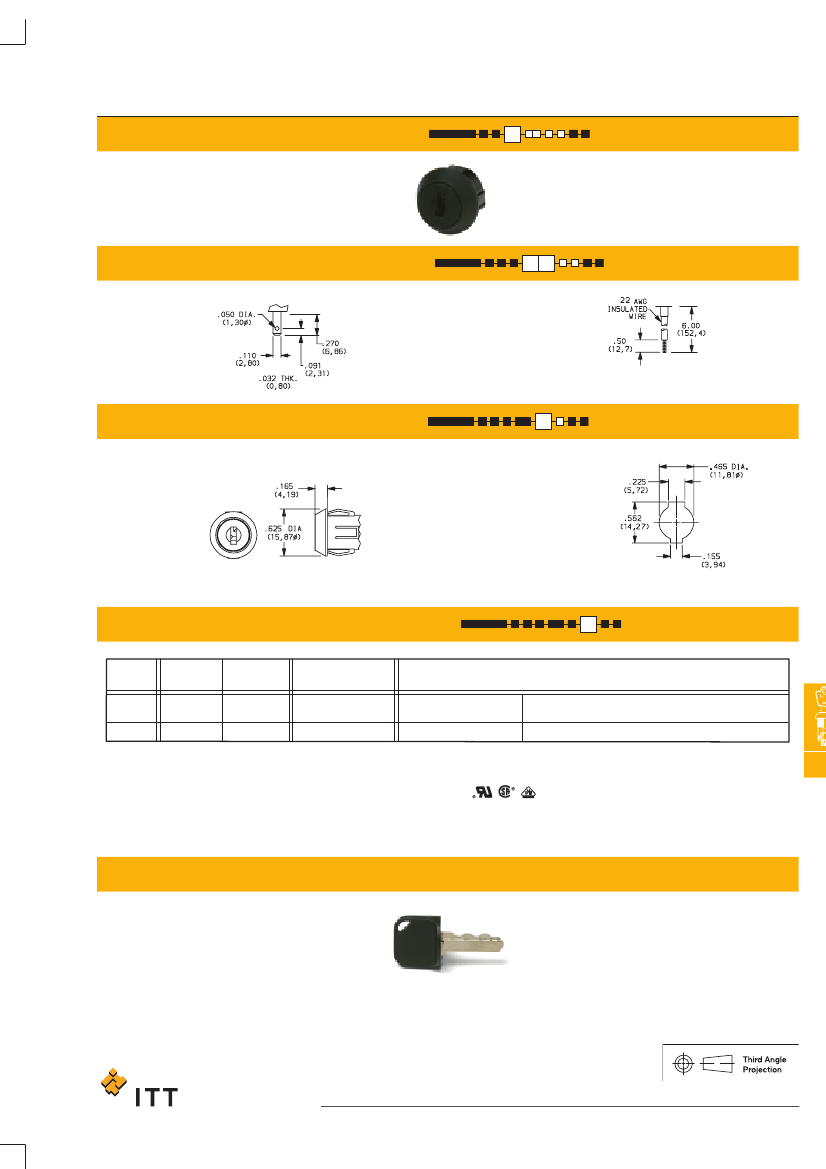

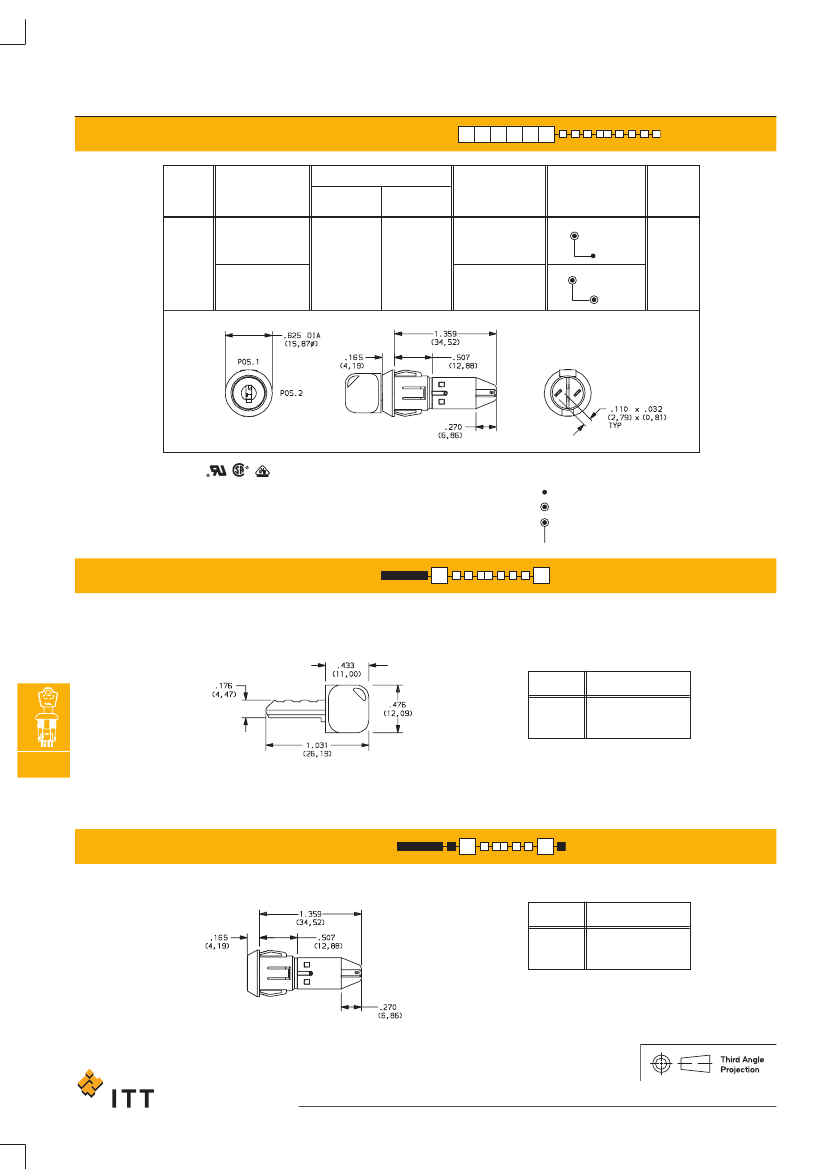

C&K PM Series
5 Tumbler Miniature Snap-in Switchlocks
Features/Benefits
•
International agency listings
•
Snap-in mounting
•
Wire lead terminations available
•
5 Tumbler lock with positive detent
Typical Applications
•
Computers
•
Point-of-sale terminals
•
Marine equipment
Models Available
Specifications
CONTACT RATING: Q contact material: 4 AMPS @ 125 V AC or
28 V DC; 2 AMPS @ 250 V AC (UL/CSA); 4 AMPS @ 125 V AC,
2 AMPS @ 250 V AC, T65 (VDE). See page M-33 for
additional ratings.
ELECTRICAL LIFE: 10,000 make-and-break cycles at full load.
CONTACT RESISTANCE: Below 10 m
Ω
typ. initial @
2-4 V DC, 100 mA, for both silver and gold plated contacts.
INSULATION RESISTANCE: 109
Ω
min.
DIELECTRIC STRENGTH: 1,000 Vrms min. @ sea level.
INDEXING: 90º:2 positions.
Materials
LOCK: 6/6 nylon with matte finish (UL 94V-2), color black,
5 tumbler, single bitted lock with integral detent mechanism.
KEYS: Two nickel plated brass keys with black plastic head, other
colors available.
SWITCH HOUSING: 6/6 nylon (UL 94V-2).
CONTACTS & TERMINALS: Q contact material: Copper, silver
plated. See page M-33 for additional contact materials.
NOTE:
Any models supplied with Q or B contact material are RoHS compliant. For the latest
information regarding RoHS compliance, please go to: www.ittcannon.com/rohs.
NOTE:
Specifications and materials listed above are for switchlocks with standard options.
For information on specific and custom switchlocks, consult Customer Service Center.
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown and
described on pages M–32 and M-33. For additional options not shown in catalog, consult Customer Service Center.
Switch and lock Function
PM0613
SP, 90º, Index, keypull pos. 1
PM061U
SP, 90º Index, keypull pos. 1 & 3
Keying
E
Two nickel plated
brass keys with insert
molded plastic head
Lock Type
B
5 Tumbler lock
with detent
Lock Finish
M
Plastic lock with matte finish
Terminations
05
Quick connect
WC
Wire lead
M
Switchlock
Lock Style
K
Cone shaped facing
Contact Material
Q
Silver
B
Gold
Lock Color
2
Black
Key Color
2
Black
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
M–31
www.ittcannon.com
C&K PM Series
5 Tumbler Miniature Snap-in Switchlocks
SWITCH AND LOCK FUNCTION
SWITCH FUNCTION
NO.
POLES
MODEL
NO.
POS. 1
POS. 2
KEY PULL
POSITIONS
LOCK
CONFIGURATION
POS. 1
INDEXING
PM0613
SP
OFF
ON
Positions 1, 2 & 3
POS. 2
POS. 1
90º
PM061U
SP
Positions 1 & 2
POS. 2
Part number shown: PM0613EBM05KQ22
All models
with all options when ordered with ‘Q’ contact material.
LEGEND
= Detent Position (90º )
= Key pull possible in these positions.
= Stop Positions
KEY COLOR
KEYING
KEYING
E
TWO NICKEL PLATED BRASS KEYS WITH INSERT MOLDED PLASTIC HEAD
OPTION
CODE
KEY COLOR
BLACK
2
M
Switchlock
Key part number: 334C1004102
NOTE:
Molded plastic head color is black, standard. For more than one key code,
replacement keys, or other special features, consult Customer Service Center.
LOCK COLOR
LOCK TYPE
LOCK TYPE
B
5 TUMBLER LOCK WITH DETENT
OPTION
CODE
LOCK COLOR
BLACK
2
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
M–32
www.ittcannon.com
C&K PM Series
5 Tumbler Miniature Snap-in Switchlocks
LOCK FINISH
M
PLASTIC LOCK WITH MATTE FINISH
TERMINATIONS
05
QUICK CONNECT
WC
WIRE LEAD
UL style 1015.
Black wire standard, other colors and lengths available,
consult Customer Service Center.
LOCK STYLE
K
CONE SHAPED FACING
PANEL MOUNTING
Panel thickness:
.050-.080 (1,27-2,03)
CONTACT MATERIAL
OPTION
CODE
RoHS
RoHS
COMPLIANT* COMPATIBLE*
YES
YES
YES
YES
CONTACT AND
TERMINAL MATERIAL
SILVER
2
GOLD
1
POWER
LOW LEVEL/DRY CIRCUIT
RATING
4 AMPS @ 125 V AC or 28 V DC; 2 AMPS @ 250 V AC (UL/CSA).
4 AMPS @ 125 V AC; or 2 AMPS @ 250 V AC; T65 (VDE).
0.4 VA MAX. @ 20 V AC or DC MAX.
Q
B
* Note: See Technical Data section of this catalog for RoHS compliant and compatible definitions and specifications.
M
with all options when ordered with ‘Q’ contact material.
1
CONTACTS & TERMINALS: Copper, with gold plate over nickel plate.
2
CONTACTS & TERMINALS: Copper, silver plated (standard with all
Switchlock
All models
termination options).
AVAILABLE HARDWARE
Key Code: 041
PART NO.
(ONE KEY)
334C1004102
BLACK
Material:
Brass
Finish: Nickel plate
6/6 Nylon insert molded head
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
M–33
www.ittcannon.com
