SS5P9, SS5P10
www.vishay.com
Vishay General Semiconductor
High Current Density Surface Mount
Schottky Barrier Rectifiers
FEATURES
• Very low profile - typical height of 1.1 mm
Available
eSMP Series
K
®
• Ideal for automated placement
• Guardring for overvoltage protection
• Low forward voltage drop, low power losses
• High efficiency
• Low thermal resistance
1
2
• Meets MSL level 1, per
LF maximum peak of 260 °C
J-STD-020,
TO-277A (SMPC)
K
Cathode
Anode 1
Anode 2
• AEC-Q101 qualified available
- Automotive ordering code: base P/NHM3
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
TYPICAL APPLICATIONS
For use in high frequency rectifier of switching mode power
supplies, freewheeling diodes, DC/DC converters, and
polarity protection application.
5.0 A
90 V, 100 V
150 A
0.649 V
4.5 μA
150 °C
TO-277A (SMPC)
Single
PRIMARY CHARACTERISTICS
I
F(AV)
V
RRM
I
FSM
V
F
at I
F
= 5.0 A
I
R
T
J
max.
Package
Diode variations
MECHANICAL DATA
Case:
TO-277A (SMPC)
Molding compound meets UL 94 V-0 flammability rating
Base P/N-M3 - halogen-free, RoHS-compliant, and
commercial grade
Base P/NHM3 - halogen-free, RoHS-compliant, and
AEC-Q101 qualified
Base P/NHM3_X - halogen-free, RoHS-compliant, and
AEC-Q101 qualified (“_X” denotes revision code
e.g. A, B, .....)
Terminals:
Matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
M3 suffix meets JESD 201 class 2 whisker test, HM3 suffix
meets JESD 201 class 2 whisker test
MAXIMUM RATINGS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Device marking code
Maximum repetitive peak reverse voltage
Maximum average forward rectified current (fig. 1)
Peak forward surge current 10 ms single half sine-wave
superimposed on rated load
Non-repetitive avalanche energy
at I
AS
= 2.0 A, T
J
= 25 °C
Operating junction and storage temperature range
V
RRM
I
F(AV)
I
FSM
E
AS
T
J
, T
STG
SYMBOL
SS5P9
S59
90
5.0
150
20
-55 to +150
SS5P10
S510
100
V
A
A
mJ
°C
UNIT
Revision: 01-Jul-15
Document Number: 88984
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
SS5P9, SS5P10
www.vishay.com
Vishay General Semiconductor
TEST CONDITIONS
I
F
= 2.5 A
T
A
= 25 °C
V
F (1)
T
A
= 125 °C
T
A
= 25 °C
T
A
= 125 °C
I
R (2)
C
J
SYMBOL
TYP.
0.708
0.832
0.571
0.649
4.5
2.7
130
MAX.
-
0.88
-
0.68
15
5
-
μA
mA
pF
V
UNIT
ELECTRICAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Instantaneous forward voltage
I
F
= 5.0 A
I
F
= 2.5 A
I
F
= 5.0 A
Reverse current
Typical junction capacitance
Rated V
R
4.0 V, 1 MHz
Notes
(1)
Pulse test: 300 μs pulse width, 1 % duty cycle
(2)
Pulse test: Pulse width
≤
40 ms
THERMAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise specified)
PARAMETER
Typical thermal resistance
Note
(1)
Units mounted on recommended PCB 1 oz. pad layout
SYMBOL
R
θJA
(1)
R
θJL
SS5P9
65
3
SS5P10
UNIT
°C/W
ORDERING INFORMATION
(Example)
PREFERRED P/N
SS5P10-M3/86A
SS5P10-M3/87A
SS5P10HM3/86A
(1)
SS5P10HM3/87A
(1)
SS5P10HM3_A/H
(1)
SS5P10HM3_A/I
(1)
(1)
UNIT WEIGHT (g)
0.10
0.10
0.10
0.10
0.10
0.10
PACKAGE CODE
86A
87A
86A
87A
H
I
BASE QUANTITY
1500
6500
1500
6500
1500
6500
DELIVERY MODE
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel
Note
AEC-Q101 qualified
Revision: 01-Jul-15
Document Number: 88984
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
SS5P9, SS5P10
www.vishay.com
Vishay General Semiconductor

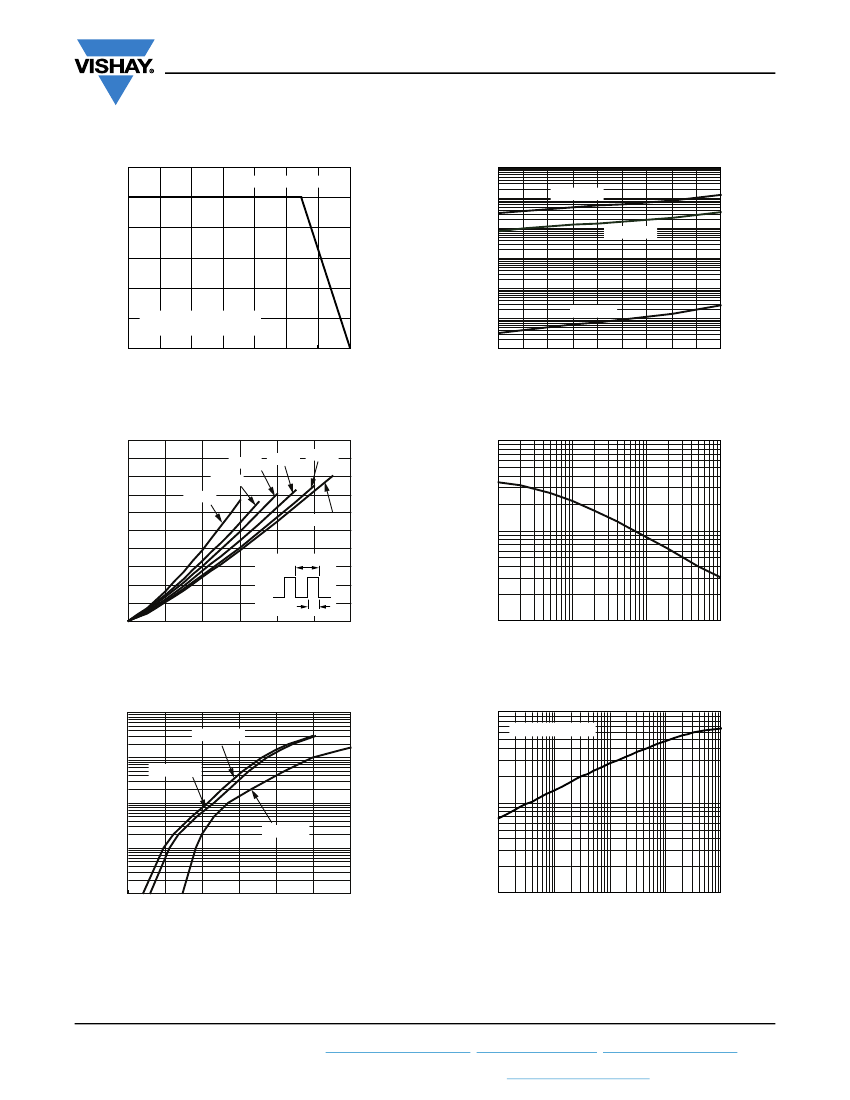

RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25
°C
unless otherwise noted)
6.0
100
Resistive or Inductive Load
5.0
Average Forward Rectified Current (A)
Instantaneous Reverse Current (mA)
10
T
A
= 150 °C
4.0
1
T
A
= 125 °C
3.0
2.0
1.0
0
80
90
100
110
120
130
140
150
T
L
measured
at the Cathode Band Terminal
0.1
0.01
T
A
= 25 °C
0.001
0.0001
10
20
30
40
50
60
70
80
90
100
Lead Temperature (°C)
Percent of Rated Peak Reverse Voltage (%)
Fig. 1 - Maximum Forward Current Derating Curve
Fig. 4 - Typical Reverse Characteristics
5
D = 0.3
D = 0.5
D = 0.8
1000
Average Power Loss (W)
4
D = 0.2
D = 0.1
3
D = 1.0
Junction Capacitance (pF)
6
100
2
T
1
D = t
p
/T
0
0
1
2
3
4
5
t
p
10
0.1
1
10
100
Average Forward Current (A)
Reverse Voltage (V)
Fig. 2 - Forward Power Loss Characteristics
Fig. 5 - Typical Junction Capacitance
100
100
Transient Thermal Impedance (°C/W)
Instantaneous Forward Current (A)
T
A
= 150 °C
10
T
A
= 125 °C
Junction to Ambient
1
T
A
= 25 °C
0.1
10
0.01
0
0.2
0.4
0.6
0.8
1.0
1.2
1
0.01
0.1
1
10
100
Instantaneous Forward Voltage (V)
t - Pulse Duration (s)
Fig. 3 - Typical Instantaneous Forward Characteristics
Fig. 6 - Typical Transient Thermal Impedance
Revision: 01-Jul-15
Document Number: 88984
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
SS5P9, SS5P10
www.vishay.com
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
TO-277A (SMPC)
0.187 (4.75)
0.175 (4.45)
K
0.016 (0.40)
0.006 (0.15)
Vishay General Semiconductor
0.262 (6.65)
0.250 (6.35)
0.242 (6.15)
0.238 (6.05)
2
1
0.171 (4.35)
0.167 (4.25)
0.146 (3.70)
0.134 (3.40)
0.087 (2.20)
0.075 (1.90)
0.047 (1.20)
0.039 (1.00)
Mounting Pad Layout
0.189 (4.80)
MIN.
0.189 (4.80)
0.173 (4.40)
0.155 (3.94)
NOM.
0.030 (0.75) NOM.
0.268
(6.80)
0.186 (4.72)
MIN.
0.049 (1.24)
0.037 (0.94)
0.084 (2.13) NOM.
0.053 (1.35)
0.041 (1.05)
Conform to JEDEC
®
TO-277A
0.050 (1.27)
MIN.
0.041
(1.04)
0.055 (1.40)
MIN.
Revision: 01-Jul-15
Document Number: 88984
4
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
