BD540B-S

Description
Bipolar Transistors - BJT 80V 5A PNP
CategoryDiscrete semiconductor    The transistor
File Size57KB,4 Pages
ManufacturerBourns
Websitehttp://www.bourns.com
Environmental Compliance
Download Datasheet Parametric Compare View All

BD540B-S Online Shopping

Suppliers Part Number Price MOQ In stock
BD540B-S - - View Buy Now

BD540B-S Overview

Bipolar Transistors - BJT 80V 5A PNP

BD540B-S Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerBourns
Parts packaging codeTO-220AB
package instructionFLANGE MOUNT, R-PSFM-T3
Contacts3
Reach Compliance Codenot_compliant
ECCN codeEAR99
Shell connectionCOLLECTOR
Maximum collector current (IC)5 A
Collector-emitter maximum voltage80 V
ConfigurationSINGLE
Minimum DC current gain (hFE)12
JEDEC-95 codeTO-220AB
JESD-30 codeR-PSFM-T3
JESD-609 codee1
Number of components1
Number of terminals3
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Polarity/channel typePNP
Maximum power dissipation(Abs)45 W
Certification statusNot Qualified
surface mountNO
Terminal surfaceTIN SILVER COPPER
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
Maximum time at peak reflow temperatureNOT SPECIFIED
transistor applicationsSWITCHING
Transistor component materialsSILICON

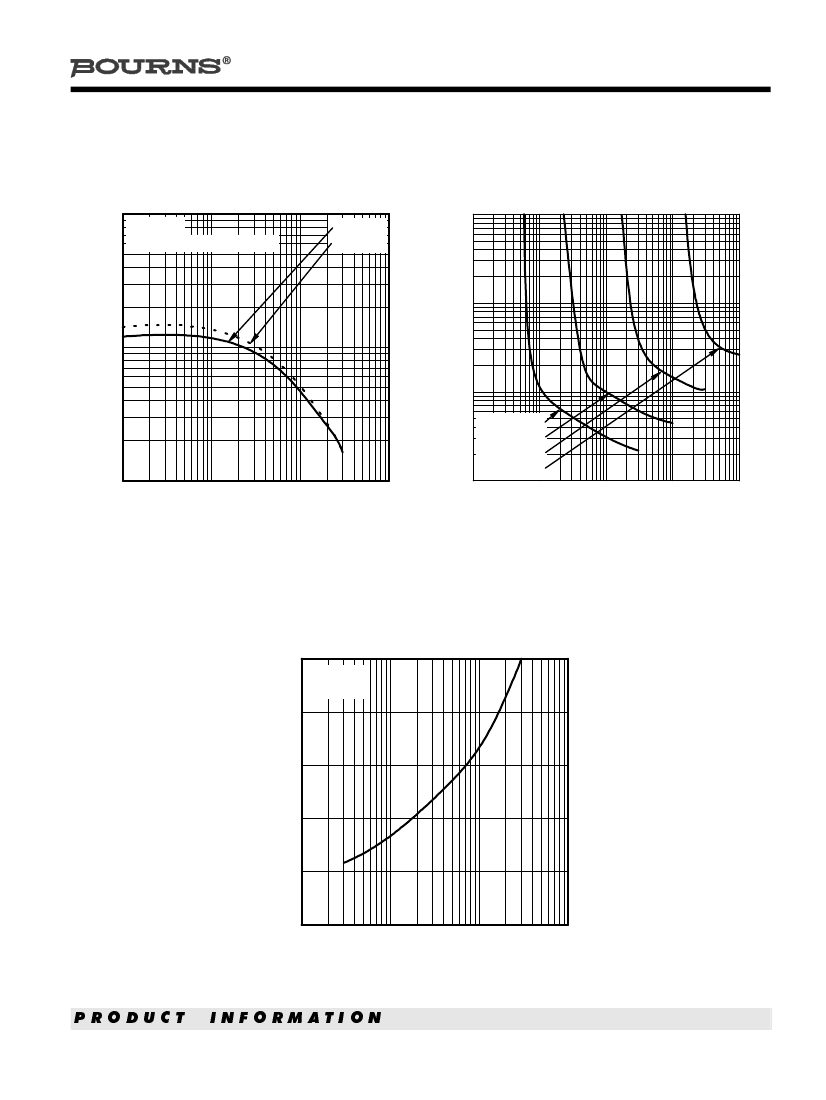

BD540, BD540A, BD540B, BD540C
PNP SILICON POWER TRANSISTORS
Designed for Complementary Use with the
BD539 Series
45 W at 25°C Case Temperature
5 A Continuous Collector Current
Customer-Specified Selections Available
B
C
E
TO-220 PACKAGE
(TOP VIEW)
1
2
3
Pin 2 is in electrical contact with the mounting base.
MDTRACA
absolute maximum ratings at 25°C case temperature (unless otherwise noted)
RATING
BD540
Collector-base voltage (I
E
= 0)
BD540A
BD540B
BD540C
BD540
Collector-emitter voltage (I
B
= 0) (see Note 1)
BD540A
BD540B
BD540C
Emitter-base voltage
Continuous collector current
Continuous device dissipation at (or below) 25°C case temperature (see Note 2)
Continuous device dissipation at (or below) 25°C free air temperature (see Note 3)
Operating free air temperature range
Operating junction temperature range
Storage temperature range
Lead temperature 3.2 mm from case for 10 seconds
NOTES: 1. These values apply when the base-emitter diode is open circuited.
2. Derate linearly to 150°C case temperature at the rate of 0.36 W/°C.
3. Derate linearly to 150°C free air temperature at the rate of 16 mW/°C.
V
EBO
I
C
P
tot
P
tot
T
A
T
j
T
stg
T
L
V
CEO
V
CBO
SYMBOL
VALUE
-40
-60
-80
-100
-40
-60
-80
-100
-5
-5
45
2
-65 to +150
-65 to +150
-65 to +150
260
V
A
W
W
°C
°C
°C
°C
V
V
UNIT
JUNE 1973 - REVISED SEPTEMBER 2002
Specifications are subject to change without notice.
NOITAMROFNI
TCUDORP
1
