PTS645-TR Series
6 mm Radial Tact Switches
Features/Benefits
•
Radial taping
•
Thru-hole or vertical actuation
•
From 130 to 260 grams
actuation force
Typical Applications
•
Consumer products
•
Instrumentation
•
Computer product
•
Industrial
•
RoHS compliant and compatible
B
Tactile Switches
Specification
FUNCTION: Momentary action
CONTACT ARRANGEMENT: SPST, N.O.
TERMINALS: PC pins
Process
SOLDERING: Preheating to 100˚C for 45 sec. max. Keep flux flush
with top surface of PCB; do not apply to component side of PCB
and area where terminals are located. Soldering to 255˚C for 5 sec.
max. Clean by brushing on solder surface. Do not clean switch
with solvents.
Mechanical
ACTUATION FORCE: PTS645 models: 130 grams, 160 grams, 200
grams, 260 grams
LIFE EXPECTANCY: 100,000 operations.
Materials
BASE: 6/6 nylon or glass filled polyester (PBT) (UL 94V-0).
ACTUATOR: PPO (UL94V0)
COVER PLATE: PTS645S: Stainless steel tin plate.
PTS645V: Tin alloy or stainless steel.
DOME CONTACTS: Phosphor bronze, silver clad.
STATIONARY CONTACTS: Brass, silver plated.
TERMINALS: Brass, silver plated. Insert molded.
Electrical
CONTACT RATING: 50 mA @ 12 V DC.
DIELECTRIC STRENGTH: 250 V AC min.
CONTACT RESISTANCE: 100 mΩ max. initial.
INSULATION RESISTANCE: 10
11
Ω
min.
Environmental
OPERATING TEMPERATURE: -20˚C to 70˚C
STORAGE TEMPERATURE: -30˚C to 80˚C
NOTE:
Specifications listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
Packaging
Radial taping in carton box, 1000 pieces, 750 pieces for right angle.

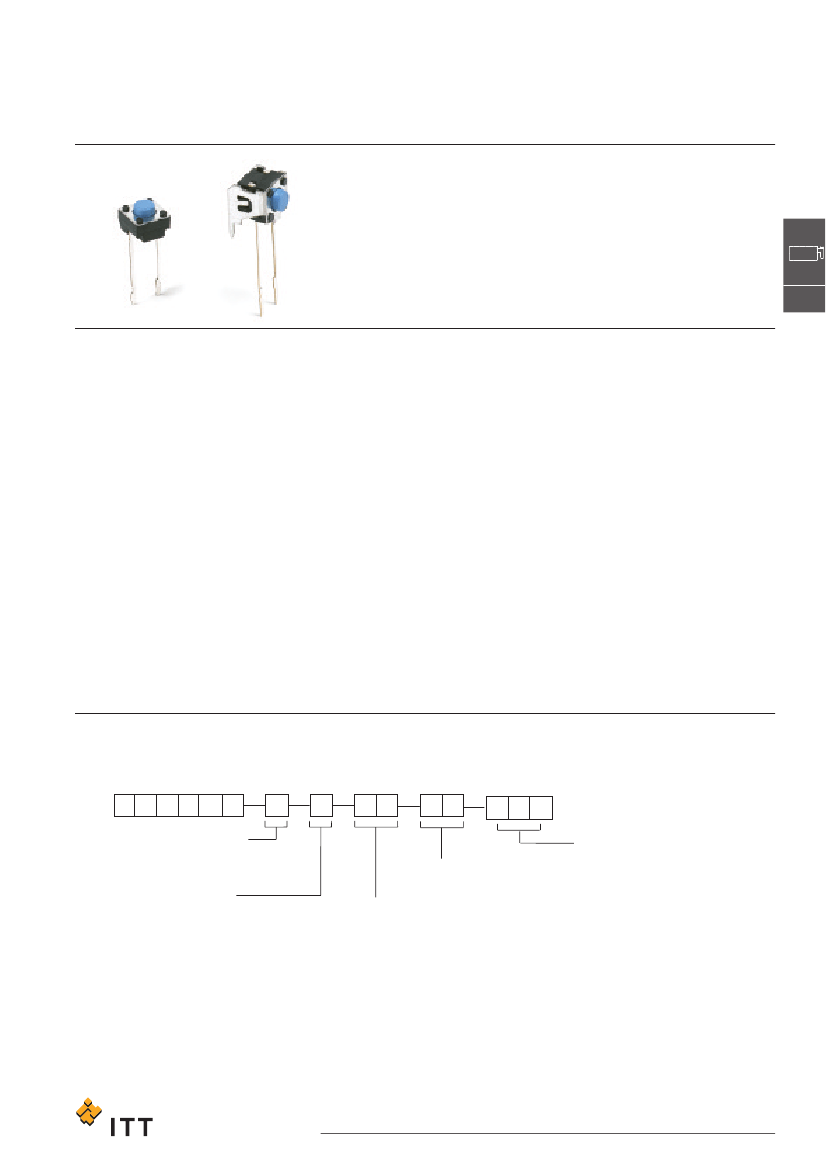

How To Order
Our easy build-a-switch concept allows you to mix and match options to create the switch you need. To order, select
desired option from each category and and place it in the appropriate box.
P
T
S
6
4
5
T
R
L
F
S
RoHS compliant and
compatible.
Silver plated.
Termination
S
Thru-hole
V
Vertical
Actuation Force
M
(STD) 160 grams
L
130 grams
H
200 grams
K
260 grams
Insertion Type
TR
Radial taping
Actuator Height
43
4,3 (.169), thru-hole
50
5,0 (.197), thru-hole
70
7,0 (.275), thru-hole
95
9,5 (.374), thru-hole
39
3,85 (.151), vertical
48
4,75 (.187), vertical

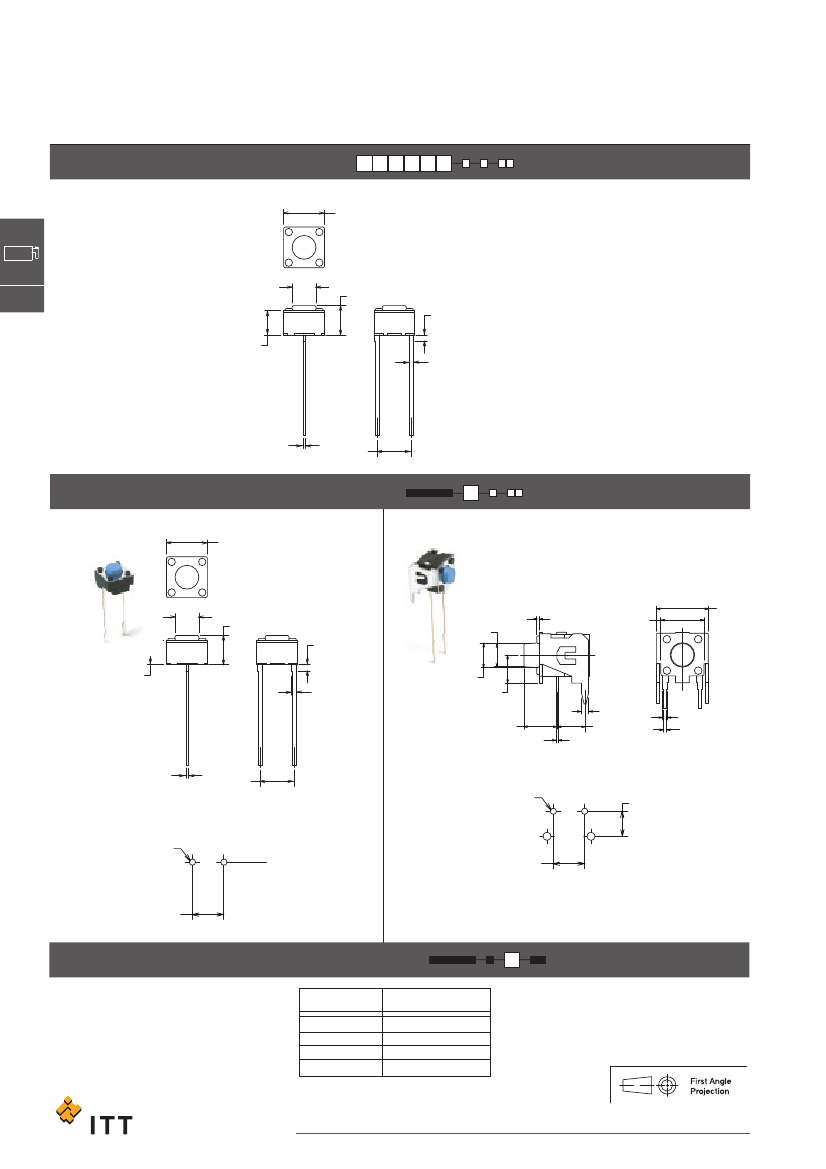

Dimensions shown in: mm (inch)
Specifications and dimensions subject to change
B–55
www.ittcannon.com
