The PA41/42 is externally compensated and performance
can be tailored to the application. Use the graphs of small
signal gain and phase response as well as the graphs for slew
rate and power response as a guide. The compensation
capacitor C
C
must be rated at 350V working voltage. The
compensation capacitor and associated resistor R
C
must be
mounted closely to the amplifier pins to avoid spurious oscilla-
tion. An NPO capacitor is recommended for compensation.
SAFE OPERATING AREA (SOA)
The MOSFET output stage of this power operational ampli-
fier has two distinct limitations:
1. The current handling capability of the die metallization.
2. The temperature of the output MOSFETs.
NOTE: The output stage is protected against transient
flyback. However, for protection against sustained, high en-
ergy flyback, external fast-recovery diodes should be used.
CURRENT LIMIT
For proper operation the current limit resistor, R
CL
, must be

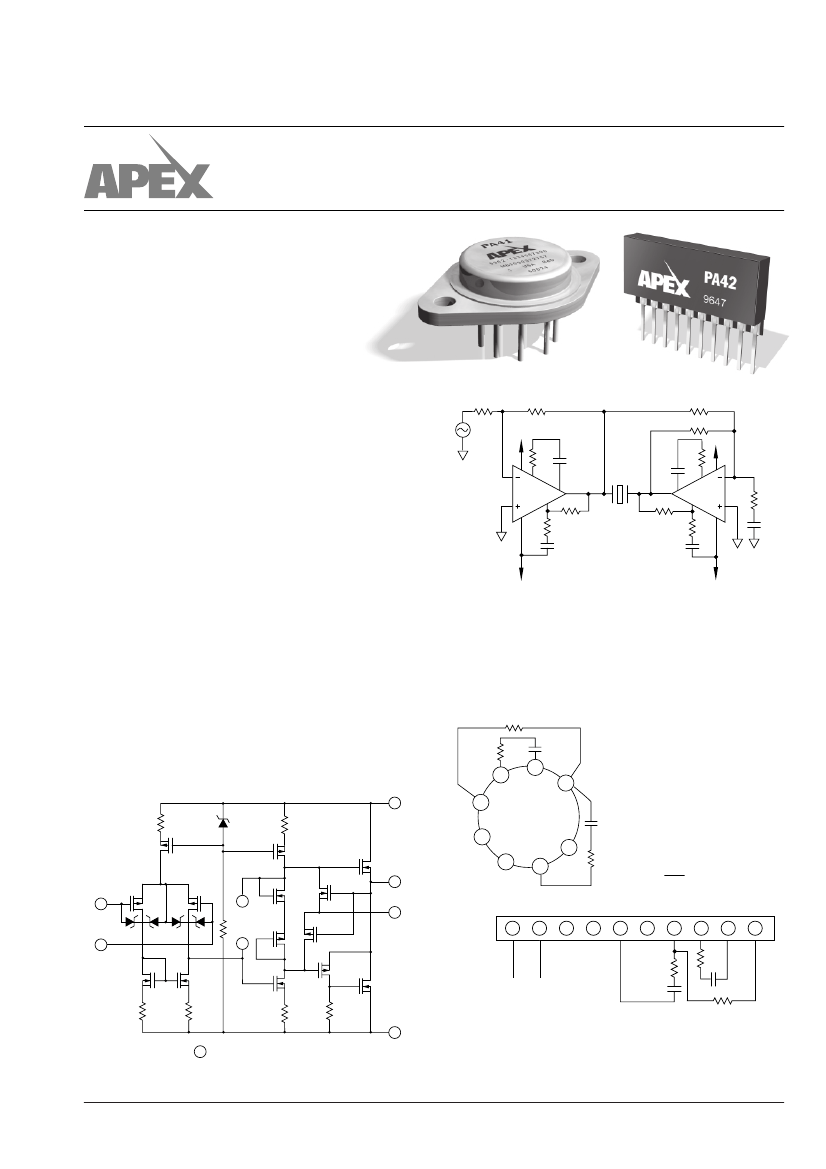

connected as shown in the external connection diagram. The
minimum value is 18 ohms, however for optimum reliability the
resistor value should be set as high as possible. The value can
be estimated as follows with the maximum practical value of
500 ohms.
3
R
CL
=
I
LIM

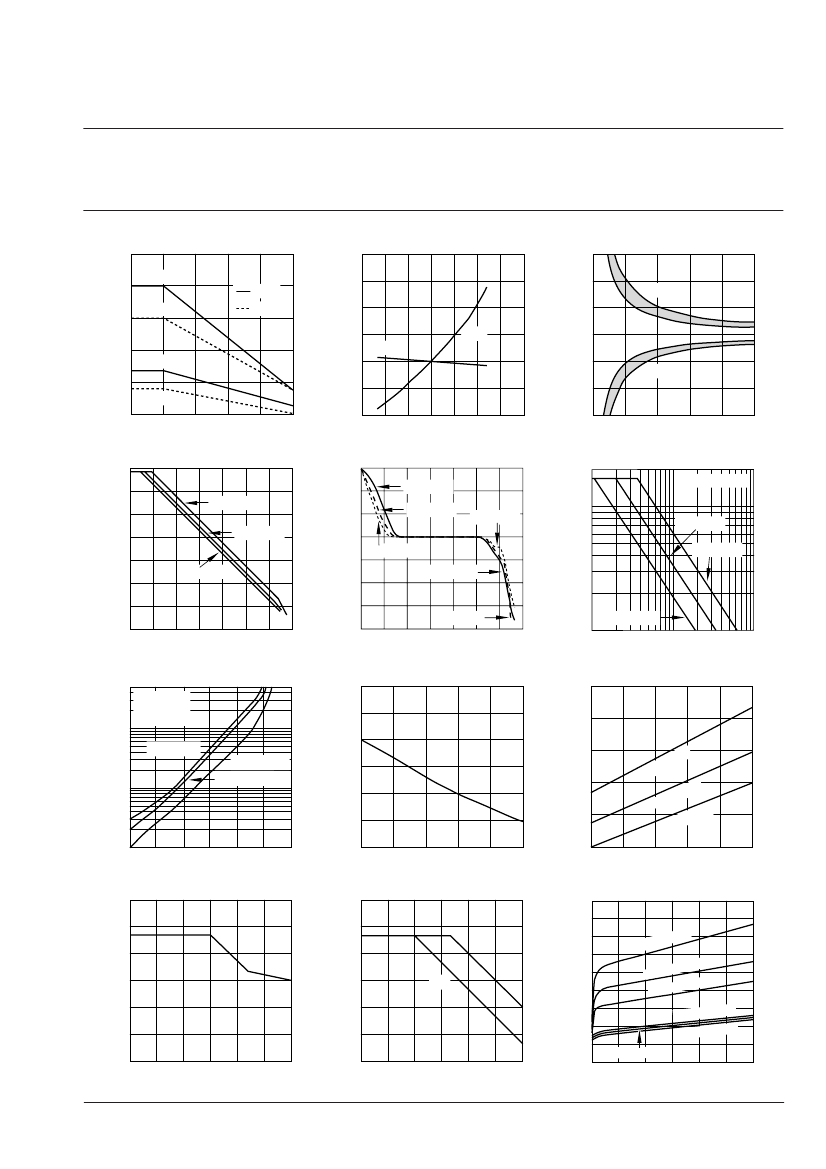

Use the typical performance graphs as a guide for expected
variations in current limit value with a given R
CL
and variations
over temperature. The selected value of R
CL
must be added to
the specified typical value of output resistance to calculate the
total output resistance. Since the load current passes through
R
CL
the value selected also affects the output voltage swing
according to:
V
R
= I
O
* R
CL
where V
R
is the voltage swing reduction.
When the amplifier is current limiting, there may be small
signal spurious oscillation present during the current limited
portion of the negative half cycle. The frequency of the oscil-
lation is not predictable and depends on the compensation,
gain of the amplifier, and load. The oscillation will cease as the
amplifier comes out of current limit.
200
PA41 SOA
OUTPUT CURRENT FROM +V
S
OR –V
S
, (mA)
120
100
300mS
50
40
30
20
200mS
DC
DC
,T
C
=
DC
85
,T
°C
C
=
10
12
5°
C
INPUT PROTECTION
The PA41/42 inputs are protected against common mode
voltages up the supply rails and differential voltages up to
±16
volts as well as static discharge. Differential voltages exceed-
ing 16 volts will be clipped by the protection circuitry. However,
if more than a few milliamps of current is available from the
overload source, the protection circuitry could be destroyed.
The protection circuitry includes 300 ohm current limiting
resistors at each input, but this may be insufficient for severe
overloads. It may be necessary to add external resistors to the
application circuit where severe overload conditions are ex-
pected. Limiting input current to 1mA will prevent damage.
5
4
3
PULSE CURVES @ 10% DUTY CYCLE MAX
2
10
20 30
50
100
200 300
500
SUPPLY TO OUTPUT DIFFERENTIAL, V
S
-V
O
(V)
200
PA42 SOA
10
0
m
S
OUTPUT CURRENT FROM +V
S
OR –V
S
, (mA)
120
100
30
0m
S
20
0
m
S
50
40
30
20
STABILITY
The PA41/42 has sufficient phase margin when compen-
sated for unity gain to be stable with capacitive loads of at least
10 nF. However, the low pass circuit created by the sumpoint
(–in) capacitance and the feedback network may add phase
shift and cause instabilities. As a general rule, the sumpoint
load resistance (input and feedback resistors in parallel)
should be 5K ohm or less at low gain settings (up to 10).
Alternatively, use a bypass capacitor across the feedback
resistor. The time constant of the feedback resistor and
bypass capacitor combination should match the time constant
of the sumpoint resistance and sumpoint capacitance.
DC
DC
,T
C
DC
,T
=
85
C
=
°C
12
10
5°
C
5
4
3
PULSE CURVES @ 10% DUTY CYCLE MAX
2
10
20 30
50
100
200 300
500
SUPPLY TO OUTPUT DIFFERENTIAL, V
S
-V
O
(V)
This data sheet has been carefully checked and is believed to be reliable, however, no responsibility is assumed for possible inaccuracies or omissions. All specifications are subject to change without notice.
