TECHNICAL DATA
IN74AC620
Octal 3-State Inverting
Bus Transceiver
High-Speed Silicon-Gate CMOS
The IN74AC620 is identical in pinout to the LS/ALS620,
HC/HCT620. The device inputs are compatible with standard CMOS
outputs; with pullup resistors, they are compatible with LS/ALS
outputs.
The IN74AC620 is a 3-state transceiver that is used for 2-way
communication between data buses. Two separate enables are
available. The enable for bus A to B is active-high, the enable for bus
B to A is active-low.
•
Outputs Directly Interface to CMOS, NMOS, and TTL
•
Operating Voltage Range: 2.0 to 6.0 V
•
Low Input Current: 1.0
µA;
0.1
µA
@ 25°C
•
High Noise Immunity Characteristic of CMOS Devices
•
Outputs Source/Sink 24 mA
ORDERING INFORMATION
IN74AC620N Plastic
IN74AC620DW SOIC
T
A
= -40° to 85° C for all packages

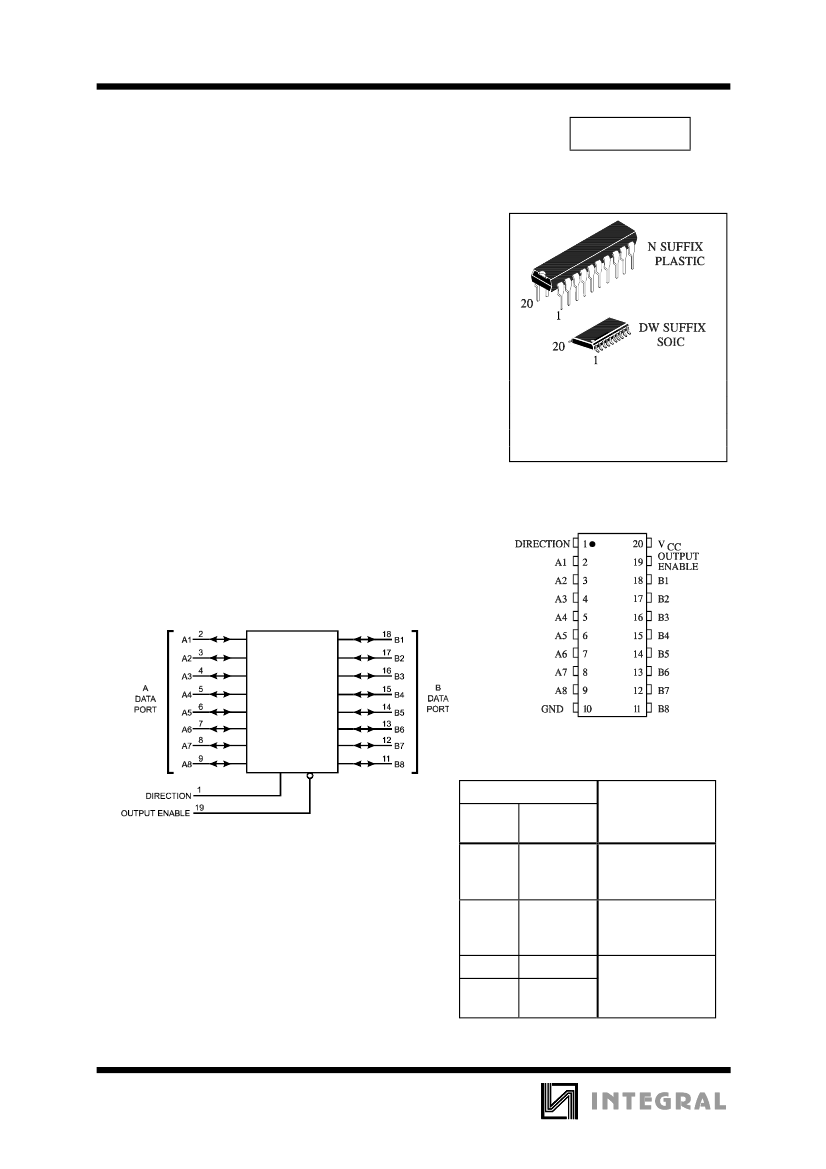

PIN ASSIGNMENT
LOGIC DIAGRAM
FUNCTION TABLE
Control Inputs
Output
Enable
PIN 20=V
CC
PIN 10 = GND
L
Direction
L
Operation
Data Transmitted
from Bus B to
Bus A (inverted)
Data Transmitted
from Bus A to
Bus B (inverted)
Buses Isolated
(High Impedance
State)
H
H
H
L
L
H
476
IN74AC620
MAXIMUM RATINGS
*
Symbol
V
CC
V
IN
V
OUT
I
IN
I
OUT
I
CC
P
D
Tstg
T
L
*
Parameter
DC Supply Voltage (Referenced to GND)
DC Input Voltage (Referenced to GND)
DC Output Voltage (Referenced to GND)
DC Input Current, per Pin
DC Output Sink/Source Current, per Pin
DC Supply Current, V
CC
and GND Pins
Power Dissipation in Still Air, Plastic DIP+
SOIC Package+
Storage Temperature
Lead Temperature, 1 mm from Case for 10 Seconds
(Plastic DIP or SOIC Package)
Value
-0.5 to +7.0
-0.5 to V
CC
+0.5
-0.5 to V
CC
+0.5
±20
±50
±50
750
500
-65 to +150
260
Unit
V
V
V
mA
mA
mA
mW
°C
°C
Maximum Ratings are those values beyond which damage to the device may occur.
Functional operation should be restricted to the Recommended Operating Conditions.
+Derating - Plastic DIP: - 10 mW/°C from 65° to 125°C
SOIC Package: : - 7 mW/°C from 65° to 125°C
RECOMMENDED OPERATING CONDITIONS
Symbol
V
CC
V
IN
, V
OUT
T
J
T
A
I
OH
I
OL
t
r
, t
f
Parameter
DC Supply Voltage (Referenced to GND)
DC Input Voltage, Output Voltage (Referenced to GND)
Junction Temperature (PDIP)
Operating Temperature, All Package Types
Output Current - High
Output Current - Low
Input Rise and Fall Time
*
(except Schmitt Inputs)
V
CC
=3.0 V
V
CC
=4.5 V
V
CC
=5.5 V
0
0
0
-40
Min
2.0
0
Max
6.0
V
CC
140
+85
-24
24
150
40
25
Unit
V
V
°C
°C
mA
mA
ns/V
*
V
IN
from 30% to 70% V
CC
This device contains protection circuitry to guard against damage due to high static voltages or electric
fields. However, precautions must be taken to avoid applications of any voltage higher than maximum rated
voltages to this high-impedance circuit. For proper operation, V
IN
and V
OUT
should be constrained to the range
GND≤(V
IN
or V
OUT
)≤V
CC
.
Unused inputs must always be tied to an appropriate logic voltage level (e.g., either GND or V
CC
).
Unused outputs must be left open.
477
IN74AC620
DC ELECTRICAL CHARACTERISTICS
(Voltages Referenced to GND)
V
CC
Symbol
V
IH
Parameter
Minimum High-Level
Input Voltage
Maximum Low -
Level Input Voltage
Minimum High-Level
Output Voltage
Test Conditions
V
OUT
= 0.1 V or V
CC
-0.1 V
V
3.0
4.5
5.5
3.0
4.5
5.5
3.0
4.5
5.5
3.0
4.5
5.5
3.0
4.5
5.5
3.0
4.5
5.5
5.5
5.5
Guaranteed Limits
25
°C
2.1
3.15
3.85
0.9
1.35
1.65
2.9
4.4
5.4
2.56
3.86
4.86
0.1
0.1
0.1
0.36
0.36
0.36
±0.1
±0.6
-40°C to
85°C
2.1
3.15
3.85
0.9
1.35
1.65
2.9
4.4
5.4
2.46
3.76
4.76
0.1
0.1
0.1
0.44
0.44
0.44
±1.0
±6.0
µA
µA
V
Unit
V
V
IL
V
OUT
= 0.1 V or V
CC
-0.1 V
V
V
OH
I
OUT
≤
-50
µA
V
*
V
IN
=V
IH
or V
IL
I
OH
=-12 mA
I
OH
=-24 mA
I
OH
=-24 mA
V
OL
Maximum Low-Level
Output Voltage
I
OUT
≤
50
µA
V
IN
= V
IH
or V
IL
I
OL
=12 mA
I
OL
=24 mA
I
OL
=24 mA
I
IN
I
OZ
Maximum Input
Leakage Current
Maximum Three-
State Leakage
Current
+Minimum Dynamic
Output Current
+Minimum Dynamic
Output Current
Maximum Quiescent
Supply Current
(per Package)
V
IN
=V
CC
or GND
V
IN
(OE)= V
IH
or V
IL
V
IN
=V
CC
or GND
V
OUT
=V
CC
or GND
V
OLD
=1.65 V Max
V
OHD
=3.85 V Min
V
IN
=V
CC
or GND
*
I
OLD
I
OHD
I
CC
5.5
5.5
5.5
8.0
75
-75
80
mA
mA
µA
All outputs loaded; thresholds on input associated with output under test.
+Maximum test duration 2.0 ms, one output loaded at a time.
Note: I
IN
and I
CC
@ 3.0 V are guaranteed to be less than or equal to the respective limit @ 5.5 V V
CC
*
478
IN74AC620
AC ELECTRICAL CHARACTERISTICS
(C
L
=50pF,Input t
r
=t
f
=3.0 ns)
V
CC*
Symbol
Parameter
V
Guaranteed Limits
25
°C
Min
t
PLH
t
PHL
t
PZH
t
PZL
t
PHZ
t
PLZ
C
IN
Propagation Delay, A to B , B to A (Figure 1)
Propagation Delay, A to B , B to A (Figure 1)
Propagation Delay, Direction or Output
Enable to A or B (Figure 2)
Propagation Delay, Direction or Output
Enable to A or B (Figure 2)
Propagation Delay, Direction or Output
Enable to A or B (Figure 2)
Propagation Delay, Direction or Output
Enable to A or B (Figure 2)
Maximum Input Capacitance
3.3
5.0
3.3
5.0
3.3
5.0
3.3
5.0
3.3
5.0
3.3
5.0
5.0
1.5
1.5
1.5
1.5
2.5
1.5
2.5
1.5
2.0
1.5
2.0
1.5
4.5
Max
8.5
6.5
8.5
6.0
11.5
8.5
12.0
9.0
12.0
9.0
12.0
9.0
-40°C to
85°C
Min
1.0
1.0
1.0
1.0
2.0
1.0
2.0
1.0
1.0
1.0
1.5
1.0
4.5
Max
9.5
7.5
9.5
7.0
13.0
9.5
13.5
10.0
13.0
10.0
13.0
10.0
ns
ns
ns
ns
ns
ns
pF
Unit
Typical @25°C,V
CC
=5.0 V
C
PD
*
Power Dissipation Capacitance
45
pF
Voltage Range 3.3 V is 3.3 V
±0.3
V
Voltage Range 5.0 V is 5.0 V
±0.5
V

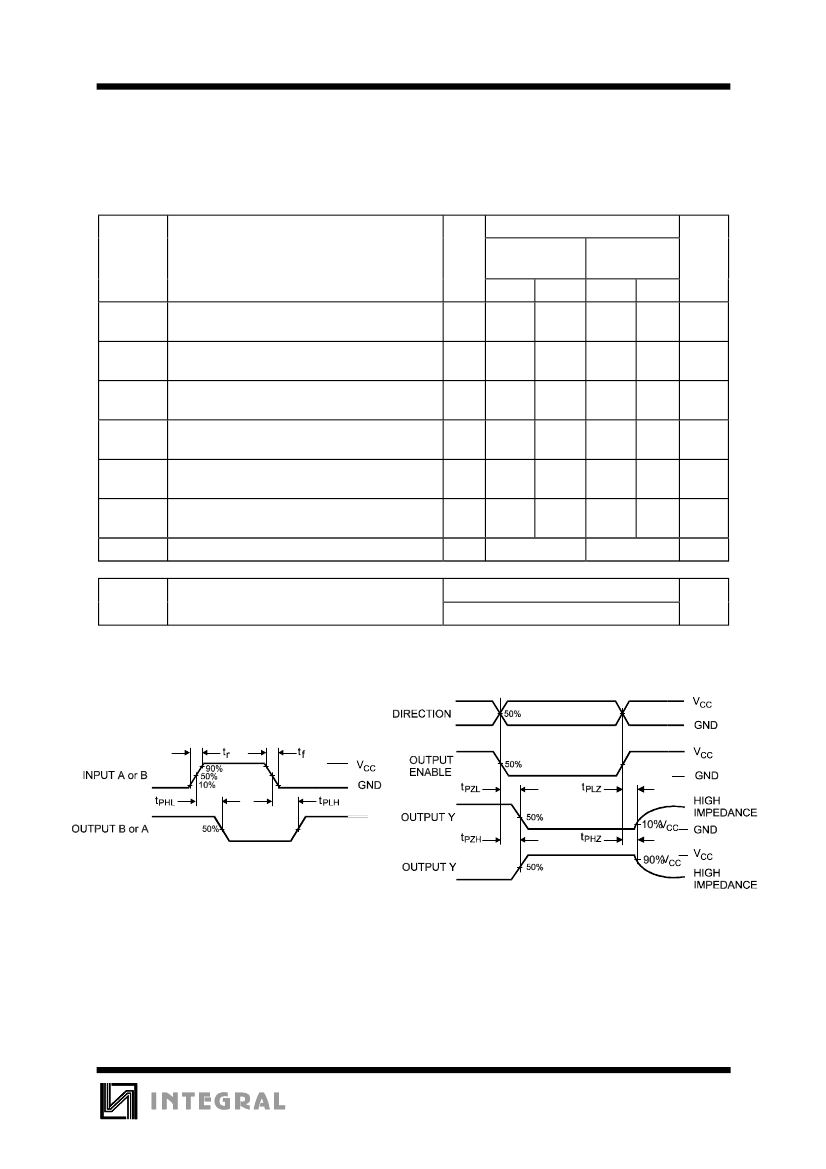

Figure 1. Switching Waveforms
Figure 2. Switching Waveforms
479
IN74AC620

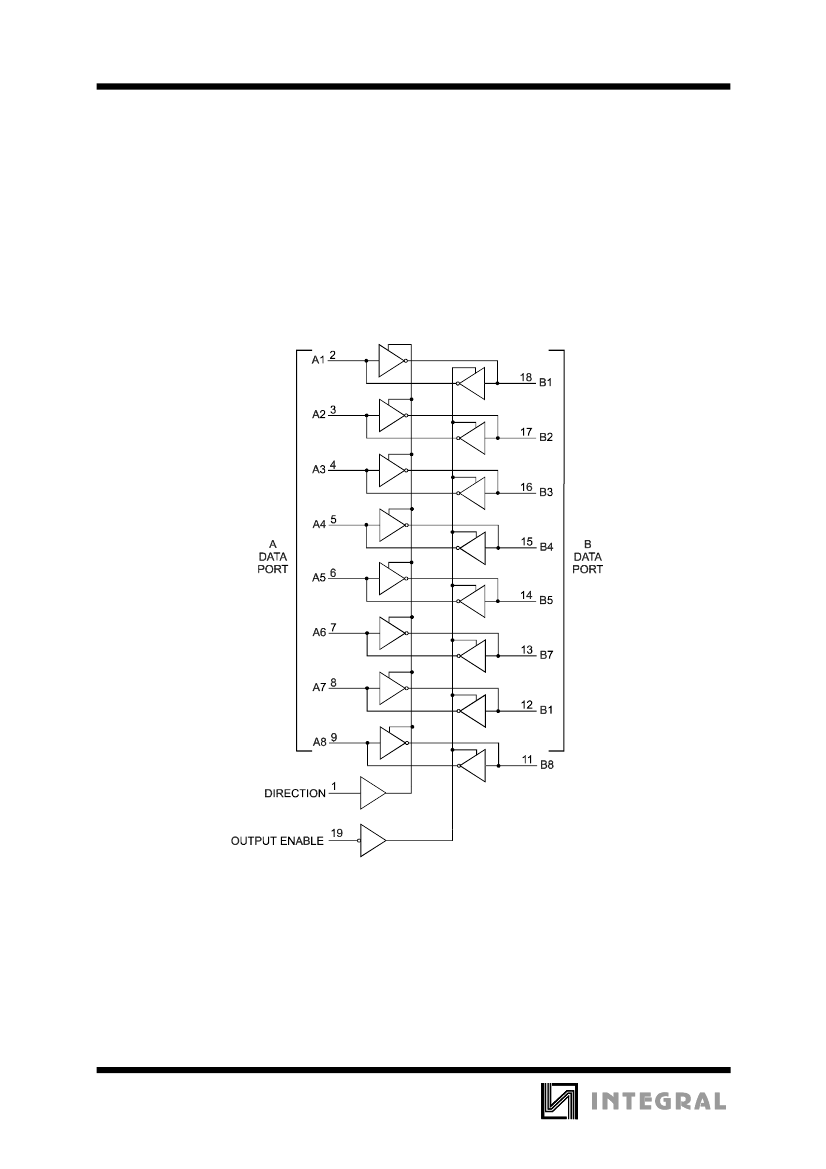

EXPANDED LOGIC DIAGRAM
480
