595D475X0016A2T datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 595D475X0016A2T

595D475X0016A2T: DescriptionTantalum Capacitors - Solid SMD 4.7uF 16volts 20% A case Conformal; CategoryPassive components capacitor; File Size334KB，24 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

595D475X0016A2T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	595D475X0016A2T	-	-	View	Buy Now

595D475X0016A2T Overview

Tantalum Capacitors - Solid SMD 4.7uF 16volts 20% A case Conformal

595D475X0016A2T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Vishay
package instruction	, 1507
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	Solid Tantalum Chip Capacitors TANTAMOUNT(TM), Conformal Coated, Maximum CV
Other features	ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ
capacitance	4.7 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
ESR	2900 mΩ
high	1.4 mm
JESD-609 code	e3
leakage current	0.0008 mA
length	3.7 mm
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, Embossed Plastic, 7 Inch
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	16 V
ripple current	160 mA
size code	1507
surface mount	YES
Delta tangent	0.06
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	1.8 mm
Base Number Matches	1

Preview

Download Datasheet

View All

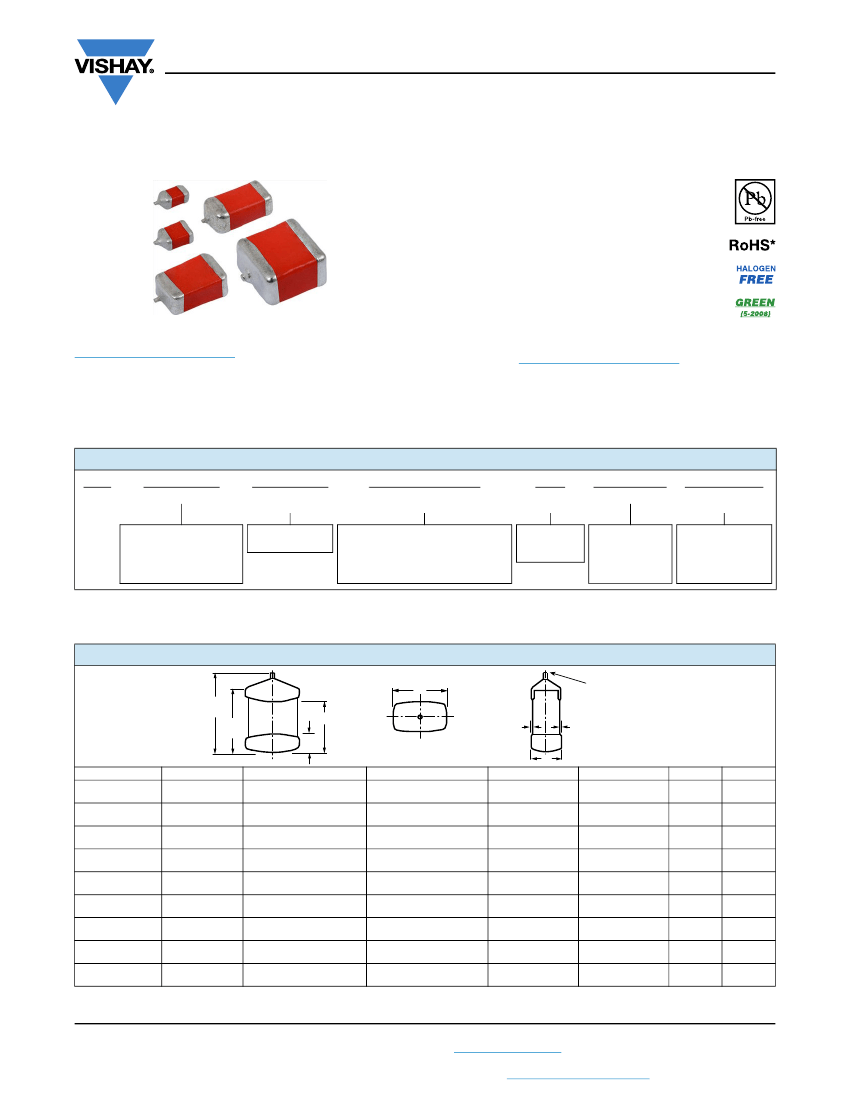

595D

www.vishay.com

Vishay Sprague

Solid Tantalum Chip Capacitors T

ANTAMOUNT

™,

Conformal Coated, Maximum CV

FEATURES

• Large capacitance rating range

• Terminations: 100 % tin (2) standard,

tin / lead available

Available

PERFORMANCE CHARACTERISTICS

www.vishay.com/doc?40194

Operating Temperature:

-55 °C to +125 °C

(above 85 °C, voltage derating is required)

Capacitance Range:

0.1 μF to 1500 μF

Capacitance Tolerance:

± 10 %, ± 20 % standard

Voltage Rating:

4 V

to 50 V

• 8 mm, 12 mm tape and reel packaging available

Available

per EIA 481 and reeling per IEC 60286-3.

7" [178 mm] standard. 13" [330 mm] available

Available

• Case code compatibility with EIA 535BAAC

and CECC 30801

Available

• All cases except R case are halogen-free

• Material categorization: for definitions of compliance

please see

www.vishay.com/doc?99912

Note

This datasheet provides information about parts that are

RoHS-compliant and / or parts that are non RoHS-compliant. For

example, parts with lead (Pb) terminations are not RoHS-compliant.

Please see the information / tables in this datasheet for details

ORDERING INFORMATION

595D

TYPE

106

CAPACITANCE

This is expressed in pF.

The first two digits are

the significant figures.

The third is the number

of zeros to follow.

CAPACITANCE

TOLERANCE

X0 = ± 20 %

X9 = ± 10 %

010

DC VOLTAGE RATING

AT +85 °C

This is expressed in V.

To complete the three-digit block,

zeros precede the voltage rating.

A decimal point is indicated by an

“R” (6R3 = 6.3 V).

CASE

CODE

See Ratings

and Case

Codes table

TERMINATION

2 = 100 % tin

4 = gold plated

8 = solder

plated (60/40)

Special order

REEL SIZE AND

PACKAGING

Tape and reel

T = 7"

[178 mm] reel

W = 13"

[330 mm] reel

Note

• Preferred tolerances and reel sizes are in bold.

We reserve the right to substitute form-fit-function replacement products with higher voltage rating, tighter capacitance tolerance, lower

ESR (e.g., 594D series), or increased reliability screening (T95 series)

DIMENSIONS

in inches [millimeters]

MAX.

REF.

MAX.

Tantalum wire

nib identifies

anode (+)

terminal

MAX.

CASE CODE

L MAX.

0.087

[2.2]

0.126 ± 0.012

[3.2 ± 0.3]

0.146

[3.7]

0.142

[3.6]

0.158

[4.0]

0.281

[7.1]

0.221

[5.6]

0.293

[7.4]

0.283

[7.2]

0.045 ± 0.012

[1.1 ± 0.3]

0.063 ± 0.012

0.052 ± 0.012

[1.6 ± 0.3]

[1.3 ± 0.3]

0.072 ± 0.012

0.056 ± 0.012

[1.8 ± 0.3]

[1.4 ± 0.3]

0.106 ± 0.012

0.067 ± 0.012

[2.7 ± 0.3]

[1.7 ± 0.3]

0.110 + 0.012 / - 0.016 0.075 + 0.012 / - 0.024

[2.8 + 0.3 / - 0.4]

[1.9 + 0.3 / - 0.6]

0.126 ± 0.012

0.098 ± 0.012

[3.2 ± 0.3]

[2.5 ± 0.3]

0.144 ± 0.016

0.087 max.

[3.66 ± 0.4]

[2.2 max.]

0.170 + 0.012 / - 0.024

0.110 ± 0.012

[4.3 + 0.3 / - 0.6]

[2.8 ± 0.3]

0.235 + 0.012 / - 0.024 0.136 + 0.012 / - 0.016

[6.0 + 0.3 / - 0.6]

[3.5 + 0.3 / - 0.4]

0.016 ± 0.008

[0.4 ± 0.2]

0.031 ± 0.012

[0.8 ± 0.3]

0.031 ± 0.012

[0.8 ± 0.3]

0.031 ± 0.012

[0.8 ± 0.3]

0.031 ± 0.012

[0.8 ± 0.3]

0.051 ± 0.012

[1.3 ± 0.3]

0.051 ± 0.012

[1.3 ± 0.3]

0.051 ± 0.012

[1.3 ± 0.3]

0.051 ± 0.012

[1.3 ± 0.3]

0.042 ± 0.010

[1.07 ± 0.25]

0.078 ± 0.012

[2.0 ± 0.3]

0.085 ± 0.016

[2.2 ± 0.4]

0.080 ± 0.012

[2.0 ± 0.3]

0.097 ± 0.016

[2.5 ± 0.4]

0.180 ± 0.024

[4.6 ± 0.6]

0.133 ± 0.016

[3.4 ± 0.4]

0.180 ± 0.024

[4.6 ± 0.6]

0.180 ± 0.024

[4.6 ± 0.6]

D REF.

0.063

[1.6]

0.086

[2.2]

0.115

[2.9]

0.107

[2.7]

0.138

[3.5]

0.236

[6.0]

0.173

[4.4]

0.253

[6.4]

0.243

[6.2]

J MAX.

0.004

[0.1]

0.004

[0.1]

0.004

[0.1]

0.004

[0.1]

0.004

[0.1]

0.004

[0.1]

0.004

[0.1]

0.004

[0.1]

0.004

[0.1]

Note

• The anode termination (D less B) will be a minimum of 0.010" [0.25 mm]. T case = 0.005" [0.13 mm] minimum

Revision: 21-Jun-17

Document Number: 40007

For technical questions, contact:

tantalum@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000
